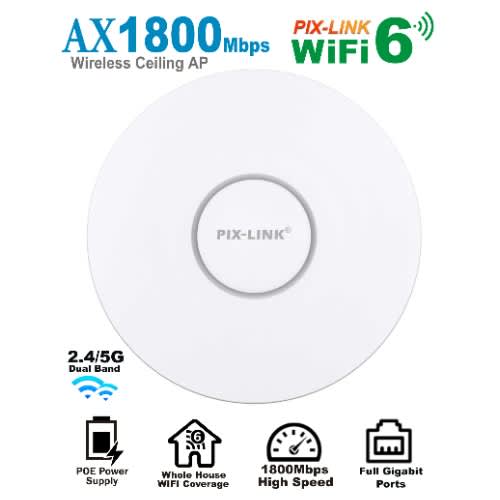

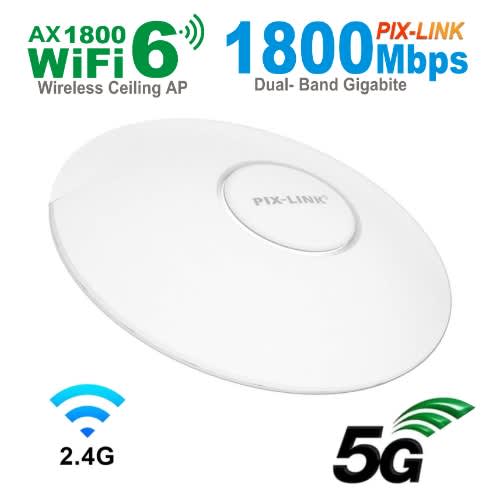

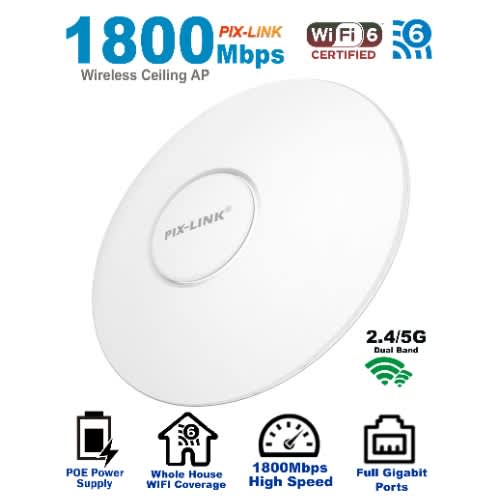

PIX-LINK-Dual Frequency Indoor Wireless AP, Ceiling Mounted, 1800Mbps, Wi-Fi 6, 2.4GHz, 5.8GHz,
1. MT7981A+MT7976D+MT7531 chip solution
2. 1800M WiFi-6 standard
3. Support 802.11a/b/g/n/ac/ax protocol standard
4. 2.4GHz & 5.8GHz dual frequency, more enjoyable
5. 3000Mbps high-speed wireless transmission rate
6. Larger bandwidth, increased from 256 QAM to 1024 QAM
7. Low latency for simultaneous data transmission between multiple users
8. Strong anti-interference ability, alleviating interference problems in the same channel
9. Support ULMU MIMO, OFDMA and 1024QAM technologies stronger coverage
PIX-LINK is a 1800Mbps High Power AP
Supporting 2.4 and 5.8GHz , dual-band anti-interference, large-area coverage without blind spots, and seamless roaming .
Applicable product scenarios:
Various large-scale indoor scenes, such as shopping malls and supermarkets, hotels, corporate schools, conferences and exhibitions, restaurants, etc.
Product Performance:
1. WiFi6 Ceiling AP, 1800Mbps High Power
2. 2.4GHz and 5.8GHz dual-band concurrent, providing fast, comprehensive and stable indoor wireless network
3. Adopt powerful three-chip intelligent solution to ensure equipment stability and guaranteed performance.
4. Using 48V standard POE power supply , the design is more convenient

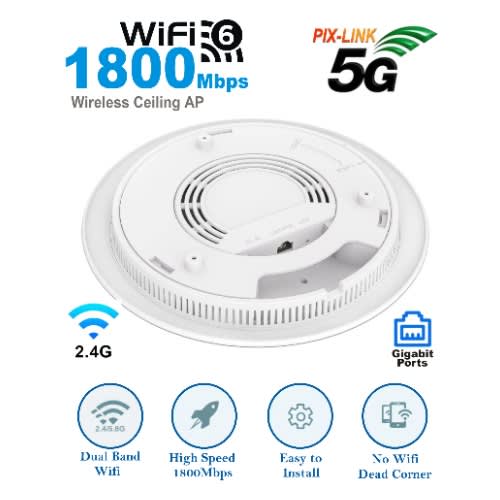

5. The hidden structure of the network cable port hides the exposed network cables, maintaining the overall atmosphere, simplicity and beauty.
6. Full gigabit network port transmission , providing stable, high-speed, 360° wide-range wireless coverage
7. Increased bandwidth, upgraded from 256-QAM to 1024-QAM
8. Low latency, allowing simultaneous data transmission by multiple users
9. Strong anti-interference ability, alleviating same-channel interference problems
10. Support U LMU - MIMO, DMA and 1024QAM Technology; stronger coverage
11. Effectively improve coverage compared to WiFi5
12. Support Wall and ceiling mounted installation
Product specifications:
Color: white
1. Support IEEE802.11a/b/g/n/ac/ Ax Standard
2. Memory: 256MB; Flash Memory: 128MB
3. Maximum transmit power: 400mW (26dbm)
4. Maximum receiving sensitivity: -96dbm
5. Working frequency: 802.11b/g/n: 2.412GHz-2.472GHz; 802.11ax/ac/an/a: 5.180GHz-5.825GHz
6. 1*10/100/1000Mbps RJ45 WAN Ethernet port
7. 1*10/100/1000Mbps RJ45 Ethernet LAN port
8. 2.4GHz: 574Mbps; 5.8GHz: 2400Mbps
9. Built-in 4 * 3dBi antenna
10. 48V 0.5A POE power
11. Maximum power consumption 24W
Package Included:
1x 11ax WiFi6 Ceiling Access Point
1x48V POE Power Adapter
1x Ethernet LAN cable
1x User Manual
Innovative Wifi6
Smart choice
Compared with wifi5, the speed is faster and the
capacity is larger, meeting the needs of high-speed
Internet in multi-user and high-bandwidth scenarios
Higher speed
Through 1024QAM modulation, larger number of sub.
carriers and 160MHz bandwidth technology, the
wireless rate is increased to 2976Mbps.
Larger capacity
802.11ax adopts OFDMA and DL/UL MU MIMO technology,
compared with 802.11ac, the network capacity is
increased to 4 times; TWT technology, the AP can
uniformly schedule terminal wake-up and sleep
activities to meet the access needs of a large number
of terminal devices.
Extended coverage
802.11ax effectively reduces the terminal packet loss
rate, improves the terminal receiving sensitivity,
and has wider WiFi coverage through the long OFDM
symbol transmission mechanism and 2MHz narrowband
transmission.
More Anti-interference
802.11ax supports BSS color coding, dynamic CCA
threshold and power control, which can effectively
alleviate the problem of CO channel interference in
multi-user scenarios.
Fearless a high Ambient Density
Wifi6 standard + powerful triple chip, enterprise-
class high-power PA, to meet the demand for wireless
coverage in crowded places
Gigabit Ports Full network speeds
True gigabit port, faster wired transmission rate,
fiber optic broadband network accelerates traction
fullwithout loss
Dual band in one Excellent experience
2.4 & 5.8GHz dual-band simultaneously, which can help
users automatically select the frequency band and
filter better signals for smooth network and better
user experience
Reduce latency Invincible Network
Multiple terminals surf the Internet at the same time
without interfering with each other, the delay is
reduced to 10ms, and the network is smoother
POE power supply Easy construction
Dual POE network port, no need for external power,
one network cable can transmit data and power at the
same time
Unified AC Management
AP Management
Cooperating with COMFAST AC management equipment, a
large number of wireless ceiling APscan can be
centrally controlled and managed without
configuration, and one-click deployment reduces
control and maintenance costs.
Easy installation
Ceiling mounting
1. Remove the chassis and fix it to the ceiling with
four screws;
2. Fix chassis on AP
3. Finished
Wall mount
1. Remove the chassis and fix it to the wall with
four screws;
2. Fix chassis on AP
3. Finished
