Features:

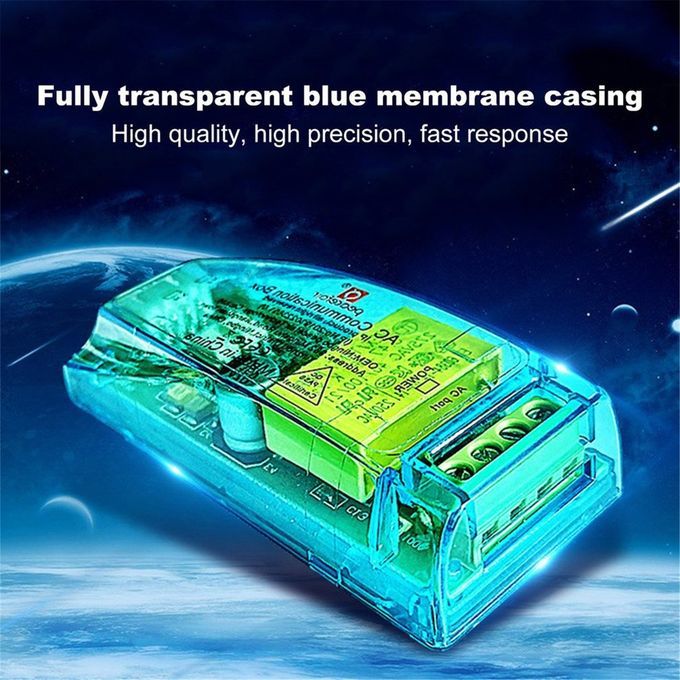

1.Upgraded Version:New and beautiful shell prote tion, high pre ision, fast response and stable ommuni ation.
2.Equi ed With Software:Equi ed with P software, suitable for all WIN syst .
3.Dual Interfa e: hinese and English software dual interfa e, bring you a different experien e.

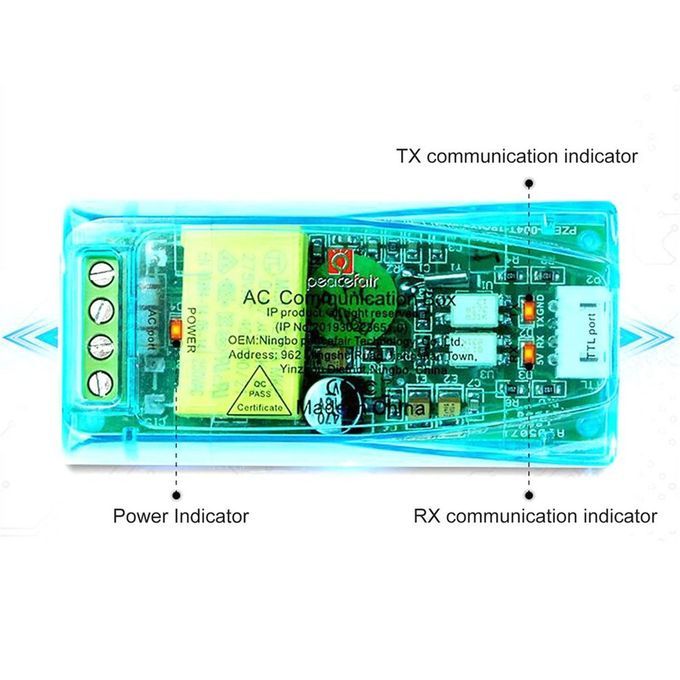

4.Indi ators:In ludes power indi ator, TX ommuni ation indi ator, and RX ommuni ation indi ator.
5.Fun tion:It is mainly used for serial ommuni ation between single mi ro omputer and omputer, whi h is the onne tion between single omputer and omputer.
Des ription:
1.Lightweight, ompa t,durable and beautiful outlook.
2.Easy to use and operation.

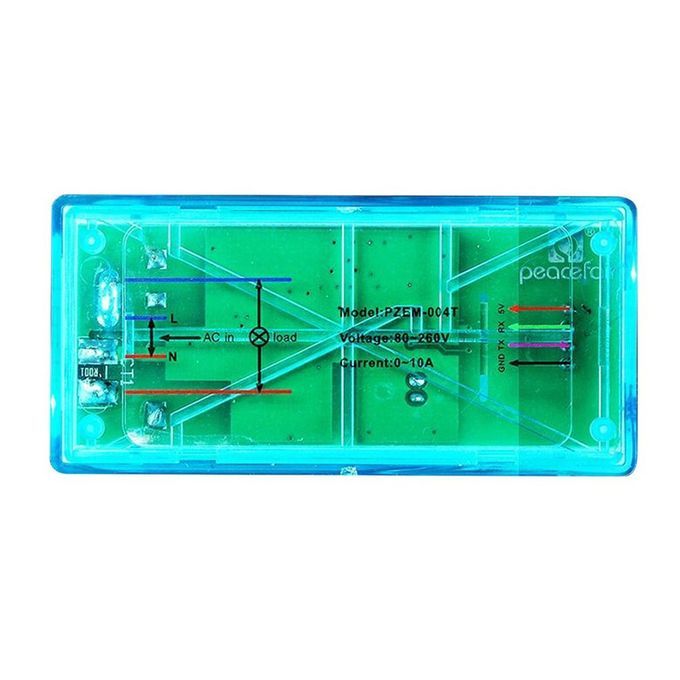

3.Attention:The TTL interfa e of this module is a p ive interfa e. It must be ext lly su lied with 5V power su ly. That is, all four ports must be onne ted (5V, RX, TX, GND) during ommuni ation, otherwise ommuni ation annot be performed.
Spe ifi ations:
Brand:Pea efair
Model:PZEM-004T
olor:Blue

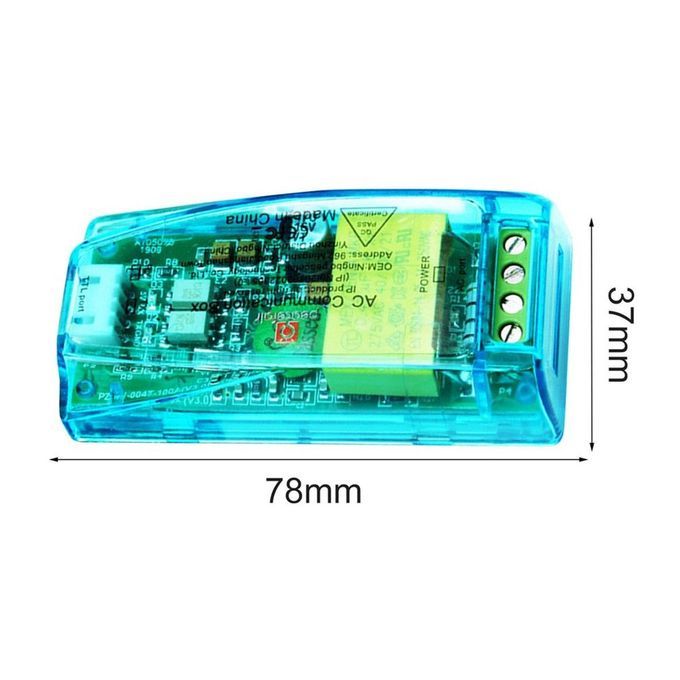

Size:78x37x19mm/3.042x1.443x0.741in
Type:Set1,Set2,Set3,Set4,Set5,Set6(Optional)
Measurement Range: 80-260V (10A/100A)
Resolution: 0.1V
Measurement A ura y: 0.5%
Measurement Range: 0-10A (10A), 0-100A (100A)
Initial urrent/Power: 0.01A (10A), 0.02A (100A)
Resolution: 0.001A
Measurement A ura y: 0.5%
Measurement Range: 0-2.3KW (10A), 0-23KW (100A)
Initial urrent/Power: 0.4KW (10A/100A)
Resolution: 0.1W
Measurement A ura y: 0.5%
Display Format: ≥ 1000W, only integers, su h as: 1000W
Measurement Range: 0.00-1.00 (10A/100A)
Resolution: 0.01
Measurement A ura y: 1%
Measurement Range: 45HZ-65HZ (10A/100A)
Resolution: 0.1HZ
Measurement A ura y: 0.5%
A tive Power (Power learing: Software learing):
Measurement Rrange: 0-9999.99KWh (10A/100A)
Resolution: 1KWh
Measurement A ura y: 0.5%
Display Format: Power Over-limit Alarm: A tive power threshold an be set, when the measured a tive power ex eeds the set threshold, sets the alarm state.
ommuni ation Interfa e: TTL Interfa e
Power Su ly: Single-phase power su ly of power-frequen y network su lies power to the main ir uit through resistan e- apa itan e voltage redu tion. The TTL output ommuni ation interfa e is isolated from the main ir uit opto oupler, whi h is a p ive output, needing 5V power su ly from ext l when ommuni ate.
Working Temperature: - 20 ~ + 60 Degrees elsius
Pa kage In luded:
1 x Set1/Set2/Set3/Set4/Set5/Set6(Optional)
Set1:1 x 10A host
Set2:1 x 10A host + 1 x TTL to USB able
Set3:1 x 100A host + 1 x oil T
Set4:1 x 100A host + 1 x split T
Set5:1 x 100A host + 1 x oil T + 1 x TTL to USB able
Set6:1 x 100A host + 1 x split T + x TTL to USB able
Notes:
1.Due to the differen e between different ,the pi ture may not refle t the a tual olor of the item.
2.Due to different personal measuring te hniques,there might be 1-3 m error of the physi al.Thank you!
