Buy 2000W Class A Power Amplifier Delay High-Power Power Supply

2000W Class A Power Amplifier Delay High-Power Power Supply Soft Start Protection Board

₦ 45,888.28 ₦ 48,303.45 -5%

0 No Reviews

Product SKU: RENG281575

Brand: 915 Generation

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	Start Protection Board
Production Country	China
Size (L x W x H cm)	8x5x3
Weight (kg)	0.078
Color	multicolor

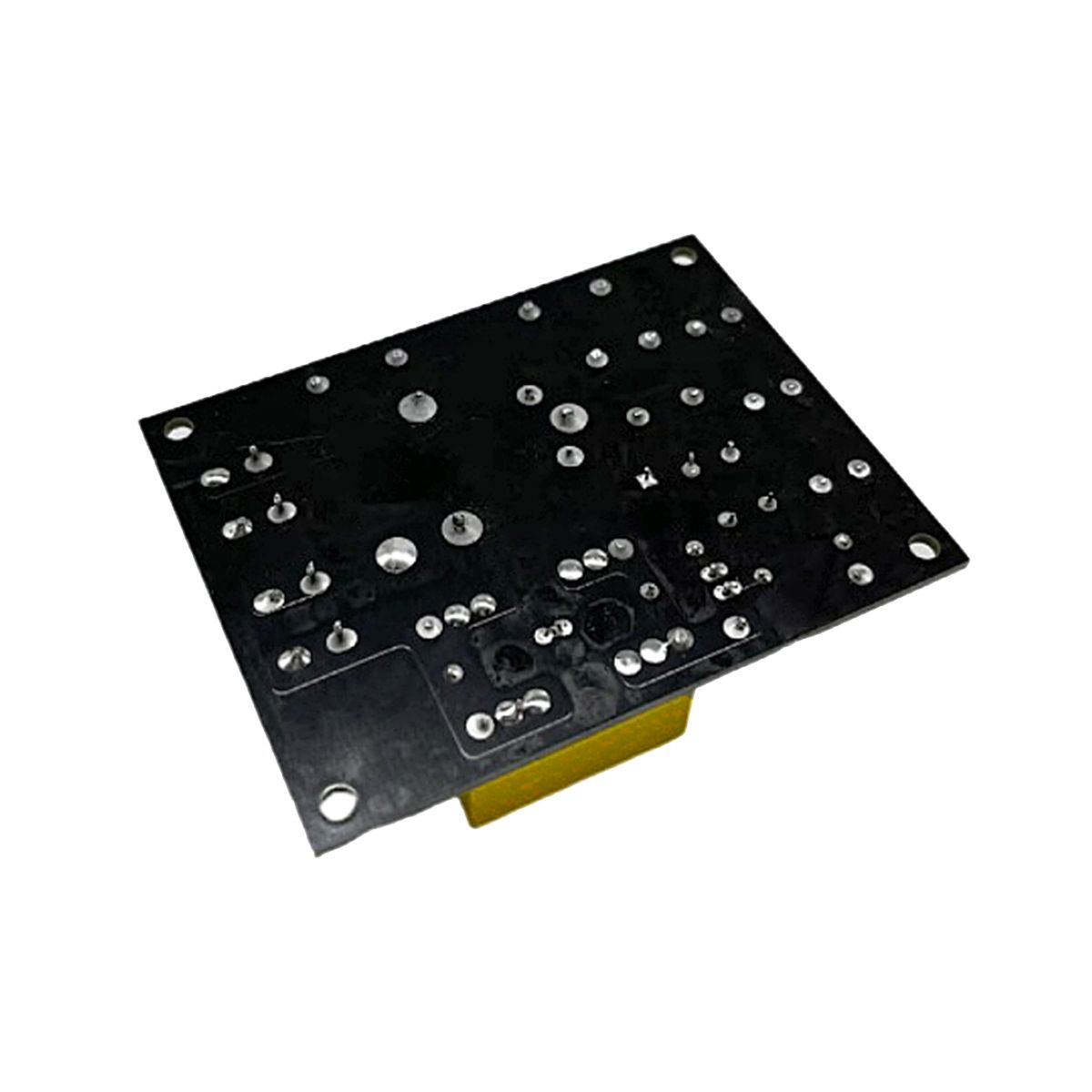

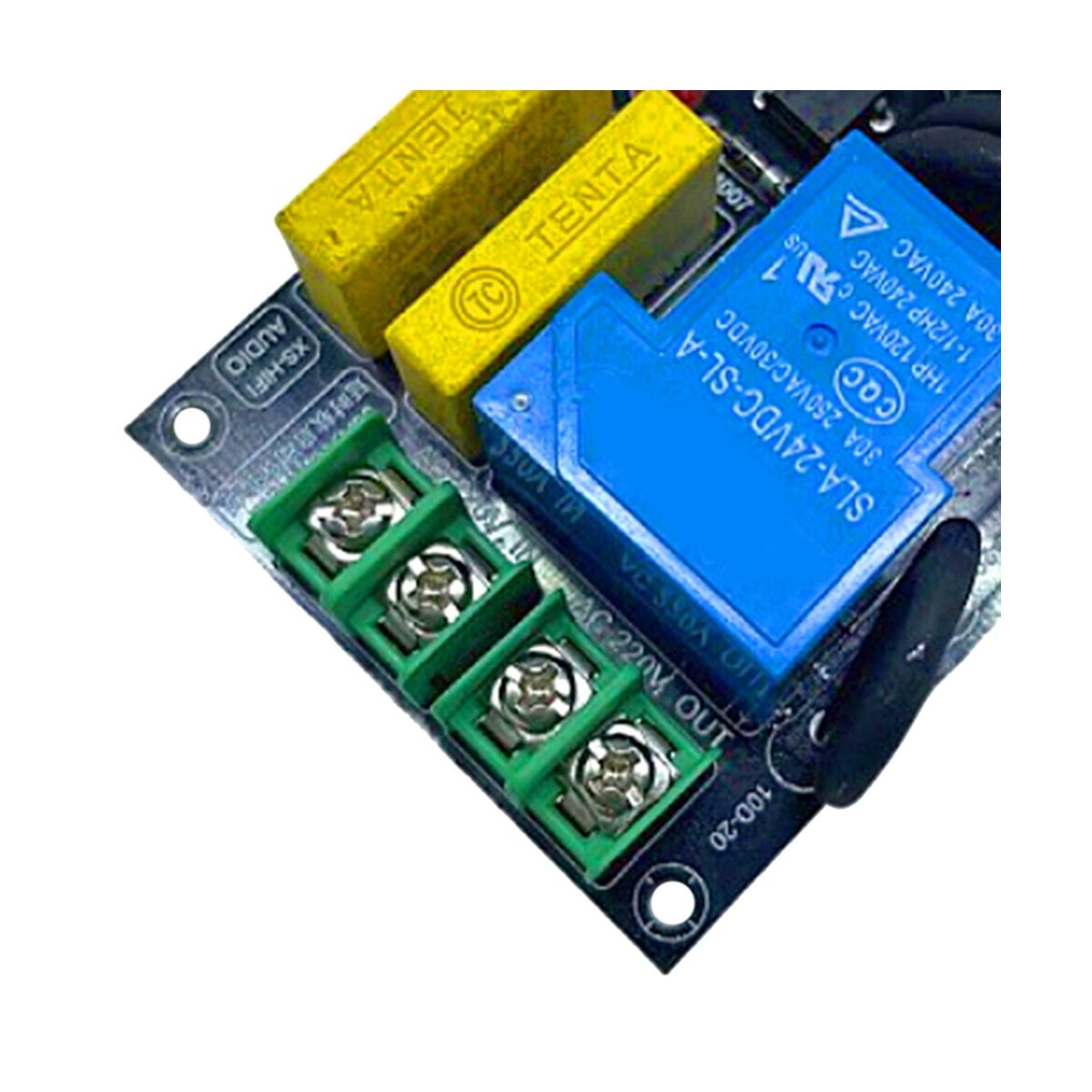

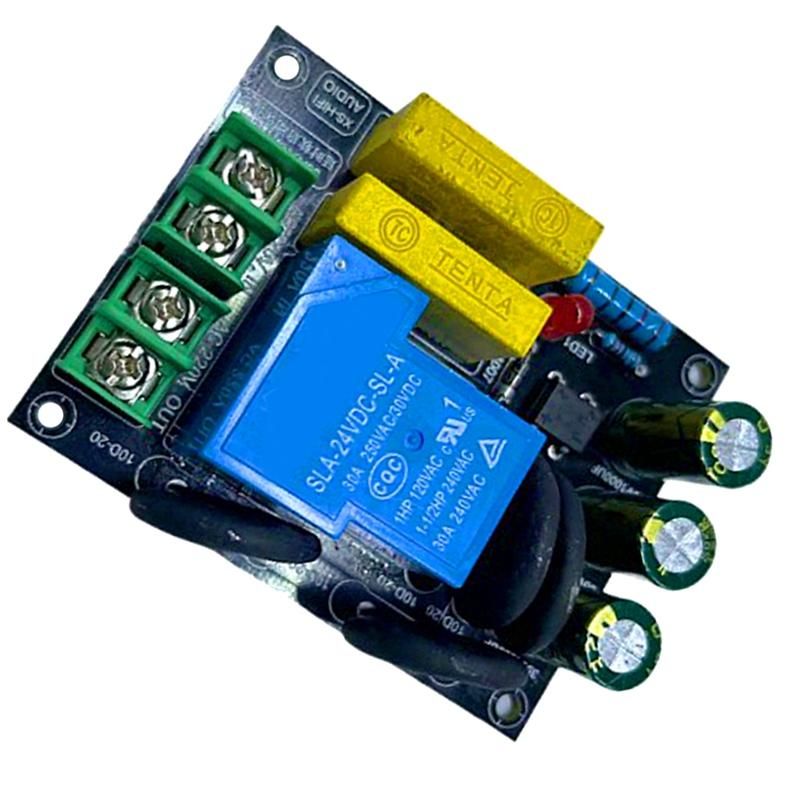

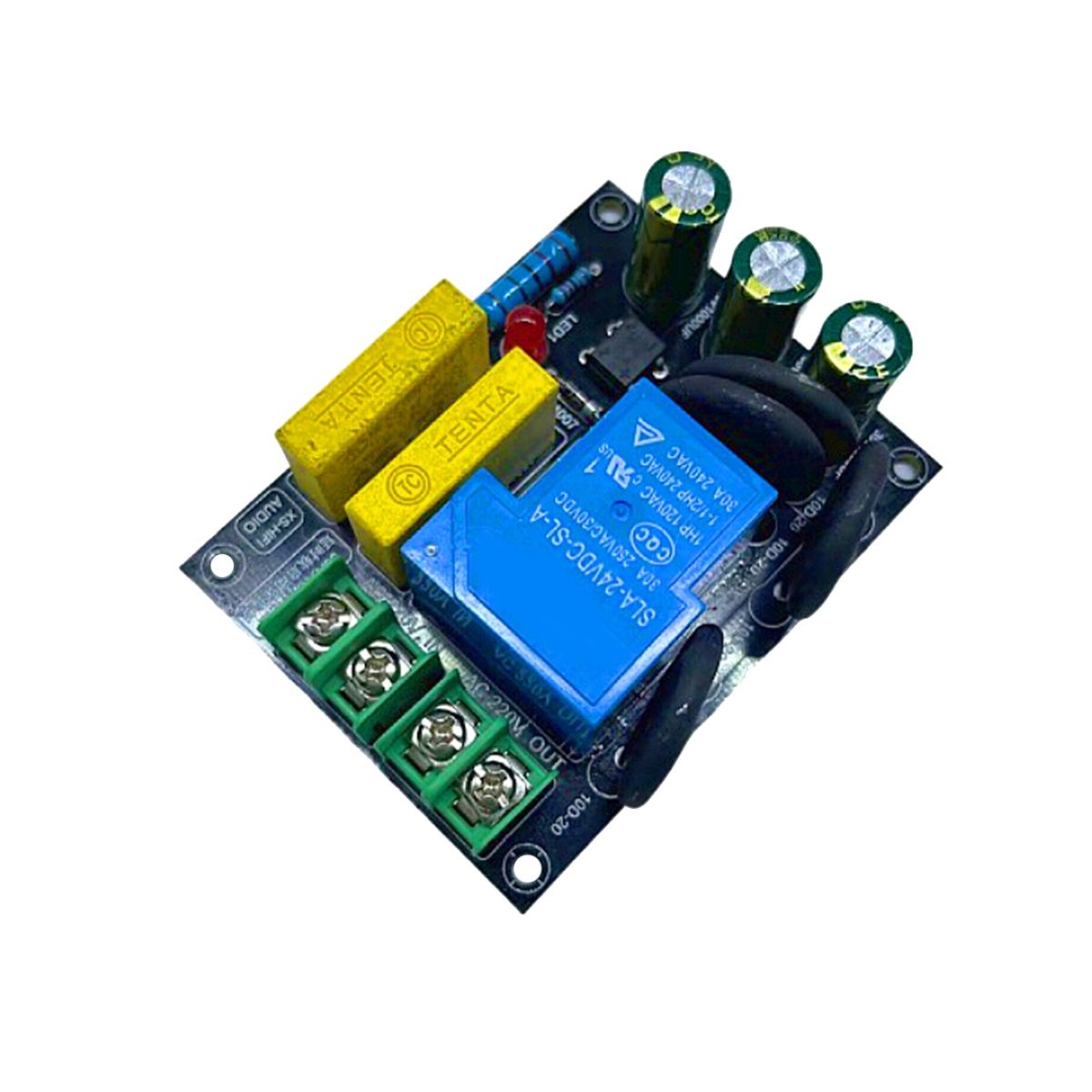

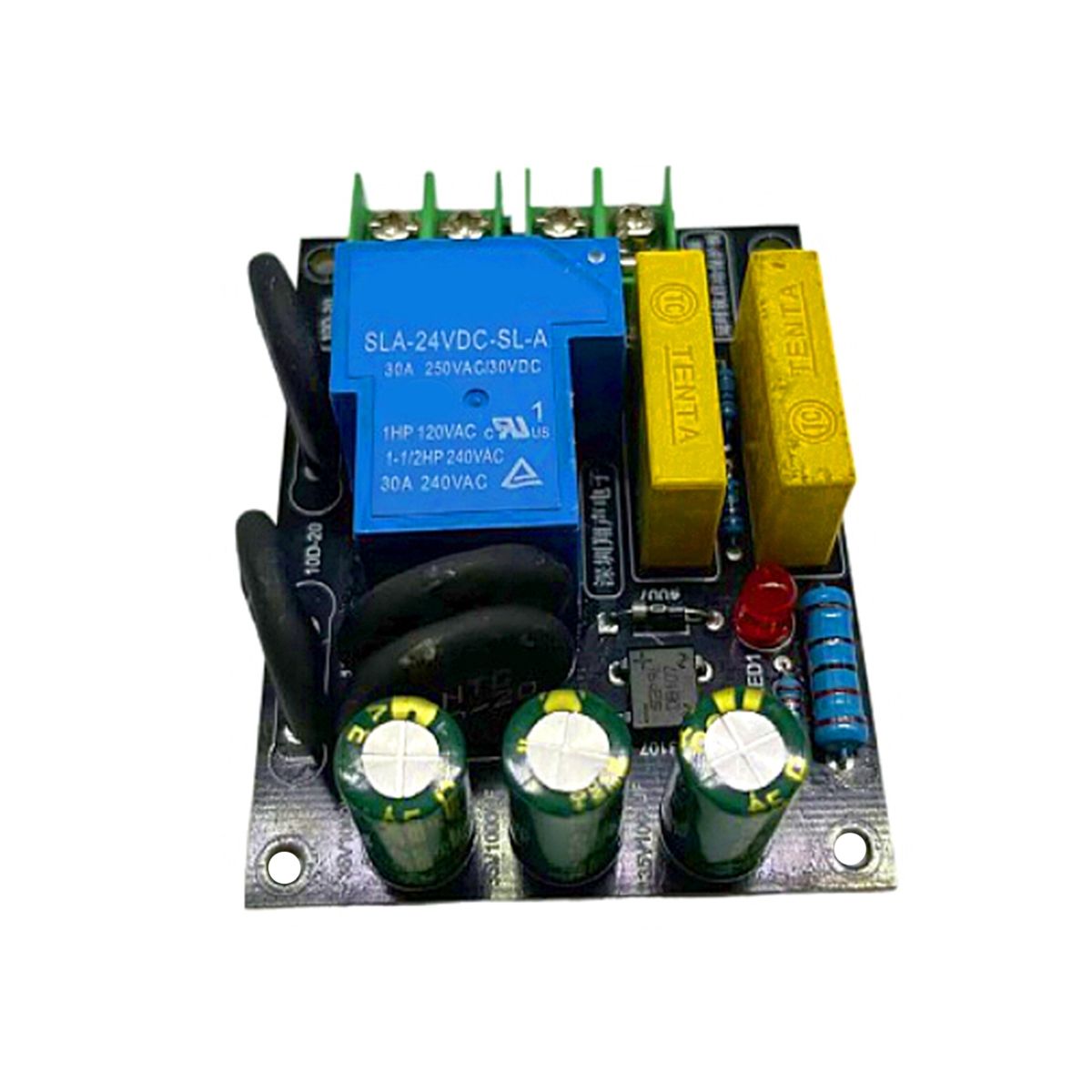

The high-power soft-start board uses FR4 fiber PCB the size is 74mm X 57mm X 16mm the height of the finished board is only 26MM the circuit is original and new design the relay short-circuits the power resistance after the power-on delay and the power resistance adopts 4 pieces of NTC 10D-20 The thermistor with negative temperature coefficient can make the load voltage rise smoothly to the mains
protect the rectifier bridge and the capacitor of the pond and prolong the service life of the electrical appliance There is no problem with the actual measurement of the 2000W load With 30A 6600W sealed relay
The working principle of the circuit is that when the power is turned on - the power-on delay the NTC is connected in series in the output load circuit to reduce and control the starting current delay circuit control ----- the short-circuit NTC is completed after the start and the power is directly output Complete the soft start process 24V relay controls 220V voltage output
circuit design no need to connect a small transformer separately soft start mainly protects the rectifier bridge and the pond capacitor avoids blowing up and the breakdown capacitor and prolongs service life The current is controlled at 5A to avoid the impact of the power grid when starting and to prevent the power supply from
material plastic

Color as shown

Package Contents
1 x Soft Start Protection Board

Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm

What's In the Box

1 x Soft Start Protection Board
