Buy LigoDLB 5-20ac Wireless Access Point 500Mbps 8km in Nigeria

LigoDLB 5-20ac Wireless Access Point 500Mbps 8km

₦ 108,098.78 ₦ 113,788.19 -5%

0 No Reviews

Product SKU: RENG197023

Brand: LigoWave

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	ligoDLB 5-20ac
Weight (kg)	2
Color	white

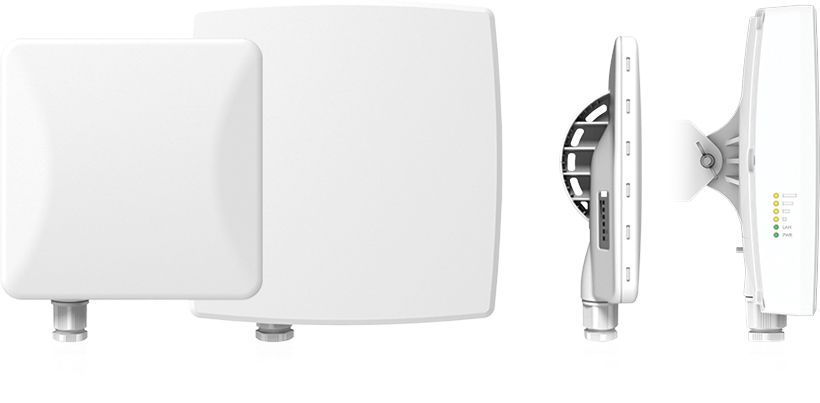

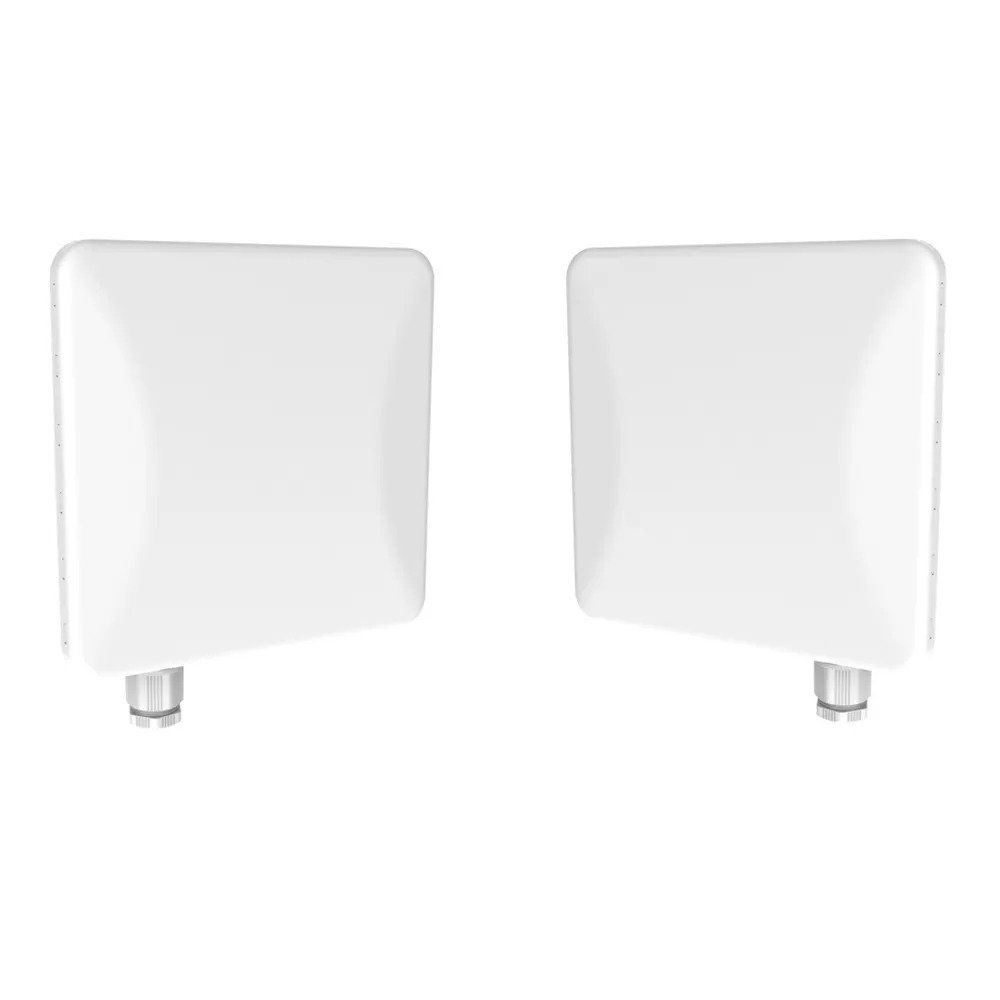

The DLB 5-20ac is a versatile, very efficient, and stable 802.11ac CPE. This product is equipped with an extreme output power (up to 30 dBm) 802.11ac radio wrapped securely inside a robust, well designed and a small form factor enclosure. The robust hardware is coupled with a 20dBi directional panel antenna; ideal for high range applications.

Incredible performance

500+ Mbps throughput - a result of powerful hardware platform with 802.11ac technology based radio and a proprietary data transmission protocol (iPoll). Incorporating a QCA 9563 CPU (750 MHz), a QCA 9882 radio and 64 MBytes of RAM and 16 MBytes of flash memory the, LigoDLB 5-20 ac series devices are an ideal solution for capacity demanding applications. State of the art RF design with great output power and sensitivity parameters improve range and capacity over the highest modulation - 256 QAM. The 24V Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio when used in a point-to-point or point-to-multipoint network design. LigoDLB ac series devices are backwards compatible with LigoDLB devices using iPoll mode, which helps to expand or upgrade existing networks using the latest technologies over time.

New form factor

The shape of the enclosure is now smaller, lighter but retains the IP-65 weather protection rating. Smaller packaging reduces freight costs and makes them less obvious. The new design has no metal parts, which makes them lighter and corrosion resistant.

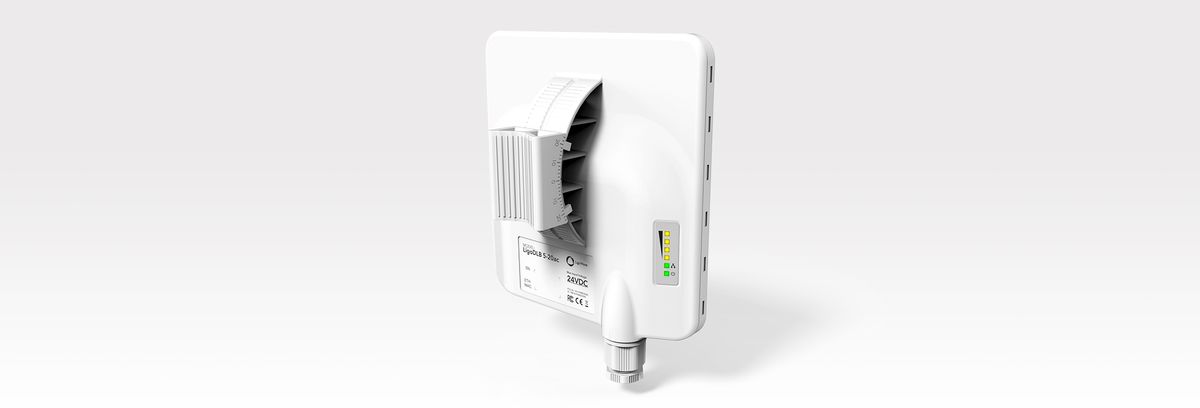

New mounting system

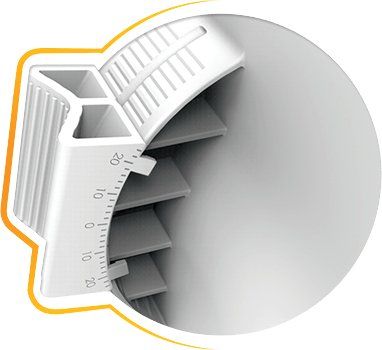

The adjustable mounting bracket is very easy to assemble and install. It consists of two easy to connect parts that allow tilting the device up and down when installing on a pole. A metal strap is included to securely tighten the device. This design includes additional reinforcements and thicker materials to ensure survival in extreme climate conditions.

Powerful OS

The LigoDLB OS is a highly functional and easy to use operating system embedded in all LigoDLB hardware devices for effortless setup and trouble free operation. High performance (500 Mbps) allows offering more bandwidth together with additional services such as VoIP . This is possible when using LigoWave's smart QoS mechanism and multicast traffic enhancements for triple play services. Such services are essential for all next generation service providers to complement their existing portfolios. iPoll, LigoWave's proprietary transmission protocol, ensures smooth performance with a high number of clients even in noisy environments

Integrated surge protection

3 kV line to ground and 1 kV line-to-line protection allows operating in a harsh weather conditions and unstable electrical installations.

Operating system

New operating system includes all the essential features for point-to-multipoint networks. User interface is built using HTML 5 technology with responsive design. Among the new features there are IPv6 bridge and router support, SSDP and Bonjour device discovery options, flexible traffic shaping and SSTP client.

iPoll 3 - enhanced performance protocol

LigoWave's iPoll PTMP (Point to Multi-Point) proprietary protocol is an innovative solution to eliminate transmission congestion and close cluster interference created in PTMP wireless installations.

Key Features

500+ Mbps capacity
High power (30 dBm) radio
Proprietary protocol (iPoll)
Zero loss design
Integrated directional 20 dBi panel antenna
Integrated surge protection
Lightweight design
Innovative mounting bracket
Weather proof (IP-65 rated) design
Free WNMS (WNMS - Wireless Network Management System)
Responsive HTML 5 based GUI
