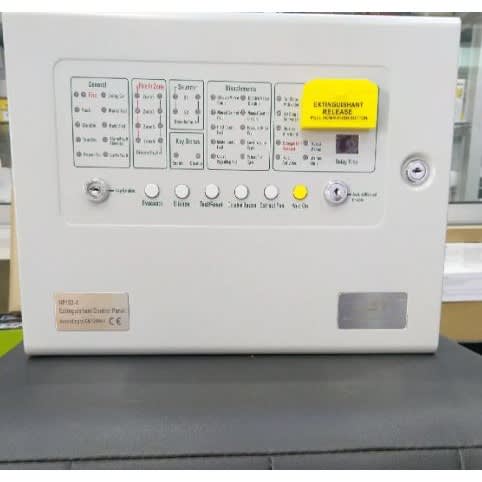

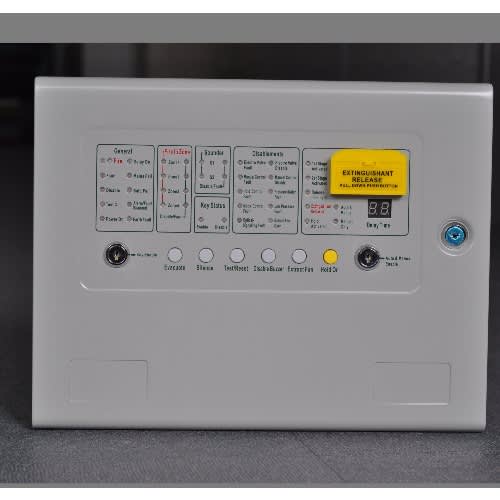

Conventional Fire Fighting Panel
Key Specifications/Special Features
Four Style B (Class B) Initiating Device Circuits (IDCs).
All zones accept two-wire smoke detectors and any normally-open contact devices.
One built-in Fire Fighting Ouput.
24-volt operation.
Resettable four-wire smoke detector power @ 500 mA.
Non-resettable power @ 500 mA.
One-man walk-test programmable for silent or audible test.
Disable/Enable control per IDC.
Reverse polarity protection.
power supply rating: 3Amps @24VDC
Alarm and fault relay rating : 2A & 30VAC resistive
maximum nember of dtector: 30
