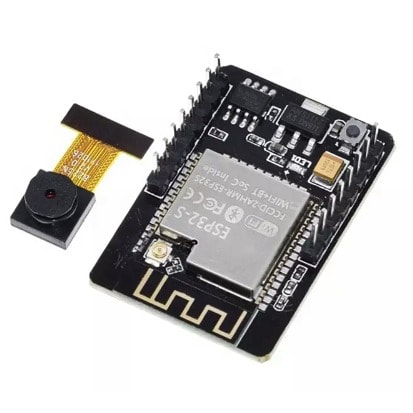

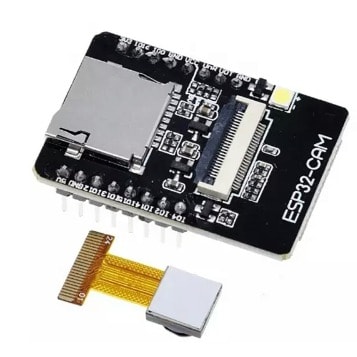

The ESP32-CAM is a small-sized camera module. The module can operate independently as a minimum system with a size of only 2740.54.5mm and a deep sleep current of up to 6mA. It can be widely used in various IoT applications. It is an ideal solution for IoT applications.
Features:
Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module.
Low-power dual-core 32-bit CPU for application processors.
Main frequency up to 240MHz, computing power up to 600 DMIPS. Built-in 520 KB SRAM, external 4M PSRAM.
Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC.
Support OV2640 and OV7670 cameras, built-in flash.
Support image WiFi upload, support TF card.
Support multiple sleep modes, embedded Lwip and FreeRTOS. Support STA/AP/STA+AP working mode.
Support Smart Config/AirKiss one-click distribution network,
Support secondary development.
It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other applications.
Packaged in DIP and can be directly plugged into the backplane for quick production.

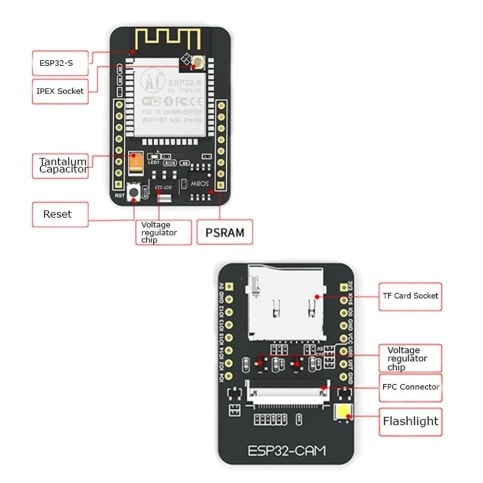

Specifications:
Material: Copper
Module model: ESP32-CAM
Package: DIP-16 Size: 2740.54.5(0.2)mm
SPI Flash: 32Mbit by default
RAM: Internal 520KB + external 4M
PSRAM BT: BT 4.2BR/EDR and BLE standards
WiFi: 802.11 b/g/n/e/i
Support interface: UARI, SPI, I2C, PWM
Support TF card: maximum support 4G IO port: 9
Serial port rate: default 115200bps
Image output format: JPEG (only supported by OV2640), BMP, GRAYSCALE Spectrum range: 2412-2484MHz
Security: WPA/WPA2/WPAS-Enterprise/WPS
Power supply range: 5V
Working temperature: -20 C -85 C
Storage environment: -40C-90C,
Package size: 553cm/1.961.961.18in
Transmit power: 802.11 b: 172dBm (a11Mbps) 802.11 g: 142dBm (a54Mbps) 802.11 n: 132dBm (aMCS7)
Receive sensitivity: CCK, 1 Mbps: -90dBm CCK, 11 Mbps: -85dBm 6Mbps (1/2 BPSK): -88dBm 54Mbps (3/4 64-QAM): -70dBm MCS7 (65Mbps, 72.2Mbps): -67dBm
Power consumption: Turn off the flash: 180mAa5V Turn on the flash and adjust the brightness to the maximum: 310Maa5V Deep-sleep: The lowest power consumption can reach 6mAa5V Modern-sleep: up to 20mAa5V Light-sleep: up to 6.7mAa5V
