General Information - Net Weight: ≈83kg (182lbs)
- Dimensions: 500*300*760mm (22.8*11.8*29.9in)
- Battery Capacity: 5100Wh
- Battery Cell Type: LiFePO4
- Rated Life Cycle: 3500+ Cycles to 80% Capacity
- Charge Temperature: 0°C ~ 40°C (32°F ~104°F)
- Storage Ambient Temperature: 0°C ~ 45°C (32°F ~113°F)
- Working Environment humidity: 10-90%
- Certification: PSE, FCC, CE, UN38.3, msds, UL, SAA and ROHS
Input Specs - AC Input: 3000W Max
- PV Input or T500 Input: 2400W Max. 12-150VDC,12Ax2 ,12V/24V,8.2A

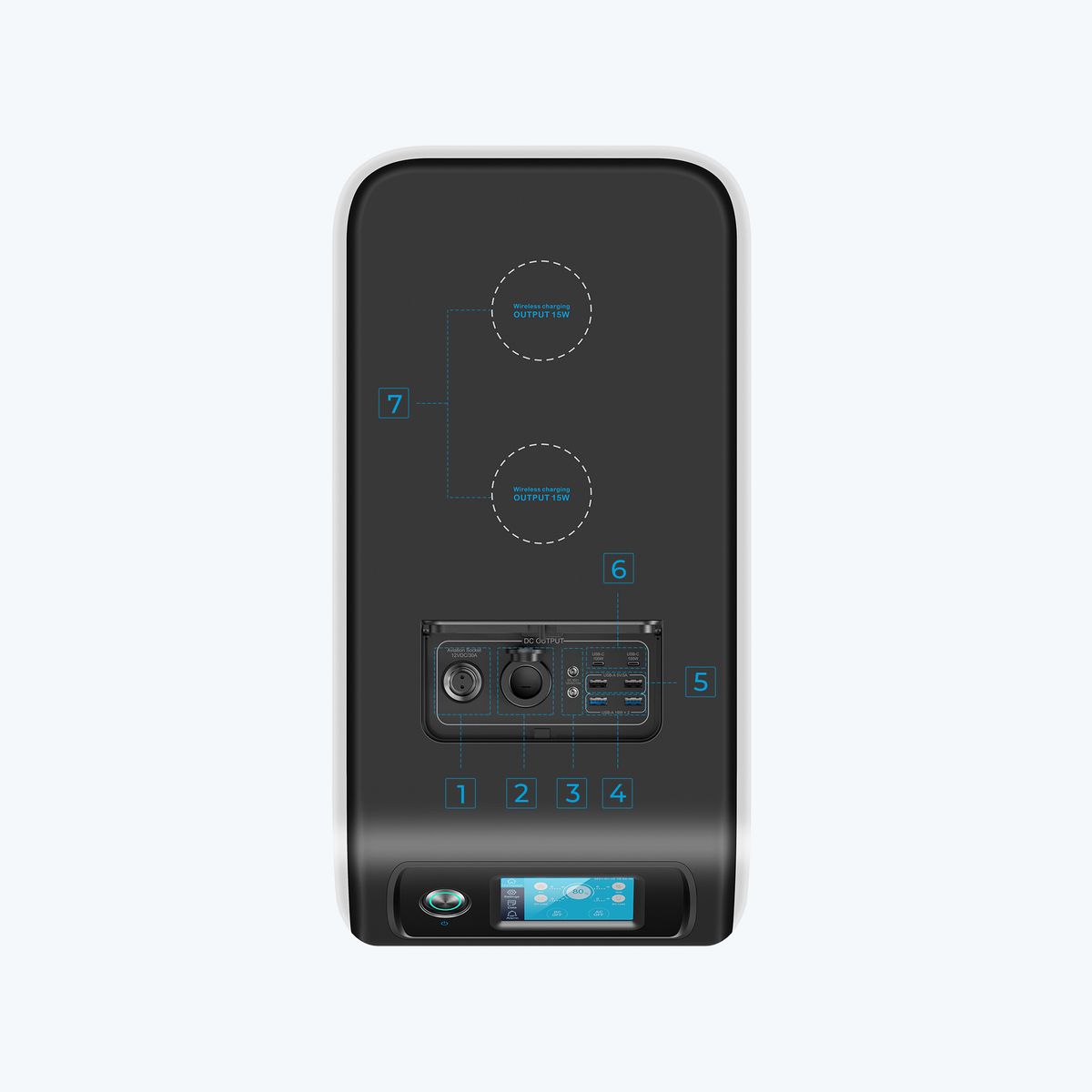

Output Specs - USB-C: 2*100W
- AC: 100-120VAC*5
- USB-A: 2*Quick Charging, 36W Total, 2*5VDC, 3A Total
- Car Cable : 1*12VDC, 10A
- RV (Aviation Port): 1*12VDC, 30A
- DC 5521: 2*12VDC, 10A Total
- Wireless Charging Pad: 2*5/7.5/10/15W
FAQS - Q1: Can it connect to the BLUETTI B230/B300 expansion batteries?
A1:Yes. You can connect it with B230/B300 battery with the DC input cable and P090D to MC4 cable.( Sold separately)
- Q2: Does EP500Pro support App control?
A2: Yes. Once connected via WiFi or Bluetooth, the BLUETTI App will enable you to control the EP500ProPro remotely, like switching the working mode and upgrading the firmware.
- Q3: Can I use EP500Pro as a UPS?
A3: Yes. It supports four UPS modes:
1. Standard UPS.
2. Time Control UPS (Pay less for higher electricity consumption).
3. PV Priority UPS (Recommended for regions with sufficient solar energy).
4. Customized UPS.
- Q4: How do I connenct this to my home main panel?
A4:BLUETTI recommends a competent and trained licensed electrician undertake the task.
Connect the wires of critical equipment from your house electric panel to BLUETTI Smart Home Panel*.Then connect EP500Pro to the Smart Home Panel.* Sold separately.
- Q5: What is the UPS switching time?
A5:There are two types of working conditions of UPS for EP500Pro system.
1) No delay for online UPS;
2) 20ms from standby UPS.
- Q6: What is the maximum input charging power of the BLUETTI EP500Pro?
A6:4,000W Max.
- Q7: How can it reach 3,000W AC recharging?
A7:Plug it to a 30A wall socket with the 30A AC charging cable*.* Sold separately
- Q8: What kind of solar panels should I choose for EP500Pro?
A8:PV input requirements for EP500Pro:
Open Circuit Voltage: 12-150V
Input Power: 2,400W Max.
Include MC4 connectors.
Highly Recommended:
6x BLUETTI PV120: ≈8hrs*.
5x BLUETTI PV200: ≈6hrs*.
3x BLUETTI PV350: ≈5.5hrs*.
* For reference ONLY.
- Q9: Can EP500Pro connect with EP500?
A9:No. Only EP500 to EP500, or EP500Pro to EP500Pro is acceptable.
- Q10: Can it charge and discharge at the same time?
A10:Yes.
- Q11: How is it different from the AC300?
The main differences are: 1) Battery: AC300 has no built-in battery and must work with B300, while EP500Pro connects with B300 only for capacity expansion. 2) 30A AC Output: EP500Pro has an L14-30 port while AC300 has a TT-30 port. 3) Maximum Input: 5,400W for AC300 with two B300, 3,000W with one B300, while 4,000W for EP500Pro. 4) Weight and Dimensions: AC300 is smaller.
- Q12: How is it different from the EP500?
The main differences are:
1) Output power : 3,000W AC power for EP500Pro, while 2,000W for EP500.
2) Solar Input: 2,400W for EP500Pro, while 1,200W for EP500.
3) AC Input: 3,000W for EP500Pro, while 600W for EP500.
4) Output Port: EP500Pro has one more 100W USB-C port and 1 NEMA L14-30 port.
5) Recharging: EP500Pro supports charging from car cable and lead-acid battery, while EP500 doesn't.
Key Features
5100Wh LiFePO4, 3500+ Cycles to 80% Capacity
EP500Pro: 3000W Pure Sine Wave Output
Movable Power Station
In-grid UPS Mode&Flexible UPS Mode(24/7)
Off-grid Energy Storage
Multiple Devices Can Be Loaded Simultaneously
Flexible Recharging Way To Keep Your EP500 Always On
App Remote Control
Smart Touchscreen
What's In the Box
- 1 * BLUETTI EP500Pro Power Station
- 1 * AC Charging Cable
- 1 * PV Charging Cable
- 1 * User Manual
