| Model |
B230 |
| Size (L x W x H cm) |
42X28X23 |
| Weight (kg) |
22 |
| Color |
GRAY |
BATTERY INFO
- Capacity:2,048Wh (51.2V,40Ah)

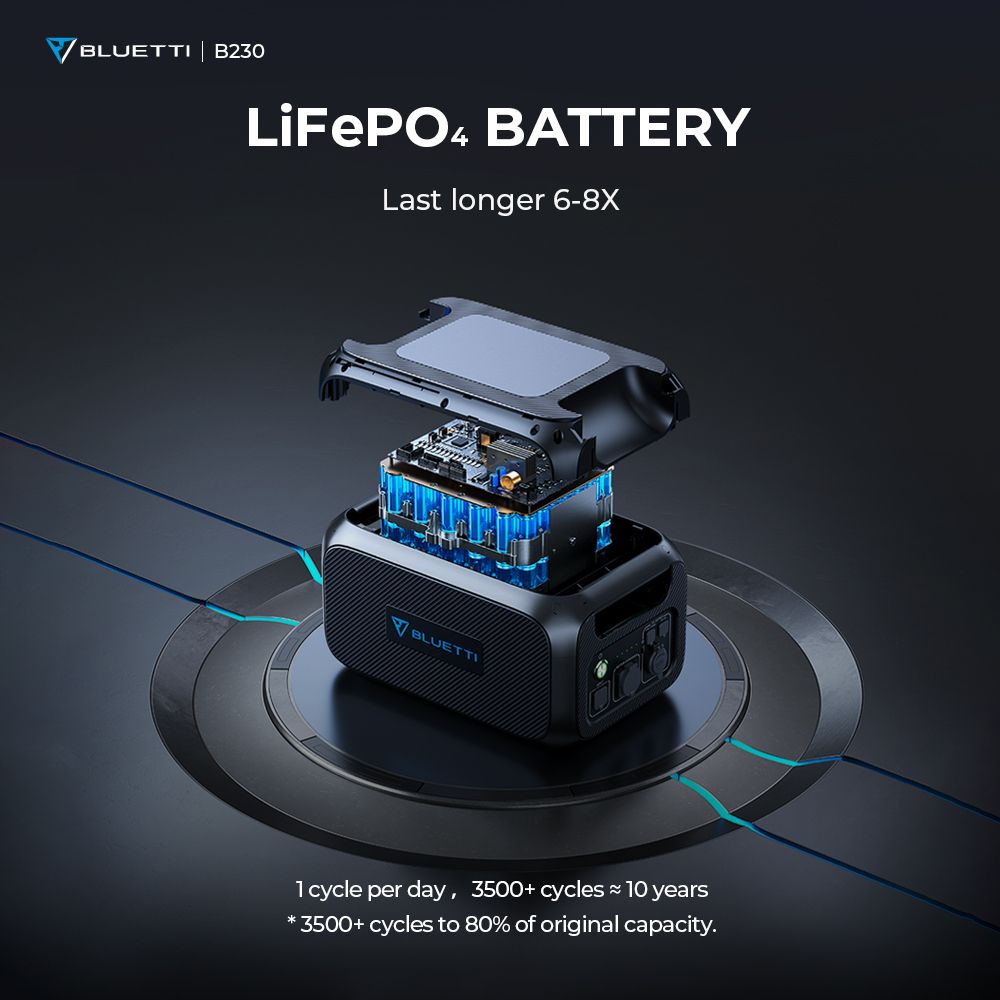

- Type:LiFePO4 (Lithium Iron Phosphate)
- Life Cycles:3500+ Cycles to 80% Original Capacity
- Shelf-life:Recharge to 80% Every 3-6 Months
- Management System:MPPT Controller, BMS, etc.
OUTPORTS
- USB-C Port:1 x 100W Max.
- USB-A Port:1 x 18W USB-A
- 12V DC Outlets:1 x 12V/10A (Car Outlet)
IN PUT
- AC Adapter Input:500W Max.
- Solar Input:500W Max., VOC 12-60VDC, 10A (Via BLUETTI D050S)
- Car Input:12/24V (Via BLUETTI D050S)
- Lead-acid battery:12/24V (Via BLUETTI D050S)
- Max Input:500W
RECHARGE TIME
- AC Adapter (400W):≈5.5~6 Hours
- Solar (500W):≈4.5~5 Hours (With prime sunshine, ideal orientation and low temperature)
- 12V/24V Car Outlet (100W/200W):≈10 or 20 Hours
GENERAL
- Compatibility:AC200Max(Original Expansion), AC200P/EB150/EB240 (DC-DC Connection via D050S)
- Pass-through Charging:Yes
- Weight:48lbs (21.8kg)
- Dimensions (LxWxD):16.5 x 11 x 8.9in ( 42 x 28 x 22.75cm)
- Operating Temperature:32°F-104°F (0-40°C)
- Storage Temperature:-4-104℉(-20-40℃)
- Certifications:UL, CEC, DOE, FCC, CA Prop 65
FAQS
- Q1: Can the B230 battery modules be used alone?
Yes. B230 has a 100W USB-C, a USB-A and a 12V DC output ports, the battery module can work flawlessly when standalone.
- Q2: How many B230 battery modules can connect with AC200Max?
Up to 2xB230 battery modules can connect with AC200Max.
- Q3: How many B230 battery modules can connect with AC200/P?
Up to two B230. One via the solar input port by a converter cable, and another via the AC adapter inlet.
- Q4: What are the charging methods for the BLUETTI B230?
B230 can be recharged by:
1) 500W AC adapter (Sold separately)
2) solar panels (Require the BLUETTI D050S - DC charging enhancer, sold separately).
Notice: There is only one inlet on the battery module, so it cannot be charged by more than one charge method simultaneously.
If you have any questions before making the decision, please don't hesitate to contact 19076157075@163.com
Key Features
B230 equipped with 2048Wh capacity.
One 100W USB-C
12V/10A car output and a USB-A ports.
Versatile power inputs allow you to recharge no matter where you are.
Solar charging, car charging and lead-acid battery charging need to be realized through D050S
What's In the Box
- 1 * BLUETTI B230 Expansion Battery
- 1 *External Battery Connection Cable (P090A)
- 1 * User Manual
