MERCURY Line Interactive UPS (2000VA) - Elite 2000 ProWide input voltage rangeCompatible with generatorsOverload protectionShort circuit protectionBuilt-in AVRBattery deep discharge protection & overcharge protectionRating input voltage: 2000 VA / 1200 WRating input frequency: 60/50Hz (auto sensing)Input phase: Single phaseInput socket: With FuseCold Start (0 to 100% load): Press the ON/OFF SwitchInput Range (220V): 140-300Rating output (VA): 2000Rating output (W): 1200Power factor: 0.6Rating output voltage (V): 220Waveform: Battery mode (simulated sine wave), AC mode (sine wave)AC Voltage Regulation: ±10% (Battery mode)Rear output socket: 4 x Universal - Battery backupWaveform: Simulated Sine Wave (Battery mode)Line Mode: Synchronize with the utilityRating frequency: 60Hz or 50 Hz ± 1 HzBattery Mode: Yellow flashingShort circuit protection Line Mode: Fuse & Firmware protectionShort circuit protection Battery Mode: Firmware ProtectionOverload protection Line Mode: 110%±5%; Go to fault mode Line Mode after 5 minutes, 120%±5%; Go to fault mode immediately.Overload protection Battery Mode: 110%±5%; Shutdown after 5 seconds, 120%±5%, Shutdown immediatelyIndicators AC mode: Green LightingIndicators Battery Mode: Yellow FlashingIndicators Fault: Red LightingAlarm Battery Mode: Sounding every 10 SecondsAlarm Low Battery: Sounding every SecondAlarm Overload: Sounding every 0.5 secondAlarm Fault: Continuously soundingFull Protection: Overload, discharge, and Overcharge protectionTransfer Time: Typical 2-6ms, 10ms max.Transfer Time: Typical 2-6ms, 10ms max.Communication Interface: Optional RS232/RJ11Battery and runtime rating: 2 X 12V/9AHRecharge time – Typical: 6-8 hours recover to 90% capacityCharge current: About 1A at normal mode

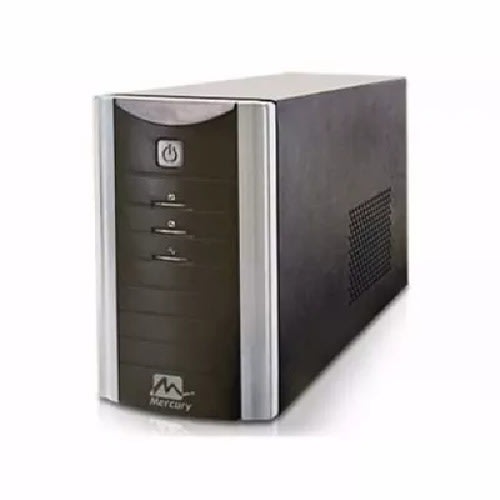

Mercury Elite 2000 Pro Line Interactive UPS provides a relatively robust capacity for power backup to meet office as well as domestic power backup demands. With the Mercury Elite 2000 you not only get power backup for your equipment but also enjoy solid protection for those appliances. The built-in AVR function of the Elite 2000 Pro means dangerous power fluctuations won't easily make mincemeat of your equipment.
The Mercury UPS is designed with advanced technology to deliver efficient performance and durability.
Designed with Wide input voltage range to meet local voltage challenges
Rugged enough to withstand generators
Offers Overload protection
There's also Short circuit protection
Built-in AVR to cope with power fluctuations
Battery deep discharge protection & overcharge protection
Rating input voltage 2000 VA / 1200 W
Rating input frequency 60/50Hz (auto sensing)
Input phase Single phase
Input socket With Fuse
Rating output voltage (V) 220
Waveform Battery mode (simulated sine wave),
AC Voltage Regulation ±10% (Battery mode)
Rear output socket 4 x Universal - Battery backup
Waveform Simulated Sine Wave (Battery mode)
Line Mode Synchronize with the utility
Rating frequency 60Hz or 50 Hz ± 1 Hz
Battery Mode Yellow flashing
Short circuit protection Line Mode Fuse & Firmware protection
Short circuit protection Battery Mode Firmware Protection
Overload protection Line Mode 110%±5%; Go to fault mode Line Mode after 5 minutes, 120%±5%; Go to fault mode immediately.
Indicators AC mode Green Lighting
Indicators Battery Mode Yellow Flashing
Indicators Fault Red Lighting
Alarm Battery Mode Sounding every 10 Seconds
Alarm Low Battery Sounding every Second
Alarm Overload Sounding every 0.5 second
Alarm Fault Continuously sounding
Full Protection Overload, discharge, and Overcharge protection
Communication Interface Optional RS232/RJ11
