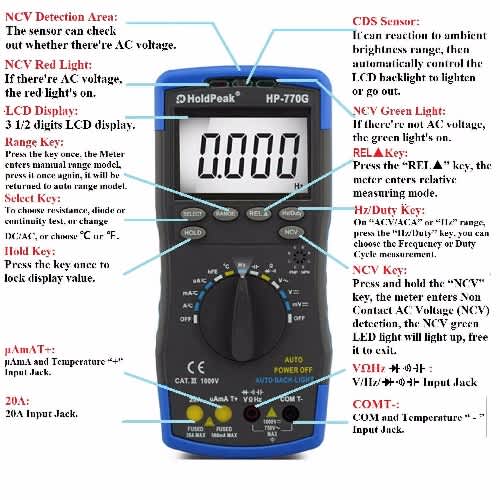

This powerful millimeter is characterized as slim size, portable, stable performance and anti-dropping capacity. Using 3 1/2 digits LCD monitor with character 28mm high, they offer clear readings. With overall circuitry design centering on large-scale IC A/D converters in conjunction and over-load protection circuit, the meters give excellent performance and exquisite performance, making it as a handy utility instrument. The meter can be used to measure DC & AC voltage, DC & AC current, Resistance, Capacitor, Transistor-hFE test, Non Contact AC Voltage (NCV) detection, Positive diode voltage fail test and audible continuity.
GENERAL SPECIFICATIONS
Max Voltage between input terminal and Earth Ground: CAT lll 1000V
Over-range Indication: display “1” or “-1” for the significant digit.
Automatic display of negative polarity.
Low Battery Indication: displayed.
Display: 3 1/2 digit LCD with a max. reading of 1999.
Auto range control
Auto Power Off: The meter will switch to standby mode when power on after approx. 20 minutes. Press the POWER key two times to power on the meter again.
Auto LCD backlight, via opto-sensor
Fuse protection: 200mA/500V and 20A/500V Fast Fuse
Power supply: 9V battery (6F22 or NEDA 1604)
Operating Temp. : 0 to 40deg (relative humidity <85%)
Storage Temp. : -10 to 50deg ((relative humidity <85%)
Guaranteed precision Temp. : 23±5deg (relative humidity <70%)
Technical features
DC Voltage: 400mV~1000V
AC Voltage: 400mV~750V
DC Current: 400μA~20A
AC Current: 400μA~20A
Resistance: 400Ω~40MΩ
Capacitance: 51.2nF~100μF
Temperature: -20~1000deg
Frequency: 5.12Hz~5.12MHz
Duty Cycle: 0.1%~99.9%
Display: 4000
Range Select: AUTO
Diode Test: √
hFE Test: √
Continuity Buzzer: √
Data Hold: √
Back Light: Auto Back-Light switch-On via opto-sensor: √
Auto Power Off: √
Function Switch Indicator Lamp: √
Mechanical Blocking System: √
NCV: √
Relative Value: √
Battery Type: 9V(6F22)x1
Dimension: 195x88x40mm
