Buy Digital Storage Oscilloscope Uni-t Utd2052cl Dual

Digital Storage Oscilloscope Uni-t Utd2052cl Dual - Channel

₦ 643,500.00 ₦ 650,000.00 -1%

0 No Reviews

Product SKU: RENG583997

Quantity

In Stock

Product Highlights

This oscilloscope is dual-channel, which means users can input two signals at the same time and these signals will be represen

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

Warranty Period	6 Months

Warranty Period

1 Year

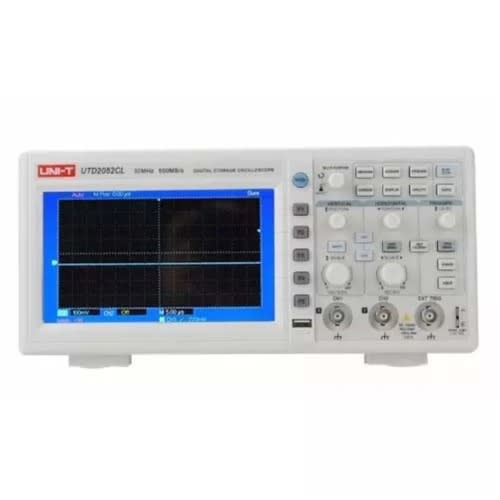

UNI-T UTD2052CL Dual-Channel Digital Storage Oscilloscope (50MHz) Details

Featuring a large, 7-inch screen with full colour display, the UNI-T UTD2052CL is a great tool for accurately tracking signal inputs over a time period.

This oscilloscope is dual-channel, which means users can input two signals at the same time and these signals will be represented on the screen as two separate readings. It features in-built storage for tracking signals over a time period, and it is also possible to transmit signal data to PC via the use of a USB connection and software CD (both included in the package).

The UTD2052CL uses bandwidth of 50Mhz, sampling rate of 500mS/s and rise time of ≤7ns. It also includes multiple trigger modes (edge, pulse, video and alternate) and comes with an array of adjustment buttons and advanced functions for ensuring you get the measurements you need at all times.

This product also features memory depth of 25kpts, waveform acquisition rate of ≥2000wfms/s and vertical sensitivity of 1mV/div-20V/div.

EN6101-1 and CAT II 300V safety rated.

UNI-T UTD2052CL Dual-Channel Digital Storage Oscilloscope Key Features

Dual channel measurements with waveform representation
Bandwidth of 50Mhz
Sample rate of 500ms/s
Rise time of ≤7ns
Memory depth of 25kpts
Waveform acquisition rate ≥2000wfms/s
Vertical sensitivity of 1mV/div - 20V/div
Time-based range of 5ns/div - 50s/div
Storage modes: Setup, Wave, Bitmap
Trigger Modes: Edge, Pulse, Alternate
USB OTG
7" 64K Colour TFT LCD screen
Full List of Products Included

UNI-T UTD2052CL Dual-Channel Digital Storage Oscilloscope
Probe x 2 (1 x, 10 x Switchable)
Power Cord
USB Cable
PC Software CD
Technical Specs
Product Downloads
UNI-T Digital Oscilloscope Brochure (Size: 3.8 MB)
UNI-T UTD2000 & UTD3000 Series Oscilloscopes - User Manual (Size: 2 MB)
UNI-T UTD2052CL Technical Specifications

Channels 2
Bandwidth 50Mhz
Sample Rate 500ms/s
Rise Time ≤7ns
Memory Depth 25kpts
Waveform Acquisition Rate ≥2000wfms/s
Vertical Sensitivity 1mv/div-20V/div
Time-Based Range 5ns/div-50s/div
Storage Setup, Wave, Bitmap
Trigger Modes Edge, Pulse, Alternate
Interfaces USB OTG
Display 7" 64K Colour TFT LCD (400 x 240)
Power 100-240V AC, 40-440Hz
