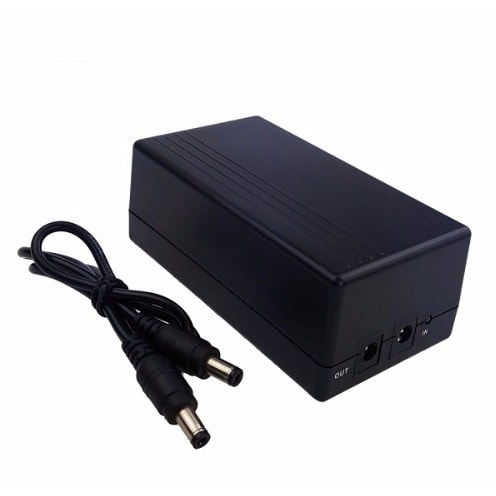

Mini UPS uninterruptible power supply is a standby energy storage power supply.
Used safe and environmental lithium cells, credible and stable PCB, trickle/constant-current/ constant-voltage lithium battery charging BMS.
Created by high performance and efficiency DC-DC, boosting and switching circuit. This mini UPS with perfect over-charged, over-discharged, over-current and short-circuit protection.
Product Feature
Portable
Big capacity
Easy installation
DC output 5 voltage (we also have 5V 9V 12V)
Built-in lithium ion battery cell with PCB board protection
Widely used for CCTV camera, mobile phone, LED lamp, ADSL modem, IP camera, router etc.
Specification
| DC 5V Mini UPS Basic Information |
| Model | UPS502B |
| Capacity | 2000mAh/44.4wh |
| Battery Type | 18650 lithium ion battery |
| Input Voltage | 5V±5% |
| Input current | ≤2000mA |
| Output Voltage | 5V±5% |
| Output current | 2000mA |
| Discharging transfer efficiency | ≥85% |
| Protection | Over charge,over discharge,over current,short circuit |
| Working temperature | -20°C~85°C |
| Weight | ≤345g |
| Size | 111x60x43mm |
| Warranty | Nil |
| Certification | CE,ROHS,FCC,PSE |
NOTE: The position of LED Light on the mini ups may vary and do not matter in the effectiveness of the device, and as manufacturer's choice of placement, we only import.
