Sunshine Solar manufactures and distributes photovoltaic modules of high quality for a wide range of markets and there award winning product 150W series is now also available in Nigeria

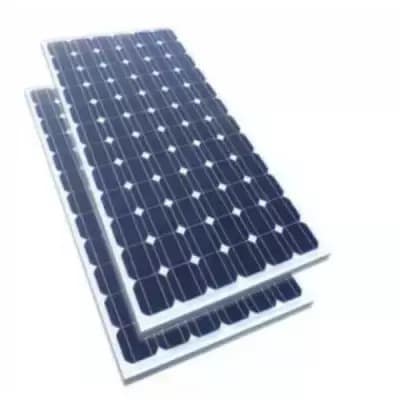

Monocrystalline high-efficiency solar panel is Ideal for isolated solar power systems, these photovoltaic panels can be used individually or associated, serving energy systems of different sizes and providing electricity for all kinds of application.
TECHNICAL SPECIFICATIONS
Test standard conditions (STC *)
Maximum power (Pm):
250 Watts
Tolerance:
-5% / + 5%
Maximum Output Voltage (R):
29.5 Volts
Maximum power current (Im):
8.47 Amps
Open circuit voltage (Voc):
35.05 Volts
Short Circuit Current (Isc):
9.49 Amps
Maximum System Voltage:
1000 Volts DC
Panel efficiency: +17.0%
Power temperature coefficient (Pm): -0.45% / ° C
Current temperature coefficient (Isc):
The 0.06 / ° C
Temperature Coefficient voltage (Voc):
-0.37 V / ° C
Cell Temperature Operating Nominal (TNOC / NOCT): 46 ± 2 ° C
* STC / CPT: Irradiation 1000 W / m², Air Mass Spectrum 1.5 and cell temperature of 25 ° C
Dimensions
Panel size:
(1470 x 680 x 25 mm)
IP code of the junction box:
IP 65
Module weight:
14.0 kg
Glass, type, and thickness: High transmissivity, Low Iron, Tempered Glass 3.2mm
APPLICATIONS
Public lighting systems and residential
Eletrificações homes and communities in remote areas, summer houses, health centers, etc.
Radio repeater stations VHF, UHF, and microwave
Alarm and CCTV systems
Recreational vehicles (boats, sailboats, trailers, ...)
Quality system monitoring water and environment
Navigation systems and ocean buoys
Water pumping systems (pumps 12 volts DC)
Obstruction lights airlines
Cathodic protection systems
Signalling System
