Acti9 C60H-DC - MCB - 2 Pole - 63 A - C Curve
Acti9 C60H-DC, Acti9 C60PV-DCMiniature Circuit Breakers for Direct Current circuits protectionPart of 9 SeriesMiniature Circuit Breakers for Direct Current circuits, offeringphoto voltaic installation protectionFeaturesThe Acti9 C60H-DC is a miniature circuit breaker that offersdirect current circuit protection. It protects circuits againstshort-circuit currents and overload currents.Compliant with IEC60947-2Available in 1P or 2PC tripping curveUp to 500V DC.The Acti9 C60PV-DC is a miniature circuit breaker thatis designed for photovoltaic (PV) installations. It protectsthe cables between each string of a photovoltaic moduleagainst short-circuit currents and overload currents.Compliant with IEC/EN 60947-2Available in 2PB or C tripping curvesUp to 800V DCPre-wiredNon-polarized: wires can be inverted without riskLocakable for improved operational safetyDelivered with three interpole barriers, for improvedisolation betweenconnectors.BenefitsActi9 C60H-DC:Enhanced operational safety thanks to green strip toggleindicator which increases safety of downstream currentflow when breaker is in open positionImproved service life thanks to fast closing of breaker,independent of operatorShort-circuit current limitation thanks to fast opening ofcontacts,to reduce risk of damage to circuit loads.Acti9 C60PV-DC:Enhanced operational safety thanks to green strip toggle indicatorwhich increases safety of downstream current flow when breakeris in open positionImproved service life thanks to fast closing of breaker, independentof operatorShort-circuit current limitation thanks to fast opening of contacts, toreduce risk of damage to circuit loadsEasier installation as wires can be inverted without risk(non-polarized).ApplicationsActi9 C60H-DC:Direct current circuits such as industrial control, automation,transportation and renewable energy.Acti9 C60PV-DC:Designed for direct current photovoltaic installations. Key FeaturesRange - Acti 9Product name - Acti9 C60H-DCProduct or component type - Miniature circuit-breakerDevice short name - C60H-DCDevice application - DistributionPoles description - 2PNumber of protected poles - 2Rated current - 63 A at 25 °CNetwork type - DCTrip unit technology - Thermal-magneticCurve code - CBreaking capacity - 10 kA Icu at 220 V DC conforming to
EN 60947-2Utilisation category - Category A conforming to EN 60947-2 ,
Category A conforming to IEC 60947-2Suitability for isolation - Yes conforming to IEC 60947-2 ,
Yes conforming to EN 60947-2Network frequency - 50/60 HzRated operational voltage - 250 V DCRated insulation voltage - 500 V DC conforming to IEC 60947-2,
500 V DC conforming to EN 60947-2Rated impulse withstand voltage - 6 kV conforming to EN 60947-2,
6 kV conforming to IEC 60947-2Contact position indicator - YesControl type - ToggleLocal signalling - ON/OFF indicationMounting mode - FixedMounting support - 35 mm symmetrical DIN railComb busbar and distribution block compatibility - Top or bottom:
standard9 mm pitches - 4Colour - WhiteMechanical durability - 20000 cyclesElectrical durability - 3000 cycles 250 V DC, 6000 cycles 250 V DCProvision for padlocking - PadlockableLocking options description - In position OTightening torque - Power circuit: 2.5 N.m top or bottomEarth-leakage protection - WithoutWhat's In the Box1 - Acti9 C60H-DC - MCB - 2 pole - 63 A - C curve
Lisse - 1 Gang 13A SP 2USB Mocha Bronze With Black Interior
Lisse curves in all the right places... The Lisse white moulded range of wiring accessories offers the perfect blend of style and performance. You no longer have to choose between convenience and efficiency, or compromise on appearance to get the most innovative features. Lisse is packed with a vast array of technical features, providing a high level of quality, reliability, and value you can count on. • Ideally suited for new construction projects • Future-proofed to cater for the latest demands in consumer technology • Made from durable, high quality urea with antimicrobial properties • Cleverly designed to ensure that product ordering is simple and efficient, with many time and space saving solutions • Crafted with your customer in mind, adding bespoke solutions to make a lasting impact From all angles. Minimum back projection frees up space in the back box for cabling No matter how you look at it - from the front, back, or side - the Lisse range is designed to make your life simpler. Get installation right the first time, every time.Key FeaturesRange - Lisse Aesthetic name - Screwless deco Product or component type - Switched SocketDevice presentation - Complete productOutlet standard - BritishColour tint - Interior: Black, Cover plate: Mocha BronzeType of packing - Bag Switch function - 1 poleRated current - 13 A at 250 V AC 50/60 HzIntegrated connection type - 2 USB port 5 V DC 2.1 AActuator - Rocker Number of gangs - 1 gangPilot light - without LEDFixing mode - Concealed screwsConnections - terminals - Screw terminalsMaterial - Stainless steelType of installation - IndoorWhat's In the Box1 Lisse - Switched Socket - 1 gang - 13A SP 2USB Mocha Bronze with Black Interior
Easy9 MCB - 2P - 10 A - C Curve - 6000 A - 230 V
Easy9 MCB Miniature Circuit-Breakers (MCB) Part of Easy Series Miniature circuit breakers to provide short-circuit and cable overload protection. Designed with functionality and protection in mind, the Easy9 miniature circuit breakers offer a user-friendly design for ultimate ease-of-use. Features Providing protection when you most need it, the miniature circuit breakers give you high levels of protection from short circuits and cable overload whilst providing a user-friendly interface to make them as accessible as possible. High-quality design providing much-needed protection. Highly accessible user-friendly design. Availability whenever and wherever you look for it. Robust and designed to stand-up to the test of time. Excellent levels of reliability. Cost-effective, provides protection and reliability at an affordable price. Benefits Designed for modular devices, the miniature circuit breakers ensure protection from short-circuits and cable overload. Resulting from close work with electricians worldwide, they provide enhanced protection as well as peace of mind to customers. Enhanced protection to pass on to your customers. Designed with ease of installation in mind. Suitable for modular devices. Applications Use in a range of applications to provide short-circuit and cable overload protection. Easy to install and with a user-friendly interface, the miniature circuit breakers provide accessibility, reliability and protection.Key FeaturesRange - Easy9 Device application - Distribution Product or component type - Miniature circuit-breaker Device short name - Easy9 MCB Poles - 2P Number of protected poles - 2 [In] rated current - 10 A Network type - AC Trip unit technology - Thermal-magnetic Curve code - C Breaking capacity - 10000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1
6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1Suitability for isolation - Yes conforming to IEC 60898-1Network frequency - 50 Hz [Ue] rated operational voltage 230 V AC 50 Hz, 127 V AC 50 Hz Magnetic tripping limit - 5...10 x In [Ics] rated service breaking capacity - 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1[Ui] rated insulation voltage - 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage - 4 kV conforming to IEC 60898-1 Contact position indicator - Yes Control type - ToggleLocal signalling - Without Mounting mode - Clip-on Mounting support - DIN rail 9 mm pitches - 2 Colour - Grey (RAL 7035) Mechanical durability - 10000 cycles Electrical durability - 4000 cycles Connections - terminals - Tunnel type terminal (top or bottom) 1…25 mm² rigid, Tunnel type terminal (top or bottom) 1…16 mm² flexible Tightening torque - 2 N.m top or bottom Standards - IEC 60898-1 Product certifications - VDE, CE IP degree of protection - IP20 conforming to IEC 60529 pollution degree -2 Tropicalisation -2 Relative humidity -95 % at -5…60 °C Ambient air temperature for operation - -5…60 °C Ambient air temperature for storage - -40…85 °CWhat's In the Box1 Easy9 MCB - 2P - 10 A - C curve - 6000 A - 230 V
Vivace 16AX 250V 1gang 2Way Switch
Vivace is a range of switches and sockets built for style and function for modern interior design. A switch and socket set with the style and modern simplicity of the Bauhaus movement. Inspired by the influential Bauhaus movement, Vivace expresses a pleasing form follows function. With a slim and trim profile, the sleek clean lines and subtle curves manifest an art of simple, elegant minimalism. Every piece in this robustly constructed range sits perfectly within the context of any modern interior design. Vivace, a style of modern simplicity that is always within your reach.A slim, trim profile, pleasing to the eye, clean and refined, the Vivace is a switch and socket set that perfectly complements the modern lifestyle. Inspired by the simple, elegant minimalism of the supremely influential Bauhaus movement, every piece in this robustly constructed range expresses a pleasing form following function. Unmarred by visible fastenings, the sleek clean lines of Vivace present a cool refined touch of style to almost any interior. The Vivace switch and socket set is a robustly constructed range built to perfectly complement the modern lifestyle.Key FeaturesRange - VivaceProduct or component type - SwitchDevice short name - KB31Device application - ControlDevice presentation - Complete MechanismSwitch function - 2-wayActuator - RockerNumber of gangs - 1 gangColour tint - Aluminium silverMaterial - Polycarbonate: grid plate, Polycarbonate: surround, Polycarbonate: baseprojecting depth - 8 mmDevice mounting - FlushMounting support - Wall mountedFixing mode - By screw M3.5Fixing center - 60.3 mmEmbedding depth - 35 mmRated current - 16 AX at 250 V AC, inductive - 16 AX at 250 V AC, fluorescent[Ue] rated operational voltage - 250 V ACNetwork frequency - 50 HzContacts material - Brass and phosphor bronzeConnections - terminals - Pillar terminalTerminal identifier - L2, L1, COMTightening torque - 0.4 N.mClamping connection capacity - 2.5 mm²Clean, geometrically balanced designThin: 8mm slim at the thickest point16 AX Switches: handles additional loading and enables wider applicationHigh fatigue resistance capacityAll sockets are inserted with shutter doors for a longer lifecycleWhat's In the Box1 Vivace 16AX 250V 1gang 2Way Switch
Easy9 MCB - 1P - 6 A - C Curve - 6000 A - 230 V
Easy9 MCB Miniature Circuit-Breakers (MCB) Part of Easy Series Miniature circuit breakers to provide short-circuit and cable overload protection. Designed with functionality and protection in mind, the Easy9 miniature circuit breakers offer a user-friendly design for ultimate ease-of-use. Features Providing protection when you most need it, the miniature circuit breakers give you high levels of protection from short circuits and cable overload whilst providing a user-friendly interface to make them as accessible as possible. High-quality design providing much-needed protection. Highly accessible user-friendly design. Availability whenever and wherever you look for it. Robust and designed to stand-up to the test of time. Excellent levels of reliability. Cost-effective, provides protection and reliability at an affordable price. Benefits Designed for modular devices, the miniature circuit breakers ensure protection from short-circuits and cable overload. Resulting from close work with electricians worldwide, they provide enhanced protection as well as peace of mind to customers. Enhanced protection to pass on to your customers. Designed with ease of installation in mind. Suitable for modular devices. Applications Use in a range of applications to provide short-circuit and cable overload protection. Easy to install and with a user-friendly interface, the miniature circuit breakers provide accessibility, reliability and protection.Key FeaturesRange - Easy9 Device application - Distribution Product or component type - Miniature circuit-breaker Device short name - Easy9 MCB Poles - 1PNumber of protected poles - 1 [In] rated current - 6 A Network type - AC Trip unit technology - Thermal-magnetic Curve code - C Breaking capacity - 6000 A Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1, 10000 A Icn at 127 V AC 50/60 Hz conforming to IEC 60898-1 Suitability for isolation - Yes conforming to IEC 60898-1Network frequency - 50 Hz [Ue] rated operational voltage 230 V AC 50 Hz, 127 V AC 50 Hz Magnetic tripping limited - 5...10 x In [Ics] rated service breaking capacity - 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 [Ui] rated insulation voltage - 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage - 4 kV conforming to IEC 60898-1 Contact position indicator - Yes Control type - ToggleLocal signalling - Without Mounting mode - Clip-on Mounting support - DIN rail 9 mm pitches - 2 Colour - Grey (RAL 7035) Mechanical durability - 10000 cycles Electrical durability - 4000 cycles Connections - terminals - Tunnel type terminal (top or bottom) 1…25 mm² rigid, Tunnel type terminal (top or bottom) 1…16 mm² flexible Tightening torque - 2 N.m top or bottom Standards - IEC 60898-1 Product certifications - VDE, CE IP degree of protection - IP20 conforming to IEC 60529 pollution degree - 2 Tropicalisation -2 Relative humidity -95 % at -5…60 °C Ambient air temperature for operation - -5…60 °C Ambient air temperature for storage - -40…85 °CWhat's In the Box1 Easy9 MCB - 1P - 6 A - C curve - 6000 A - 230 V
AvatarOn Switch, 16AX, 2 Gang 2 Way, LED, Wine Gold
AvatarOnChangeable light switches just as you like AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.AvatarOn switch E8332L2LED_WG is a complete product in colour wine gold with 1 rocker. This is a 1-pole 2-way switch with a LED indicator. And its rated current is 16AX. It is 86 mm in width, 86 mm in height, 34.2 mm in depth, with an embedding depth of 24.5 mm. Its matching mounting box can be recessed into the surface of the wall with flush type. The IP rating of this device is IP20. Its connection terminals are brass terminal. The switch is made of polycarbonate, polycarbonate + GF 20 %, making it as resistant as possible. Being environmentally friendly, this switch is a green premium product too. And it is free AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colourful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.Key FeaturesRange - AvatarOn
Product or component type - SwitchDevice application - ControlLoad type - Resistive, Incandescent lamp, Fluorescent lamp, InductiveColour tint - Wine goldDevice presentation - Complete productRated current - 16 AX at 250 V AC 50/60 HzSwitch function - 1-pole 2-wayNumber of gangs - 2 gangNumber of rocker - 2Clamping connection capacity - 3 x 2.5 mm² for solid cable(s), 3 x 2.5 mm² for stranded cable(s), 4 x 1.5 mm² for solid cable(s), 4 x 1.5 mm² for stranded cable(s)Connections - terminals - Brass terminalLocal signalling - Off: LED indicator, LEDMaterial - Polycarbonate: grid plate, Polycarbonate: base, Polycarbonate: dolly, Polycarbonate: frame, Polycarbonate + GF 20 %: actuatorDevice mounting - Surface, FlushIP degree of protection - IP20Maximum ambient air temperature for operation - 35 °COperating altitude - 2000 mRelative humidity - 0…95 %Standards - GB 16915.1What's In the Box1 AvatarOn Switch, 16AX, 2 Gang 2 Way, LED, Wine Gold
ACTI9 IC60N 3P 40A C MINIATURE CIRCUIT BREAKER
Acti9 iC60N Miniature Circuit Breakers iC60N circuit breakers are multi-standard circuit breakers which combine the Following functions: Circuit protection against short-circuit currents,Circuit protection against overload currents,Suitable for industrial isolation according to iec/en 60947-2, standard.Fault tripping indication by a red mechanical indicator in circuit breaker front faceInsulated terminals ip20 Visi-trip window Fault tripping is indicated by a red mechanical indicator on the front faceLarge circuit labelling areaDouble clip for dismounting with comb busbar in place Positive contact indication Suitable for industrial isolation according to IEC/EN 60947-2 standard. The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety Increased product service life thanks to: overvoltage resistance by high level of industrial performances conception (pollution degree, rated impulse withstands voltage and insulation voltage),high performance limitation (see limitation curves),fast closing independent of the speed of actuation of the toggle.Remote indication open/closed/tripped, by optional auxiliary contacts.Top or bottom electrical feeding. Key FeaturesRange - Acti 9 Product name - Disbo iC60 Product or component type - Miniature circuit-breaker Device short name - IC60N Poles description - 3P Number of protected poles - 3[In] rated current - 40A Network type - AC Trip unit technology - Thermal-magnetic Curve code - C Breaking capacity- 6000 A Icn at 415 V AC 50/60 Hz conforming to EN/IEC 60898-1
36 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
15 kA Icu at 100...133 V DC conforming to EN/IEC 60947-2Utilisation category - Category A conforming to EN/IEC 60947-2 Network frequency - 50/60 Hz [Ue] rated operational voltage - 240 V AC 50/60 Hz Magnetic tripping limit - 8 x In +/- 20 % [Ics] rated service breaking capacity - 27 kA 75 % conforming to EN/IEC 60947-2 - 10...60 V AC 50/60 Hz, 15 kA 75 % conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz, 7.5 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz, 6000 A 100 % conforming to EN/IEC 60898-1 - 240 V AC 50/60 Hz, 15 kA 100 % conforming to EN/IEC 60947-2 - 12...48 V DC, 6 kA 100 % conforming to EN/IEC 60947-2 - 72 V DC Limitation class - 3 conforming to EN/IEC 60947-2 [Ui] rated insulation voltage - 500 V AC 50/60 Hz [Uimp] rated impulse withstand voltage - 6 kV conforming to EN/IEC 60947-2 Contact position indicator - Yes Control type - Toggle Local signalling - Trip indicator Mounting mode - Clip-on Mounting support - Rail9 mm pitches - 2 Colour - White Mechanical durability - 20000 cycles Electrical durability - 10000 cycles Provision for padlocking - Padlock able connections - terminals Single terminal (top or bottom) 1…25 mm² rigidSingle terminal (top or bottom) 1…16 mm² flexible Wire stripping length - 14 mm for top or bottom connection Tightening torque - 2 N.m top or bottom Earth-leakage protection - Separate block Standards - EN/IEC 60898-1, EN/IEC 60947-2 IP degree of protection - IP20 conforming to IEC 60529 Pollution degree - 3 conforming to EN/IEC 60947-2 Tropicalisation - 2 conforming to IEC 60068-1 Relative humidity - 95 % at 55 °C Ambient air temperature for operation -35…70 °C Ambient air temperature for storage -40…85 °CWhat's In the Box1 ACTI9 IC60N 3P 40A C MINIATURE CIRCUIT BREAKER
Lisse - Wide Rocker Switch - 1 Gang 2 Way - 10AX White
Lisse curves in all the right places... The Lisse white moulded range of wiring accessories offers the perfect blend of style and performance. You no longer have to choose between convenience and efficiency, or compromise on appearance to get the most innovative features. Lisse is packed with a vast array of technical features, providing a high level of quality, reliability, and value you can count on. • Ideally suited for new construction projects • Future-proofed to cater for the latest demands in consumer technology • Made from durable, high quality urea with antimicrobial properties • Cleverly designed to ensure that product ordering is simple and efficient, with many time and space saving solutions • Crafted with your customer in mind, adding bespoke solutions to make a lasting impact From all angles. Minimum back projection frees up space in the back box for cabling No matter how you look at it - from the front, back, or side - the Lisse range is designed to make your life simpler. Get installation right the first time, every time.Key FeaturesRange - Lisse Aesthetic name - White moulded Product or component type - switch device presentation - Complete product Colour tint - White Switch function - 2-wayControl type - Rocker Number of gangs - 1 gangDevice mounting - Wall mountedRated current - 10 AX at 230 V AC connections - terminals - Screw terminals material - Urea (carbamide) surface finish - Matt type of packing - CartonWhat's In the Box1 Lisse - Wide rocker switch - 1 gang 2 way - 10AX White
Easy9 MCB - 4P, 25 A, C Curve, 6000 A
Easy9 MCB Miniature Circuit-Breakers (MCB) Part of Easy Series Miniature circuit breakers to provide short-circuit and cable overload protection. Designed with functionality and protection in mind, the Easy9 miniature circuit breakers offer a user-friendly design for ultimate ease-of-use. Features Providing protection when you most need it, the miniature circuit breakers give you high levels of protection from short circuits and cable overload whilst providing a user-friendly interface to make them as accessible as possible. High-quality design providing much-needed protection. Highly accessible user-friendly design. Availability whenever and wherever you look for it. Robust and designed to stand-up to the test of time. Excellent levels of reliability. Cost-effective, provides protection and reliability at an affordable price. Benefits Designed for modular devices, the miniature circuit breakers ensure protection from short-circuits and cable overload. Resulting from close work with electricians worldwide, they provide enhanced protection as well as peace of mind to customers. Enhanced protection to pass on to your customers. Designed with ease of installation in mind. Suitable for modular devices. Applications Use in a range of applications to provide short-circuit and cable overload protection. Easy to install and with a user-friendly interface, the miniature circuit breakers provide accessibility, reliability and protection.Key FeaturesRange - Easy9 Device application - Distribution Product or component type - Miniature circuit-breaker Device short name - Easy9 MCB Poles - 4P Number of protected poles - 4 [In] rated current - 25A Network type - AC Trip unit technology - Thermal-magnetic Curve code - C Breaking capacity - 10000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1, 6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1 Suitability for isolation - Yes conforming to IEC 60898-1Network frequency - 50/60 Hz [Ue] rated operational voltage - 220 V AC 50/60 Hz, 400 V AC 50/60 HzMagnetic tripping limit 5...10 x In [Ics] rated service breaking capacity 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 [Ui] rated insulation voltage - 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage - 4 kV conforming to IEC 60898-1 Contact position indicator - Yes Control type - ToggleLocal signalling - Without Mounting mode - Clip-on Mounting support - DIN rail 9 mm pitches - 4 Colour Grey (RAL 7035) Mechanical durability 10000 cycles Electrical durability 4000 cycles Connections - terminals - Tunnel type terminal (top or bottom) 1…25 mm² flexible, Tunnel Type terminal (top or bottom) 1…35 mm² rigidTightening torque 2 N.m top or bottom Earth-leakage protection - WithoutStandards - IEC 60898-1 Product certifications - CEIP degree of protection IP20 conforming to IEC 60529 Pollution degree - 2 Tropicalisation - 2 Relative humidity - 95 % at -5…60 °C Ambient air temperature for operation - 5…60 °C Ambient air temperature for storage - 40…85 °C What's In the Box1 Easy9 MCB - 4P, 25 A, C curve, 6000 A
AvatarOn Switch, 16AX, 1 Gang 2 Way, LED, Wine Gold
AvatarOnChangeable light switches just as you like AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.AvatarOn switch E8331L2LED_WG is a complete product in colour wine gold with 1 rocker. This is a 1-pole 2-way switch with a LED indicator. And its rated current is 16AX. It is 86 mm in width, 86 mm in height, 34.2 mm in depth, with an embedding depth of 24.5 mm. Its matching mounting box can be recessed into the surface of the wall with flush type. The IP rating of this device is IP20. Its connection terminals are brass terminal. The switch is made of polycarbonate, polycarbonate + GF 20 %, making it as resistant as possible. Being environmentally friendly, this switch is a green premium product too. And it is free AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colourful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.Key FeaturesRange - AvatarOn
Product or component type - SwitchDevice application - ControlLoad type - Resistive, Incandescent lamp, Fluorescent lamp, InductiveColour tint - Wine goldDevice presentation - Complete productRated current - 16 AX at 250 V AC 50/60 HzSwitch function - 1-pole 2-wayNumber of gangs - 1 gangNumber of rocker - 1Clamping connection capacity - 3 x 2.5 mm² for solid cable(s), 3 x 2.5 mm² for stranded cable(s), 4 x 1.5 mm² for solid cable(s), 4 x 1.5 mm² for stranded cable(s)Connections - terminals - Brass terminalLocal signalling - Off: LED indicator, LEDMaterial - Polycarbonate: grid plate, Polycarbonate: base, Polycarbonate: dolly, Polycarbonate: frame, Polycarbonate + GF 20 %: actuatorDevice mounting - Surface, FlushIP degree of protection - IP20Maximum ambient air temperature for operation - 35 °COperating altitude - 2000 mRelative humidity - 0…95 %Standards - GB 16915.1What's In the Box1 AvatarOn Switch, 16AX, 1 Gang 2 Way, LED, Wine Gold
TeSys D Contactor - 4P AC1 440V 200A 220V AC 50/60 Hz Coil
TeSys DContactors to control motors up to 150 A (75 kW / 400 V)Part of TeSysTeSys D contactors and reversing contactors are available from 9 A to 150 A (inductive motor), and from 20 A to 200 A (resistive loads) in 3-pole and 4-pole versions.FeaturesAs the bestselling line of contactors in the world, TeSys D offers multi-standard solutions, high reliability with long mechanical and electrical durability for different sizes, along with the most complete accessories in the industry.TeSys D contactors leverage over 100 years of experience and innovation to control your motors.Specifications:AC & DC Coils 50/60 Hz available for whole rangeDC low consumption with direct compatibility with 100 mA I/O PLC card from 9 to 38 ADC low consumption with direct compatibility with 500 mA I/O PLC card from 40 to 80 A using TeSys D Green BBE 24 V electronic coilVarious types of connection available:Screw clamp terminalsEverlink (40 to 80 A)Spring terminals (9 to 38 A and on control terminal up to 65 A)Lugs terminalsFaston terminal (9 to 12 A)High making and breaking capacity1 NO & 1 NC integrated auxiliary contact in all 3-pole and 4-pole contactorsSafety application with all NC auxiliary contact certified as mirror contacts for IEC 60947-4-1Up to 30 million mechanical operation cyclesElectrical cycles up to 3600 cycles per hour at ambient temperatureNo derating up to 3000 m altitudeWide range of working temperature: -25°C to 60°CTeSys D benefits a wide range of accessories for:Additional auxiliary contacts: front or side mounted auxiliary contact blocks, time delay auxiliary blocks.Contactors combination: reversing kits, low-speed / high-speed connection kits, changeover 4-pole kits, etc.System assembly with other products: Power and auxiliary connection to circuit breaker and/or to overload relay.The new TeSys D Greencontactor is equipped with an innovative electronic coil requiring up to 80% less energy (when sealed) than electro-mechanical contactors.TeSys D Green contactors simplify your maintenance services with 90% less references needed. TeSys D Green contactors, associated with TeSys LR9D electronic overload relays, reduce heat generation and energy consumption by up to 50%.BenefitsTeSys D contactors can offer quick simple setup, while maintaining a compact size. These contactors can provide multiple advantages, including:SafetySafe and long-lasting power connection with Everlink and spring terminalsSuitable for safety applications thanks to mechanically linked contacts and mirror contacts (certified by IEC 60947-4-1 and 60947-5-1)Identification of safety chain with red cover and auxiliary contactEfficiencyRecognized high performance and quality solutionsOutstanding breaking/making capacity up to 20 InMultistandard: IEC, UL, CCC, EAC, various Marine standards, etc.PLC direct connectionContinuity of serviceCertified type 1 and 2 coordination tablesWorldwide availability of products and after-sales servicesApplicationsTeSys D contactors are primarily used in industry, infrastructure and building applications.TeSys D contactors have been designed for perfect integration in control systems, specific references BL or BBE compatible with digital PLC I/O 100 mA or 500 mAThese contactors can be used to create motor starters for any type of applicationKey FeaturesRange - TeSys Product name - TeSys DProduct or component type - ContactorDevice short name - LC1D Contactor application - Resistive load Utilisation category - AC-1 Poles description - 4P Power pole contact composition - 4 NO What's In the Box1 TeSys D Contactor - 4P AC1 440V 200A 220V AC 50/60 Hz Coil
Lisse - Plate Switch - 3 Gang 2 Way - 10AX White
Lisse curves in all the right places... The Lisse white moulded range of wiring accessories offers the perfect blend of style and performance. You no longer have to choose between convenience and efficiency, or compromise on appearance to get the most innovative features. Lisse is packed with a vast array of technical features, providing a high level of quality, reliability, and value you can count on. • Ideally suited for new construction projects • Future-proofed to cater for the latest demands in consumer technology • Made from durable, high quality urea with antimicrobial properties • Cleverly designed to ensure that product ordering is simple and efficient, with many time and space saving solutions • Crafted with your customer in mind, adding bespoke solutions to make a lasting impact From all angles. Minimum back projection frees up space in the back box for cabling No matter how you look at it - from the front, back, or side - the Lisse range is designed to make your life simpler. Get installation right the first time, every time.Key FeaturesRange - Lisse Aesthetic name - White moulded Product or component type - Plate switch device presentation - Complete product Colour tint - WhiteQuantity per set - Set of 10 Switch function - 2-wayControl type - Rocker Number of gangs - 3 gangDevice mounting - Wall mountedRated current - 10 AX at 230 V AC connections - terminals - Screw terminals material - Urea (carbamide) surface finish - Matt type of packing - CartonWhat's In the Box1 Lisse - Plate switch - 3 gang 2 way - 10AX White

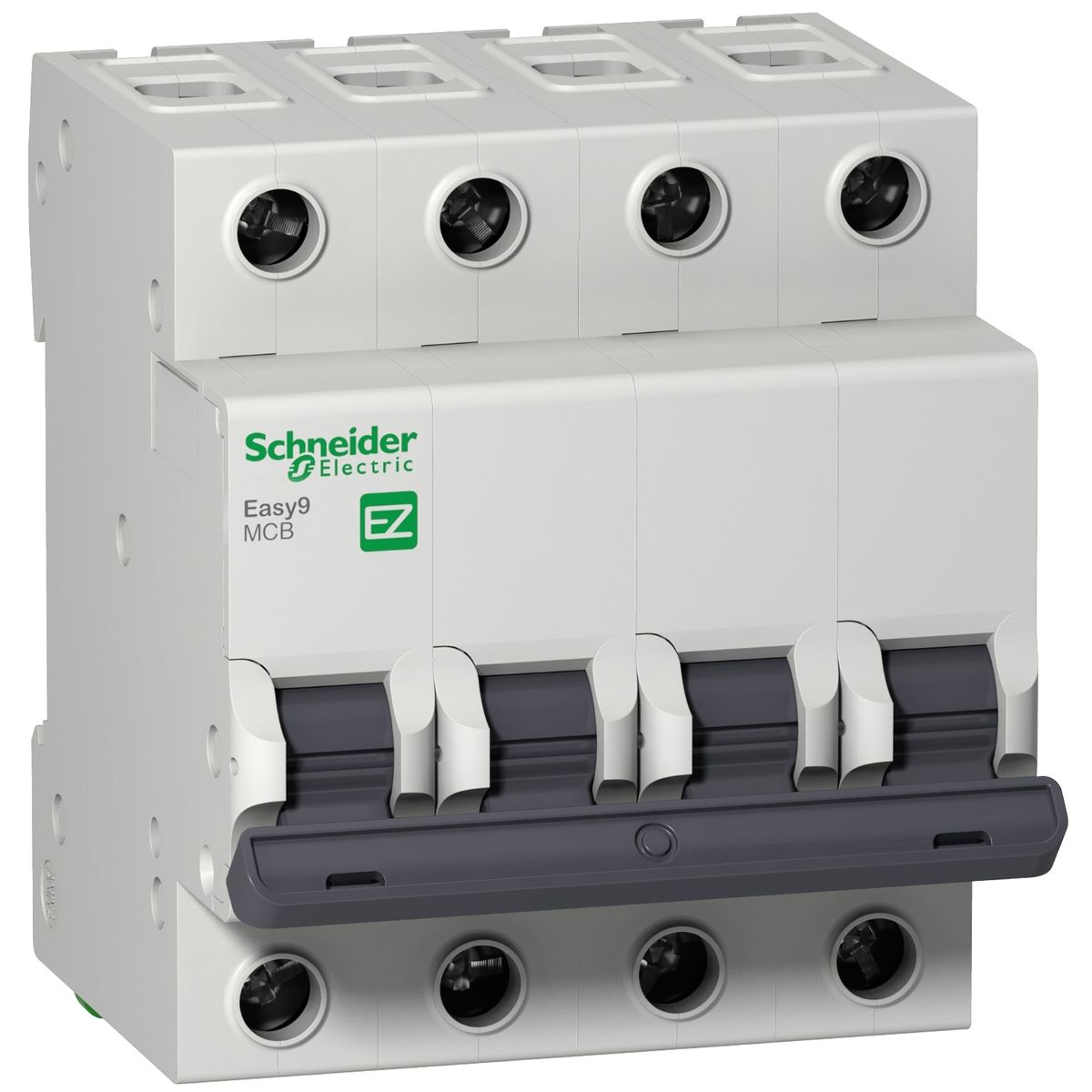

Easy9 MCB - 4P - 10 A - C Curve - 6000 A - 400 V
Easy9 MCB Miniature Circuit-Breakers (MCB) Part of Easy Series Miniature circuit breakers to provide short-circuit and cable overload protection. Designed with functionality and protection in mind, the Easy9 miniature circuit breakers offer a user-friendly design for ultimate ease-of-use. Features Providing protection when you most need it, the miniature circuit breakers give you high levels of protection from short circuits and cable overload whilst providing a user-friendly interface to make them as accessible as possible. High-quality design providing much-needed protection. Highly accessible user-friendly design. Availability whenever and wherever you look for it. Robust and designed to stand-up to the test of time. Excellent levels of reliability. Cost-effective, provides protection and reliability at an affordable price. Benefits Designed for modular devices, the miniature circuit breakers ensure protection from short-circuits and cable overload. Resulting from close work with electricians worldwide, they provide enhanced protection as well as peace of mind to customers. Enhanced protection to pass on to your customers. Designed with ease of installation in mind. Suitable for modular devices. Applications Use in a range of applications to provide short-circuit and cable overload protection. Easy to install and with a user-friendly interface, the miniature circuit breakers provide accessibility, reliability and protection.Key FeaturesRange - Easy9 Device application - Distribution Product or component type - Miniature circuit-breaker Device short name - Easy9 MCB Poles - 4P Number of protected poles - 4 [In] rated current - 10A Network type - AC Trip unit technology - Thermal-magnetic Curve code - C Breaking capacity - 10000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1
6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1Suitability for isolation - Yes conforming to IEC 60898-1Network frequency - 50 Hz [Ue] rated operational voltage 230 V AC 50 Hz, 127 V AC 50 Hz Magnetic tripping limit - 5...10 x In [Ics] rated service breaking capacity - 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1[Ui] rated insulation voltage - 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage - 4 kV conforming to IEC 60898-1 Contact position indicator - Yes Control type - ToggleLocal signalling - Without Mounting mode - Clip-on Mounting support - DIN rail 9 mm pitches - 2 Colour - Grey (RAL 7035) Mechanical durability - 10000 cycles Electrical durability - 4000 cycles Connections - terminals - Tunnel type terminal (top or bottom) 1…25 mm² rigid, Tunnel type terminal (top or bottom) 1…16 mm² flexible Tightening torque - 2 N.m top or bottom Standards - IEC 60898-1 Product certifications - VDE, CE IP degree of protection - IP20 conforming to IEC 60529 pollution degree -2 Tropicalisation -2 Relative humidity -95 % at -5…60 °C Ambient air temperature for operation - -5…60 °C Ambient air temperature for storage - -40…85 °CWhat's In the Box1 Easy9 MCB - 4P - 10A - C curve - 6000 A - 400 V
Easy9 MCB - 1P, 20A, C Curve, 6000 A
Easy9 MCB Miniature Circuit-Breakers (MCB) Part of Easy Series Miniature circuit breakers to provide short-circuit and cable overload protection. Designed with functionality and protection in mind, the Easy9 miniature circuit breakers offer a user-friendly design for ultimate ease-of-use. Features Providing protection when you most need it, the miniature circuit breakers give you high levels of protection from short circuits and cable overload whilst providing a user-friendly interface to make them as accessible as possible. High-quality design providing much-needed protection. Highly accessible user-friendly design. Availability whenever and wherever you look for it. Robust and designed to stand-up to the test of time. Excellent levels of reliability. Cost-effective, provides protection and reliability at an affordable price. Benefits Designed for modular devices, the miniature circuit breakers ensure protection from short-circuits and cable overload. Resulting from close work with electricians worldwide, they provide enhanced protection as well as peace of mind to customers. Enhanced protection to pass on to your customers. Designed with ease of installation in mind. Suitable for modular devices. Applications Use in a range of applications to provide short-circuit and cable overload protection. Easy to install and with a user-friendly interface, the miniature circuit breakers provide accessibility, reliability and protection.Key FeaturesRange - Easy9 Device application - Distribution Product or component type - Miniature circuit-breaker Device short name - Easy9 MCB Poles - 1P Number of protected poles - 1 [In] rated current - 20 A Network type - AC Trip unit technology - Thermal-magnetic Curve code - C Breaking capacity - 6000 A Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1, 10000 A Icn at 127 V AC 50/60 Hz conforming to IEC 60898-1 Suitability for isolation - Yes conforming to IEC 60898-1Network frequency - 50 Hz [Ue] rated operational voltage 230 V AC 50 Hz, 127 V AC 50 Hz Magnetic tripping limit - 5...10 x In [Ics] rated service breaking capacity - 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 [Ui] rated insulation voltage - 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage - 4 kV conforming to IEC 60898-1 Contact position indicator - Yes Control type - ToggleLocal signalling - Without Mounting mode - Clip-on Mounting support - DIN rail 9 mm pitches - 2 Colour - Grey (RAL 7035) Mechanical durability - 10000 cycles Electrical durability - 4000 cycles Connections - terminals - Tunnel type terminal (top or bottom) 1…25 mm² rigid, Tunnel type terminal (top or bottom) 1…16 mm² flexible Tightening torque - 2 N.m top or bottom Standards - IEC 60898-1 Product certifications - VDE, CE IP degree of protection - IP20 conforming to IEC 60529 pollution degree -2 Tropicalisation -2 Relative humidity -95 % at -5…60 °C Ambient air temperature for operation - -5…60 °C Ambient air temperature for storage - -40…85 °CWhat's In the Box1 Easy9 MCB - 1P, 20A, C Curve, 6000 A
Easy9 Switch Disconnector - 4P - 125 A - 400 V
Easy9 devices Protection devices MCB RCCB RCBO SW SPD Part of Easy Series The Easy9 range contains circuit breakers, residual current devices, switches, surge protection devices and comb busbars all aimed at providing electrical protection to residential buildings. Designed with style and ease of use in mind, the range guarantees you have everything you need to ensure clients are happy with the end result. Features With everything from comb busbars to MCBs in the range, you are bound to find flexibility with the Easy9 protection range, designed to provide you with maximum electrical protection in residential buildings. Included in the range: · Miniature circuit breakers (MCBs) for short circuit protection and overload protection · Residual current circuit breakers (RCCBs) for earth leakage protection · Residual current devices (RCBOs) for earth leakage protection, short circuit protection and overload protection · Switches for Isolation · Surge protection devices (SPD) for Surge protection · Comb busbars for power distribution. · For more devices and accessories, be sure to look out for the latest Easy9 global catalogue. Benefits Combining the experience of Schneider Electric with long historical innovation and guaranteed quality, the Easy9 protection range is the easiest way to ensure electrical protection in residential buildings. · Complete System: Easy9 protection devices are designed with system consistency and contain all the protections devices and accessories you need · Reliable: Easy9 protection devices have been developed and manufactured by Schneider Electric with guaranteed quality control, and all certified with IEC and local standard · ”EASY”: Easy9 protection devices are easy to select with clear referencing and marking, easy to maintain with clear reminding message on the product, and easy to install with unified terminal design and wiring indication · Sustainable: Easy9 protection devices are compliant with global RoHS/Reach regulation to protect your family and environment · Available and Affordable: Our worldwide distribution network will make sure you can get it easily around you, with an affordable price! Applications Targeted towards the residential sector, the Easy9 range gives you electrical protection in residential buildings, and provides you with complete peace of mind, ease of use and reliability. · Designed with the residential market in mind · Ideally suited to individual and collective buildings.Key FeaturesRange - Easy9 Product or component type - SwitchDevice short name - Easy9 switch Switch application - Distribution Poles - 4P Utilisation category - AC-22A Suitability for isolation - Yes [Ie] rated operational current - 125 A at 400 V 50/60 Hz [Ue] rated operational voltage - 400 V AC 50/60 Hz [Icm] rated short-circuit making capacity - 1.875 kA[Icw] rated short-time withstand current - 1.5 kA during 1 s [Ui] rated insulation voltage - 500 V AC 50/60 Hz [Uimp] rated impulse withstand voltage - 4 kV Control type - ToggleLocal signalling - ON/OFF indication Contact position indicator - Yes Mounting mode - Clip-on Mounting support - DIN rail 9 mm pitches - 8 Colour - Grey Mechanical durability - 7000 cycles Electrical durability - 1000 cycles Connections - terminals -Tunnel type terminal (top or bottom) 1…50 mm² rigid, Tunnel type terminal (top or bottom) 1…35 mm² flexible Tightening torque - 3.5 N.m Standards - IEC 60947-3 Product certifications - CE IP degree of protection - IP20 conforming to IEC 60529 tropicalisation - 2 ambient air temperature for operation - -5…55 °C ambient air temperature for storage - -5…70 °CWhat's In the Box1 Easy9 switch disconnector - 4P - 125 A - 400 V

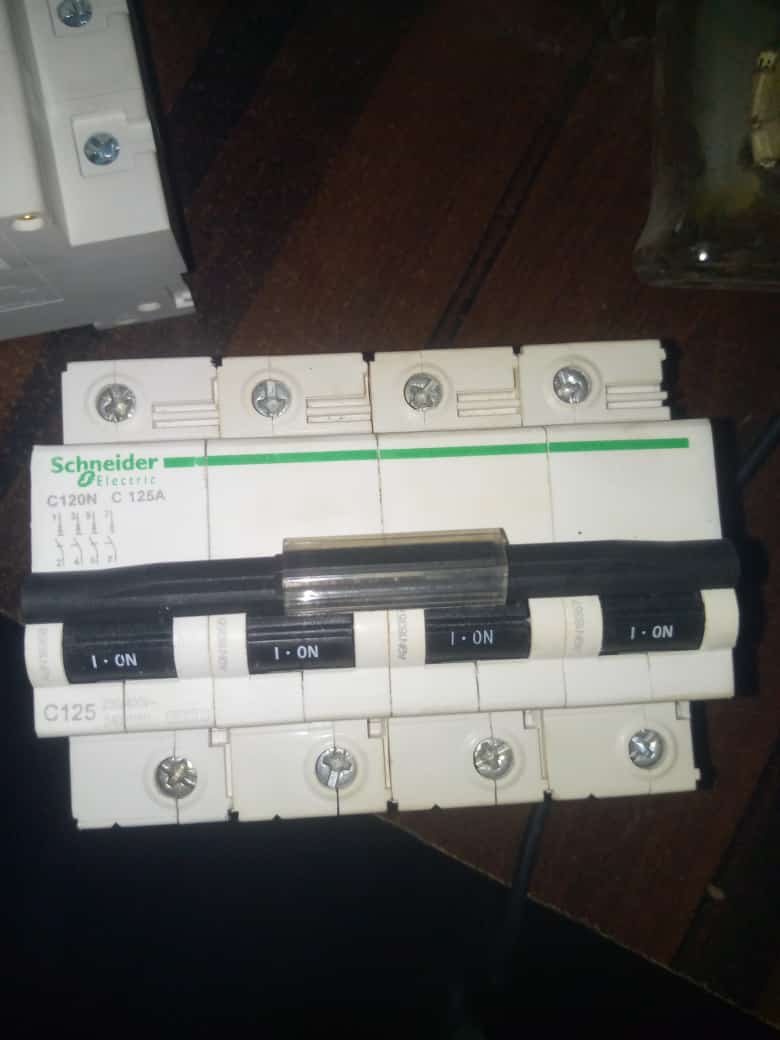

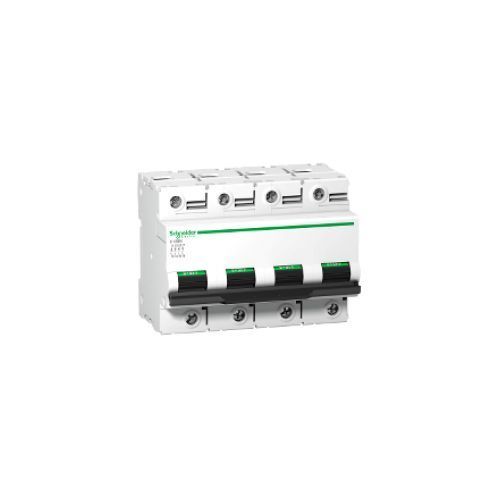

C120N - Circuit Breaker - 4P - 100A - C Curve
C120RANGEACTI 9PRODUCT NAMEC120PRODUCT OR COMPONENT TYPEMINIATURE CIRCUIT-BREAKERDEVICE SHORT NAMEC120NDEVICE APPLICATIONDISTRIBUTIONPOLES DESCRIPTION4PNUMBER OF PROTECTED POLES4[IN] RATED CURRENT100 A AT 30 DCNETWORK TYPEACTRIP UNIT TECHNOLOGYTHERMAL-MAGNETICCURVE CODECBREAKING CAPACITY CODENBREAKING CAPACITY10000 A ICN CONFORMING TO ENIEC 60898-1 - 230...400 V AC 5060 HZSUITABILITY FOR ISOLATIONYES CONFORMING TO IEC 60947-2What's In the Box1 Schneider circuit breaker - 4P - 100A - C curve
MCB Acti9 C60H-DC, 2P 32A, C Curve, 6kA
Acti9 C60H-DC Miniature Circuit BreakersActi9 C60H-DC circuit breakers are multi-standard circuit breakers which combines the following functions: Circuit protection against short-circuit currents, Circuit protection against overload currents, Suitable for industrial isolation according to IEC/EN 60947-2, standard. Fault tripping indication by a red mechanical indicator in circuit breaker front face Insulated terminals IP20 Visi-trip window Fault tripping is indicated by a red mechanical indicator on the front face Large circuit labelling area Double clip for dismounting with comb busbar in place Benefits: It is suitable for industrial isolation according to IEC/EN 60947-2 standard The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety It has good overvoltage withstand capacity It offers a high industrial performance level The product can be clipped on a DIN rail Increased product service life, credit to: overvoltage resistance by high level of industrial performances conception (pollution degree, rated impulse withstands voltage and insulation voltage), high performance limitation (see limitation curves) fast-closing independent of the speed of actuation of the toggle Remote indication open/closed/tripped, by optional auxiliary contacts Top/bottom electrical feeding What's In the Box1- Miniature circuit breaker (MCB), Acti9 C60H-DC, 2P, 32A, C curve, 6kA
Vivace 45A 250V Cooker Control Unit
Vivace is a range of switches and sockets built for style and function for modern interior design. A switch and socket set with the style and modern simplicity of the Bauhaus movement. Inspired by the influential Bauhaus movement, Vivace expresses a pleasing form follows function. With a slim and trim profile, the sleek clean lines and subtle curves manifest an art of simple, elegant minimalism. Every piece in this robustly constructed range sits perfectly within the context of any modern interior design. Vivace, a style of modern simplicity that is always within your reach.A slim, trim profile, pleasing to the eye, clean and refined, the Vivace is a switch and socket set that perfectly complements the modern lifestyle. Inspired by the simple, elegant minimalism of the supremely influential Bauhaus movement, every piece in this robustly constructed range expresses a pleasing form following function. Unmarred by visible fastenings, the sleek clean lines of Vivace present a cool refined touch of style to almost any interior. The Vivace switch and socket set is a robustly constructed range built to perfectly complement the modern lifestyle.Key FeaturesRange - VivaceProduct or component type - Switched socket Device short name - KBT15Device presentation - Complete preoductOutlet poles configuration - 2P + ENumber of gangs - 2 gangsColour tint - WhiteMaterial - Polycarbonate: grid plate, Polycarbonate: Surround, Polycarbonate: baseProjecting depth - 8 mmDevice mounting - FlushMounting support - Wall mountedFixing mode - by screw M3.5Fixing center - 120.6 mmEmbedding depth - 47 mmRated current - 45 A at 250 V AC, resistiveNetwork frequency - 50 HzContacts material - Brass and phosphor bronzeConnections - terminals - Pillar terminalTerminal identifier - N, Earth, LTightening torque - 0.4 N.mClamping connection capacity - 2 x 4 mm², 3 x 2.5 mm²Clean, geometrically balanced designThin: 8mm slim at the thickest point16 AX Switches: handles additional loading and enables wider applicationHigh fatigue resistance capacityAll sockets are inserted with shutter doors for a longer lifecycleWhat's In the Box1 Vivace 45A 250V Cooker Control Unit
Lisse - 3 Gang 2 Way - 10AX Mocha Bronze With Black Interior
Lisse curves in all the right places... The Lisse white moulded range of wiring accessories offers the perfect blend of style and performance. You no longer have to choose between convenience and efficiency, or compromise on appearance to get the most innovative features. Lisse is packed with a vast array of technical features, providing a high level of quality, reliability, and value you can count on. • Ideally suited for new construction projects • Future-proofed to cater for the latest demands in consumer technology • Made from durable, high quality urea with antimicrobial properties • Cleverly designed to ensure that product ordering is simple and efficient, with many time and space saving solutions • Crafted with your customer in mind, adding bespoke solutions to make a lasting impact From all angles. Minimum back projection frees up space in the back box for cabling No matter how you look at it - from the front, back, or side - the Lisse range is designed to make your life simpler. Get installation right the first time, every time.Key FeaturesRange - LisseAesthetic name - Screwless decoproduct or component type - Plate switchDevice presentation - Complete productColour tint - Interior: black, Cover plate: mocha bronze Switch function - 2-wayControl type - Rocker Number of gangs - 3 gangs Device mounting - Wall mountedRated current - 10 AX at 230 V AC Fixing mode - Concealed screws Connections - terminals - Screw terminals Material - Stainless steelSurface finish - Brushed finishType of packing - BoxWhat's In the Box1 Lisse - 3 gang 2 way - 10AX Mocha Bronze with Black Interior

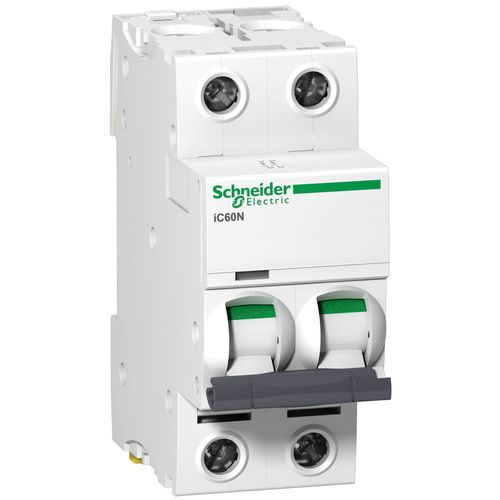

ACTI9 IC60N 2P 63A C MINIATURE CIRCUIT BREAKER
Acti9 iC60N Miniature Circuit Breakers iC60N circuit breakers are multi-standard circuit breakers which combine the Following functions: Circuit protection against short-circuit currents,Circuit protection against overload currents,Suitable for industrial isolation according to iec/en 60947-2, standard.Fault tripping indication by a red mechanical indicator in circuit breaker front faceInsulated terminals ip20 Visi-trip window Fault tripping is indicated by a red mechanical indicator on the front faceLarge circuit labelling areaDouble clip for dismounting with comb busbar in place Positive contact indication Suitable for industrial isolation according to IEC/EN 60947-2 standard. The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety Increased product service life thanks to: overvoltage resistance by high level of industrial performances conception (pollution degree, rated impulse withstands voltage and insulation voltage),high performance limitation (see limitation curves),fast closing independent of the speed of actuation of the toggle.Remote indication open/closed/tripped, by optional auxiliary contacts.Top or bottom electrical feeding. Key FeaturesRange - Acti 9 Product name - Disbo iC60 Product or component type - Miniature circuit-breaker Device short name - IC60N Poles description - 2P Number of protected poles - 2[In] rated current - 63A Network type - AC/DC Trip unit technology - Thermal-magnetic Curve code - C Breaking capacity- 6 kA Icu at 100...133 V DC conforming to EN/IEC 60947-2
6000 A Icn at 415 V AC 50/60 Hz conforming to EN/IEC 60898-1
36 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 Utilisation category - Category A conforming to EN/IEC 60947-2 Network frequency - 50/60 Hz [Ue] rated operational voltage - 240 V AC 50/60 Hz Magnetic tripping limit - 8 x In +/- 20 % [Ics] rated service breaking capacity - 27 kA 75 % conforming to EN/IEC 60947-2 - 10...60 V AC 50/60 Hz, 15 kA 75 % conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz, 7.5 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz, 6000 A 100 % conforming to EN/IEC 60898-1 - 240 V AC 50/60 Hz, 15 kA 100 % conforming to EN/IEC 60947-2 - 12...48 V DC, 6 kA 100 % conforming to EN/IEC 60947-2 - 72 V DC Limitation class - 3 conforming to EN/IEC 60947-2 [Ui] rated insulation voltage - 500 V AC 50/60 Hz [Uimp] rated impulse withstand voltage - 6 kV conforming to EN/IEC 60947-2 Contact position indicator - Yes Control type - Toggle Local signalling - Trip indicator Mounting mode - Clip-on Mounting support - Rail9 mm pitches - 2 Colour - White Mechanical durability - 20000 cycles Electrical durability - 10000 cycles Provision for padlocking - Padlock able connections - terminals Single terminal (top or bottom) 1…25 mm² rigidSingle terminal (top or bottom) 1…16 mm² flexible Wire stripping length - 14 mm for top or bottom connection Tightening torque - 2 N.m top or bottom Earth-leakage protection - Separate block Standards - EN/IEC 60898-1, EN/IEC 60947-2 IP degree of protection - IP20 conforming to IEC 60529 Pollution degree - 3 conforming to EN/IEC 60947-2 Tropicalisation - 2 conforming to IEC 60068-1 Relative humidity - 95 % at 55 °C Ambient air temperature for operation -35…70 °C Ambient air temperature for storage -40…85 °CWhat's In the Box1 ACTI9 IC60N 2P 63A C MINIATURE CIRCUIT BREAKER
Easy9 MCB - 1P, 25A, C Curve, 6000 A
Easy9 MCB Miniature Circuit-Breakers (MCB) Part of Easy Series Miniature circuit breakers to provide short-circuit and cable overload protection. Designed with functionality and protection in mind, the Easy9 miniature circuit breakers offer a user-friendly design for ultimate ease-of-use. Features Providing protection when you most need it, the miniature circuit breakers give you high levels of protection from short circuits and cable overload whilst providing a user-friendly interface to make them as accessible as possible. High-quality design providing much-needed protection. Highly accessible user-friendly design. Availability whenever and wherever you look for it. Robust and designed to stand-up to the test of time. Excellent levels of reliability. Cost-effective, provides protection and reliability at an affordable price. Benefits Designed for modular devices, the miniature circuit breakers ensure protection from short-circuits and cable overload. Resulting from close work with electricians worldwide, they provide enhanced protection as well as peace of mind to customers. Enhanced protection to pass on to your customers. Designed with ease of installation in mind. Suitable for modular devices. Applications Use in a range of applications to provide short-circuit and cable overload protection. Easy to install and with a user-friendly interface, the miniature circuit breakers provide accessibility, reliability and protection.Key FeaturesRange - Easy9 Device application - Distribution Product or component type - Miniature circuit-breaker Device short name - Easy9 MCB Poles - 1P Number of protected poles - 1 [In] rated current - 25 A Network type - AC Trip unit technology - Thermal-magnetic Curve code - C Breaking capacity - 6000 A Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1, 10000 A Icn at 127 V AC 50/60 Hz conforming to IEC 60898-1 Suitability for isolation - Yes conforming to IEC 60898-1Network frequency - 50 Hz [Ue] rated operational voltage 230 V AC 50 Hz, 127 V AC 50 Hz Magnetic tripping limit - 5...10 x In [Ics] rated service breaking capacity - 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1[Ui] rated insulation voltage - 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage - 4 kV conforming to IEC 60898-1 Contact position indicator - Yes Control type - ToggleLocal signalling - Without Mounting mode - Clip-on Mounting support - DIN rail 9 mm pitches - 2 Colour - Grey (RAL 7035) Mechanical durability - 10000 cycles Electrical durability - 4000 cycles Connections - terminals - Tunnel type terminal (top or bottom) 1…25 mm² rigid, Tunnel type terminal (top or bottom) 1…16 mm² flexible Tightening torque - 2 N.m top or bottom Standards - IEC 60898-1 Product certifications - VDE, CE IP degree of protection - IP20 conforming to IEC 60529 pollution degree -2 Tropicalisation -2 Relative humidity -95 % at -5…60 °C Ambient air temperature for operation - -5…60 °C Ambient air temperature for storage - -40…85 °CWhat's In the Box1 Easy9 MCB - 1P, 25A, C Curve, 6000 A
Vivace 16AX 250V 3 Gang 2 Way Switch2
Vivace is a range of switches and sockets built for style and function for modern interior design. A switch and socket set with the style and modern simplicity of the Bauhaus movement. Inspired by the influential Bauhaus movement, Vivace expresses a pleasing form follows function. With a slim and trim profile, the sleek clean lines and subtle curves manifest an art of simple, elegant minimalism. Every piece in this robustly constructed range sits perfectly within the context of any modern interior design. Vivace, a style of modern simplicity that is always within your reach.A slim, trim profile, pleasing to the eye, clean and refined, the Vivace is a switch and socket set that perfectly complements the modern lifestyle. Inspired by the simple, elegant minimalism of the supremely influential Bauhaus movement, every piece in this robustly constructed range expresses a pleasing form following function. Unmarred by visible fastenings, the sleek clean lines of Vivace present a cool refined touch of style to almost any interior. The Vivace switch and socket set is a robustly constructed range built to perfectly complement the modern lifestyle.Key FeaturesRange - Vivaceproduct or component type - SwitchDevice short name - KB32Device application - ControlDevice presentation - Complete MechanismSwitch function - 2-wayActuator - RockerNumber of gangs - 3 gangColour tint - WhiteMaterial ]- Polycarbonate: grid plate, Polycarbonate: surround, Polycarbonate: baseprojecting depth - 8 mmDevice mounting - FlushMounting support - Wall mountedFixing mode - By screw M3.5Fixing center - 60.3 mmEmbedding depth - 35 mmRated current - 16 AX at 250 V AC, inductive - 16 AX at 250 V AC, fluorescent[Ue] rated operational voltage - 250 V ACNetwork frequency - 50 HzContacts material - Brass and phosphor bronzeConnections - terminals - Pillar terminalTerminal identifier - L2, L1, COMTightening torque - 0.4 N.mclamping connection capacity - 2.5 mm²Clean, geometrically balanced designThin: 8mm slim at the thickest point16 AX Switches: handles additional loading and enables wider applicationHigh fatigue resistance capacityAll sockets are inserted with shutter doors for a longer lifecycleWhat's In the Box1 Vivace 16AX 250V 3 Gang 2 Way Switch
Acti9 IC60N 2P C 20A MCB
Acti9 iC60N Miniature Circuit Breakers iC60N circuit breakers are multi-standard circuit breakers which combine the Following functions: Circuit protection against short-circuit currents,Circuit protection against overload currents,Suitable for industrial isolation according to iec/en 60947-2, standard.Fault tripping indication by a red mechanical indicator in circuit breaker front faceInsulated terminals ip20 Visi-trip window Fault tripping is indicated by a red mechanical indicator on the front faceLarge circuit labelling areaDouble clip for dismounting with comb busbar in place Positive contact indication Suitable for industrial isolation according to IEC/EN 60947-2 standard. The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety Increased product service life thanks to: overvoltage resistance by high level of industrial performances conception (pollution degree, rated impulse withstands voltage and insulation voltage),high performance limitation (see limitation curves),fast closing independent of the speed of actuation of the toggle.Remote indication open/closed/tripped, by optional auxiliary contacts.Top or bottom electrical feeding. Key FeaturesRange - Acti 9 Product name - Disbo iC60 Product or component type - Miniature circuit-breaker Device short name - IC60N Poles description - 2P Number of protected poles - 2[In] rated current - 20A Network type - AC/DC Trip unit technology - Thermal-magnetic Curve code - C Breaking capacity- 6 kA Icu at 100...133 V DC conforming to EN/IEC 60947-2
6000 A Icn at 415 V AC 50/60 Hz conforming to EN/IEC 60898-1
36 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 Utilisation category - Category A conforming to EN/IEC 60947-2 Network frequency - 50/60 Hz [Ue] rated operational voltage - 240 V AC 50/60 Hz Magnetic tripping limit - 8 x In +/- 20 % [Ics] rated service breaking capacity - 27 kA 75 % conforming to EN/IEC 60947-2 - 10...60 V AC 50/60 Hz, 15 kA 75 % conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz, 7.5 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz, 6000 A 100 % conforming to EN/IEC 60898-1 - 240 V AC 50/60 Hz, 15 kA 100 % conforming to EN/IEC 60947-2 - 12...48 V DC, 6 kA 100 % conforming to EN/IEC 60947-2 - 72 V DC Limitation class - 3 conforming to EN/IEC 60947-2 [Ui] rated insulation voltage - 500 V AC 50/60 Hz [Uimp] rated impulse withstand voltage - 6 kV conforming to EN/IEC 60947-2 Contact position indicator - Yes Control type - Toggle Local signalling - Trip indicator Mounting mode - Clip-on Mounting support - Rail9 mm pitches - 2 Colour - White Mechanical durability - 20000 cycles Electrical durability - 10000 cycles Provision for padlocking - Padlock able connections - terminals Single terminal (top or bottom) 1…25 mm² rigidSingle terminal (top or bottom) 1…16 mm² flexible Wire stripping length - 14 mm for top or bottom connection Tightening torque - 2 N.m top or bottom Earth-leakage protection - Separate block Standards - EN/IEC 60898-1, EN/IEC 60947-2 IP degree of protection - IP20 conforming to IEC 60529 Pollution degree - 3 conforming to EN/IEC 60947-2 Tropicalisation - 2 conforming to IEC 60068-1 Relative humidity - 95 % at 55 °C Ambient air temperature for operation -35…70 °C Ambient air temperature for storage -40…85 °CWhat's In the Box 1 Acti9 iC60N 2P C 20A MCB

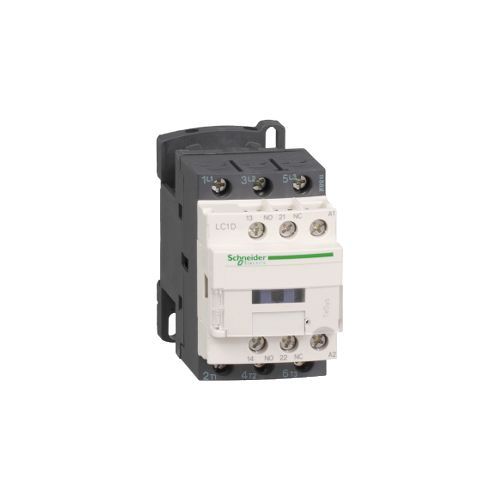

TeSys D Contactor - 3P(3 NO) AC3 440V 9A - 220V AC Coil
TeSys DContactors to control motors up to 150 A (75 kW / 400 V)Part of TeSysTeSys D contactors and reversing contactors are available from 9 A to 150 A (inductive motor), and from 20 A to 200 A (resistive loads) in 3-pole and 4-pole versions.FeaturesAs the bestselling line of contactors in the world, TeSys D offers multi-standard solutions, high reliability with long mechanical and electrical durability for different sizes, along with the most complete accessories in the industry.TeSys D contactors leverage over 100 years of experience and innovation to control your motors.Specifications:AC & DC Coils 50/60 Hz available for whole rangeDC low consumption with direct compatibility with 100 mA I/O PLC card from 9 to 38 ADC low consumption with direct compatibility with 500 mA I/O PLC card from 40 to 80 A using TeSys D Green BBE 24 V electronic coilVarious types of connection available:Screw clamp terminalsEverlink (40 to 80 A)Spring terminals (9 to 38 A and on control terminal up to 65 A)Lugs terminalsFaston terminal (9 to 12 A)High making and breaking capacity1 NO & 1 NC integrated auxiliary contact in all 3-pole and 4-pole contactorsSafety application with all NC auxiliary contact certified as mirror contacts for IEC 60947-4-1Up to 30 million mechanical operation cyclesElectrical cycles up to 3600 cycles per hour at ambient temperatureNo derating up to 3000 m altitudeWide range of working temperature: -25°C to 60°CTeSys D benefits a wide range of accessories for:Additional auxiliary contacts: front or side mounted auxiliary contact blocks, time delay auxiliary blocks.Contactors combination: reversing kits, low-speed / high-speed connection kits, changeover 4-pole kits, etc.System assembly with other products: Power and auxiliary connection to circuit breaker and/or to overload relay.The new TeSys D Greencontactor is equipped with an innovative electronic coil requiring up to 80% less energy (when sealed) than electro-mechanical contactors.TeSys D Green contactors simplify your maintenance services with 90% less references needed. TeSys D Green contactors, associated with TeSys LR9D electronic overload relays, reduce heat generation and energy consumption by up to 50%.BenefitsTeSys D contactors can offer quick simple setup, while maintaining a compact size. These contactors can provide multiple advantages, including:SafetySafe and long-lasting power connection with Everlink and spring terminalsSuitable for safety applications thanks to mechanically linked contacts and mirror contacts (certified by IEC 60947-4-1 and 60947-5-1)Identification of safety chain with red cover and auxiliary contactEfficiencyRecognized high performance and quality solutionsOutstanding breaking/making capacity up to 20 InMultistandard: IEC, UL, CCC, EAC, various Marine standards, etc.PLC direct connectionContinuity of serviceCertified type 1 and 2 coordination tablesWorldwide availability of products and after-sales servicesApplicationsTeSys D contactors are primarily used in industry, infrastructure and building applications.TeSys D contactors have been designed for perfect integration in control systems, specific references BL or BBE compatible with digital PLC I/O 100 mA or 500 mAThese contactors can be used to create motor starters for any type of applicationKey FeaturesRange - TeSys Product name - TeSys DProduct or component type - ContactorDevice short name - LC1D Contactor application - Resistive load, Motor control Utilisation category - AC-4, AC-1, AC-3 Poles description - 3P Power pole contact composition - 3 NOWhat's In the Box1 TeSys D Contactor - 3P(3 NO) AC3 440V 9A - 220V AC coil
Vivace 1 Gang Blank Plate
Vivace is a range of switches and sockets built for style and function for modern interior design. A switch and socket set with the style and modern simplicity of the Bauhaus movement. Inspired by the influential Bauhaus movement, Vivace expresses a pleasing form follows function. With a slim and trim profile, the sleek clean lines and subtle curves manifest an art of simple, elegant minimalism. Every piece in this robustly constructed range sits perfectly within the context of any modern interior design. Vivace, a style of modern simplicity that is always within your reach.A slim, trim profile, pleasing to the eye, clean and refined, the Vivace is a switch and socket set that perfectly complements the modern lifestyle. Inspired by the simple, elegant minimalism of the supremely influential Bauhaus movement, every piece in this robustly constructed range expresses a pleasing form following function. Unmarred by visible fastenings, the sleek clean lines of Vivace present a cool refined touch of style to almost any interior. The Vivace switch and socket set is a robustly constructed range built to perfectly complement the modern lifestyle.Key FeaturesRange - VivaceProduct or component type - Cover frameDevice short name - KB30Number of gangs - 1 gangsColour tint - WhiteMaterial - Polycarbonate: grid plate, Polycarbonate: Surround, Polycarbonate: baseProjecting depth - 8 mmDevice mounting - FlushClean, geometrically balanced designThin: 8mm slim at the thickest point16 AX Switches: handles additional loading and enables wider applicationHigh fatigue resistance capacityAll sockets are inserted with shutter doors for a longer lifecycleWhat's In the Box1 Vivace 1 Gang Blank Plate
Lisse - 2 Gang 13A 2USB Mocha Bronze With Black Interior
Lisse curves in all the right places... The Lisse white moulded range of wiring accessories offers the perfect blend of style and performance. You no longer have to choose between convenience and efficiency, or compromise on appearance to get the most innovative features. Lisse is packed with a vast array of technical features, providing a high level of quality, reliability, and value you can count on. • Ideally suited for new construction projects • Future-proofed to cater for the latest demands in consumer technology • Made from durable, high quality urea with antimicrobial properties • Cleverly designed to ensure that product ordering is simple and efficient, with many time and space saving solutions • Crafted with your customer in mind, adding bespoke solutions to make a lasting impact From all angles. Minimum back projection frees up space in the back box for cabling No matter how you look at it - from the front, back, or side - the Lisse range is designed to make your life simpler. Get installation right the first time, every time.Key FeaturesRange - Lisse Aesthetic name - Screwless deco Product or component type - Switched SocketDevice presentation - Complete productOutlet standard - BritishColour tint - Interior: White, Cover plate: stainless steelType of packing - Bag Switch function - 2 poleRated current - 13 A at 250 V AC 50/60 HzIntegrated connection type - 2 USB port 5 V DC 2.1 AActuator - Rocker Number of gangs - 2 gangPilot light - without LEDFixing mode - Concealed screwsConnections - terminals - Screw terminalsMaterial - Stainless steelType of installation - IndoorWhat's In the Box1 Lisse - 2 Gang 13A 2USB Mocha Bronze With Black Interior
AvatarOn 13A Double Switched Socket 250V Wine Gold
AvatarOnChangeable light switches just as you like AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.AvatarOn switched socket E83T25_WG is a complete product in color wine gold and with 2 gangs. This switch is 3P. And this device is British BS 1363A standard. And its rated current is 13A. Its matching mounting box can be recessed into the surface of the wall with flush type. Its fixing mode is screw. Besides, the IP rating of this device is IP20. What's more, it well satisfied the standard of BS 1363, MS 589, SS 145. As a green premium product, this device is environmentally friendly as well. Being made of polycarbonate material, this switched socket is quite reliable and resistant. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish. Key FeaturesRange - AvatarOn
Product or component type - Switches Socket
Device presentation - Complete productDevice application - Power SupplyOutlet poles configuration - 3p with shutterColour tint - Wine goldType of packing - Flow-packDevice presentation - Complete product
Rated current - 13 A socket-outletRated operational voltage - 250 V AC 50/60 HzSocket number - 2Outlet standard description - With earthing contactOutlet standard - British BS 1363ANumber of gangs - 2 gangsService life in cycles - 20000 cyclesElectrical durability - 5000 cyclesConnections - terminals - Screw terminalMaterial - Polycarbonate: grid plate, Polycarbonate: surroundSurface finish - GlossySurface treatment - Painted mechanism coverDevice mounting - SurfaceFixing mode - ScrewIP degree of protection - IP20Standards - SS 145, BS 1363, MS 589Product certifications - SIRIM What's In the Box1 AvatarOn 13A double switched socket 250V Wine Gold

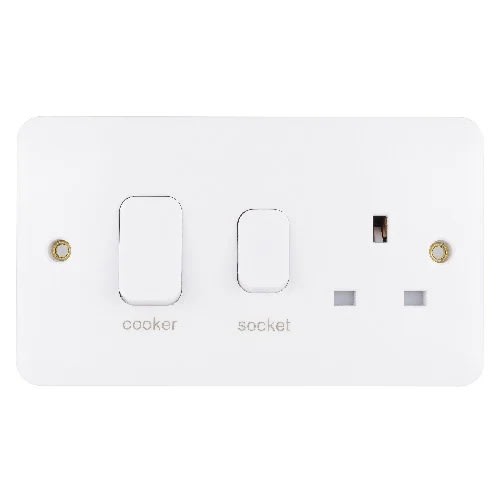

Lisse Cooker Control Unit 13A Socket LED 45A DP Mocha Bronze
Lisse curves in all the right places... The Lisse white moulded range of wiring accessories offers the perfect blend of style and performance. You no longer have to choose between convenience and efficiency, or compromise on appearance to get the most innovative features. Lisse is packed with a vast array of technical features, providing a high level of quality, reliability, and value you can count on. • Ideally suited for new construction projects • Future-proofed to cater for the latest demands in consumer technology • Made from durable, high quality urea with antimicrobial properties • Cleverly designed to ensure that product ordering is simple and efficient, with many time and space saving solutions • Crafted with your customer in mind, adding bespoke solutions to make a lasting impact From all angles. Minimum back projection frees up space in the back box for cabling No matter how you look at it - from the front, back, or side - the Lisse range is designed to make your life simpler. Get installation right the first time, every time.Key FeaturesRange - Lisse Aesthetic name - Screwless deco Product or component type - Switched SocketDevice presentation - Complete productOutlet standard - BritishColour tint - Interior: Black, Cover plate: Mocha BronzeType of packing - BoxSwitch function - 1 poleRated current - 13 A at 250 V AC 50/60 HzActuator - Rocker Number of gangs - 2 gangPilot light - without LEDFixing mode - Concealed screwsConnections - terminals - Screw terminalsMaterial - Stainless steelType of installation - IndoorWhat's In the Box 1 Lisse - Cooker Control Unit with 13A Socket LED Ind 45A DP Mocha Bronze

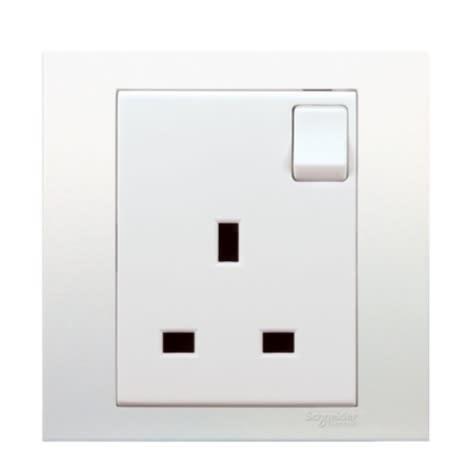

Vivace 13A 250V 1 Gang Switched Socket
Vivace is a range of switches and sockets built for style and function for modern interior design. A switch and socket set with the style and modern simplicity of the Bauhaus movement. Inspired by the influential Bauhaus movement, Vivace expresses a pleasing form follows function. With a slim and trim profile, the sleek clean lines and subtle curves manifest an art of simple, elegant minimalism. Every piece in this robustly constructed range sits perfectly within the context of any modern interior design. Vivace, a style of modern simplicity that is always within your reach.A slim, trim profile, pleasing to the eye, clean and refined, the Vivace is a switch and socket set that perfectly complements the modern lifestyle. Inspired by the simple, elegant minimalism of the supremely influential Bauhaus movement, every piece in this robustly constructed range expresses a pleasing form following function. Unmarred by visible fastenings, the sleek clean lines of Vivace present a cool refined touch of style to almost any interior. The Vivace switch and socket set is a robustly constructed range built to perfectly complement the modern lifestyle.Key FeaturesRange - Vivace
Product or component type - Socket-outlet with switch Device short name - KB15Device presentation - Complete mechanismOutlet poles configuration - 2P + ENumber of gangs - 1 gangColour tint - WhiteMaterial - Polycarbonate: grid platePolycarbonate - SurroundPolycarbonate - baseProjecting depth - 8 mmDevice mounting - FlushMounting support - Wall mountedFixing mode - by screw M3.5Fixing center - 60.3 mmEmbedding depth - 35 mmRated current - 13 A at 250 V AC, resistiveNetwork frequency - 50 HzContacts material - Brass and phosphor bronzeConnections - terminals - Pillar terminalTerminal identifier - N, Earth, LTightening torque - 0.4 N.mClamping connection capacity - 2 x 4 mm², 3 x 2.5 mm²Clean, geometrically balanced designThin: 8mm slim at the thickest point16 AX Switches: handles additional loading and enables wider applicationHigh fatigue resistance capacityAll sockets are inserted with shutter doors for a longer lifecycleWhat's In the Box1 13A 250V 1 Gang Vivace Switched Socket
ACTI9 IC60N 3P 32A C MINIATURE CIRCUIT BREAKER
Acti9 iC60N Miniature Circuit Breakers iC60N circuit breakers are multi-standard circuit breakers which combine the Following functions: Circuit protection against short-circuit currents,Circuit protection against overload currents,Suitable for industrial isolation according to iec/en 60947-2, standard.Fault tripping indication by a red mechanical indicator in circuit breaker front faceInsulated terminals ip20 Visi-trip window Fault tripping is indicated by a red mechanical indicator on the front faceLarge circuit labelling areaDouble clip for dismounting with comb busbar in place Positive contact indication Suitable for industrial isolation according to IEC/EN 60947-2 standard. The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety Increased product service life thanks to: overvoltage resistance by high level of industrial performances conception (pollution degree, rated impulse withstands voltage and insulation voltage),high performance limitation (see limitation curves),fast closing independent of the speed of actuation of the toggle.Remote indication open/closed/tripped, by optional auxiliary contacts.Top or bottom electrical feeding. Key FeaturesRange - Acti 9 Product name - Disbo iC60 Product or component type - Miniature circuit-breaker Device short name - IC60N Poles description - 3P Number of protected poles - 3[In] rated current - 20A Network type - AC Trip unit technology - Thermal-magnetic Curve code - C Breaking capacity- 6000 A Icn at 415 V AC 50/60 Hz conforming to EN/IEC 60898-1
36 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
15 kA Icu at 100...133 V DC conforming to EN/IEC 60947-2Utilisation category - Category A conforming to EN/IEC 60947-2 Network frequency - 50/60 Hz [Ue] rated operational voltage - 240 V AC 50/60 Hz Magnetic tripping limit - 8 x In +/- 20 % [Ics] rated service breaking capacity - 27 kA 75 % conforming to EN/IEC 60947-2 - 10...60 V AC 50/60 Hz, 15 kA 75 % conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz, 7.5 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz, 6000 A 100 % conforming to EN/IEC 60898-1 - 240 V AC 50/60 Hz, 15 kA 100 % conforming to EN/IEC 60947-2 - 12...48 V DC, 6 kA 100 % conforming to EN/IEC 60947-2 - 72 V DC Limitation class - 3 conforming to EN/IEC 60947-2 [Ui] rated insulation voltage - 500 V AC 50/60 Hz [Uimp] rated impulse withstand voltage - 6 kV conforming to EN/IEC 60947-2 Contact position indicator - Yes Control type - Toggle Local signalling - Trip indicator Mounting mode - Clip-on Mounting support - Rail9 mm pitches - 2 Colour - White Mechanical durability - 20000 cycles Electrical durability - 10000 cycles Provision for padlocking - Padlock able connections - terminals Single terminal (top or bottom) 1…25 mm² rigidSingle terminal (top or bottom) 1…16 mm² flexible Wire stripping length - 14 mm for top or bottom connection Tightening torque - 2 N.m top or bottom Earth-leakage protection - Separate block Standards - EN/IEC 60898-1, EN/IEC 60947-2 IP degree of protection - IP20 conforming to IEC 60529 Pollution degree - 3 conforming to EN/IEC 60947-2 Tropicalisation - 2 conforming to IEC 60068-1 Relative humidity - 95 % at 55 °C Ambient air temperature for operation -35…70 °C Ambient air temperature for storage -40…85 °CWhat's In the Box1 ACTI9 IC60N 3P 32A C MINIATURE CIRCUIT BREAKER
TeSys Motor C B GV2, 3P, 20-25 A, Thermal Magnetic MCB
TeSys GV2 Motor protection circuit breaker motor protection circuit breakers, coordinated with TeSys D contactors, to protect motors up to 32 A (15 kW / 400 V) Part of TeSys TeSys GV2 motor protection circuit breaker provides manual isolation, manual motor control and short circuit and thermal protection in 45 mm standard width. Features TeSys GV2 motor protection circuit breakers provide short circuit protection, overload protection, motor (ON/OFF) control. All functions can work for motors up to 15 KW (GV2RT up to 11 kW) in a 45 mm frame.GV2ME: Thermal-magnetic protection Operation with push button Standard breaking capacityGV2P: Thermal-magnetic protection Operation with rotary handle (extended rotary handle as an option) High breaking capacity Fault differentiation (short circuit or thermal trip)GV2L: Magnetic protection onlyOperation with rotary handle (extended rotary handle as an option) High breaking capacityGV2LE: Magnetic protection only Operation with toggle Standard breaking capacityGV2RT: Built with high magnetic tripping level, it is highly suitable for high inrush current motors or three phase transformers. Operation with toggleSpecifications: Maximum 15 current ratings to cover from 0.1 A to 32 A motor current with a IP20 level for finger safety. The electrical durability (AC-3/415 V) can reach 100,000 operations as a direct control switch Screw clamp for the connection, GV2 ME has two more choices: lug and spring terminals. Padlockable in all versions. DIN rail mounting or screw fixingMultiple choices for “add-on blocks” and accessories such as: contact blocks, electric trips blocks and limiter blocks. Benefits Complete protection concentrated in a single productCompact (45 mm) and easy to integrate with other control devicesDurability for the operation as a switchEasy to select for different ratings with limited references Applications TeSys GV2 can be used for all type of applications across industry, infrastructure and buildings. Compliant to Motor control and protection, in accordance with standards IEC 60947-2, IEC 60947-4-1 and UL 60947-4-1 (transition from UL 508). GV2RT can be used to protect motors with high current peak on starting or transformer protection.Key FeaturesRange - TeSys Product name - TeSys GV2 Product or component type - Circuit breaker Device short name - GV2ME Device application - Motor Trip unit technology - Thermal-magnetic Poles description - 3P Network type - AC Utilisation category - AC-3 conforming to IEC 60947-4-1, Category A conforming to IEC 60947-2 Network frequency - 50/60 Hz conforming to IEC 60947-4-1 Fixing mode - 35 mm symmetrical DIN rail: clipped, Panel: screwed (with adaptor plate) Operating position - Any position Motor power Kw - 11 kW at 400/415 V AC 50/60 Hz, 15 kW at 500 V AC 50/60 HzBreaking capacity - 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 [Ics] rated service short-circuit breaking capacity - 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 Control type - Push-button [In] rated current - 25 A Thermal protection adjustment range - 20…25 A Magnetic tripping current - 327 A [Ue] rated operational voltage - 690 V AC 50/60 Hz conforming to IEC 60947-2 [Ui] rated insulation voltage - 690 V AC 50/60 Hz conforming to IEC 60947-2 [Ith] conventional free air thermal current - 25 A conforming to IEC 60947-4-1 [Uimp] rated impulse withstand voltage - 6 kV IEC 60947-2 Power dissipation per pole - 2.5 W Mechanical durability - 100000 cycles Electrical durability - 100000 cycles for AC-3 at 440 V Maximum operating rate - 25 cyc/h Rated duty - Continuous conforming to IEC 60947-4-1 Tightening torque - 1.7 N.m on screw clamp terminals Suitability for isolation - Yes conforming to IEC 60947-1 Phase failure sensitivity Yes conforming to IEC 60947-4-1What's In the Box1 TeSys GV2, 3P, 20-25 A, thermal magnetic, screw clamp terminals Motor circuit breaker
Easy9 MCB - 2P - 16 A - C Curve - 6000 A - 230 V
Easy9 MCB Miniature Circuit-Breakers (MCB) Part of Easy Series Miniature circuit breakers to provide short-circuit and cable overload protection. Designed with functionality and protection in mind, the Easy9 miniature circuit breakers offer a user-friendly design for ultimate ease-of-use. Features Providing protection when you most need it, the miniature circuit breakers give you high levels of protection from short circuits and cable overload whilst providing a user-friendly interface to make them as accessible as possible. High-quality design providing much-needed protection. Highly accessible user-friendly design. Availability whenever and wherever you look for it. Robust and designed to stand-up to the test of time. Excellent levels of reliability. Cost-effective, provides protection and reliability at an affordable price. Benefits Designed for modular devices, the miniature circuit breakers ensure protection from short-circuits and cable overload. Resulting from close work with electricians worldwide, they provide enhanced protection as well as peace of mind to customers. Enhanced protection to pass on to your customers. Designed with ease of installation in mind. Suitable for modular devices. Applications Use in a range of applications to provide short-circuit and cable overload protection. Easy to install and with a user-friendly interface, the miniature circuit breakers provide accessibility, reliability and protection.Key FeaturesRange - Easy9 Device application - Distribution Product or component type - Miniature circuit-breaker Device short name - Easy9 MCB Poles - 2P Number of protected poles - 2 [In] rated current - 106A Network type - AC Trip unit technology - Thermal-magnetic Curve code - C Breaking capacity - 10000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1
6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1Suitability for isolation - Yes conforming to IEC 60898-1Network frequency - 50 Hz [Ue] rated operational voltage 230 V AC 50 Hz, 127 V AC 50 Hz Magnetic tripping limit - 5...10 x In [Ics] rated service breaking capacity - 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1[Ui] rated insulation voltage - 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage - 4 kV conforming to IEC 60898-1 Contact position indicator - Yes Control type - ToggleLocal signalling - Without Mounting mode - Clip-on Mounting support - DIN rail 9 mm pitches - 2 Colour - Grey (RAL 7035) Mechanical durability - 10000 cycles Electrical durability - 4000 cycles Connections - terminals - Tunnel type terminal (top or bottom) 1…25 mm² rigid, Tunnel type terminal (top or bottom) 1…16 mm² flexible Tightening torque - 2 N.m top or bottom Standards - IEC 60898-1 Product certifications - VDE, CE IP degree of protection - IP20 conforming to IEC 60529 pollution degree -2 Tropicalisation -2 Relative humidity -95 % at -5…60 °C Ambient air temperature for operation - -5…60 °C Ambient air temperature for storage - -40…85 °CWhat's In the Box1 Easy9 MCB - 2P - 16A - C curve - 6000 A - 230 V
MCB Acti9 C60H-DC, 2P 63A, C Curve, 6kA
Acti9 C60H-DC Miniature Circuit BreakersActi9 C60H-DC circuit breakers are multi-standard circuit breakers which combines the following functions: Circuit protection against short-circuit currents, Circuit protection against overload currents, Suitable for industrial isolation according to IEC/EN 60947-2, standard. Fault tripping indication by a red mechanical indicator in circuit breaker front face Insulated terminals IP20 Visi-trip window Fault tripping is indicated by a red mechanical indicator on the front face Large circuit labelling area Double clip for dismounting with comb busbar in place Benefits: It is suitable for industrial isolation according to IEC/EN 60947-2 standard The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety It has good overvoltage withstand capacity It offers a high industrial performance level The product can be clipped on a DIN rail Increased product service life, credit to: overvoltage resistance by high level of industrial performances conception (pollution degree, rated impulse withstands voltage and insulation voltage), high performance limitation (see limitation curves) fast-closing independent of the speed of actuation of the toggle Remote indication open/closed/tripped, by optional auxiliary contacts Top/bottom electrical feeding What's In the Box1- Miniature circuit breaker (MCB), Acti9 C60H-DC, 2P, 463A, C curve, 6kA
Easy9 MCB - 3P - 40 A - C Curve - 6000 A - 400 V
Easy9 MCB Miniature Circuit-Breakers (MCB) Part of Easy Series Miniature circuit breakers to provide short-circuit and cable overload protection. Designed with functionality and protection in mind, the Easy9 miniature circuit breakers offer a user-friendly design for ultimate ease-of-use. Features Providing protection when you most need it, the miniature circuit breakers give you high levels of protection from short circuits and cable overload whilst providing a user-friendly interface to make them as accessible as possible. High-quality design providing much-needed protection. Highly accessible user-friendly design. Availability whenever and wherever you look for it. Robust and designed to stand-up to the test of time. Excellent levels of reliability. Cost-effective, provides protection and reliability at an affordable price. Benefits Designed for modular devices, the miniature circuit breakers ensure protection from short-circuits and cable overload. Resulting from close work with electricians worldwide, they provide enhanced protection as well as peace of mind to customers. Enhanced protection to pass on to your customers. Designed with ease of installation in mind. Suitable for modular devices. Applications Use in a range of applications to provide short-circuit and cable overload protection. Easy to install and with a user-friendly interface, the miniature circuit breakers provide accessibility, reliability and protection.Key FeaturesRange - Easy9 Device application - Distribution Product or component type - Miniature circuit-breaker Device short name - Easy9 MCB Poles - 3P Number of protected poles - 3 [In] rated current - 40A Network type - AC Trip unit technology - Thermal-magnetic Curve code - C Breaking capacity - 10000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1
6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1Suitability for isolation - Yes conforming to IEC 60898-1Network frequency - 50 Hz [Ue] rated operational voltage 230 V AC 50 Hz, 127 V AC 50 Hz Magnetic tripping limit - 5...10 x In [Ics] rated service breaking capacity - 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1[Ui] rated insulation voltage - 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage - 4 kV conforming to IEC 60898-1 Contact position indicator - Yes Control type - ToggleLocal signalling - Without Mounting mode - Clip-on Mounting support - DIN rail 9 mm pitches - 2 Colour - Grey (RAL 7035) Mechanical durability - 10000 cycles Electrical durability - 4000 cycles Connections - terminals - Tunnel type terminal (top or bottom) 1…25 mm² rigid, Tunnel type terminal (top or bottom) 1…16 mm² flexible Tightening torque - 2 N.m top or bottom Standards - IEC 60898-1 Product certifications - VDE, CE IP degree of protection - IP20 conforming to IEC 60529 pollution degree -2 Tropicalisation -2 Relative humidity -95 % at -5…60 °C Ambient air temperature for operation - -5…60 °C Ambient air temperature for storage - -40…85 °CWhat's In the Box1 Easy9 MCB - 3P - 40A - C curve - 6000 A - 400 V
Lisse - 3 Gang 2 Way - 10AX Satin Brass With Black Interior
Lisse curves in all the right places... The Lisse white moulded range of wiring accessories offers the perfect blend of style and performance. You no longer have to choose between convenience and efficiency, or compromise on appearance to get the most innovative features. Lisse is packed with a vast array of technical features, providing a high level of quality, reliability, and value you can count on. • Ideally suited for new construction projects • Future-proofed to cater for the latest demands in consumer technology • Made from durable, high quality urea with antimicrobial properties • Cleverly designed to ensure that product ordering is simple and efficient, with many time and space saving solutions • Crafted with your customer in mind, adding bespoke solutions to make a lasting impact From all angles. Minimum back projection frees up space in the back box for cabling No matter how you look at it - from the front, back, or side - the Lisse range is designed to make your life simpler. Get installation right the first time, every time.Key FeaturesRange - LisseAesthetic name - Screwless decoproduct or component type - Plate switchDevice presentation - Complete productColour tint - Interior: black, Cover plate: satin brassQuantity per set - Set of 10 Switch function - 2-wayControl type - Rocker Number of gangs - 3 gangs Device mounting - Wall mountedRated current - 10 AX at 230 V AC Fixing mode - Concealed screws Connections - terminals - Screw terminals Material - Stainless steelSurface finish - Brushed finishType of packing - BoxWhat's In the Box1 Lisse - 3 gang 2 way - 10AX Satin Brass Plate Switch with Black interior
Vivace 13A 250V 1 Gang Switched Socket With Neon
Vivace is a range of switches and sockets built for style and function for modern interior design. A switch and socket set with the style and modern simplicity of the Bauhaus movement. Inspired by the influential Bauhaus movement, Vivace expresses a pleasing form follows function. With a slim and trim profile, the sleek clean lines and subtle curves manifest an art of simple, elegant minimalism. Every piece in this robustly constructed range sits perfectly within the context of any modern interior design. Vivace, a style of modern simplicity that is always within your reach.A slim, trim profile, pleasing to the eye, clean and refined, the Vivace is a switch and socket set that perfectly complements the modern lifestyle. Inspired by the simple, elegant minimalism of the supremely influential Bauhaus movement, every piece in this robustly constructed range expresses a pleasing form following function. Unmarred by visible fastenings, the sleek clean lines of Vivace present a cool refined touch of style to almost any interior. The Vivace switch and socket set is a robustly constructed range built to perfectly complement the modern lifestyle.Key FeaturesRange - Vivace
Product or component type - Socket-outlet with switch Device short name - KB15Device presentation - Complete mechanismPilot Light - Red neon indicatorOutlet poles configuration - 2P + ENumber of gangs - 1 gangColour tint - WhiteMaterial - Polycarbonate: grid plate, Polycarbonate: Surround, Polycarbonate: baseProjecting depth - 8 mmDevice mounting - FlushMounting support - Wall mountedFixing mode - by screw M3.5Fixing center - 60.3 mmEmbedding depth - 35 mmRated current - 13 A at 250 V AC, resistiveNetwork frequency - 50 HzContacts material - Brass and phosphor bronzeConnections - terminals - Pillar terminalTerminal identifier - N, Earth, LTightening torque - 0.4 N.mClamping connection capacity - 2 x 4 mm², 3 x 2.5 mm²Clean, geometrically balanced designThin: 8mm slim at the thickest point16 AX Switches: handles additional loading and enables wider applicationHigh fatigue resistance capacityAll sockets are inserted with shutter doors for a longer lifecycleWhat's In the Box1 Vivace 13A 250V 1 Gang Switched Socket with Neon
Lisse - Switched Socket - 1 Gang - 13A Mocha Bronze With B I
Lisse curves in all the right places... The Lisse white moulded range of wiring accessories offers the perfect blend of style and performance. You no longer have to choose between convenience and efficiency, or compromise on appearance to get the most innovative features. Lisse is packed with a vast array of technical features, providing a high level of quality, reliability, and value you can count on. • Ideally suited for new construction projects • Future-proofed to cater for the latest demands in consumer technology • Made from durable, high quality urea with antimicrobial properties • Cleverly designed to ensure that product ordering is simple and efficient, with many time and space saving solutions • Crafted with your customer in mind, adding bespoke solutions to make a lasting impact From all angles. Minimum back projection frees up space in the back box for cabling No matter how you look at it - from the front, back, or side - the Lisse range is designed to make your life simpler. Get installation right the first time, every time.Key FeaturesRange - Lisse Aesthetic name - Screwless deco Product or component type - Switched SocketDevice presentation - Complete productOutlet standard - BritishColour tint - Interior: Black, Cover plate: Mocha BronzeType of packing - BoxSwitch function - 1 poleRated current - 13 A at 250 V AC 50/60 HzActuator - Rocker Number of gangs - 1 gangPilot light - without LEDFixing mode - Concealed screwsConnections - terminals - Screw terminalsMaterial - Stainless steelType of installation - IndoorWhat's In the Box1 Lisse - Switched Socket - 1 gang - 13A Mocha Bronze with Black Interior

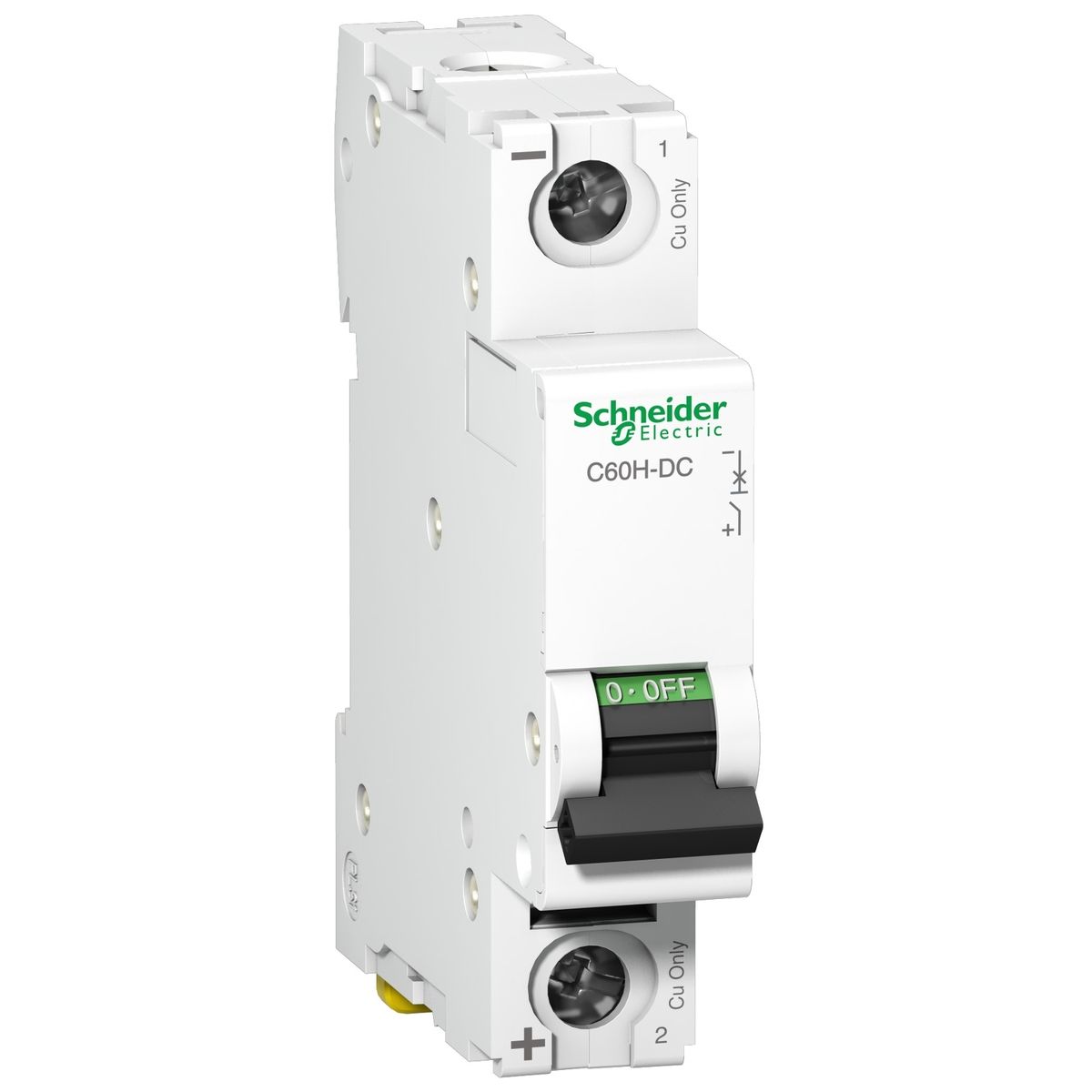

MCB Acti9 C60H-DC, 1P 63A, C Curve, 6kA
Acti9 C60H-DC Miniature Circuit BreakersActi9 C60H-DC circuit breakers are multi-standard circuit breakers which combines the following functions: Circuit protection against short-circuit currents, Circuit protection against overload currents, Suitable for industrial isolation according to IEC/EN 60947-2, standard. Fault tripping indication by a red mechanical indicator in circuit breaker front face Insulated terminals IP20 Visi-trip window Fault tripping is indicated by a red mechanical indicator on the front face Large circuit labelling area Double clip for dismounting with comb busbar in place Benefits: It is suitable for industrial isolation according to IEC/EN 60947-2 standard The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety It has good overvoltage withstand capacity It offers a high industrial performance level The product can be clipped on a DIN rail Increased product service life, credit to: overvoltage resistance by high level of industrial performances conception (pollution degree, rated impulse withstands voltage and insulation voltage), high performance limitation (see limitation curves) fast-closing independent of the speed of actuation of the toggle Remote indication open/closed/tripped, by optional auxiliary contacts Top/bottom electrical feeding What's In the Box1- Miniature circuit breaker (MCB), Acti9 C60H-DC, 1P, 63A, C curve, 6kA

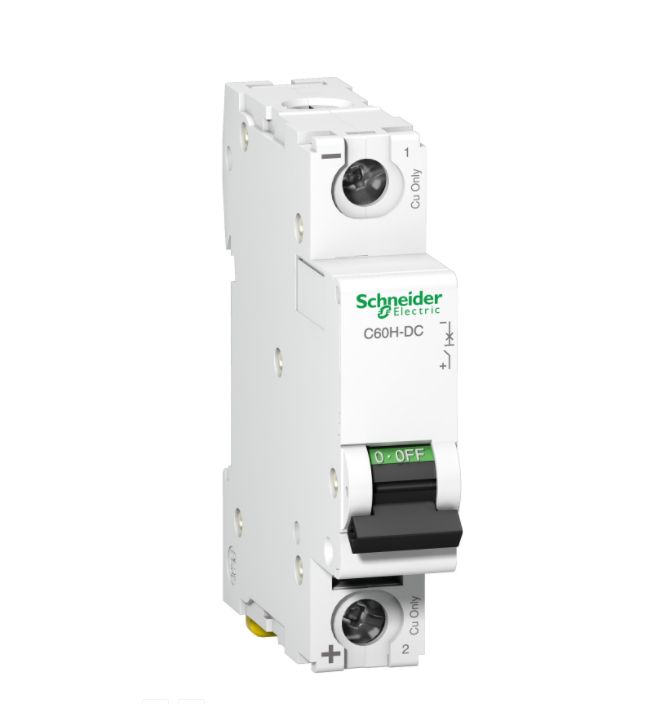

Acti9 C60H-DC - MCB - 1 Pole - 25 A - C Curve
Acti9 C60H-DC, Acti9 C60PV-DCMiniature Circuit Breakers for Direct Current circuits protectionPart of 9 SeriesMiniature Circuit Breakers for Direct Current circuits, offeringphoto voltaic installation protectionFeaturesThe Acti9 C60H-DC is a miniature circuit breaker that offersdirect current circuit protection. It protects circuits againstshort-circuit currents and overload currents.Compliant with IEC60947-2Available in 1P or 2PC tripping curveUp to 500V DC.The Acti9 C60PV-DC is a miniature circuit breaker thatis designed for photovoltaic (PV) installations. It protectsthe cables between each string of a photovoltaic moduleagainst short-circuit currents and overload currents.Compliant with IEC/EN 60947-2Available in 2PB or C tripping curvesUp to 800V DCPre-wiredNon-polarized: wires can be inverted without riskLocakable for improved operational safetyDelivered with three interpole barriers, for improvedisolation betweenconnectors.BenefitsActi9 C60H-DC:Enhanced operational safety thanks to green strip toggleindicator which increases safety of downstream currentflow when breaker is in open positionImproved service life thanks to fast closing of breaker,independent of operatorShort-circuit current limitation thanks to fast opening ofcontacts,to reduce risk of damage to circuit loads.Acti9 C60PV-DC:Enhanced operational safety thanks to green strip toggle indicatorwhich increases safety of downstream current flow when breakeris in open positionImproved service life thanks to fast closing of breaker, independentof operatorShort-circuit current limitation thanks to fast opening of contacts, toreduce risk of damage to circuit loadsEasier installation as wires can be inverted without risk(non-polarized).ApplicationsActi9 C60H-DC:Direct current circuits such as industrial control, automation,transportation and renewable energy.Acti9 C60PV-DC:Designed for direct current photovoltaic installations. Key FeaturesRange - Acti 9Product name - Acti9 C60H-DCProduct or component type - Miniature circuit-breakerDevice short name - C60H-DCDevice application - DistributionPoles description - 1PNumber of protected poles - 1Rated current - 25 A at 25 °CNetwork type - DCTrip unit technology - Thermal-magneticCurve code - CBreaking capacity - 10 kA Icu at 220 V DC conforming to
EN 60947-2Utilisation category - Category A conforming to EN 60947-2 ,
Category A conforming to IEC 60947-2Suitability for isolation - Yes conforming to IEC 60947-2 ,
Yes conforming to EN 60947-2Network frequency - 50/60 HzRated operational voltage - 250 V DCRated insulation voltage - 500 V DC conforming to IEC 60947-2,
500 V DC conforming to EN 60947-2Rated impulse withstand voltage - 6 kV conforming to EN 60947-2,
6 kV conforming to IEC 60947-2Contact position indicator - YesControl type - ToggleLocal signalling - ON/OFF indicationMounting mode - FixedMounting support - 35 mm symmetrical DIN railComb busbar and distribution block compatibility - Top or bottom:
standard9 mm pitches - 2Colour - WhiteMechanical durability - 20000 cyclesElectrical durability - 3000 cycles 250 V DC, 6000 cycles 250 V DCProvision for padlocking - PadlockableLocking options description - In position OTightening torque - Power circuit: 2.5 N.m top or bottomEarth-leakage protection - WithoutWhat's In the Box1 - Acti9 C60H-DC - MCB - 1 pole - 20 A - C curve

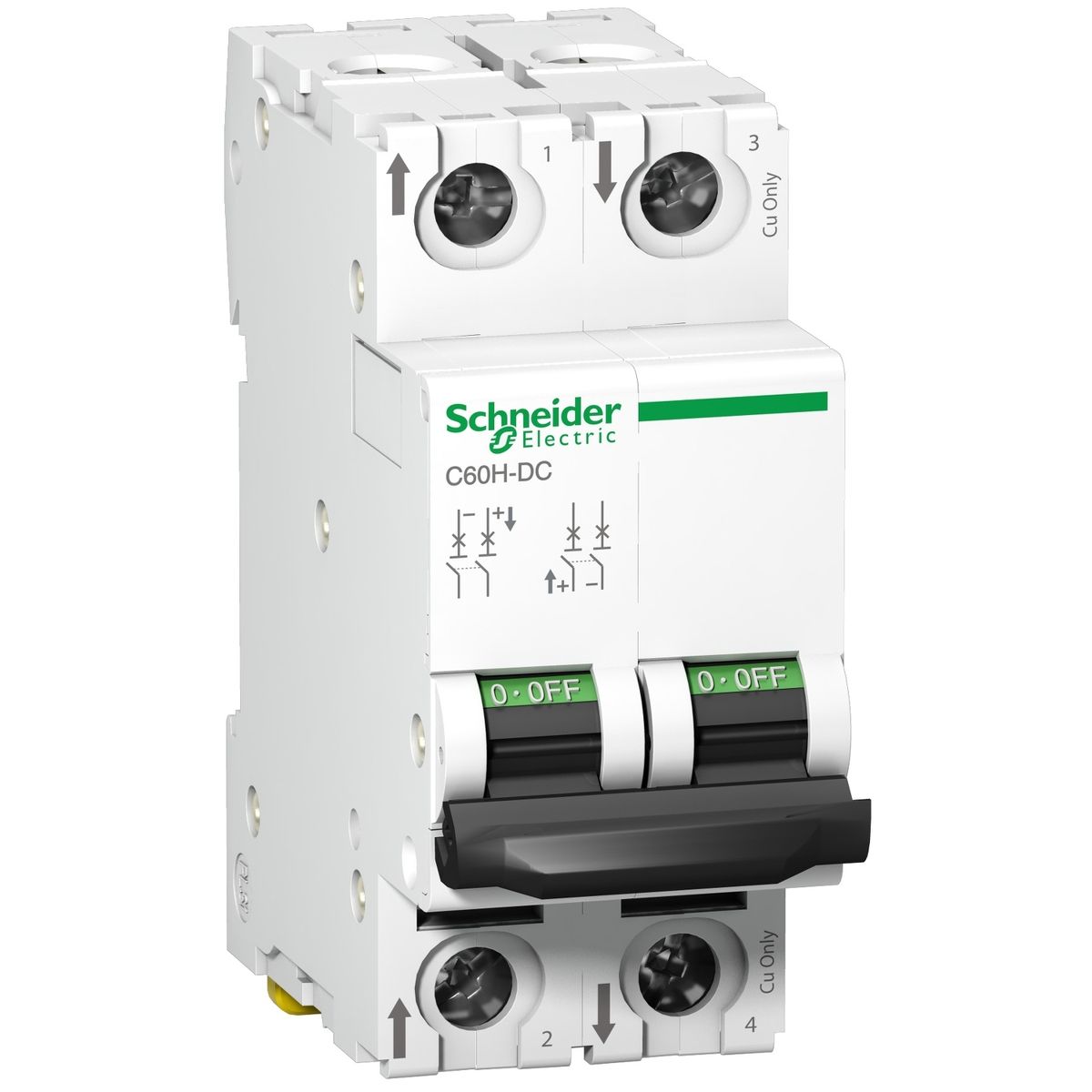

MCB Acti9 C60H-DC, 2P 16A, C Curve, 6kA
Acti9 C60H-DC Miniature Circuit BreakersActi9 C60H-DC circuit breakers are multi-standard circuit breakers which combines the following functions: Circuit protection against short-circuit currents, Circuit protection against overload currents, Suitable for industrial isolation according to IEC/EN 60947-2, standard. Fault tripping indication by a red mechanical indicator in circuit breaker front face Insulated terminals IP20 Visi-trip window Fault tripping is indicated by a red mechanical indicator on the front face Large circuit labelling area Double clip for dismounting with comb busbar in place Benefits: It is suitable for industrial isolation according to IEC/EN 60947-2 standard The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety It has good overvoltage withstand capacity It offers a high industrial performance level The product can be clipped on a DIN rail Increased product service life, credit to: overvoltage resistance by high level of industrial performances conception (pollution degree, rated impulse withstands voltage and insulation voltage), high performance limitation (see limitation curves) fast-closing independent of the speed of actuation of the toggle Remote indication open/closed/tripped, by optional auxiliary contacts Top/bottom electrical feeding What's In the Box1- Miniature circuit breaker (MCB), Acti9 C60H-DC, 2P, 16A, C curve, 6kA
Easy9 MCB - 1P, 40A, C Curve, 6000 A
Easy9 MCB Miniature Circuit-Breakers (MCB) Part of Easy Series Miniature circuit breakers to provide short-circuit and cable overload protection. Designed with functionality and protection in mind, the Easy9 miniature circuit breakers offer a user-friendly design for ultimate ease-of-use. Features Providing protection when you most need it, the miniature circuit breakers give you high levels of protection from short circuits and cable overload whilst providing a user-friendly interface to make them as accessible as possible. High-quality design providing much-needed protection. Highly accessible user-friendly design. Availability whenever and wherever you look for it. Robust and designed to stand-up to the test of time. Excellent levels of reliability. Cost-effective, provides protection and reliability at an affordable price. Benefits Designed for modular devices, the miniature circuit breakers ensure protection from short-circuits and cable overload. Resulting from close work with electricians worldwide, they provide enhanced protection as well as peace of mind to customers. Enhanced protection to pass on to your customers. Designed with ease of installation in mind. Suitable for modular devices. Applications Use in a range of applications to provide short-circuit and cable overload protection. Easy to install and with a user-friendly interface, the miniature circuit breakers provide accessibility, reliability and protection.Key FeaturesRange - Easy9 Device application - Distribution Product or component type - Miniature circuit-breaker Device short name - Easy9 MCB Poles - 1P Number of protected poles - 1 [In] rated current - 40 A Network type - AC Trip unit technology - Thermal-magnetic Curve code - C Breaking capacity - 6000 A Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1, 10000 A Icn at 127 V AC 50/60 Hz conforming to IEC 60898-1 Suitability for isolation - Yes conforming to IEC 60898-1Network frequency - 50 Hz [Ue] rated operational voltage 230 V AC 50 Hz, 127 V AC 50 Hz Magnetic tripping limit - 5...10 x In [Ics] rated service breaking capacity - 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 [Ui] rated insulation voltage - 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage - 4 kV conforming to IEC 60898-1 Contact position indicator - Yes Control type - ToggleLocal signalling - Without Mounting mode - Clip-on Mounting support - DIN rail 9 mm pitches - 2 Colour - Grey (RAL 7035) Mechanical durability - 10000 cycles Electrical durability - 4000 cycles Connections - terminals - Tunnel type terminal (top or bottom) 1…25 mm² rigid, Tunnel type terminal (top or bottom) 1…16 mm² flexible Tightening torque - 2 N.m top or bottom Standards - IEC 60898-1 Product certifications - VDE, CE IP degree of protection - IP20 conforming to IEC 60529 pollution degree -2 Tropicalisation -2 Relative humidity -95 % at -5…60 °C Ambient air temperature for operation - -5…60 °C Ambient air temperature for storage - -40…85 °CWhat's In the Box1 Easy9 MCB - 1P, 40A, C Curve, 6000 A
Vivace 15A 250V 1 Gang Switched Socket
Vivace is a range of switches and sockets built for style and function for modern interior design. A switch and socket set with the style and modern simplicity of the Bauhaus movement. Inspired by the influential Bauhaus movement, Vivace expresses a pleasing form follows function. With a slim and trim profile, the sleek clean lines and subtle curves manifest an art of simple, elegant minimalism. Every piece in this robustly constructed range sits perfectly within the context of any modern interior design. Vivace, a style of modern simplicity that is always within your reach.A slim, trim profile, pleasing to the eye, clean and refined, the Vivace is a switch and socket set that perfectly complements the modern lifestyle. Inspired by the simple, elegant minimalism of the supremely influential Bauhaus movement, every piece in this robustly constructed range expresses a pleasing form following function. Unmarred by visible fastenings, the sleek clean lines of Vivace present a cool refined touch of style to almost any interior. The Vivace switch and socket set is a robustly constructed range built to perfectly complement the modern lifestyle.Key FeaturesRange - VivaceProduct or component type - Socket-outlet with switch Device short name - KB15_15Device presentation - Complete mechanism Outlet poles configuration - 2P + ENumber of gangs - 1 gangsColour tint - WhiteMaterial - Polycarbonate: grid plate, Polycarbonate: Surround, Polycarbonate: baseProjecting depth - 8 mmDevice mounting - FlushMounting support - Wall mountedFixing mode - by screw M3.5Fixing center - 120.6 mmEmbedding depth - 35 mmRated current - 15 A at 250 V AC, resistiveNetwork frequency - 50 HzContacts material - Brass and phosphor bronzeConnections - terminals - Pillar terminalTerminal identifier - N, Earth, LTightening torque - 0.4 N.mClamping connection capacity - 2 x 4 mm², 3 x 2.5 mm²Clean, geometrically balanced designThin: 8mm slim at the thickest point16 AX Switches: handles additional loading and enables wider applicationHigh fatigue resistance capacityAll sockets are inserted with shutter doors for a longer lifecycleWhat's In the Box1 Vivace 15A 250V 1 Gang Switched Socket
Schneider Extension Cords, RCD Sockets And Water Proof
PRODUCT INFORMATION Schneider Plastic drum for high impact protection, 25M cable reel, 13Amp rated, ideal for home, garage and workshop. Extension cable reel is useful for jobs in far locations from power source. It provides the much needed power to accomplish electrical tasks on remote site locations.Plastic drum for high impact protection, 25M cable reel, 13Amp rated, ideal for home, garage and workshop. Extension cable reel is useful for jobs in far locations from power source. It provides the much needed power to accomplish electrical tasks on remote site locations.Plastic drum for high impact protection, 25M cable reel, 13Amp rated, ideal for home, garage and workshop. Extension cable reel is useful for jobs in far locations from power source. It provides the much needed power to accomplish electrical tasks on remote site locations.Plastic drum for high impact protection, 25M cable reel, 13Amp rated, ideal for home, garage and workshop. Extension cable reel is useful for jobs in far locations from power source. It provides the much needed power to accomplish electrical tasks on remote site locations.Key Features4 outlet Socket 25M Cable Reel13AMPSuperior Quality100% pure copper Effective & Reliable LED indicator What's In the BoxSchneider extension Cords
Vivace 13A 250V Twin Gang Switched Socket With Neon
Vivace is a range of switches and sockets built for style and function for modern interior design. A switch and socket set with the style and modern simplicity of the Bauhaus movement. Inspired by the influential Bauhaus movement, Vivace expresses a pleasing form follows function. With a slim and trim profile, the sleek clean lines and subtle curves manifest an art of simple, elegant minimalism. Every piece in this robustly constructed range sits perfectly within the context of any modern interior design. Vivace, a style of modern simplicity that is always within your reach.A slim, trim profile, pleasing to the eye, clean and refined, the Vivace is a switch and socket set that perfectly complements the modern lifestyle. Inspired by the simple, elegant minimalism of the supremely influential Bauhaus movement, every piece in this robustly constructed range expresses a pleasing form following function. Unmarred by visible fastenings, the sleek clean lines of Vivace present a cool refined touch of style to almost any interior. The Vivace switch and socket set is a robustly constructed range built to perfectly complement the modern lifestyle.Key FeaturesRange - VivaceProduct or component type - Socket-outlet with switch Device short name - KB25NDevice presentation - Complete mechanismPilot light - Red neon indicatorOutlet poles configuration - 2P + ENumber of gangs - 2 gangsColour tint - WhiteMaterial - Polycarbonate: grid plate, Polycarbonate: Surround, Polycarbonate: baseProjecting depth - 8 mmDevice mounting - FlushMounting support - Wall mountedFixing mode - by screw M3.5Fixing center - 120.6 mmEmbedding depth - 35 mmRated current - 13 A at 250 V AC, resistiveNetwork frequency - 50 HzContacts material - Brass and phosphor bronzeConnections - terminals - Pillar terminalTerminal identifier - N, Earth, LTightening torque - 0.4 N.mClamping connection capacity - 2 x 4 mm², 3 x 2.5 mm²Clean, geometrically balanced designThin: 8mm slim at the thickest point16 AX Switches: handles additional loading and enables wider applicationHigh fatigue resistance capacityAll sockets are inserted with shutter doors for a longer lifecycleWhat's In the Box1 Vivace 13A 250V Twin Gang Switched Socket with Neon
TeSys D Contactor - 3P(3 NO) AC3 440V 12A - 220V AC Coil
TeSys DContactors to control motors up to 150 A (75 kW / 400 V)Part of TeSysTeSys D contactors and reversing contactors are available from 9 A to 150 A (inductive motor), and from 20 A to 200 A (resistive loads) in 3-pole and 4-pole versions.FeaturesAs the bestselling line of contactors in the world, TeSys D offers multi-standard solutions, high reliability with long mechanical and electrical durability for different sizes, along with the most complete accessories in the industry.TeSys D contactors leverage over 100 years of experience and innovation to control your motors.Specifications:AC & DC Coils 50/60 Hz available for whole rangeDC low consumption with direct compatibility with 100 mA I/O PLC card from 9 to 38 ADC low consumption with direct compatibility with 500 mA I/O PLC card from 40 to 80 A using TeSys D Green BBE 24 V electronic coilVarious types of connection available:Screw clamp terminalsEverlink (40 to 80 A)Spring terminals (9 to 38 A and on control terminal up to 65 A)Lugs terminalsFaston terminal (9 to 12 A)High making and breaking capacity1 NO & 1 NC integrated auxiliary contact in all 3-pole and 4-pole contactorsSafety application with all NC auxiliary contact certified as mirror contacts for IEC 60947-4-1Up to 30 million mechanical operation cyclesElectrical cycles up to 3600 cycles per hour at ambient temperatureNo derating up to 3000 m altitudeWide range of working temperature: -25°C to 60°CTeSys D benefits a wide range of accessories for:Additional auxiliary contacts: front or side mounted auxiliary contact blocks, time delay auxiliary blocks.Contactors combination: reversing kits, low-speed / high-speed connection kits, changeover 4-pole kits, etc.System assembly with other products: Power and auxiliary connection to circuit breaker and/or to overload relay.The new TeSys D Greencontactor is equipped with an innovative electronic coil requiring up to 80% less energy (when sealed) than electro-mechanical contactors.TeSys D Green contactors simplify your maintenance services with 90% less references needed. TeSys D Green contactors, associated with TeSys LR9D electronic overload relays, reduce heat generation and energy consumption by up to 50%.BenefitsTeSys D contactors can offer quick simple setup, while maintaining a compact size. These contactors can provide multiple advantages, including:SafetySafe and long-lasting power connection with Everlink and spring terminalsSuitable for safety applications thanks to mechanically linked contacts and mirror contacts (certified by IEC 60947-4-1 and 60947-5-1)Identification of safety chain with red cover and auxiliary contactEfficiencyRecognized high performance and quality solutionsOutstanding breaking/making capacity up to 20 InMultistandard: IEC, UL, CCC, EAC, various Marine standards, etc.PLC direct connectionContinuity of serviceCertified type 1 and 2 coordination tablesWorldwide availability of products and after-sales servicesApplicationsTeSys D contactors are primarily used in industry, infrastructure and building applications.TeSys D contactors have been designed for perfect integration in control systems, specific references BL or BBE compatible with digital PLC I/O 100 mA or 500 mAThese contactors can be used to create motor starters for any type of applicationKey FeaturesRange - TeSys Product name - TeSys DProduct or component type - ContactorDevice short name - LC1D Contactor application - Resistive load, Motor control Utilisation category - AC-4, AC-1, AC-3 Poles description - 3P Power pole contact composition - 3 NOWhat's In the Box1 TeSys D Contactor - 3P(3 NO) AC3 440V 12A - 220V AC coil
Vivace 20A 250V 1 Gang 2 Pole Switch With Neon And Earth
Vivace is a range of switches and sockets built for style and function for modern interior design. A switch and socket set with the style and modern simplicity of the Bauhaus movement. Inspired by the influential Bauhaus movement, Vivace expresses a pleasing form follows function. With a slim and trim profile, the sleek clean lines and subtle curves manifest an art of simple, elegant minimalism. Every piece in this robustly constructed range sits perfectly within the context of any modern interior design. Vivace, a style of modern simplicity that is always within your reach.A slim, trim profile, pleasing to the eye, clean and refined, the Vivace is a switch and socket set that perfectly complements the modern lifestyle. Inspired by the simple, elegant minimalism of the supremely influential Bauhaus movement, every piece in this robustly constructed range expresses a pleasing form following function. Unmarred by visible fastenings, the sleek clean lines of Vivace present a cool refined touch of style to almost any interior. The Vivace switch and socket set is a robustly constructed range built to perfectly complement the modern lifestyle.Key FeaturesRange - VivaceProduct or component type - SwitchDevice short name - KB31D20NEDevice presentation - Complete mechanismSwitch function - Double 1-way with earthActuator - Rockerpilot light - Neon indicator lampNumber of gangs - 1 gangsColour tint - WhiteMaterial - Polycarbonate: grid plate, Polycarbonate: Surround, Polycarbonate: baseProjecting depth - 8 mmDevice mounting - FlushMounting support - Wall mountedFixing mode - by screw M3.5Fixing center - 60.3 mmEmbedding depth - 35 mmRated current - 20 A at 250 V AC, inductive[Ue] rated operational voltage - 250 V ACNetwork frequency - 50 HzContacts material - Brass and phosphor bronzeConnections - terminals - Pillar terminalTerminal identifier - L2, N2, N1, L1,Tightening torque - 0.4 N.mClamping connection capacity - 2.5 mm², 4 mm²Clean, geometrically balanced designThin: 8mm slim at the thickest point16 AX Switches: handles additional loading and enables wider applicationHigh fatigue resistance capacityAll sockets are inserted with shutter doors for a longer lifecycleWhat's In the Box1 Vivace 20A 250V 1 Gang 2 Pole Switch with Neon and Earth
EasyPact EZC100N - TMD - 100 A - 4 Poles 3d MCCB
Easy series EasyPact™ EZC Molded-Case Circuit Breakers from 15 to 630A So easy, so simple With just three sizes of circuit breakers, Schneider Electric's EasyPactTM EZC system is the simple, universal solution to fit all low voltage protection needs. The fixed version is particularly adapted to the OEM and Building markets, offering optimum performance at a competitive price. The plug-in version offers an additional function dedicated to the Marine market. Earth-leakage protection EasyPact EZC circuit breakers have a specific version including earth-leakage protection. This protection is fully integrated inside the breaker and does not require any additional space. EasyPact EZC circuit breakers and earth leakage circuit breakers are fully interchangeable. Compliance with standards EasyPact EZC earth leakage circuit breakers comply with all the international standards. IEC 60947-1IEC 60947-2EN 60947-1EN 60947-2GB 14048.2JIS C8201-2-2 Annex 1 and Annex 2UL 60947-4-1(old UL508)/CSA 22-2 no. 14. They also comply with: VDE 664, operation down to -25 °CIEC 60255-4 and IEC 60801-2 to 60801-5 covering protection against nuisance tripping due to transient overvoltages, lightning strikes, switching of devices on the distribution system, electrostatic discharges, radiofrequency interference. Power supply Reverse feeding EasyPact EZC earth-leakage circuit breakers can be supplied from either the top or the bottom for voltages up to 240 V AC. For voltages over 240 V AC, only supply from the top is possible (Line-Load indication on the cover of the breaker). Power supply of the electronics EasyPact EZC earth-leakage circuit breakers are self-supplied by the distribution-system voltage and therefore do not require any external source. They fully comply with new IEC requirements (Annex B): they are powered from the three phases and continue to function even if one phase is missing. Dielectric tests EasyPact EZC earth-leakage circuit breakers are equipped with a disconnecting switch in order to protect the electronics during dielectric tests. When the disconnecting switch is activated, the circuit breaker is automatically tripped. It is mechanically impossible to switch on the circuit breaker, until the earth-leakage function is re energised. Tripping features Tripping indications: EasyPact EZC earth-leakage circuit breakers have a yellow mechanical indicator to locally signal tripping due to an earth fault.EasyPact EZC earth-leakage circuit breakers may be equipped with anearth-leakage alarm switch (ALV) to remotely signal tripping due to an earth fault. Resetting EasyPact EZC earth-leakage circuit breakers are fully reset by the operating handle. After resetting, tripping indicators (mechanical and ALV) come to normal position.Key FeaturesRange of product - EasyPact Product or component type - Circuit breaker Device short name - Easypact EZC100N Circuit breaker name - Easypact EZC100N Device application - DistributionPoles description - 4P Protected poles description - 3tNetwork type - DC, AC Network frequency - 50/60 Hz [In] rated current - 100 A at 40 °C [Ui] rated insulation voltage - 690 V AC 50/60 Hz conforming to IEC 60947-2 [Uimp] rated impulse withstand voltage - 6 kV conforming to IEC 60947-2 [Ue] rated operational voltage - 550 V AC 50/60 Hz conforming to IEC 60947-2, 250 V DC conforming to IEC 60947-2 Breaking capacity code - F Breaking capacity - 25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2, 5 kA Icu at 125 V DC 1P conforming to IEC 60947-2, 5 kA Icu at 250 V DC 2P conforming to IEC 60947-2, 5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2, 7.5 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 [Ics] rated service breaking capacity - 12.5 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2, 12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2, 2.5 kA at 125 V DC conforming to IEC 60947-2, 2.5 kA at 250 V DC conforming to IEC 60947-2, 2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2, 5 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2, 5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 3.75 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 Suitability for isolation - Yes conforming to IEC 60947-2 Utilisation category - Category A Trip unit name - TM-D Trip unit technology - Thermal-magnetic Trip unit rating - 20 A at 50 °C Protection type - Short-circuit protection, Overload protection Pollution degree - 3 conforming to IEC 60664-1, 3 conforming to IEC 947-1 Control type - Toggle Mounting mode - FixedMounting support - Backplate Upside connection - Front Downside connection - Front Mechanical durability - 8500 cycles Electrical durability - Category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 Connection pitch - 25 mm Local signalling - Positive contact indication Neutral protection setting - Without protectionEarth-leakage protection - WithoutWhat's In the Box1 - EasyPact EZC100N - TMD - 100 A - 4 poles 3d MCCB
EasyPact EZC250N - TMD - 250A - 4 Poles 3d MCCB
Easy series EasyPact™ EZC Molded-Case Circuit Breakers from 15 to 630A So easy, so simple With just three sizes of circuit breakers, Schneider Electric's EasyPactTM EZC system is the simple, universal solution to fit all low voltage protection needs. The fixed version is particularly adapted to the OEM and Building markets, offering optimum performance at a competitive price. The plug-in version offers an additional function dedicated to the Marine market. Earth-leakage protection EasyPact EZC circuit breakers have a specific version including earth-leakage protection. This protection is fully integrated inside the breaker and does not require any additional space. EasyPact EZC circuit breakers and earth leakage circuit breakers are fully interchangeable. Compliance with standards EasyPact EZC earth leakage circuit breakers comply with all the international standards. IEC 60947-1IEC 60947-2EN 60947-1EN 60947-2GB 14048.2JIS C8201-2-2 Annex 1 and Annex 2UL 60947-4-1(old UL508)/CSA 22-2 no. 14. They also comply with: VDE 664, operation down to -25 °CIEC 60255-4 and IEC 60801-2 to 60801-5 covering protection against nuisance tripping due to transient overvoltages, lightning strikes, switching of devices on the distribution system, electrostatic discharges, radiofrequency interference. Power supply Reverse feeding EasyPact EZC earth-leakage circuit breakers can be supplied from either the top or the bottom for voltages up to 240 V AC. For voltages over 240 V AC, only supply from the top is possible (Line-Load indication on the cover of the breaker). Power supply of the electronics EasyPact EZC earth-leakage circuit breakers are self-supplied by the distribution-system voltage and therefore do not require any external source. They fully comply with new IEC requirements (Annex B): they are powered from the three phases and continue to function even if one phase is missing. Dielectric tests EasyPact EZC earth-leakage circuit breakers are equipped with a disconnecting switch in order to protect the electronics during dielectric tests. When the disconnecting switch is activated, the circuit breaker is automatically tripped. It is mechanically impossible to switch on the circuit breaker, until the earth-leakage function is re energised. Tripping features Tripping indications: EasyPact EZC earth-leakage circuit breakers have a yellow mechanical indicator to locally signal tripping due to an earth fault.EasyPact EZC earth-leakage circuit breakers may be equipped with anearth-leakage alarm switch (ALV) to remotely signal tripping due to an earth fault. Resetting EasyPact EZC earth-leakage circuit breakers are fully reset by the operating handle. After resetting, tripping indicators (mechanical and ALV) come to normal position.Key FeaturesRange of product - EasyPact Product or component type - Circuit breaker Device short name - Easypact EZC250N Circuit breaker name - Easypact EZC250N Device application - DistributionPoles description - 4P Protected poles description - 3tNetwork type - DC, AC Network frequency - 50/60 Hz [In] rated current - 250 A at 40 °C [Ui] rated insulation voltage - 690 V AC 50/60 Hz conforming to IEC 60947-2 [Uimp] rated impulse withstand voltage - 6 kV conforming to IEC 60947-2 [Ue] rated operational voltage - 550 V AC 50/60 Hz conforming to IEC 60947-2, 250 V DC conforming to IEC 60947-2 Breaking capacity code - F Breaking capacity - 25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2, 5 kA Icu at 125 V DC 1P conforming to IEC 60947-2, 5 kA Icu at 250 V DC 2P conforming to IEC 60947-2, 5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2, 10 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2, 7.5 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 [Ics] rated service breaking capacity - 12.5 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2, 12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2, 2.5 kA at 125 V DC conforming to IEC 60947-2, 2.5 kA at 250 V DC conforming to IEC 60947-2, 2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2, 5 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2, 5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 3.75 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 Suitability for isolation - Yes conforming to IEC 60947-2 Utilisation category - Category A Trip unit name - TM-D Trip unit technology - Thermal-magnetic Trip unit rating - 20 A at 50 °C Protection type - Short-circuit protection, Overload protection Pollution degree - 3 conforming to IEC 60664-1, 3 conforming to IEC 947-1 Control type - Toggle Mounting mode - FixedMounting support - Backplate Upside connection - Front Downside connection - Front Mechanical durability - 8500 cycles Electrical durability - Category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 Connection pitch - 25 mm Local signalling - Positive contact indication Neutral protection setting - Without protectionEarth-leakage protection - WithoutWhat's In the Box1 - EasyPact EZC100N - TMD - 250A - 4 poles 3d MCCB
Selector Switch - O 22 - Black - Standard Handle - 3 Positions - 2 NO
Harmony XB7O 22 mm monolithic plastic pushbuttons, switches, and pilot lightsPart of HarmonyThe Harmony XB7 range of O 22 mm plastic pushbuttons and pilot lights offers a monolithic, optimized design that provides complete functions in a single part number, simplifying ordering and installation in electrical distribution and machine applications.FeaturesThe range includes:Spring-return pushbutton switchesIlluminated pushbuttons and pilot lights with LEDsMushroom-head emergency stop buttons with snap-action lockingSelector switchesA wide range of accessories to fit your needsFEATURESConformity with IEC, UL, and CSA standards, as well as CE markingIP65, type 3 protection ratingFinger-safe screw clamp terminalsHigh chemical resistanceLarge set of accessories to customize your panelsBenefitsModern design, reinforced with flush mounting kitHigh brightness of the LED illuminated functions, available in 6 colorsSimple to choose: single reference for a complete deviceSimple to use: basic functions and performanceApplicationsElectrical distribution panel buildersSimple machines: packaging, textile, etc.HVAC systemsKey FeaturesRange of product - Harmony XB7 Product or component type - Selector switchDevice short name - XB7 Mounting diameter - 22 mm Sale per indivisible quantity - 10IP degree of protection - IP20 (rear face) conforming to IEC 60529, IP65 (front face) conforming to IEC 60529 Shape of signaling unit head - Round Type of operator - Stay putOperator profile - Black standard handleOperator position information - 3 positions +/- 45°Contacts type and composition - 2 NODevice presentation - Without Device mounting - Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-1 What's In the Box1 Selector Switch - O 22 - Black - Standard Handle - 3 Positions - 2 NO
ACTI9 IC60N 3P 63A C MINIATURE CIRCUIT BREAKER
Acti9 iC60N Miniature Circuit Breakers iC60N circuit breakers are multi-standard circuit breakers which combine the Following functions: Circuit protection against short-circuit currents,Circuit protection against overload currents,Suitable for industrial isolation according to iec/en 60947-2, standard.Fault tripping indication by a red mechanical indicator in circuit breaker front faceInsulated terminals ip20 Visi-trip window Fault tripping is indicated by a red mechanical indicator on the front faceLarge circuit labelling areaDouble clip for dismounting with comb busbar in place Positive contact indication Suitable for industrial isolation according to IEC/EN 60947-2 standard. The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety Increased product service life thanks to: overvoltage resistance by high level of industrial performances conception (pollution degree, rated impulse withstands voltage and insulation voltage),high performance limitation (see limitation curves),fast closing independent of the speed of actuation of the toggle.Remote indication open/closed/tripped, by optional auxiliary contacts.Top or bottom electrical feeding. Key FeaturesRange - Acti 9 Product name - Disbo iC60 Product or component type - Miniature circuit-breaker Device short name - IC60N Poles description - 3P Number of protected poles - 3[In] rated current - 63A Network type - AC Trip unit technology - Thermal-magnetic Curve code - C Breaking capacity- 6000 A Icn at 415 V AC 50/60 Hz conforming to EN/IEC 60898-1
36 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
15 kA Icu at 100...133 V DC conforming to EN/IEC 60947-2Utilisation category - Category A conforming to EN/IEC 60947-2 Network frequency - 50/60 Hz [Ue] rated operational voltage - 240 V AC 50/60 Hz Magnetic tripping limit - 8 x In +/- 20 % [Ics] rated service breaking capacity - 27 kA 75 % conforming to EN/IEC 60947-2 - 10...60 V AC 50/60 Hz, 15 kA 75 % conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz, 7.5 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz, 6000 A 100 % conforming to EN/IEC 60898-1 - 240 V AC 50/60 Hz, 15 kA 100 % conforming to EN/IEC 60947-2 - 12...48 V DC, 6 kA 100 % conforming to EN/IEC 60947-2 - 72 V DC Limitation class - 3 conforming to EN/IEC 60947-2 [Ui] rated insulation voltage - 500 V AC 50/60 Hz [Uimp] rated impulse withstand voltage - 6 kV conforming to EN/IEC 60947-2 Contact position indicator - Yes Control type - Toggle Local signalling - Trip indicator Mounting mode - Clip-on Mounting support - Rail9 mm pitches - 2 Colour - White Mechanical durability - 20000 cycles Electrical durability - 10000 cycles Provision for padlocking - Padlock able connections - terminals Single terminal (top or bottom) 1…25 mm² rigidSingle terminal (top or bottom) 1…16 mm² flexible Wire stripping length - 14 mm for top or bottom connection Tightening torque - 2 N.m top or bottom Earth-leakage protection - Separate block Standards - EN/IEC 60898-1, EN/IEC 60947-2 IP degree of protection - IP20 conforming to IEC 60529 Pollution degree - 3 conforming to EN/IEC 60947-2 Tropicalisation - 2 conforming to IEC 60068-1 Relative humidity - 95 % at 55 °C Ambient air temperature for operation -35…70 °C Ambient air temperature for storage -40…85 °CWhat's In the Box1 ACTI9 IC60N 3P 63A C MINIATURE CIRCUIT BREAKER
Push Button - Spring Return, Green - NO+NC
Harmony XB7 O 22 mm monolithic plastic pushbuttons, switches, and pilot lights Part of Harmony The Harmony XB7 range of O 22 mm plastic pushbuttons and pilot lights offers a monolithic, optimized design that provides complete functions in a single part number, simplifying ordering and installation in electrical distribution and machine applications. Features The range includes: Spring-return pushbutton switchesIlluminated pushbuttons and pilot lights with LEDsMushroom-head emergency stop buttons with snap-action lockingSelector switchesA wide range of accessories to fit your needs FEATURES Conformity with IEC, UL, and CSA standards, as well as CE markingIP65, type 3 protection ratingFinger-safe screw clamp terminalsHigh chemical resistanceLarge set of accessories to customize your panels Benefits Modern design, reinforced with flush mounting kitHigh brightness of the LED illuminated functions, available in 6 colorsSimple to choose: single reference for a complete deviceSimple to use: basic functions and performance Applications Electrical distribution panel buildersSimple machines: packaging, textile, etc.HVAC systems Key FeaturesRange of product - Harmony XB7 Product or component type - Push-button Device short name - XB7 Mounting diameter - 22 mm Sale per indivisible quantity - 10IP degree of protection - IP20 (rear face) conforming to IEC 60529, IP65 (front face) conforming to IEC 60529 Shape of signaling unit head - Round Type of operator - Spring returnOperator profile - Green flush, unmarked Contacts type and composition - 1 NO + 1 NC Device presentation - Monolithic product Device mounting - Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-1 Fixing center - >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm, >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm Fixing mode - Fixing nut beneath head: 2…2.4 N.m What's In the Box1 Push Button - Spring Return, Green - NO+NC
Vivace 13A 250V Twin Gang Switched Socket
Vivace is a range of switches and sockets built for style and function for modern interior design. A switch and socket set with the style and modern simplicity of the Bauhaus movement. Inspired by the influential Bauhaus movement, Vivace expresses a pleasing form follows function. With a slim and trim profile, the sleek clean lines and subtle curves manifest an art of simple, elegant minimalism. Every piece in this robustly constructed range sits perfectly within the context of any modern interior design. Vivace, a style of modern simplicity that is always within your reach.A slim, trim profile, pleasing to the eye, clean and refined, the Vivace is a switch and socket set that perfectly complements the modern lifestyle. Inspired by the simple, elegant minimalism of the supremely influential Bauhaus movement, every piece in this robustly constructed range expresses a pleasing form following function. Unmarred by visible fastenings, the sleek clean lines of Vivace present a cool refined touch of style to almost any interior. The Vivace switch and socket set is a robustly constructed range built to perfectly complement the modern lifestyle.Key FeaturesRange - VivaceProduct or component type - Socket-outlet with switch Device short name - KB25Device presentation - Complete mechanismOutlet poles configuration - 2P + ENumber of gangs - 2 gangsColour tint - WhiteMaterial - Polycarbonate: grid plate, Polycarbonate: Surround, Polycarbonate: baseProjecting depth - 8 mmDevice mounting - FlushMounting support - Wall mountedFixing mode - by screw M3.5Fixing center - 120.6 mmEmbedding depth - 35 mmRated current - 13 A at 250 V AC, resistiveNetwork frequency - 50 HzContacts material - Brass and phosphor bronzeConnections - terminals - Pillar terminalTerminal identifier - N, Earth, LTightening torque - 0.4 N.mClamping connection capacity - 2 x 4 mm², 3 x 2.5 mm²Clean, geometrically balanced designThin: 8mm slim at the thickest point16 AX Switches: handles additional loading and enables wider applicationHigh fatigue resistance capacityAll sockets are inserted with shutter doors for a longer lifecycleWhat's In the Box1 Vivace 13A 250V Twin Gang Switched Socket
Easy9 MCB - 2P, 32 A, C Curve, 6000 A
Easy9 MCB Miniature Circuit-Breakers (MCB) Part of Easy Series Miniature circuit breakers to provide short-circuit and cable overload protection. Designed with functionality and protection in mind, the Easy9 miniature circuit breakers offer a user-friendly design for ultimate ease-of-use. Features Providing protection when you most need it, the miniature circuit breakers give you high levels of protection from short circuits and cable overload whilst providing a user-friendly interface to make them as accessible as possible. High-quality design providing much-needed protection. Highly accessible user-friendly design. Availability whenever and wherever you look for it. Robust and designed to stand-up to the test of time. Excellent levels of reliability. Cost-effective, provides protection and reliability at an affordable price. Benefits Designed for modular devices, the miniature circuit breakers ensure protection from short-circuits and cable overload. Resulting from close work with electricians worldwide, they provide enhanced protection as well as peace of mind to customers. Enhanced protection to pass on to your customers. Designed with ease of installation in mind. Suitable for modular devices. Applications Use in a range of applications to provide short-circuit and cable overload protection. Easy to install and with a user-friendly interface, the miniature circuit breakers provide accessibility, reliability and protection.Key FeaturesRange - Easy9 Device application - Distribution Product or component type - Miniature circuit-breaker Device short name - Easy9 MCB Poles - 2P Number of protected poles - 2 [In] rated current - 32 A Network type - AC Trip unit technology - Thermal-magnetic Curve code - C Breaking capacity - 10000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1, 6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1 Suitability for isolation - Yes conforming to IEC 60898-1Network frequency - 50/60 Hz [Ue] rated operational voltage - 220 V AC 50/60 Hz, 400 V AC 50/60 HzMagnetic tripping limit 5...10 x In [Ics] rated service breaking capacity 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 [Ui] rated insulation voltage - 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage - 4 kV conforming to IEC 60898-1 Contact position indicator - Yes Control type - ToggleLocal signalling - Without Mounting mode - Clip-on Mounting support - DIN rail 9 mm pitches - 4 Colour Grey (RAL 7035) Mechanical durability 10000 cycles Electrical durability 4000 cycles Connections - terminals - Tunnel type terminal (top or bottom) 1…25 mm² flexible, Tunnel Type terminal (top or bottom) 1…35 mm² rigidTightening torque - 3.5 N.m top or bottom Earth-leakage protection - WithoutStandards - IEC 60898-1 Product certifications - CEIP degree of protection IP20 conforming to IEC 60529 Pollution degree - 2 Tropicalisation - 2 Relative humidity - 95 % at -5…60 °C Ambient air temperature for operation - 5…60 °C Ambient air temperature for storage - 40…85 °C What's In the Box1 Easy9 MCB - 2P, 32A, C curve, 6000 A
Acti9 IC60N 2P 40A C Miniature Circuit Breaker
Acti9 iC60N Miniature Circuit BreakersiC60N circuit breakers are multi-standard circuit breakers which combine theFollowing functions: Circuit protection against short-circuit currents, Circuit protection against overload currents, Suitable for industrial isolation according to IEC/EN 60947-2, standard. Fault tripping indication by a red mechanical indicator in circuit breaker front face Insulated terminals ip20 Visi-trip window Fault tripping is indicated by a red mechanical indicator on the front face Large circuit labelling area Double clip for dismounting with comb busbar in place Positive contact indication Suitable for industrial isolation according to IEC/EN 60947-2 standard. The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety Increased product service life thanks to: overvoltage resistance by high level of industrial performances conception (pollution degree, rated impulse withstands voltage and insulation voltage), high performance limitation (see limitation curves), fast closing independent of the speed of actuation of the toggle. Remote indication open/closed/tripped, by optional auxiliary contacts. Top or bottom electrical feeding. SPECIFICATION · Product Name Miniature Circuit Breaker · Color White · Rated Current 40A · circuit breaking capacity 20kA at 220VAC to 240VAC · Ui rated insulation voltage 500VAC · Width 36mm · Height 85mm · Depth 78.5mm · Weight 0.25kg · Storage Temperature -40°C to 85°C. · Operating Temperature -35°C to 70°C.Key FeaturesFault tripping is indicated by a red mechanical indicator on the front faceLarge circuit labelling areaDouble clip for dismounting with comb busbar in placeSuitable for industrial isolation according to IEC/EN 60947-2 standard.The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safetyWhat's In the Box1 Acti9 IC60N 2P 40A C Miniature Circuit Breaker
Lisse - Switched Socket - 2 Gang - 13A Mocha Bronze With B I
Lisse curves in all the right places... The Lisse white moulded range of wiring accessories offers the perfect blend of style and performance. You no longer have to choose between convenience and efficiency, or compromise on appearance to get the most innovative features. Lisse is packed with a vast array of technical features, providing a high level of quality, reliability, and value you can count on. • Ideally suited for new construction projects • Future-proofed to cater for the latest demands in consumer technology • Made from durable, high quality urea with antimicrobial properties • Cleverly designed to ensure that product ordering is simple and efficient, with many time and space saving solutions • Crafted with your customer in mind, adding bespoke solutions to make a lasting impact From all angles. Minimum back projection frees up space in the back box for cabling No matter how you look at it - from the front, back, or side - the Lisse range is designed to make your life simpler. Get installation right the first time, every time.Key FeaturesRange - Lisse Aesthetic name - Screwless deco Product or component type - Switched SocketDevice presentation - Complete productOutlet standard - BritishColour tint - Interior: Black, Cover plate: Mocha BronzeType of packing - BoxSwitch function - 1 poleRated current - 13 A at 250 V AC 50/60 HzActuator - Rocker Number of gangs - 2 gangPilot light - without LEDFixing mode - Concealed screwsConnections - terminals - Screw terminalsMaterial - Stainless steelType of installation - IndoorWhat's In the Box1 Lisse - Switched Socket - 2 gang - 13A Mocha Bronze with Black Interior

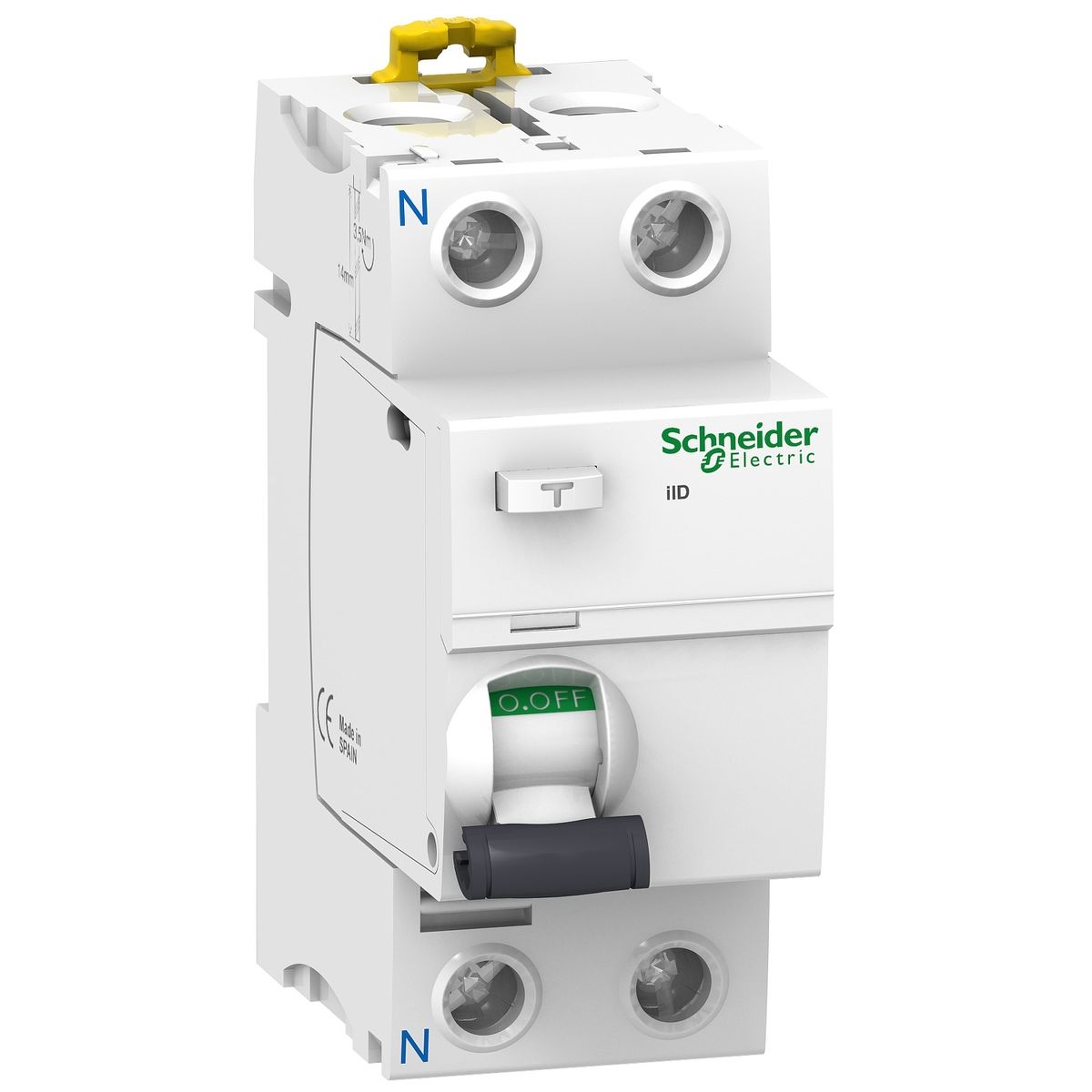

RCCB -Acti9 IID- 2P- 63A- AC Type- 30mA
Acti 9 iID Residual current circuit breakers (RCCB) up to 63 AThis Acti9 iID is a modular and RCCB. This product protects against electrical shock by indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. FeaturesThe RCCB will also give you additional protection against any direct contact; Complete with Visi-Safe, which helps to ensure the ultimate in safety for both operation and maintenance work. Complete with VisiTrip: detects faulty outgoers quickly and reduces intervention time. Fully immune earth leakage protection: provides better continuity of service. Fully compliant with standard IEC EN 61008-1. BenefitsThe RCCB provide greater continuity of service as well as enhanced protection to both industrial and commercial buildings. Greater continuity of service with VisiTrip. Greater electrical immunity Easy-to-understand part numbers make choosing options simple and straightforward. Easy to install with quick, ergonomic and secure IP20B terminal shutters. Fully robust connections which provide twice the standard tightening torque. Environmentally friendly: made from 100% recyclable and recoverable materials. Applications Designed for industrial and commercial buildings. Prevent electrocution (in accordance with installation standard IEC 60364 and national standards). Reduce fire hazards by cutting down current leakage into building electrical installations. What's In the Box1- Residual current circuit breaker (RCCB)-Acti9 ilD -2P- 63A- AC type- 30mA

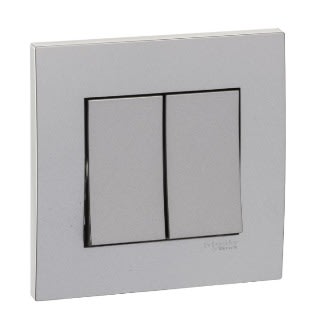

Vivace 16AX 250V 2 Gang 2 Way Switch2
Vivace is a range of switches and sockets built for style and function for modern interior design. A switch and socket set with the style and modern simplicity of the Bauhaus movement. Inspired by the influential Bauhaus movement, Vivace expresses a pleasing form follows function. With a slim and trim profile, the sleek clean lines and subtle curves manifest an art of simple, elegant minimalism. Every piece in this robustly constructed range sits perfectly within the context of any modern interior design. Vivace, a style of modern simplicity that is always within your reach.A slim, trim profile, pleasing to the eye, clean and refined, the Vivace is a switch and socket set that perfectly complements the modern lifestyle. Inspired by the simple, elegant minimalism of the supremely influential Bauhaus movement, every piece in this robustly constructed range expresses a pleasing form following function. Unmarred by visible fastenings, the sleek clean lines of Vivace present a cool refined touch of style to almost any interior. The Vivace switch and socket set is a robustly constructed range built to perfectly complement the modern lifestyle.Key FeaturesRange - Vivaceproduct or component type - SwitchDevice short name - KB32Device application - ControlDevice presentation - Complete MechanismSwitch function - 2-wayActuator - RockerNumber of gangs - 2 gangColour tint - WhiteMaterial - Polycarbonate: grid plate, Polycarbonate: surround, Polycarbonate: baseprojecting depth - 8 mmDevice mounting - FlushMounting support - Wall mountedFixing mode - By screw M3.5Fixing center - 60.3 mmEmbedding depth - 35 mmRated current - 16 AX at 250 V AC, inductive - 16 AX at 250 V AC, fluorescent[Ue] rated operational voltage - 250 V ACNetwork frequency - 50 HzContacts material - Brass and phosphor bronzeConnections - terminals - Pillar terminalTerminal identifier - L2, L1, COMTightening torque - 0.4 N.mclamping connection capacity - 2.5 mm²Clean, geometrically balanced designThin: 8mm slim at the thickest point16 AX Switches: handles additional loading and enables wider applicationHigh fatigue resistance capacityAll sockets are inserted with shutter doors for a longer lifecycleWhat's In the Box1 Vivace 16AX 250V 2 Gang 2 Way Switch
Lisse - 2 Gang 13A 2USB Stainless Steel With White Interior
Lisse curves in all the right places... The Lisse white moulded range of wiring accessories offers the perfect blend of style and performance. You no longer have to choose between convenience and efficiency, or compromise on appearance to get the most innovative features. Lisse is packed with a vast array of technical features, providing a high level of quality, reliability, and value you can count on. • Ideally suited for new construction projects • Future-proofed to cater for the latest demands in consumer technology • Made from durable, high quality urea with antimicrobial properties • Cleverly designed to ensure that product ordering is simple and efficient, with many time and space saving solutions • Crafted with your customer in mind, adding bespoke solutions to make a lasting impact From all angles. Minimum back projection frees up space in the back box for cabling No matter how you look at it - from the front, back, or side - the Lisse range is designed to make your life simpler. Get installation right the first time, every time.Key FeaturesRange - Lisse Aesthetic name - Screwless deco Product or component type - Switched SocketDevice presentation - Complete productOutlet standard - BritishColour tint - Interior: White, Cover plate: stainless steelType of packing - Bag Switch function - 2 poleRated current - 13 A at 250 V AC 50/60 HzIntegrated connection type - 2 USB port 5 V DC 2.1 AActuator - Rocker Number of gangs - 2 gangPilot light - without LEDFixing mode - Concealed screwsConnections - terminals - Screw terminalsMaterial - Stainless steelType of installation - IndoorWhat's In the Box1 Lisse - 2 Gang 13A 2USB Stainless Steel With White Interior
Acti 9 IID - RCCB - 4P - 100A - 300mA - Type AC
Acti 9 iIDDIN Rail Residual current circuit breakers (RCCB) up to 100APart of 9 SeriesIncoordination with Acti 9 and Multi 9 MCBs, this RCCB willalso give you additional protection against any direct contactFeaturesAchieve full coordination with Acti 9 and Multi 9 MCBs withDIN rail RCCB you can rely on. Providing better continuity of service as wellas offering a complete environmentally friendly option, the DIN rail RCCB willalso give you additional protectionagainst any direct contact.Complete with VISI-SAFE, which helps to ensure the ultimatein safety for both operation and maintenance work.Class-2 insulation: ensures continuous protection for bothoperators and unqualified personnel.Complete with VisiTrip: detects faulty outgoers quickly andreduces intervention time.Fully immune earth leakage protection: provides bettercontinuity of service, especially with the new SI type (Super immune) which hasbeen designed with polluted environments and networks in mind.The optional electrical auxiliaries and mounting accessoriesare consistent with those offered on Acti 9 iC60 miniature circuit breakers(MCBs).Nominal current: 1 to 100 A.SI (Super immune), AC, A.30 mA sensitivity: provides additional protection againstdirect contact (in accordance with IEC 60364).100 mA, 300 mA, 500 mA sensitivities: provide additionalprotection against fire and indirect contact (in accordance with IEC 60364).Selective version: ensures correct discrimination betweendifferentresidual current circuit breakers as well as the tripping of thedevice closest to the fault.Coordination with Acti 9 and Multi 9 MCBs.Fully compliant with standard IEC EN 61008-1.Certified by national official authorities.Ideally suited to isolation in full accordance withindustrial standard IEC/EN 60947-2.Operating voltage: up to 400 V AC.Insulation voltage: 500 V.Optional auxiliaries available: indication of state andtripping, shunt tripping, under voltage tripping, overvoltage tripping.BenefitsComplete with VisiTrip and Visi-SAFE, the DIN rail RCCBprovide greater continuity of service as well as enhanced protection to bothindustrial and commercial buildings.Greater continuity of service with VisiTrip.Greater electrical immunity with SI type (Super immune).Easy-to-understand part numbers make choosing options simpleand straightforward.Easy to install with quick, ergonomic and secure IP20Bterminal shutters.Fully robust connections which provide twice the standardtightening torque.Environmentally friendly: made from 100% recyclable andrecoverable materials.ApplicationsDesigned for industrial and commercial buildingsPrevent electrocution (in accordance with installationstandard IEC 60364 and national standards).Reduce fire hazards by cutting down current leakage intobuilding electrical installations.Key FeaturesRange - Acti 9Product name - Acti 9 iIDProduct or component type - Residual current circuit breaker
(RCCB)Device short name - IIDPoles description - 4PNeutral position - LeftRated current - 100 ANetwork type - ACEarth-leakage sensitivity - 300 mAEarth-leakage protection time delay - InstantaneousEarth-leakage protection class - Type ACDevice location in system - OutgoerNetwork frequency - 50/60 HzRated operational voltage - 380...415 V AC 50/60 HzResidual current tripping technology - Voltage independentRated breaking and making capacity - Idm 1500 A, Im 1500 ARated conditional short-circuit current - 10 kARated insulation voltage - 500 V AC 50/60 HzRated impulse withstand voltage - 6 kVSurge current - 250 AContact position indicator - YesControl type - ToggleMounting mode - Clip-onMounting support - DIN rail9 mm pitches - 8What's In the Box1 - Acti 9 iID - RCCB - 4P - 100A - 300mA - Type AC
Easy9 RCCB - 2P - 40A - 30 MA - AC Type - 230 V
Easy9 RCCB Residual Current Circuit-Breakers Part of Easy Series The residual current circuit breakers have been designed with improving protection levels in mind, providing enhanced leakage current protection to ensure all users avoid any electric shocks. Dependable, secured and designed to be easy to use, they are a must-have protection measure. Features Affordable switchgear you can depend on Offering leakage current protection, the residual current circuit breakers make no compromises when it comes to reliability. Complete with a user-friendly design, the circuit breakers are easy to install and can be used in homes as well as small buildings. High quality design providing ease-of-use. User-friendly to allow for quick and simple installation. Availability when and where you look for it. High levels of reliability. Cost-effective to ensure you get a highly reliable product for an affordable price. Enhanced protection against electric shocks. Benefits Working to improve protection and reduce installation times, the robust residual current circuit breakers provide you with much needed leakage current protection, vastly reducing the chance of electric shocks. · Simple and quick to install thanks to the accessible design. · Provides enhanced protection to the areas you need it. · Protection from leaks as well as electric shocks. Applications The residual current circuit breakers can be used at the Head of Group in your panel and are ideally suited to homes and small buildings.Key FeaturesRange of product - Easy9 Product or component type - Residual current circuit breaker (RCCB)Device short name - Easy9 RCCB Poles - 2P Neutral position - Left [In] rated current - 40 A Network type - AC Earth-leakage sensitivity - 30 mAEarth-leakage protection time delay - InstantaneousEarth-leakage protection class - Type AC Rated breaking and making capacity - 500 A Rated conditional short-circuit current - Easy9 MCB: 4500 A 40 A Device location in system - Outgoer Network frequency - 50 Hz [Ue] rated operational voltage - 230 V AC 50 Hz Residual current tripping technology - Voltage independent [Ui] rated insulation voltage - 440 V AC [Uimp] rated impulse withstand voltage - 4 kV Surge current - 250 A Contact position indicator - Yes Control type - ToggleMounting mode - Clip-on Mounting support - DIN rail Comb busbar and distribution block compatibility - Top: YES 9 mm pitches - 4 Colour - Grey (RAL 7035) Mechanical durability - 5000 cycles Electrical durability - AC: 2000 cycles 400 V AC 50 Hz Connections - terminals - Tunnel type terminal (top or bottom) 1…35 mm² rigid, Tunnel type terminal (top or bottom) 1…25 mm² flexible Tightening torque - 2.5 N.m top or bottomMarket segment - Residential, Small commercial Standards - IEC 61008-1 Product certifications - EAC, GOST-R, CEIP degree of protection - IP20 pollution degree - 2 conforming to IEC 61008-1 Tropicalisation - 2 Relative humidity - 95 % at 55 °C Ambient air temperature for operation - -25…60 °C Ambient air temperature for storage - -40…85 °C What's In the Box1 Easy9 RCCB - 2P - 40A - 30 mA - AC type - 230 V
