| Model |

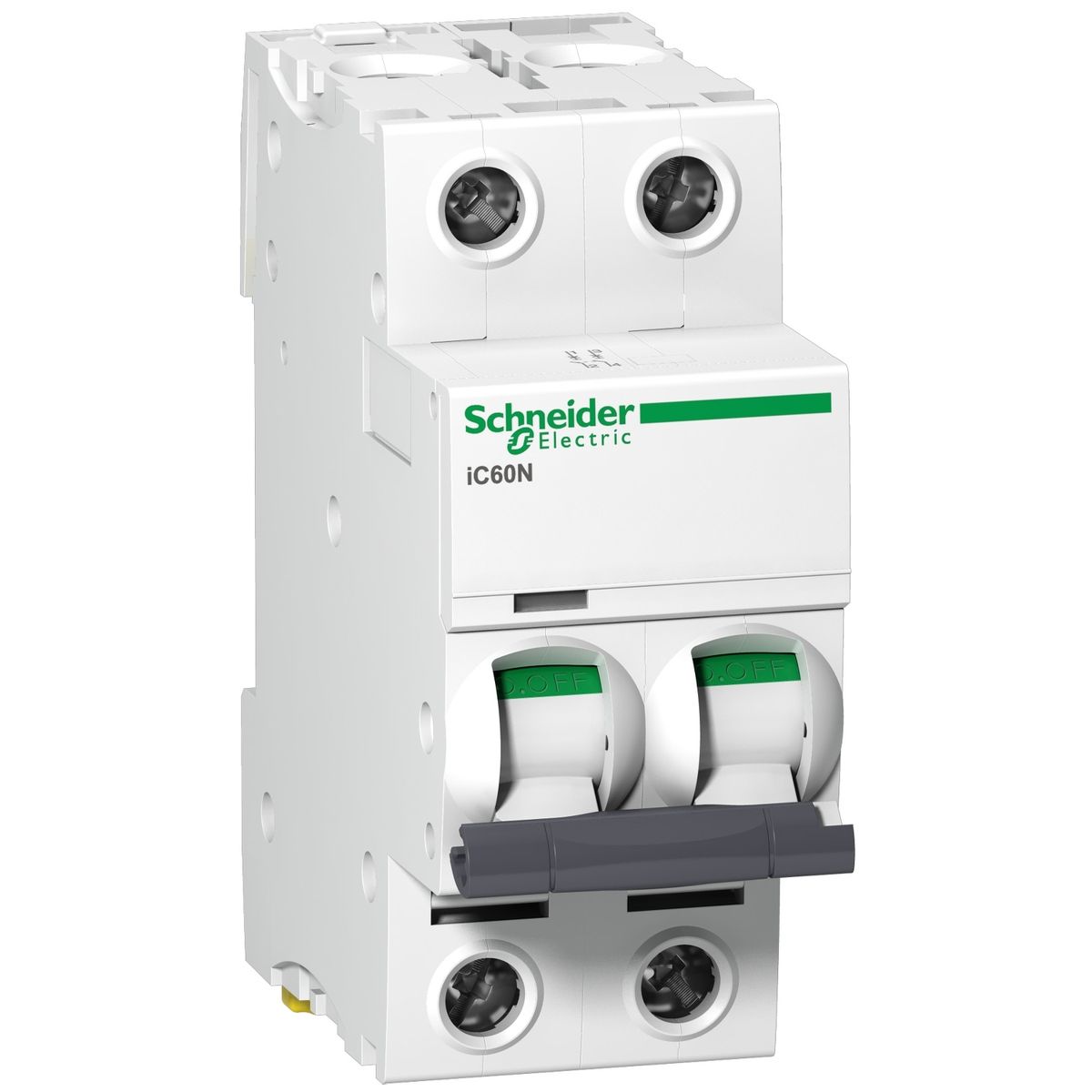

A9F44263- ACTI9 IC60N 2P 63A C MINIATURE CIRCUIT BREAKER |
| Production Country |
France, China |

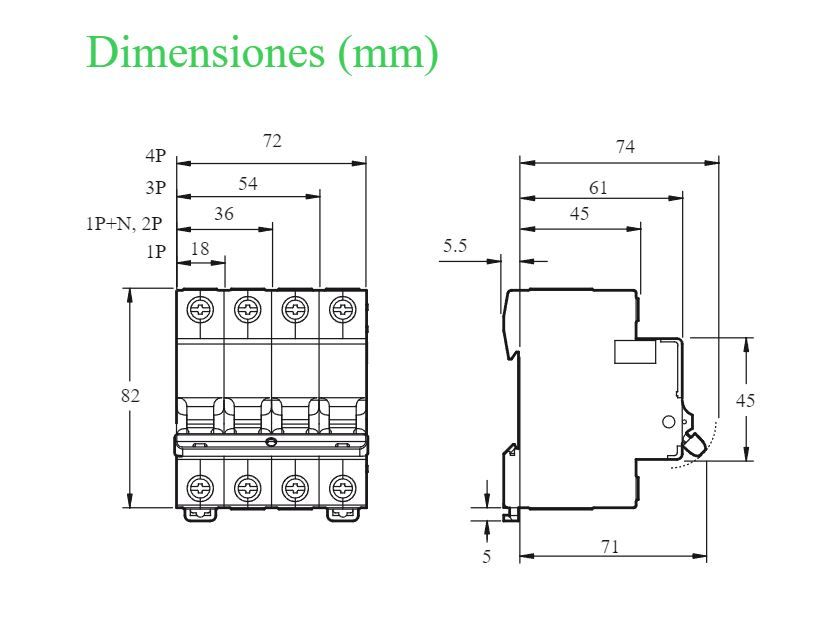

| Size (L x W x H cm) |
8.9 x 7.5 x 3.6 |
| Weight (kg) |
0.258 |
| Certifications |
Eco Friendly |
| Color |
White |
| Main Material |
Plastic |
| From the Manufacturer |
NA |
| Care Label |
NA |

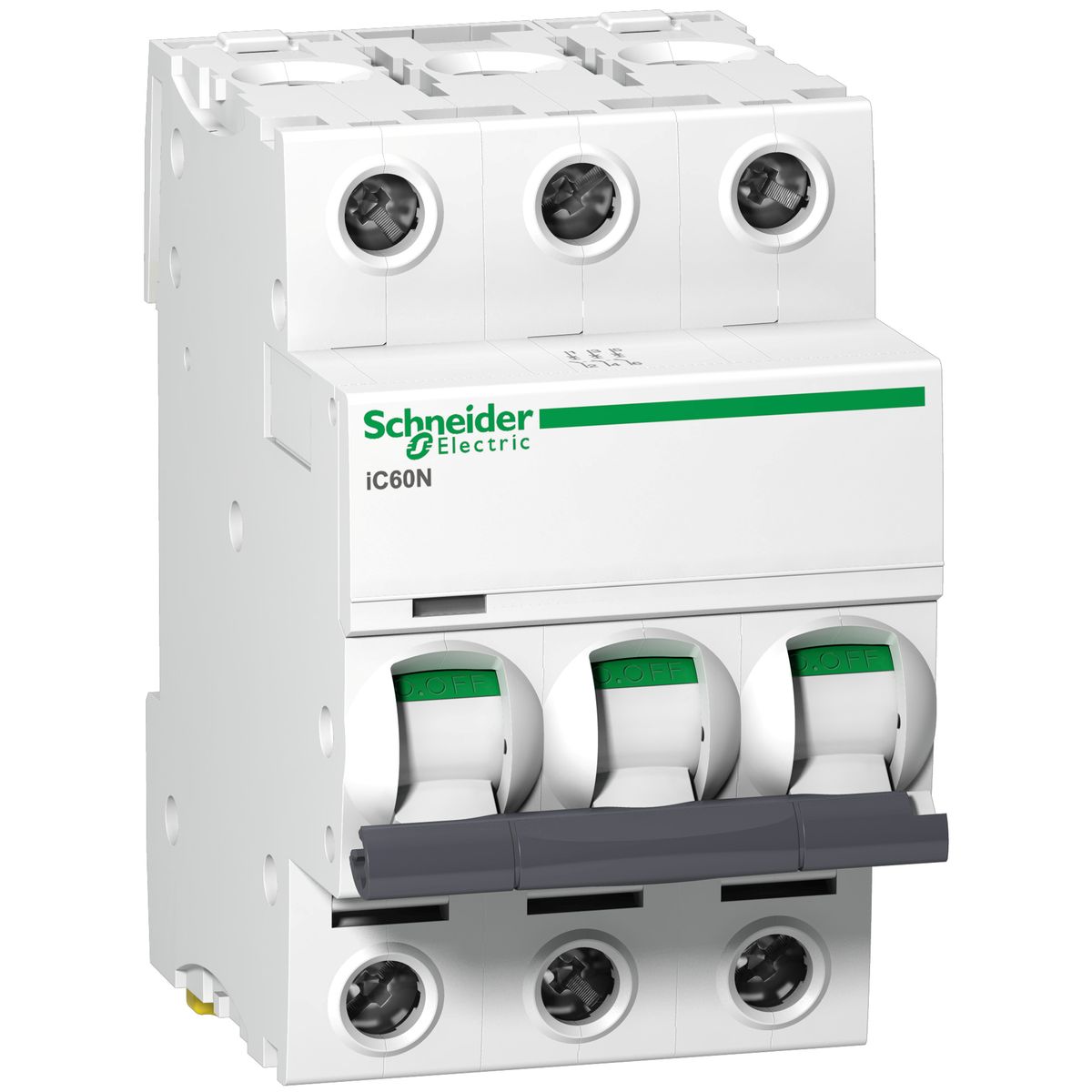

Acti9 iC60N Miniature Circuit Breakers
iC60N circuit breakers are multi-standard circuit breakers which combine the
Following functions:
- Circuit protection against short-circuit currents,
- Circuit protection against overload currents,
- Suitable for industrial isolation according to iec/en 60947-2, standard.
- Fault tripping indication by a red mechanical indicator in circuit breaker front face
- Insulated terminals ip20
Visi-trip window
- Fault tripping is indicated by a red mechanical indicator on the front face
- Large circuit labelling area
- Double clip for dismounting with comb busbar in place
Positive contact indication
- Suitable for industrial isolation according to IEC/EN 60947-2 standard.
- The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety
Increased product service life thanks to:
- overvoltage resistance by high level of industrial performances conception (pollution degree, rated impulse withstands voltage and insulation voltage),
- high performance limitation (see limitation curves),
- fast closing independent of the speed of actuation of the toggle.
- Remote indication open/closed/tripped, by optional auxiliary contacts.
- Top or bottom electrical feeding.
Key Features
Range - Acti 9
Product name - Disbo iC60
Product or component type - Miniature circuit-breaker
Device short name - IC60N
Poles description - 2P
Number of protected poles - 2
[In] rated current - 63A
Network type - AC/DC
Trip unit technology - Thermal-magnetic
Curve code - C
Breaking capacity- 6 kA Icu at 100...133 V DC conforming to EN/IEC 60947-2
6000 A Icn at 415 V AC 50/60 Hz conforming to EN/IEC 60898-1
36 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
Utilisation category - Category A conforming to EN/IEC 60947-2
Network frequency - 50/60 Hz
[Ue] rated operational voltage - 240 V AC 50/60 Hz
Magnetic tripping limit - 8 x In +/- 20 %
[Ics] rated service breaking capacity - 27 kA 75 % conforming to EN/IEC 60947-2 - 10...60 V AC 50/60 Hz, 15 kA 75 % conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz, 7.5 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz, 6000 A 100 % conforming to EN/IEC 60898-1 - 240 V AC 50/60 Hz, 15 kA 100 % conforming to EN/IEC 60947-2 - 12...48 V DC, 6 kA 100 % conforming to EN/IEC 60947-2 - 72 V DC
Limitation class - 3 conforming to EN/IEC 60947-2
[Ui] rated insulation voltage - 500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage - 6 kV conforming to EN/IEC 60947-2
Contact position indicator - Yes
Control type - Toggle
Local signalling - Trip indicator
Mounting mode - Clip-on
Mounting support - Rail
9 mm pitches - 2
Colour - White
Mechanical durability - 20000 cycles
Electrical durability - 10000 cycles
Provision for padlocking - Padlock able
connections - terminals Single terminal (top or bottom) 1…25 mm² rigid
Single terminal (top or bottom) 1…16 mm² flexible
Wire stripping length - 14 mm for top or bottom connection
Tightening torque - 2 N.m top or bottom
Earth-leakage protection - Separate block
Standards - EN/IEC 60898-1, EN/IEC 60947-2
IP degree of protection - IP20 conforming to IEC 60529
Pollution degree - 3 conforming to EN/IEC 60947-2
Tropicalisation - 2 conforming to IEC 60068-1
Relative humidity - 95 % at 55 °C
Ambient air temperature for operation -35…70 °C
Ambient air temperature for storage -40…85 °C
What's In the Box
1 ACTI9 IC60N 2P 63A C MINIATURE CIRCUIT BREAKER
