| Model |
EZ9F56340 - MCB - 3P - 40 A - C curve - 6000 A - 400 V |
| Production Country |
France, China |

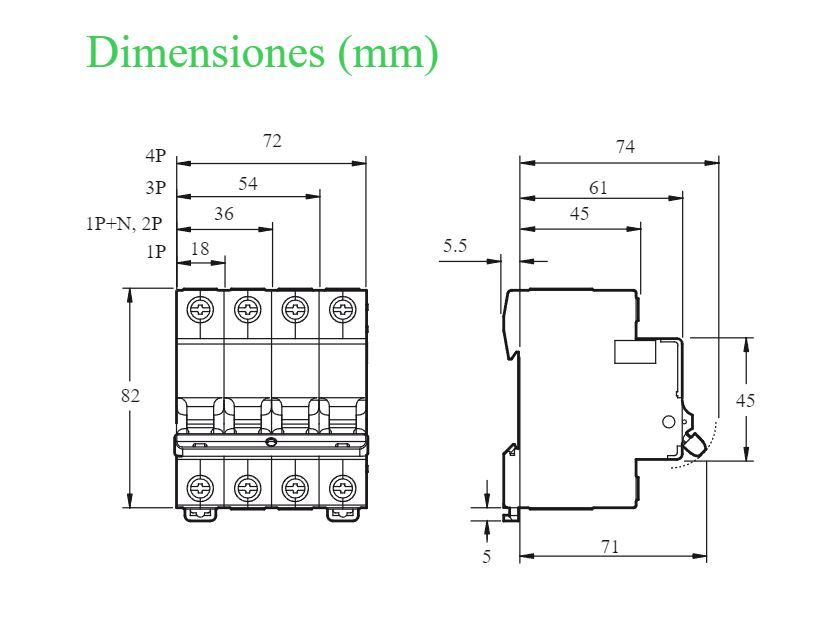

| Size (L x W x H cm) |
8.5 x 5.3 X 7.5 |
| Weight (kg) |
0.3 |
| Certifications |
Eco Friendly |
| Color |
Grey |
| Main Material |
Plastic |
| From the Manufacturer |
NA |
| Care Label |
NA<br /> |

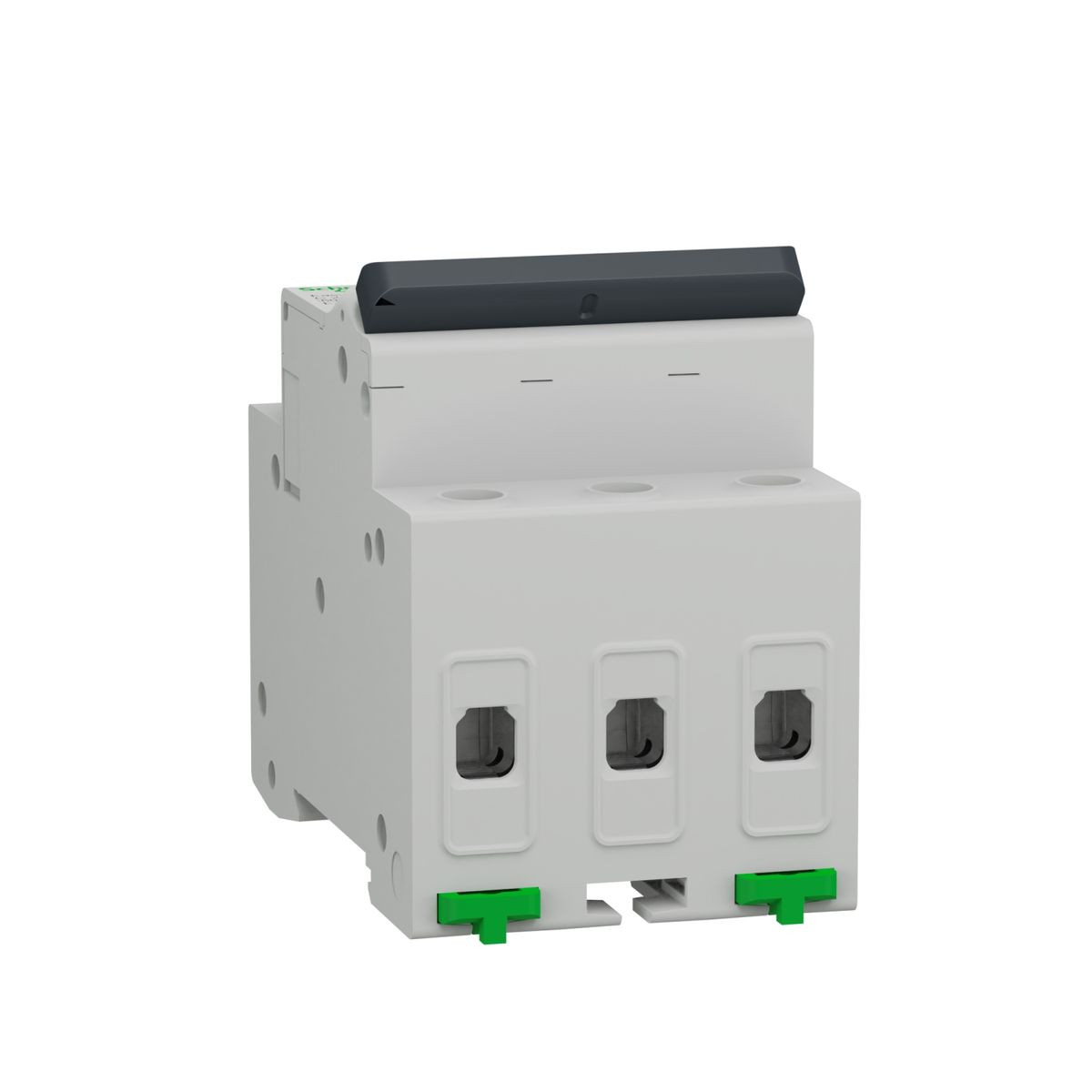

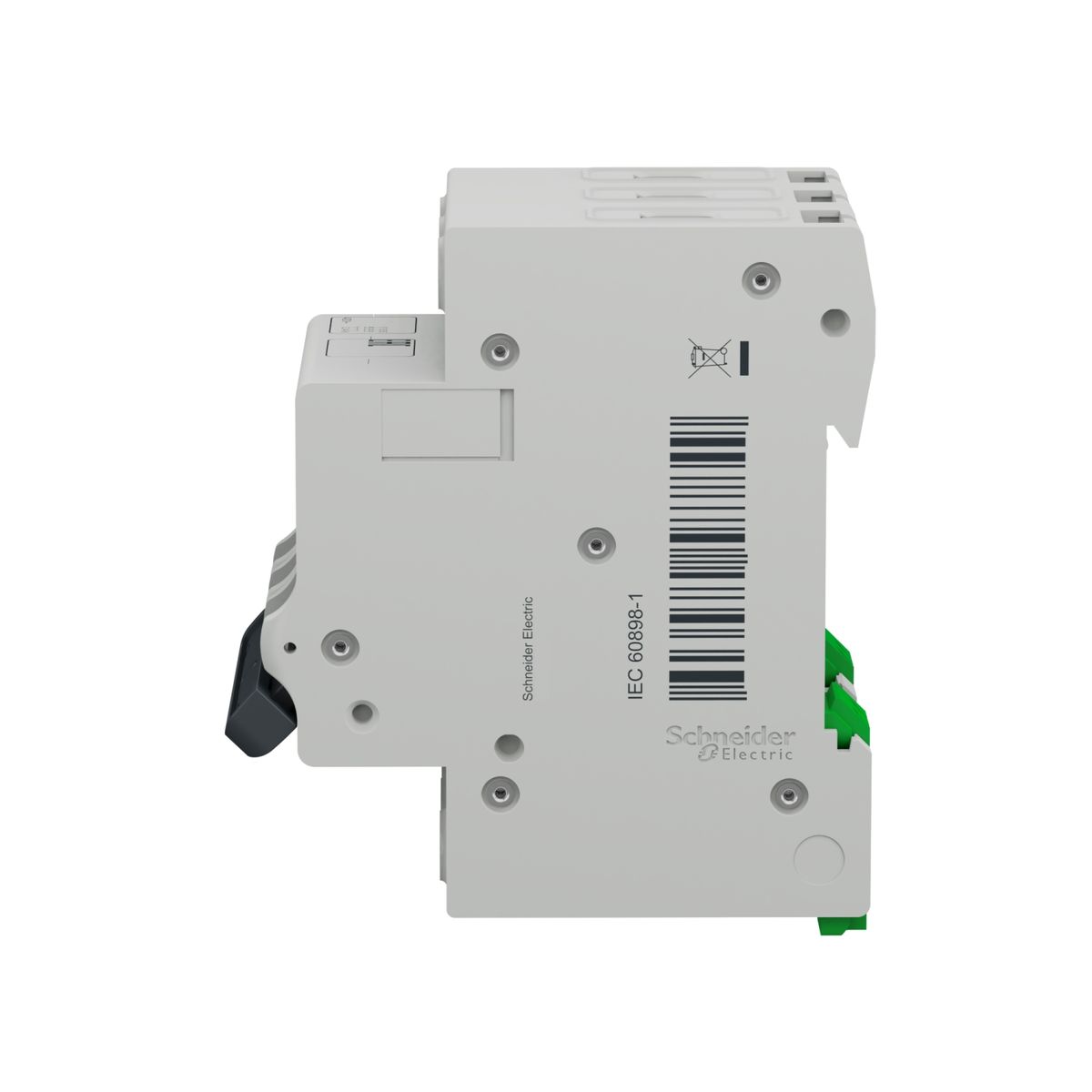

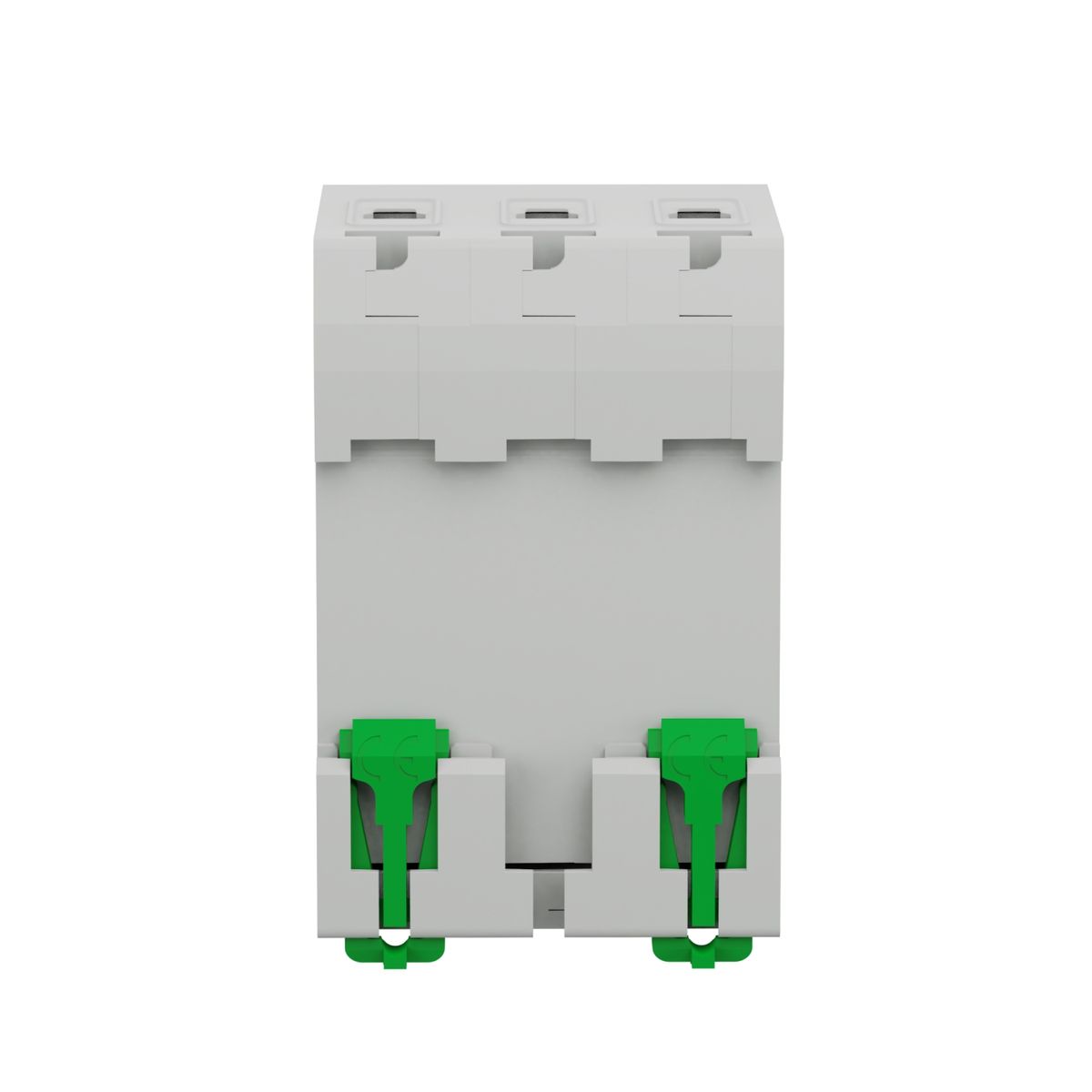

Easy9 MCB
Miniature Circuit-Breakers (MCB)
Part of Easy Series
Miniature circuit breakers to provide short-circuit and cable overload protection. Designed with functionality and protection in mind, the Easy9 miniature circuit breakers offer a user-friendly design for ultimate ease-of-use.
Features
Providing protection when you most need it, the miniature circuit breakers give you high levels of protection from short circuits and cable overload whilst providing a user-friendly interface to make them as accessible as possible.
- High-quality design providing much-needed protection.
- Highly accessible user-friendly design.
- Availability whenever and wherever you look for it.
- Robust and designed to stand-up to the test of time.
- Excellent levels of reliability.
- Cost-effective, provides protection and reliability at an affordable price.
Benefits
Designed for modular devices, the miniature circuit breakers ensure protection from short-circuits and cable overload. Resulting from close work with electricians worldwide, they provide enhanced protection as well as peace of mind to customers.
- Enhanced protection to pass on to your customers.
- Designed with ease of installation in mind.
- Suitable for modular devices.
Applications
Use in a range of applications to provide short-circuit and cable overload protection. Easy to install and with a user-friendly interface, the miniature circuit breakers provide accessibility, reliability and protection.
Key Features
Range - Easy9
Device application - Distribution
Product or component type - Miniature circuit-breaker
Device short name - Easy9 MCB
Poles - 3P
Number of protected poles - 3
[In] rated current - 40A
Network type - AC
Trip unit technology - Thermal-magnetic
Curve code - C
Breaking capacity - 10000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1
6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1
Suitability for isolation - Yes conforming to IEC 60898-1
Network frequency - 50 Hz
[Ue] rated operational voltage 230 V AC 50 Hz, 127 V AC 50 Hz
Magnetic tripping limit - 5...10 x In
[Ics] rated service breaking capacity - 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1
[Ui] rated insulation voltage - 500 V AC 50/60 Hz conforming to IEC 60898-1
[Uimp] rated impulse withstand voltage - 4 kV conforming to IEC 60898-1
Contact position indicator - Yes
Control type - Toggle
Local signalling - Without
Mounting mode - Clip-on
Mounting support - DIN rail
9 mm pitches - 2
Colour - Grey (RAL 7035)
Mechanical durability - 10000 cycles
Electrical durability - 4000 cycles
Connections - terminals - Tunnel type terminal (top or bottom) 1…25 mm² rigid, Tunnel type terminal (top or bottom) 1…16 mm² flexible
Tightening torque - 2 N.m top or bottom
Standards - IEC 60898-1
Product certifications - VDE, CE
IP degree of protection - IP20 conforming to IEC 60529
pollution degree -2
Tropicalisation -2
Relative humidity -95 % at -5…60 °C
Ambient air temperature for operation - -5…60 °C
Ambient air temperature for storage - -40…85 °C
What's In the Box
1 Easy9 MCB - 3P - 40A - C curve - 6000 A - 400 V
