| Model |

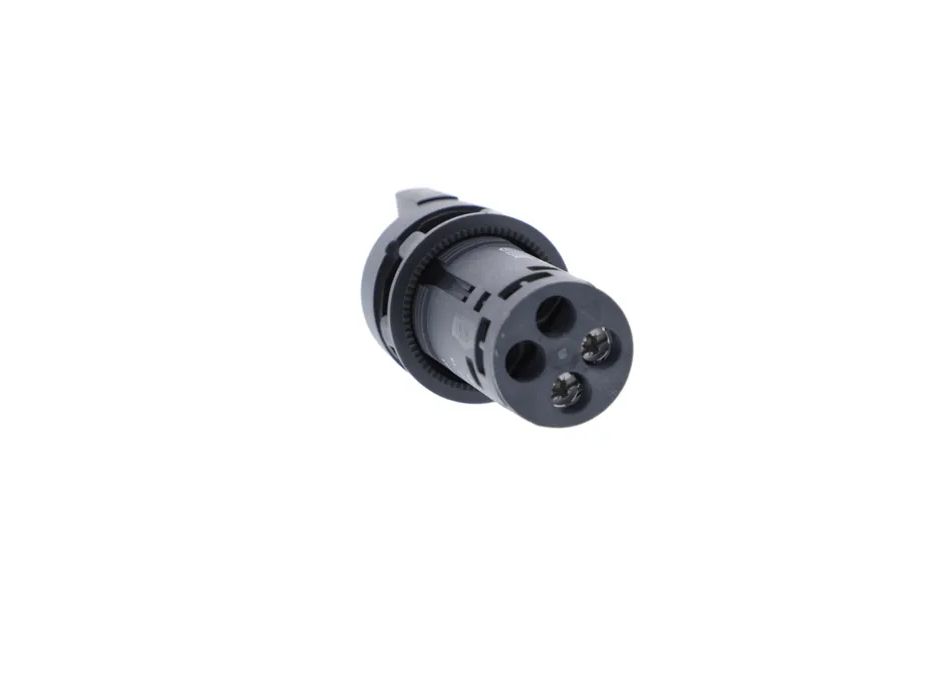

XB7ND33 - Selector Switch - Ø 22 - Black - Standard Handle - 3 Positions - 2 NO |
| Production Country |
France, China |
| Size (L x W x H cm) |
6.85 x 2.9 x 2.9 |
| Weight (kg) |
0.026 |
| Certifications |
Eco Friendly |
| Color |
Black |
| Main Material |
Plastic |
| From the Manufacturer |
NA |
| Care Label |
NA |
Harmony XB7
O 22 mm monolithic plastic pushbuttons, switches, and pilot lights
Part of Harmony
The Harmony XB7 range of O 22 mm plastic pushbuttons and pilot lights offers a monolithic, optimized design that provides complete functions in a single part number, simplifying ordering and installation in electrical distribution and machine applications.
Features
The range includes:
- Spring-return pushbutton switches
- Illuminated pushbuttons and pilot lights with LEDs
- Mushroom-head emergency stop buttons with snap-action locking
- Selector switches
- A wide range of accessories to fit your needs
FEATURES
- Conformity with IEC, UL, and CSA standards, as well as CE marking
- IP65, type 3 protection rating
- Finger-safe screw clamp terminals
- High chemical resistance
- Large set of accessories to customize your panels
Benefits
- Modern design, reinforced with flush mounting kit
- High brightness of the LED illuminated functions, available in 6 colors
- Simple to choose: single reference for a complete device
- Simple to use: basic functions and performance
Applications
- Electrical distribution panel builders
- Simple machines: packaging, textile, etc.
- HVAC systems
Key Features
Range of product - Harmony XB7
Product or component type - Selector switch
Device short name - XB7
Mounting diameter - 22 mm
Sale per indivisible quantity - 10
IP degree of protection - IP20 (rear face) conforming to IEC 60529, IP65 (front face) conforming to IEC 60529
Shape of signaling unit head - Round
Type of operator - Stay put
Operator profile - Black standard handle
Operator position information - 3 positions +/- 45°
Contacts type and composition - 2 NO
Device presentation - Without
Device mounting - Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-1
What's In the Box
1 Selector Switch - O 22 - Black - Standard Handle - 3 Positions - 2 NO
