| Model |
A9N61533 - Acti9 C60H-DC - Miniature Circuit Breaker - 2 Pole - 25 A - C Curve |
| Production Country |
France, China |

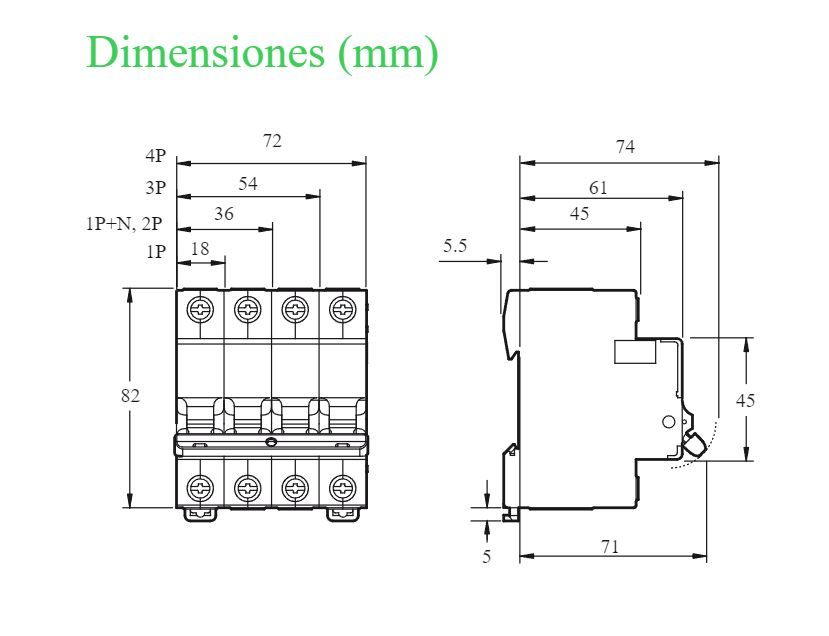

| Size (L x W x H cm) |
8.5 X 3.6 X 7.5 |
| Weight (kg) |
0.23 |
| Certifications |
Eco Friendly |
| Color |
White |
| Main Material |
Plastic |
| From the Manufacturer |
NA |
| Care Label |
NA |
Acti9 C60H-DC, Acti9 C60PV-DC
Miniature Circuit Breakers for Direct Current circuits protection
Part of 9 Series
Miniature Circuit Breakers for Direct Current circuits, offering
photo voltaic installation protection
Features
The Acti9 C60H-DC is a miniature circuit breaker that offers
direct current circuit protection. It protects circuits against
short-circuit currents and overload currents.
- Compliant with IEC60947-2
- Available in 1P or 2P
- C tripping curve
- Up to 500V DC.
The Acti9 C60PV-DC is a miniature circuit breaker that
is designed for photovoltaic (PV) installations. It protects
the cables between each string of a photovoltaic module
against short-circuit currents and overload currents.
- Compliant with IEC/EN 60947-2
- Available in 2P
- B or C tripping curves
- Up to 800V DC
- Pre-wired
- Non-polarized: wires can be inverted without risk
- Locakable for improved operational safety
- Delivered with three interpole barriers, for improved
isolation betweenconnectors.
Benefits
Acti9 C60H-DC:
- Enhanced operational safety thanks to green strip toggle
indicator which increases safety of downstream current
flow when breaker is in open position - Improved service life thanks to fast closing of breaker,
independent of operator - Short-circuit current limitation thanks to fast opening of
contacts, - to reduce risk of damage to circuit loads.
Acti9 C60PV-DC:
- Enhanced operational safety thanks to green strip toggle indicator
which increases safety of downstream current flow when breaker
is in open position - Improved service life thanks to fast closing of breaker, independent
of operator - Short-circuit current limitation thanks to fast opening of contacts, to
reduce risk of damage to circuit loads - Easier installation as wires can be inverted without risk
(non-polarized).
Applications
Acti9 C60H-DC:
Direct current circuits such as industrial control, automation,
transportation and renewable energy.
Acti9 C60PV-DC:
Designed for direct current photovoltaic installations.
Key Features
Range - Acti 9
Product name - Acti9 C60H-DC
Product or component type - Miniature circuit-breaker
Device short name - C60H-DC
Device application - Distribution
Poles description - 2P
Number of protected poles - 2
Rated current - 25 A at 25 °C
Network type - DC
Trip unit technology - Thermal-magnetic
Curve code - C
Breaking capacity - 10 kA Icu at 220 V DC conforming to
EN 60947-2
Utilisation category - Category A conforming to EN 60947-2 ,
Category A conforming to IEC 60947-2
Suitability for isolation - Yes conforming to IEC 60947-2 ,
Yes conforming to EN 60947-2
Network frequency - 50/60 Hz
Rated operational voltage - 250 V DC
Rated insulation voltage - 500 V DC conforming to IEC 60947-2,
500 V DC conforming to EN 60947-2
Rated impulse withstand voltage - 6 kV conforming to EN 60947-2,
6 kV conforming to IEC 60947-2
Contact position indicator - Yes
Control type - Toggle
Local signalling - ON/OFF indication
Mounting mode - Fixed
Mounting support - 35 mm symmetrical DIN rail
Comb busbar and distribution block compatibility - Top or bottom:
standard
9 mm pitches - 4
Colour - White
Mechanical durability - 20000 cycles
Electrical durability - 3000 cycles 250 V DC, 6000 cycles 250 V DC
Provision for padlocking - Padlockable
Locking options description - In position O
Tightening torque - Power circuit: 2.5 N.m top or bottom
Earth-leakage protection - Without
What's In the Box
1 - Acti9 C60H-DC - MCB - 2 pole - 25 A - C curve
