| Model |

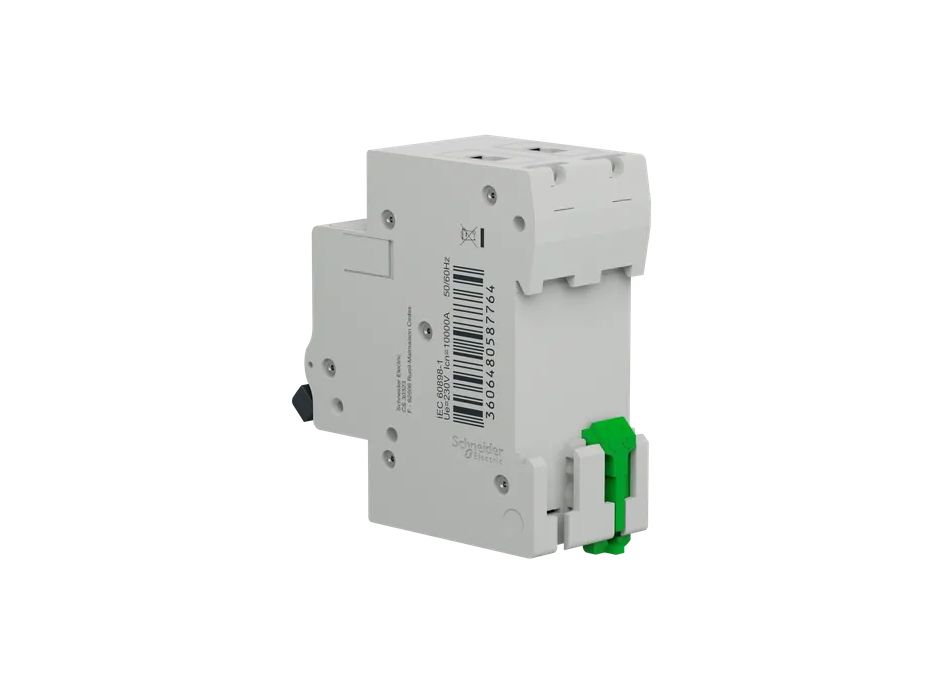

EZ9F56232 - Miniature Circuit Breaker - 2P, 32 A, C curve, 6000 A |
| Production Country |
France, China |
| Size (L x W x H cm) |
6.65 x 3.6 X 8.1 |
| Weight (kg) |
0.1 |
| Certifications |
Eco Friendly |
| Color |
Grey |
| Main Material |
Plastic |
| From the Manufacturer |
NA |
| Care Label |
NA |
Easy9 MCB
Miniature Circuit-Breakers (MCB)
Part of Easy Series
Miniature circuit breakers to provide short-circuit and cable overload protection. Designed with functionality and protection in mind, the Easy9 miniature circuit breakers offer a user-friendly design for ultimate ease-of-use.
Features
Providing protection when you most need it, the miniature circuit breakers give you high levels of protection from short circuits and cable overload whilst providing a user-friendly interface to make them as accessible as possible.
- High-quality design providing much-needed protection.
- Highly accessible user-friendly design.
- Availability whenever and wherever you look for it.
- Robust and designed to stand-up to the test of time.
- Excellent levels of reliability.
- Cost-effective, provides protection and reliability at an affordable price.
Benefits
Designed for modular devices, the miniature circuit breakers ensure protection from short-circuits and cable overload. Resulting from close work with electricians worldwide, they provide enhanced protection as well as peace of mind to customers.
- Enhanced protection to pass on to your customers.
- Designed with ease of installation in mind.
- Suitable for modular devices.
Applications
Use in a range of applications to provide short-circuit and cable overload protection. Easy to install and with a user-friendly interface, the miniature circuit breakers provide accessibility, reliability and protection.
Key Features
Range - Easy9
Device application - Distribution
Product or component type - Miniature circuit-breaker
Device short name - Easy9 MCB
Poles - 2P
Number of protected poles - 2
[In] rated current - 32 A
Network type - AC
Trip unit technology - Thermal-magnetic
Curve code - C
Breaking capacity - 10000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1, 6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1
Suitability for isolation - Yes conforming to IEC 60898-1
Network frequency - 50/60 Hz
[Ue] rated operational voltage - 220 V AC 50/60 Hz, 400 V AC 50/60 Hz
Magnetic tripping limit 5...10 x In
[Ics] rated service breaking capacity 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1
[Ui] rated insulation voltage - 500 V AC 50/60 Hz conforming to IEC 60898-1
[Uimp] rated impulse withstand voltage - 4 kV conforming to IEC 60898-1
Contact position indicator - Yes
Control type - Toggle
Local signalling - Without
Mounting mode - Clip-on
Mounting support - DIN rail
9 mm pitches - 4
Colour Grey (RAL 7035)
Mechanical durability 10000 cycles
Electrical durability 4000 cycles
Connections - terminals - Tunnel type terminal (top or bottom) 1…25 mm² flexible, Tunnel Type terminal (top or bottom) 1…35 mm² rigid
Tightening torque - 3.5 N.m top or bottom
Earth-leakage protection - Without
Standards - IEC 60898-1
Product certifications - CE
IP degree of protection IP20 conforming to IEC 60529
Pollution degree - 2
Tropicalisation - 2
Relative humidity - 95 % at -5…60 °C
Ambient air temperature for operation - 5…60 °C
Ambient air temperature for storage - 40…85 °C
What's In the Box
1 Easy9 MCB - 2P, 32A, C curve, 6000 A
