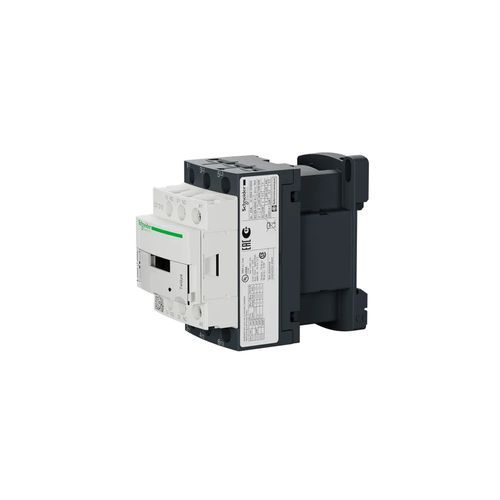

LC1D09M7 - Contactor TeSys D 3P AC3 9A 220VAC coil |
| Production Country |
France, China |
| Size (L x W x H cm) |
8.6 x 4.5 x 7.7 |
| Weight (kg) |
0.325 |
| Certifications |
Eco Friendly |
| Color |
White / Grey |
| Main Material |
Plastic |
| From the Manufacturer |
NA |
| Care Label |
NA |
TeSys D
Contactors to control motors up to 150 A (75 kW / 400 V)
Part of TeSys
TeSys D contactors and reversing contactors are available from 9 A to 150 A (inductive motor), and from 20 A to 200 A (resistive loads) in 3-pole and 4-pole versions.
Features
As the bestselling line of contactors in the world, TeSys D offers multi-standard solutions, high reliability with long mechanical and electrical durability for different sizes, along with the most complete accessories in the industry.
TeSys D contactors leverage over 100 years of experience and innovation to control your motors.
Specifications:
- AC & DC Coils 50/60 Hz available for whole range
- DC low consumption with direct compatibility with 100 mA I/O PLC card from 9 to 38 A
- DC low consumption with direct compatibility with 500 mA I/O PLC card from 40 to 80 A using TeSys D Green BBE 24 V electronic coil
- Various types of connection available:
- Screw clamp terminals
- Everlink (40 to 80 A)
- Spring terminals (9 to 38 A and on control terminal up to 65 A)
- Lugs terminals
- Faston terminal (9 to 12 A)
- High making and breaking capacity
- 1 NO & 1 NC integrated auxiliary contact in all 3-pole and 4-pole contactors
- Safety application with all NC auxiliary contact certified as mirror contacts for IEC 60947-4-1
- Up to 30 million mechanical operation cycles
- Electrical cycles up to 3600 cycles per hour at ambient temperature
- No derating up to 3000 m altitude
- Wide range of working temperature: -25°C to 60°C
TeSys D benefits a wide range of accessories for:
- Additional auxiliary contacts: front or side mounted auxiliary contact blocks, time delay auxiliary blocks.
- Contactors combination: reversing kits, low-speed / high-speed connection kits, changeover 4-pole kits, etc.
- System assembly with other products: Power and auxiliary connection to circuit breaker and/or to overload relay.
The new TeSys D Greencontactor is equipped with an innovative electronic coil requiring up to 80% less energy (when sealed) than electro-mechanical contactors.
TeSys D Green contactors simplify your maintenance services with 90% less references needed. TeSys D Green contactors, associated with TeSys LR9D electronic overload relays, reduce heat generation and energy consumption by up to 50%.
Benefits
TeSys D contactors can offer quick simple setup, while maintaining a compact size. These contactors can provide multiple advantages, including:
Safety
- Safe and long-lasting power connection with Everlink and spring terminals
- Suitable for safety applications thanks to mechanically linked contacts and mirror contacts (certified by IEC 60947-4-1 and 60947-5-1)
- Identification of safety chain with red cover and auxiliary contact
Efficiency
- Recognized high performance and quality solutions
- Outstanding breaking/making capacity up to 20 In
- Multistandard: IEC, UL, CCC, EAC, various Marine standards, etc.
- PLC direct connection
Continuity of service
- Certified type 1 and 2 coordination tables
- Worldwide availability of products and after-sales services
Applications
TeSys D contactors are primarily used in industry, infrastructure and building applications.
- TeSys D contactors have been designed for perfect integration in control systems, specific references BL or BBE compatible with digital PLC I/O 100 mA or 500 mA
- These contactors can be used to create motor starters for any type of application
Key Features
Range - TeSys
Product name - TeSys D
Product or component type - Contactor
Device short name - LC1D
Contactor application - Resistive load, Motor control
Utilisation category - AC-4, AC-1, AC-3
Poles description - 3P
Power pole contact composition - 3 NO
What's In the Box
1 TeSys D Contactor - 3P(3 NO) AC3 440V 9A - 220V AC coil
