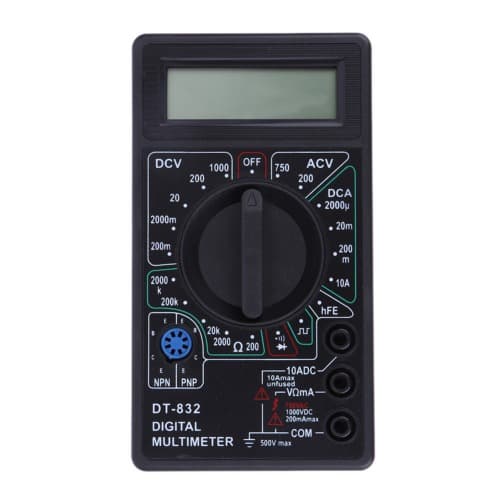

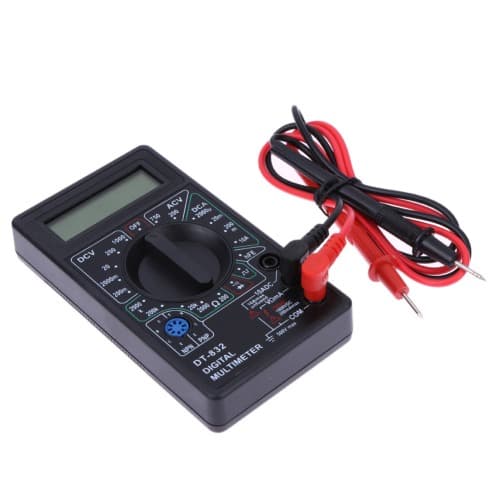

DT832 Digital LCD Voltmeter Ammeter Ohm Tester Digital Multimeter
Introduction:
A practical tool for electrician use. It is easy to operate and the readings indicated directly on the screen. It can be used to overhaul all kinds of circuit boards. It is also an ideal teaching instrument for students.
3 digits, 7segment, 0.5"high LCD Display
Max display: 1999, Auto polarity display
Small and compact design
Overload protection on all ranges
Sampling 2~3 times readings per second
Diode assembly test / Transistor P-N junction test / Transistor hFE test
Low battery voltage indication
Specifications:
Model: DT832
Measuring range:
Max AC Current: 10A
Max AC Voltage range: 1000V
Max DC Voltage range: 750V
Resistance Measurement: 200 Ohm-2000K Ohm range
Buzzer: Yes
Color: Black
Size: Approx. 123mm x 67mm x 20mm (L * W * H)
Function
Range
Resolution
Accuracy
DC Voltage
200mV
100uV
±(0.5%+2)
2000mV
1mV
20V
10mV
200V
100mV
1000V
1V
±(0.8%+2)
AC Voltage
200V
100mV
±(1.2%+10)
750V
1V
DC Current
200uA
0.1mA
±(1%+2)
2000uA
1uA
20mA
10uA
200mA
100uA
±(1.2%+2)
10A
10mA
±(2%+2)
Resistance
200Ω
0.1Ω
±(0.8%+2)
2000Ω
1Ω
20KΩ
10Ω
200KΩ
100Ω
2000KΩ
1000Ω
±(1%+2)
