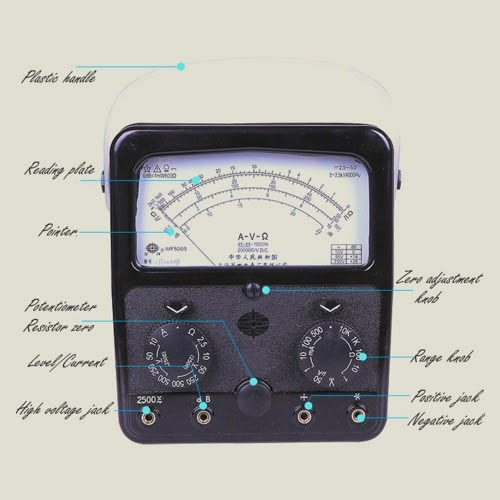

MF500B type multimeter is a high sensitivity, portable, rectifier based instruments. The instrument has twenty four ranges,respectively, can measure AC and DC voltage, DC current, resistance, and audio level.
Basic function:
- DCV DCA ACV Ω etc.
- Mirror scale feature for accurate reading classic design Inner magnetic table header
- Bakelite shell
- Overload protection.
SPECIFICATIONS:
DC Voltage:2.5/10/50/250/500V/2500V
AC Voltage: 10/50/250/2500V
DC Current:0.5mA/1mA/10mA/100mA/500mA
Resistance : R2K/R20K/R200K/2MΩ/20MΩ
Color :Black
Dimensions:178x138x84mm
Power supply:1.5V C battery × 1+9V 6F22 battery x 1 (package is without battery)
Accessories:Test leads,Manual
