Buy Digital Oscilloscope Uni-t Utd 2102cex

Digital Oscilloscope Uni-t Utd 2102cex - Dual Channel

₦ 445,500.00 ₦ 450,000.00 -1%

0 No Reviews

Product SKU: RENG539488

Brand: Uni

Quantity

In Stock

Product Highlights

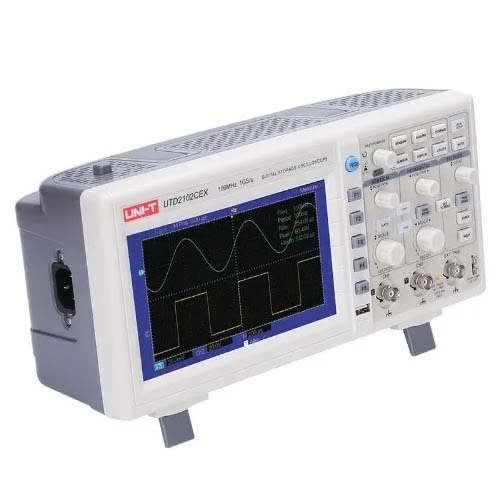

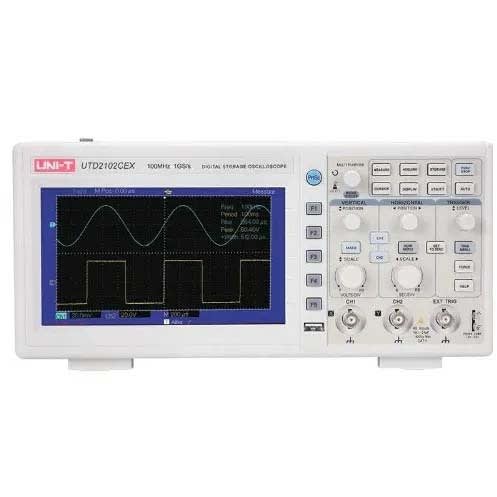

The UTD2102CEX is an advanced bench oscilloscope system that can be used to accurately track fluctuations in two different signals over a time period. Input signals are represented on the devices' LCD screen as different waveforms, and by using the various functions on the UTD2102CEX's interface it is possible to adjust these waveforms as necessary. Available functions on the devices' front include scale and position adjustments, trigger menu, zero setting, force, cursor, measure and many others.

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

Warranty Period	1 Year
Brand	Uni

Digital Oscilloscope Uni-t Utd2102cex - Dual Channel
Digital oscilloscopes are often needed test and measurement tools for workshop and laboratory studies.

UTD2102CEX Digital Oscilloscope (Dual Channel, 100MHz Bandwidth) Details:

Featuring bandwidth of 100MHz and sample rate of 1GS/s, this device also includes memory depth of 25kpts and multiple trigger modes (edge, pulse and alternate). The device's screen is also large (7 inches in size) and is full colour for easy representation of different waveforms and intuitive adjustment of system parameters.

The UTD2101CEX also features the ability to send data via a USB cable to a connected PC. Both a USB cable and a software CD are included as part of this oscilloscopes' package, allowing users to take full advantage of this facility.

This oscilloscope allows you that you can make the desired measurements in a much wider frequency range up to 100 Mhz. You will able to follow and sace the measurements instantly from your computer screen with this oscilloscope through to computer connection. In addition, the memory unit on the device allows you that you can record in non-computer environment.

This oscilloscope is EN 61010-1 and CAT II 300V compliant.

Product Features:
Dual channel oscilloscope
Band Width: 100MHz
Number Of Channels: 2
Large 7 inch colour TFT LCD screen
Edge, pulse and alternate trigger types
Easy adjustments
Memory depth of 25kpts
Easy adjustments
Rise time of ≤7ns
Sampling Rate: 1GSa/s
Equivalent Sampling Rate: 50GSa/s
Waveform acquisition rate of ≥2000wfms/s
Vertical Sensitivity: 2mV/div~5V/div
Lenght of the Record: 25K
Timebase Field: 5ns/div~50s/div
Timebase Mods: Edge, Pulse, Video, Alternate
Record: 28 Waveform
PC Connection: USB Host, USB Device, P/F Out
Screen: 64K Full Renkli LCD
Math Operations: +, -, x, ÷FFT
Power: 100-240V AC, 45Hz-440Hz
USB interface
Weight: 9kg

Full List of Products Included
2 x Probes
Power Cord
USB Cable
PC Software CD
Package Contents:
