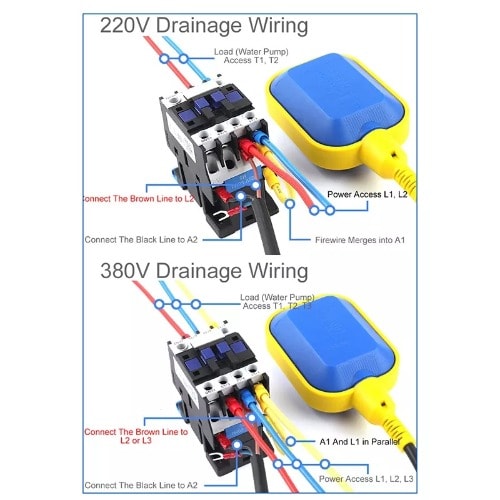

This Liquid And Water Level Float Switch Sensor is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
It can be used with hydroponics, salt-water tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, heating, pumps, ponds, basement alarms, boats, air condition drain pans, pressure washers, carpet cleaning mach., reef aquarium, fluid control, ice machines, coffee pots, marine, automotive, automobiles, tropical fish tanks, evaporator coils, condensation line, in relays, or whatever your project may be
SPECIFICATION:
- Directly Controls pumps up to 1/2 HP at 120 Volts or 220 Volts
- Up to 12 Amps continuous or 13.3 non continuous AC Amps
- 12 VDC motor loads up to 13.3 Amps.
- Mercury Free, suitable for use in septic, sump, and potable water applications
- Cable is Coated with PVC / Thermoplastic insulation
- Internally Contains a Stainless Steel Ball
- Comes equipped with optional adjustable counterweight.
- Two year guarantee against manufacturing defects
- Constructed with non-toxic polypropylene

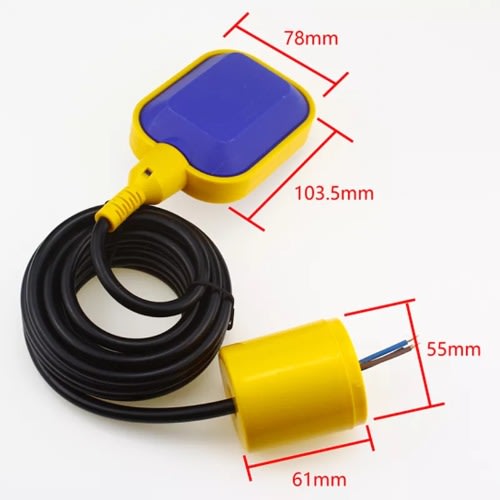

- Float dimensions are 4.1 in x 3 in x 1.6 in (105 x 78 x 41 mm)
- Rated for indoor or outdoor use: operating temperatures 32 to 140F (0 to 60C)
