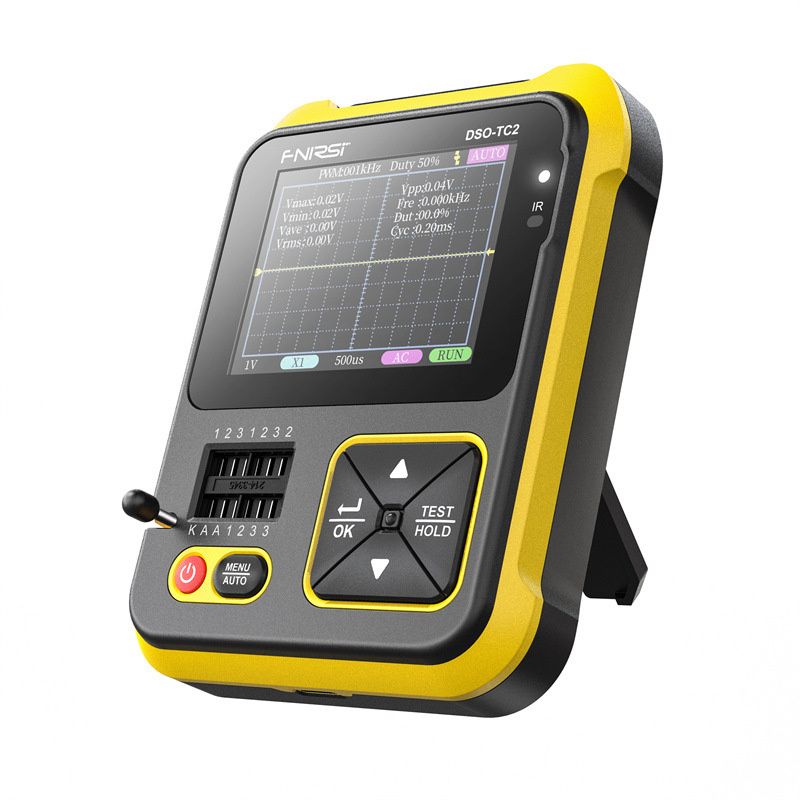

Handheld Digital Oscilloscope LCR Meter 2-in-1 DSO-TC2 Portable Eelectronic DIY Detection Teaching Tool
Specification:
Style: Standard configuration / High configuration (optional)
Display Specifications: 2.4-inch TFT color screen, LED backlight
Power supply: built-in 1500mAh rechargeable lithium battery
Charging Specifications: USB Type-C / 5V
Size: approx. 103*79*31mm

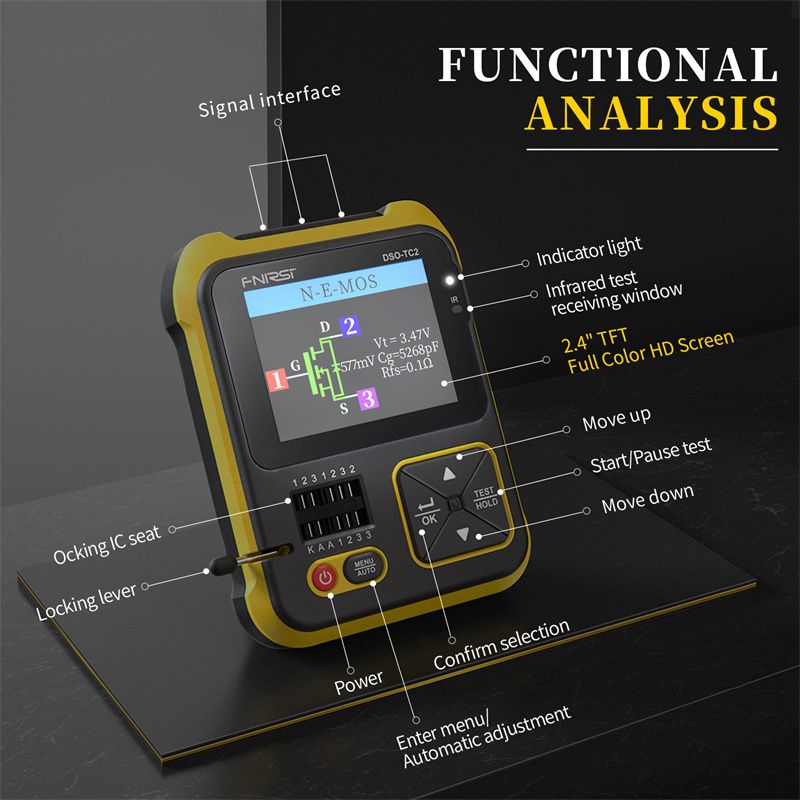

Feature:
2.4" HD color screen

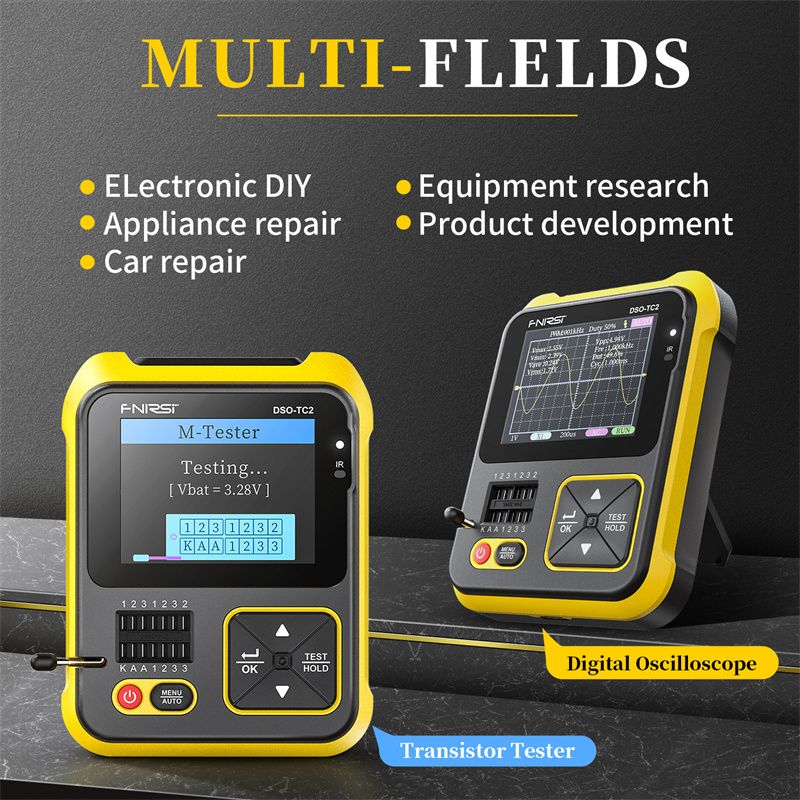

Two-in-one oscilloscope: handheld oscilloscope + transistor tester
Transistor Test
PWM square wave output
Polymer lithium battery, 240 minutes of continuous power supply.
Fine workmanship and good performance.
Easy to use.
Long service life.
Oscilloscope function introduction:
Real-time sampling rate 2.5 MS/s, 200kHz
With full trier function (single, normal, automatic)
Can measure voltage signals up to ±400V
Equipped with efficient one-on AUTO, the measured waveform can be displayed with simple adjustment
Self-contained 80kHz/5.0V PWM wave test signal source with adjustable duty cycle
Transistor detector introduction:
Automatically identify and measure various transistors, including NPN and PNP transistors, N-channel and P-channel FETs, junction FETs, diodes, dual diodes, thyristors, etc., as well as paive components such as resistors, inductors, and capacitors
Automatic detection of pin definitions
Automatically parse the infrared code of NEC protocol
Other functional modes: including circuit continuity test, 0~16V input voltage measurement, PWM output, 0~24V Zener diode measurement, DS18B20 temperature r measurement, DHT11 temperature and humidity r measurement, etc.
Package Included:
Standard configuration:
1pc x DSO-TC2 Tester
1pc x Type-C charging cable
3pcs x test hook
1pc x normal probe
High configuration:
1pc x DSO-TC2 Tester
1pc x adapter
1pc x P6100 High Voltage Probe
1pc x Type-C charging cable
3pcs x test hook
1pc x normal probe
About shippingShipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 2 business days ar buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).
Special Announcement:Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties ores. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .
Your 100% satisfaction is very ant to usIf the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Origin:Mainland China
DIY Supplies:ELECTRICAL
IS Battery Demountable:No
Display Size:2.9 Inches & Under
Certification:CE
Real Time Sampling Rate:2.5MS/s
Band Width:100-349MHz
What's In the Box
1X Handheld Digital Oscilloscope LCR Meter 2-in-1 DSO-TC2 Portable Eelectronic DIY Detection Teaching Tool Built-in Battery
