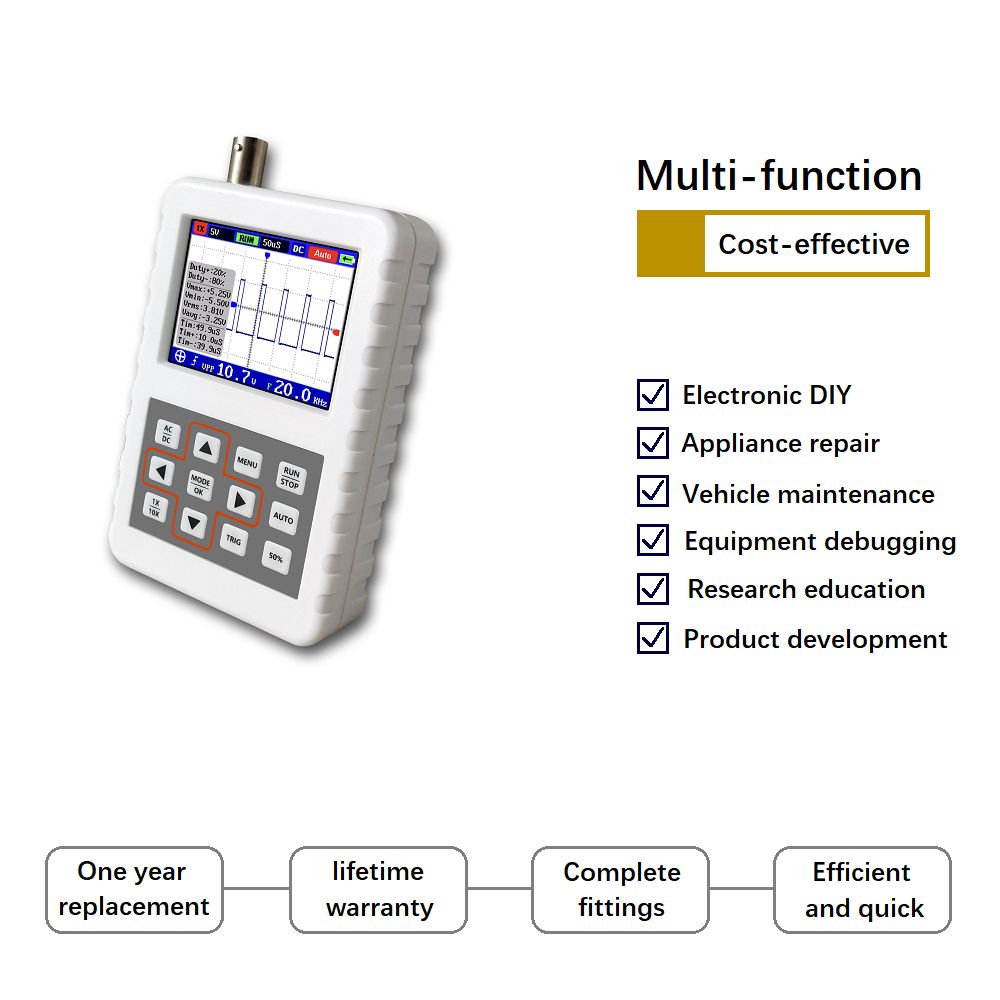

Features and specifications: DSOPRO is a full function, high utility, high performance and cost-effective handheld oscilloscope for the maintenance industry and the R&D industry. The oscilloscope has a real-time sampling rate of up to 20MS/s and a 5MHz analog . With complete triering function (single, normal, automatic), both the periodic analog signal and the aperiodic digital signal can be used freely. Large time base scanning mode can monitor slow level changes. Equipped with high efficiency one on AUTO, the measured waveform can be displayed without complicated adjustment. Display the High Definition LCD screen equipped with 2.4 inch 320*240 resolution. Extremely convenient and fast waveform storage function, built-in 16MB storage space, the maximum storage of 500 waveform pictures. Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions. Built in 1200mAh rechargeable lithium battery can be continuously charged for 3 hours at one time. Day mode and night mode can be changed according to their own preferences. : 1:Memory compreion technology, waveform refresh screen does not flicker 2:Arglow display technology 3:2.4 inch color display screen 4:5MHz analog @ 20MS/s sampling rate 5:Fast waveform storage 6:Built-in 16M storage space, the maximum storage of 500 waveform pictures 7:Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions 8:High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 40 ~ 800V 9:Up to 11 measurement:VPP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Time 10:At any time, the waveform display (pause function) is frozen 11:Equipped with high efficiency one on AUTO 12:Complete triering function (single, normal, automatic) 13:Built in 1200mAh rechargeable lithium battery can be continuously charged for 3 hours at one time 14:Day mode and night mode 15:Ultra small volume, easy to carry Specifications: 1:Analog band width: 5MHz 2:Maximum real time sampling rate: 20MS/s 3:Vertical sensitivity: 50 mV/div ~ 200 V/div 4:Horizontal time base range: 50S/div ~ 250nS/div 5:Maximum input voltage: 40 V (1X probe), 800 V (10X probe) 6:Storage depth: 40KB 7:Input resistance: 1M 8:ADC precision: 8bits 9:Coupling mode: AC/DC 10:Trier mode: Single, Normal, Automatic 11:Trier edge: Ascending/descending edge 12:External trier voltage 0 - 40 V 13:Display: 2.4 inch @ 320 * 240 14:Power supply: 1200 mAh lithium battery 15:Size: 107 x 70 x 24mm 16:Weight: 150g Package includes: 1 x DSO PROoscilloscope host 1 x Crocodile clip probe 1 x Micro USB data line 1 x User manual (English)
About shippingShipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 2 business days ar buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).
Special Announcement:Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties ores. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .
Your 100% satisfaction is very ant to usIf the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Origin:Mainland China
DIY Supplies:ELECTRICAL
Display resolution:320*240 Pixels
Digital Channels:1
Model Number:DSO PRO
IS Battery Demountable:No
Display Size:2.9 Inches & Under
Certification:CE
Band Width:Less than 60MHz
Model Number:DSO PRO

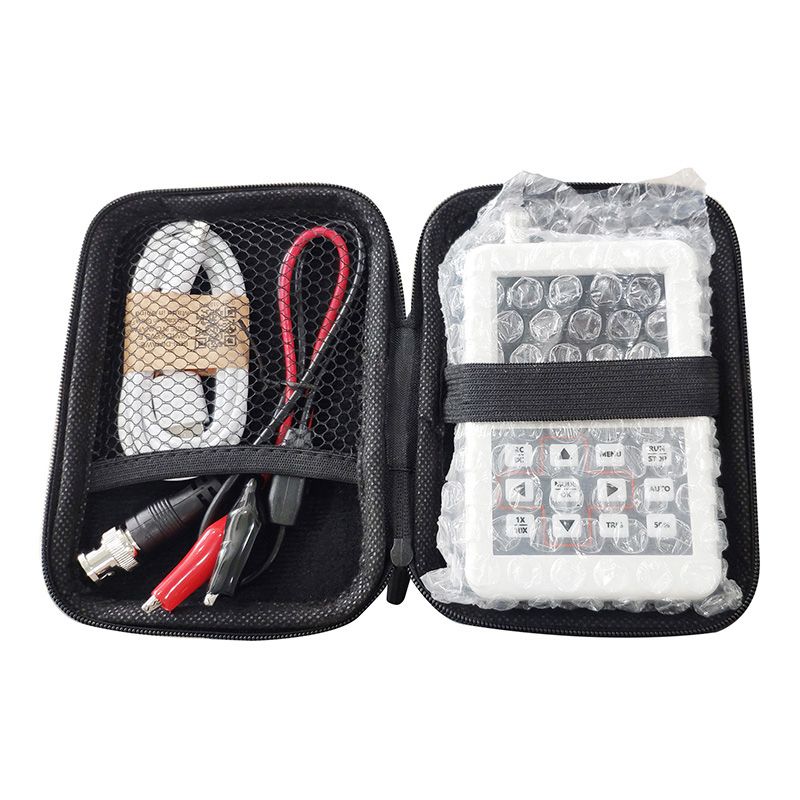

What's In the Box

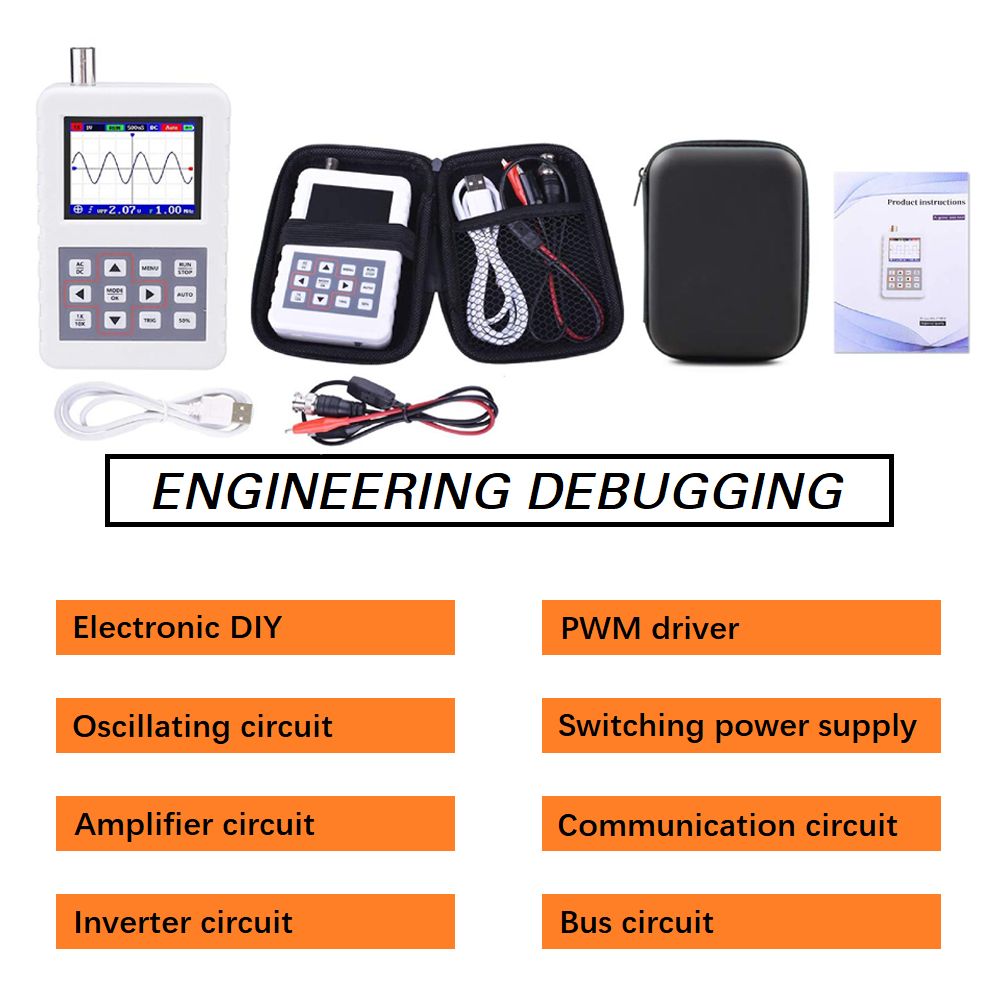

1X DSO PRO Handheld Mini Portable Digital Oscilloscope 5M 20MSps Sampling Rate with 10x 10:1 Oscilloscope Probes
