DSO shell latest firmware 113-15001-120 Latest firmware added new feature of outputting serial waveformdata through J5 as texts. The data can be stored as CSV file and displayed on PC with help software like EXCEL or Gnuplot.

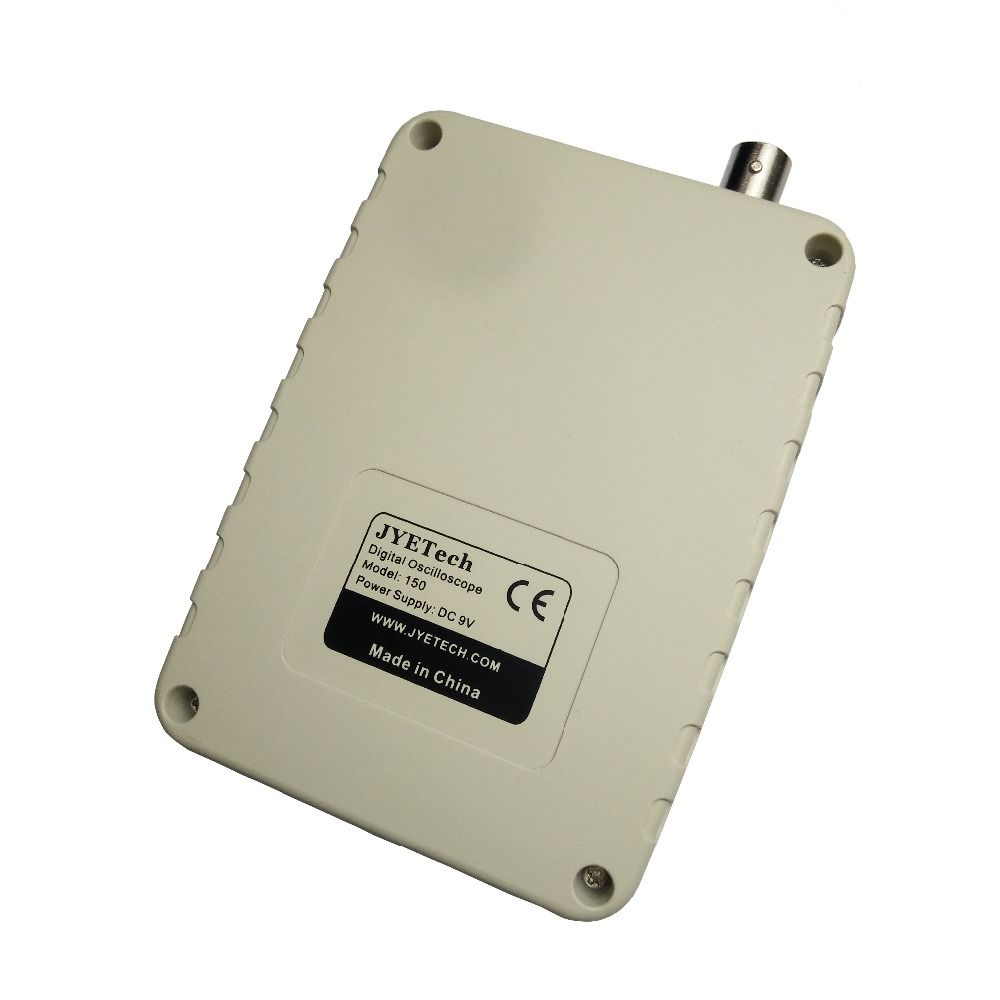

Plastic case differences between and genuine

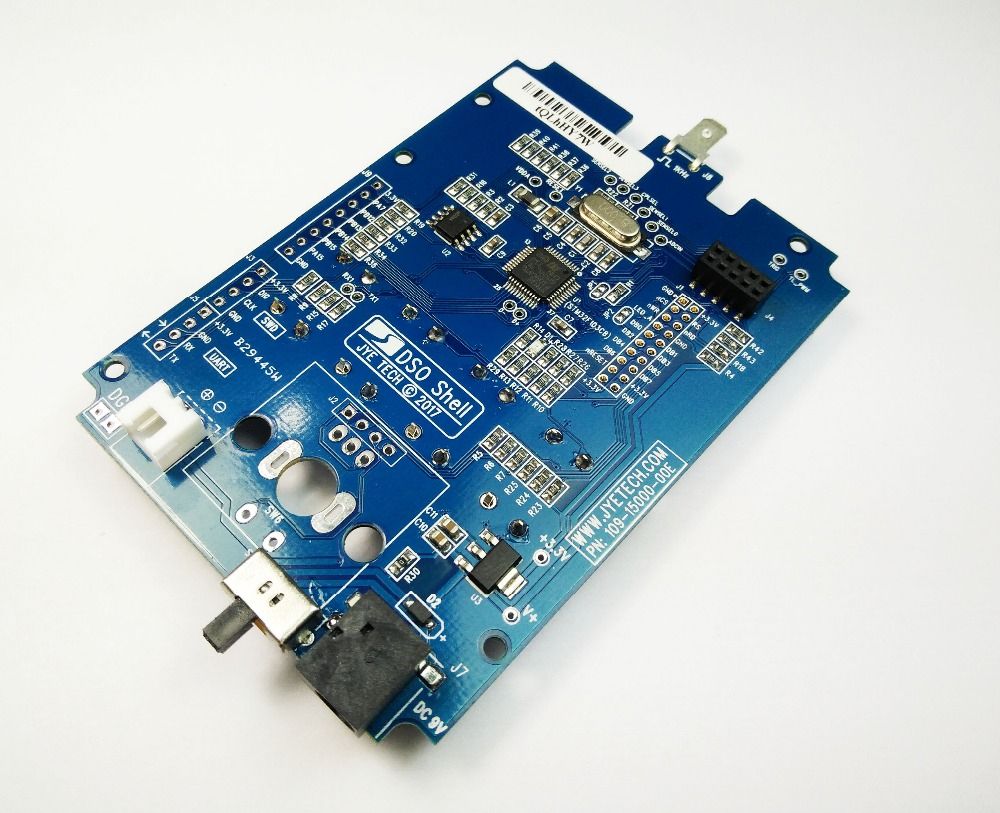

Main board differences between and genuine
Statement 1:
JYETech is a registered US trademark with Reg.No 5474019
Statement 2:

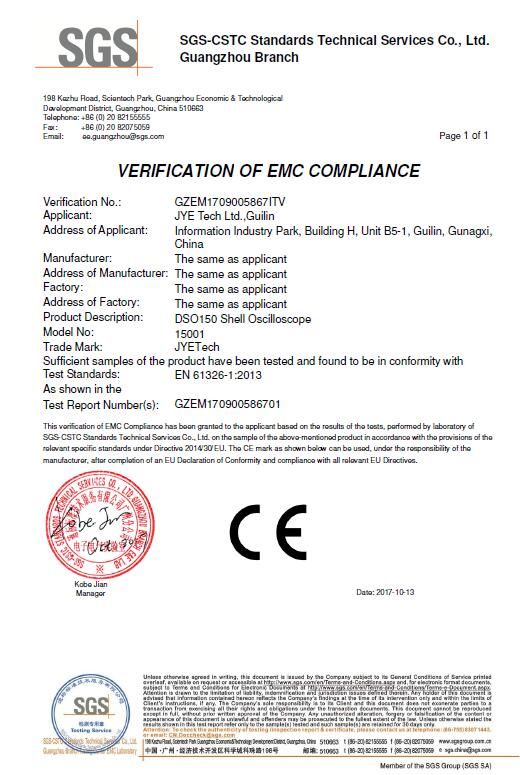

CE Certified
Descriptions of Product

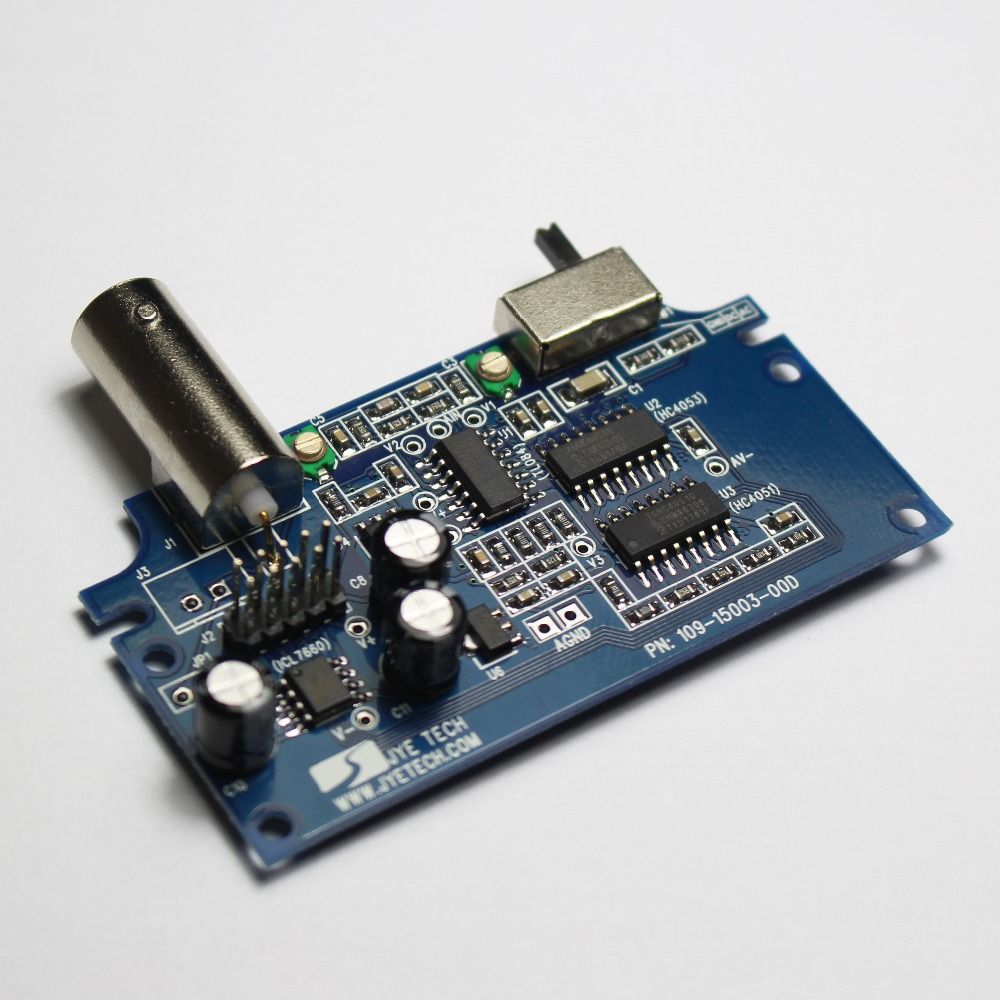

1. DSO Shell has similar bandwitch as DSO138 but contains significant improvements in structure, mechanical, and operation.Display and MCU are now mounted on the same board (mainboard) to avoid using inter-board pin-headers. Feedback from DSO138 usres have shown that soldering on the pin-headers are on problematic for many beginners. Analog channel is placed on a separated board which contains most user install parts. This brings in better separation between analog and digital circuits. Without the analog portion the mainboard is actually a general purpose control board that can be used in many other applications. The mainboard is fully installed (except a few through-hold components) and factory tested before packing. 2. DSO Shell comes with full enclosure. The front panel and top/bottom brackets are flexiable for easy user modification. 3. Rotary encoder has been added. It makes parameter adjustment much quicker and easier. 4. The sensitivity of DSO Shell has been extended in both directions and is higher and wider than DSO138. It reaches 5mV/div --- 20V/div while DSO138 is only 10mV/div --- 5V/div. Specification Vertical Number of Channel: 1 Analog : 0 - 200KHz Sensitivity: 5mV/Div - 20V/Div Sensitivity error: < 5% Resolution: 12-bit Input Impedance: 1M Maximum Input voltage: 50Vpk Coupling: DC, AC, GND Horizontal Max Real-time Sampling Rate: 1Msps Timebase: 10us/Div - 500s/Div Record Length: 1024 Trier Trier Modes: Auto, Normal, Single Trier Types: Rising/falling edge Trier Position: 1/2 of buffer size fixed Display 2.4-inch color TFT LCD with 320 x 240 resolution Power Supply 9V DC (8 - 10V acceptable) Supply Current: 120mA @ 9V Physical Dimension: 102mm X 75mm X 22mm Weight: 100 gram (not including cables and power supply) Package 1* DSO shell oscilloscope 1 *BNC standard probe 1*UserManual(English) Tech Support Forum: www.jyetech.com/forum Pictures of product
About shippingShipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 2 business days ar buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).
Special Announcement:Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties ores. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .
Your 100% satisfaction is very ant to usIf the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Origin:Mainland China
DIY Supplies:ELECTRICAL
Display Size:2.9 Inches & Under
Display resolution:320*240 Pixels
Digital Channels:1
Model Number:15001
Certification:CE
Real Time Sampling Rate:1Msps
Record Length:1024
IS Battery Demountable:Yes
Band Width:Less than 60MHz
Sensitivity:5mV/Div - 20V/Div
CE Certified:YES
What's In the Box
1X JYETech DSO150 DSO Shell Digital Handeld Oscilloscope (Assembled) with Latest Firmware BNC Probe Included Data Output
