Description:
The FNIRSI-5012H is a versatile, highly practical, cost-effective handheld oscilloscope for the maintenance industry and the R&D industry with FNIRSI's real-time sampling rate of up to 500MS/s and 100MHz analog . With full trier function (single, normal, automatic), it can be used freely for both periodic analog signals and non-periodic digital signals. The built-in high voltage protection module can withstand up to 400V continuous voltage and 600V peak voltage. Don't worry about the oscilloscope burnout caused by the high voltage not being probed to the 10X position. Large time base scan mode that monitors slow level changes. Equipped with high-efficiency one-on AUTO, the measured waveform can be displayed without complicated adjustment. Display high-definition LCD screen with 2.4-inch 320*240 resolution. Extremely convenient and fast waveform storage function, built-in 64M storage space, can store up to 2000 waveform pictures, the storage proce is simple and fast, save the current waveform anytime and anywhere, just one touch, nobersome tips and choices, quietly It is very convenient to save the current waveform. Powerful waveform file manager, support for thumbnail browsing, viewing, detail viewing, page turning, deletion and more. Built-in 3000mah high-quality lithium battery, can be used continuously for 8 hours when fully charged. The body is equipped with high-quality silicone protective cover, non-toxic and lead-free envmental protection, anti-skid, anti-shock and shockproof, comprehensive protection of the fuselage, soft texture, feel very comfortable. : 1:Intelligent anti-burn,1X Can withstand up to 600V withstand voltage 2:Arglow display technology 3:2.4 inch color display screen 4:100MHz analog @ 500MS/s sampling rate(1X = 5MHz,10X = 100MHz) 5:One-on waveform storage 6:Built-in 64M storage space, the maximum storage of 2000 waveform pictures 7:Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions 8:High measurement voltage range, 1X can measure 0 ~ 80 V, 10X can measure 0 ~ 800V 9:Up to 12 measurement:VPP,VP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Time 10:At any time, the waveform display (pause function) is frozen 11:Equipped with high efficiency One-on AUTO 12:Complete triering function (single, normal, automatic) 13:Built in 3000mAh rechargeable lithium battery,Fully charged for 8 hours of continuous use 14:Screen brightne adjustment 15:Memory compreion technology, waveform refresh screen does not flicker 16:Anti-slip anti-drop silicone sleeve 17:Ultra small volume, easy to carry Specifications: 1:Analog band width: 100MHz 2:Maximum real time sampling rate: 500MS/s 3:Vertical sensitivity: 50 mV/div ~ 100 V/div 4:Horizontal time base range: 50S/div ~ 6nS/div 5:Maximum test voltage: 80 V (1X probe), 800 V (10X probe) 6:Storage depth: 128KB 7:Input resistance: 1M 8:ADC precision: 8bits 9:Coupling mode: AC/DC 10:Trier mode: Single, Normal, Auto 11:Trier edge: Ascending/descending edge 12:External trier voltage 0-80 V 13:Display: 2.4 inch - 320*240 14:Power supply: 3000 mAh lithium battery 15:Size: 114mm x 74mm x 33mm 16:Weight: 250g Package includes: 1 x FNIRSI-5012H oscilloscope host 1 x Matching 100MHz probe(1X and 10X) 1 x Micro USB data line 1 x User manual (English) 1 x High quality package
About shippingShipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 2 business days ar buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).
Special Announcement:Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties ores. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .
Your 100% satisfaction is very ant to usIf the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Origin:Mainland China
DIY Supplies:ELECTRICAL
Display resolution:320*240 Pixels
Digital Channels:1
Model Number:FNIRSI-5012H
Record Length:other
IS Battery Demountable:Yes
Display Size:2.9 Inches & Under
Certification:CE
Real Time Sampling Rate:other
Max Waveform Capture Rate:30,000wfm/s
Band Width:100-349MHz

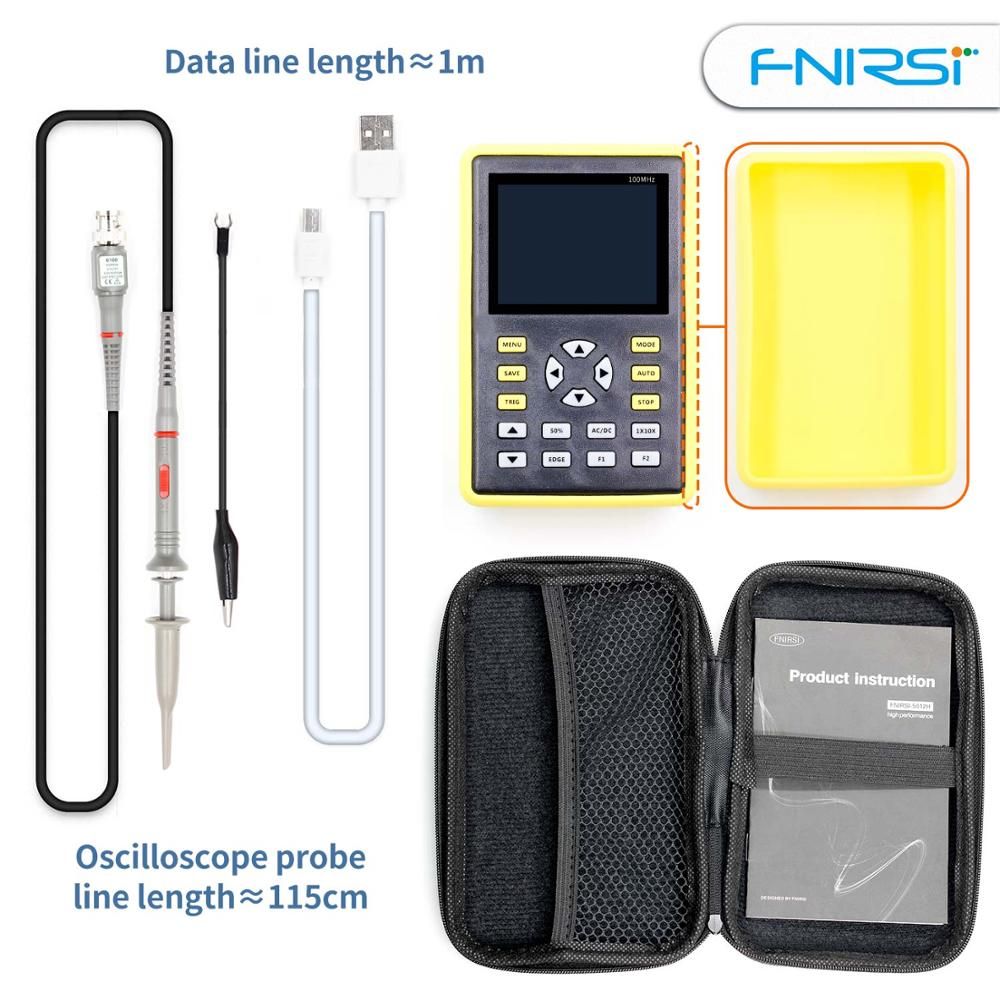

What's In the Box
1X FNIRSI-5012H Handheld Mini Digital Oscilloscope 500MS/s Sampling Rate 100MHz Analog
