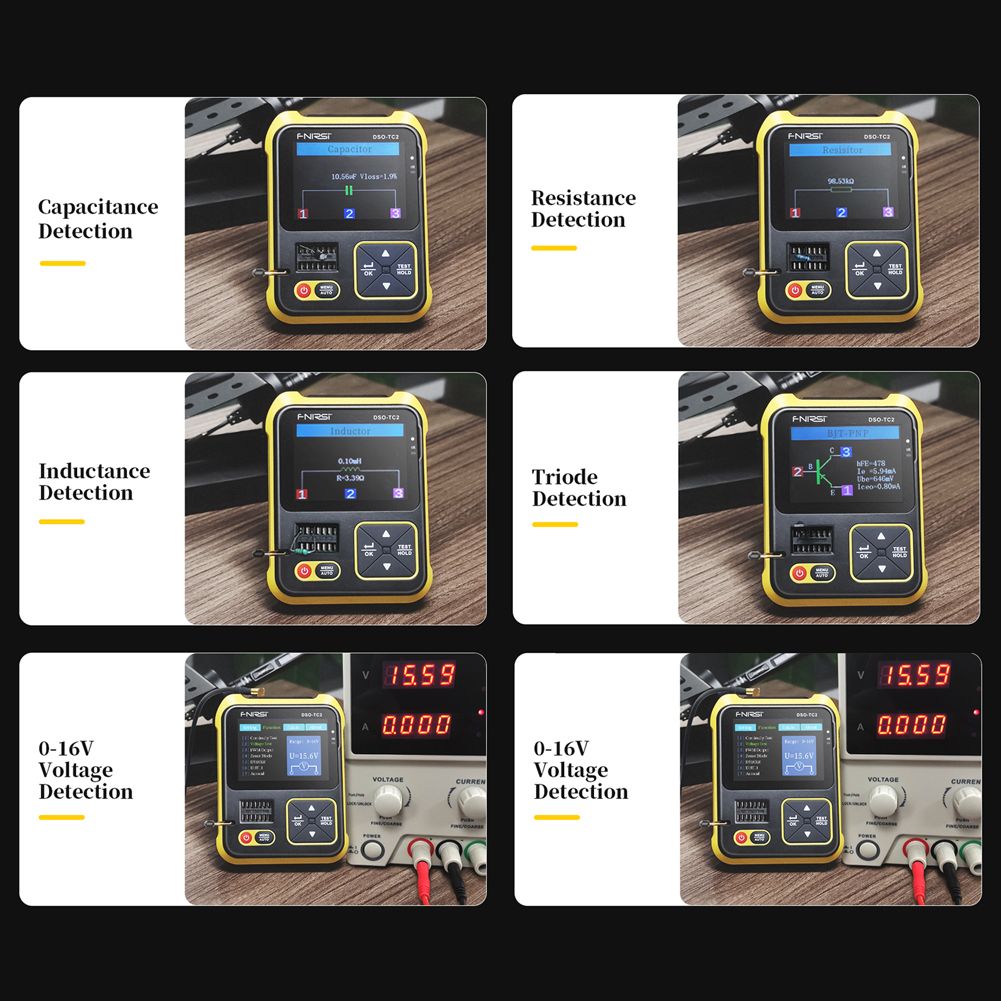

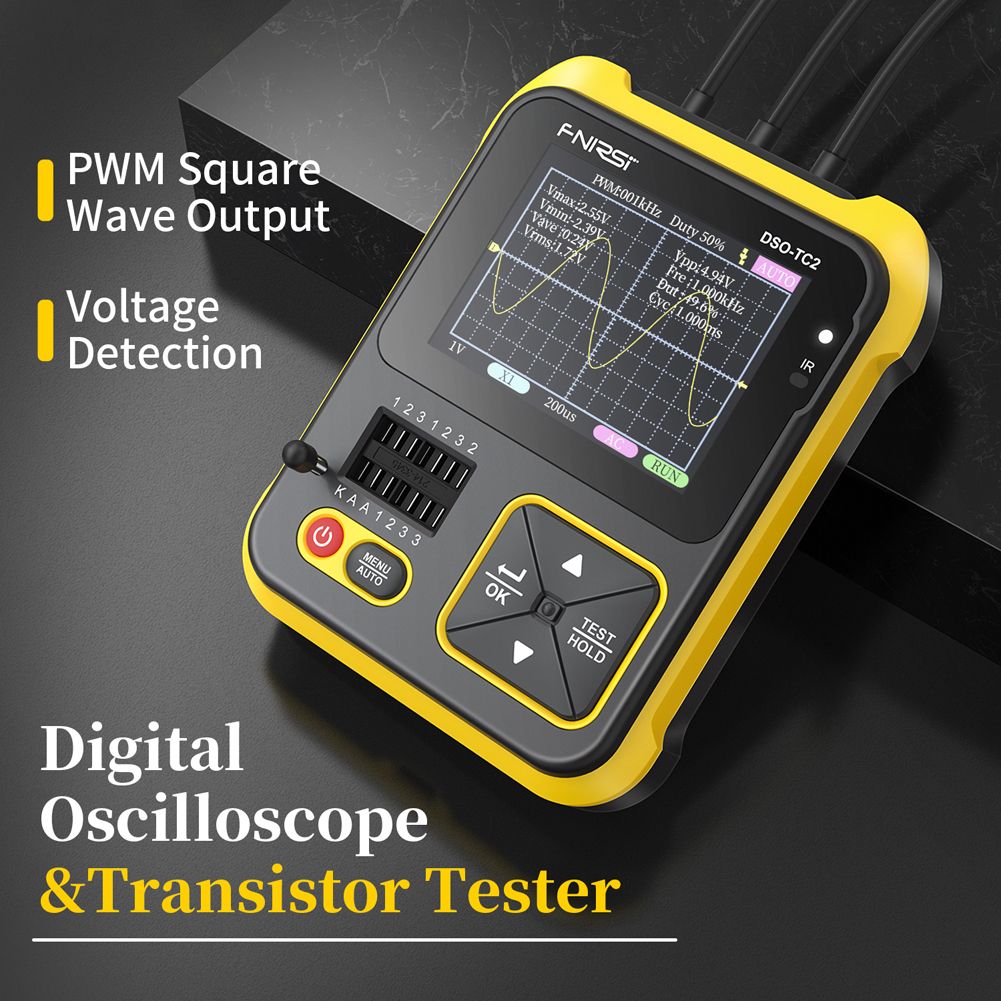

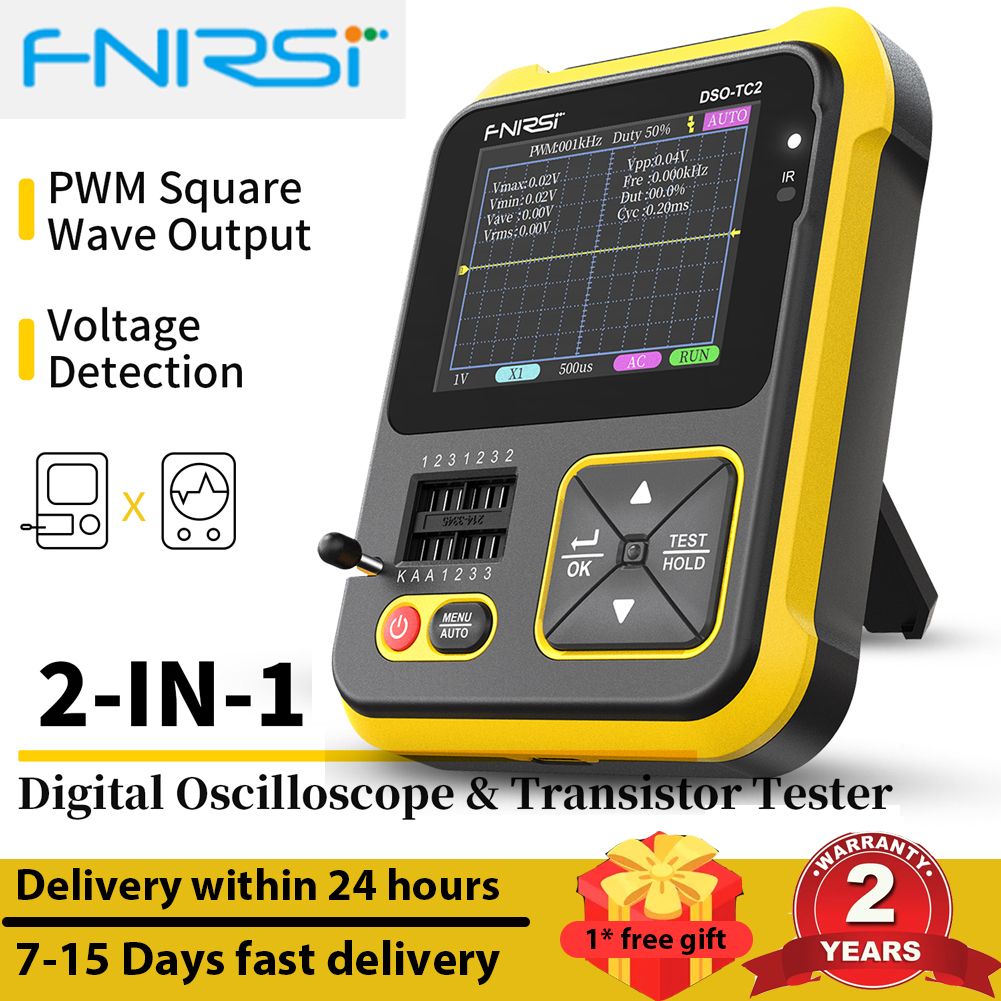

This product ingeniously integrates digital oscilloscope, electronic component tester, PWM signaenerator and other functions into one. Equipped with large-size color dot matrix TFT display. Built-in rechargeable lithium battery. Bring more practical functions to users with a small size. If you are interested in this product, come and have a try, it will not let you down. Features: 2 In 1 Function: This product ingeniously integrates digital oscilloscope, electronic component tester, PWM signaenerator and other functions into one. This product is especially suitable for fast pairing of transistors, identification of mixed surface mount and wordle components, and preliminary screening of small batch components. The oscilloscope has a real-time sampling rate of 2.5MS/s and a 200kHz . With complete trier function (Single, Normal, Automatic), it can be used freely for both periodic analogs signals and aperiodic digital signals. Up to ±400V voltage signal can be measured, has a wide applications. Equipped with efficient one-key AUTO, the measured waveform can be displayed withoutbersome adjustment. Self-contained 80kHz /5.0V PWM waves test signal source with adjustable duty cycle. This instrument can automatically identify and measure various transistors. Including NPN transistors, N-channel and P-channel field effect transistors, junction field effect transistors, diodes, double diodes, thyristors, etc.,and paive component such as resistors, inductors, capacitors, etc Automatic detection of pin definitions. Specifications: Material: ABS Type: without adapter, with adapter (optional) Display: 2.4inch color screen with backlight Battery: 1 * lithium battery, 1500mAh (included) Recharging: USB Type-C, 5V Package size: 140 * 125 * 55mm / 5.5 * 4.9 * 2.2in Package weight: Without adapter: 296.6g / 10.5ounce With adapter: 345.6g / 12.2ounce Oscilloscope Specifications: Real-tim sample rate: 2.5MS/s Anolog : 0-200kHz Input resistance: 1MΩ Coupling: AC/Direct current Test voltage ranges: 1:1 probe: 80Vpp (±40V) 10:1 probe: 800Vpp (±400V) Vertical sensitivity: 10mV/Div~10V/Div(in 1-2-5 increments) Vertical displacement: adjustable, with indication Horizontal time base ranges: 10us/Div~500s/Div (in 1-2-5 increments) Trier mode: automatic, regular, single Tier type: rising edge. falling edge Trier level: adjustable, with indication Waveform freeze: yes (HOLD function) Automatic measurement: maximum, minimum, average, rms, peak-to-peak, frequency, period, duty cycle PWM output: FRQ: 0~80KHz, duty cycle: 0~100%, amplitude: 5.0V Electronic Component Tester Specifications: Capacitance measuring ranges: 25pF~100mF(capacitance value, lo factor Vlo) Resistance measuring ranges: 0.01Ω~50MΩ Inductance measuring ranges: 10uH~1000uH Battery measuring ranges: 0.1~4.5V Input voltage: 0~16V PWM output: 1.5KHz~9.99MHz Without Adapter Packing list: 1 * Tester 1 * Type-C Cable 3 * Test Hook 1 * Probe With Adapter Packing list: 1 * Tester 1 * Adapter 1 * P6100 High Voltage Probe 1 * Type-C Cable 3 * Test Hook 1 * Probe
Drop Shipping Service:
1. There is no limited stock to fulfill the orders on a daily basis. 2. We can use ePacket shipping for most countries, such as United States, Canada, Australia, Ruian Federation, Germany, France , Spain , United Kingdom and New Zealand. 3. Priority shipping, fast shipping within 48 hours. 4. No invoice or receipt or promotional materials included.
Please leave positive feedback and 5 stars if you are satisfied with our it and services.Your satisfaction and positive feedback is very ant to us! Thank You So Much! If you have any probl about your order,please feel free to contact us and we will do our best to aist you solve the iue!
If there is any problem of the products,please contact our customer service immediately. You can choose return or .Please indicate the reason and the order number of the return when returning the product,and retuen the item in the bag.
About shippingShipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 2 business days ar buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).
Special Announcement:Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties ores. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .
Your 100% satisfaction is very ant to usIf the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Origin:Mainland China
DIY Supplies:ELECTRICAL
Model Number:Oscilloscope Transistor Tester
Display Size:3.0 - 4.9 Inches
Certification:NONE

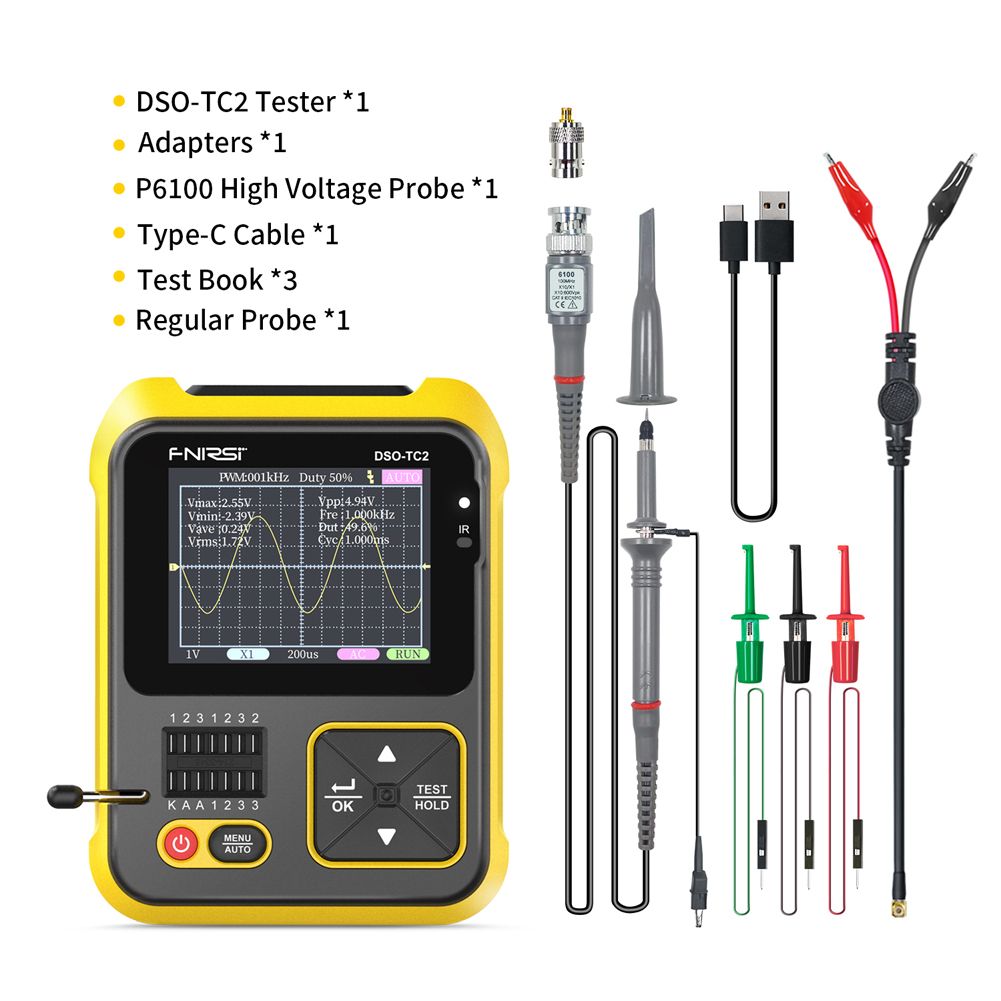

What's In the Box
1X FNIRSI 200kHz 2.4 Inch Oscilloscope Transistor Tester Digital Oscilloscope 2 In 1 PWM Square Waves Output Oscilloscope
