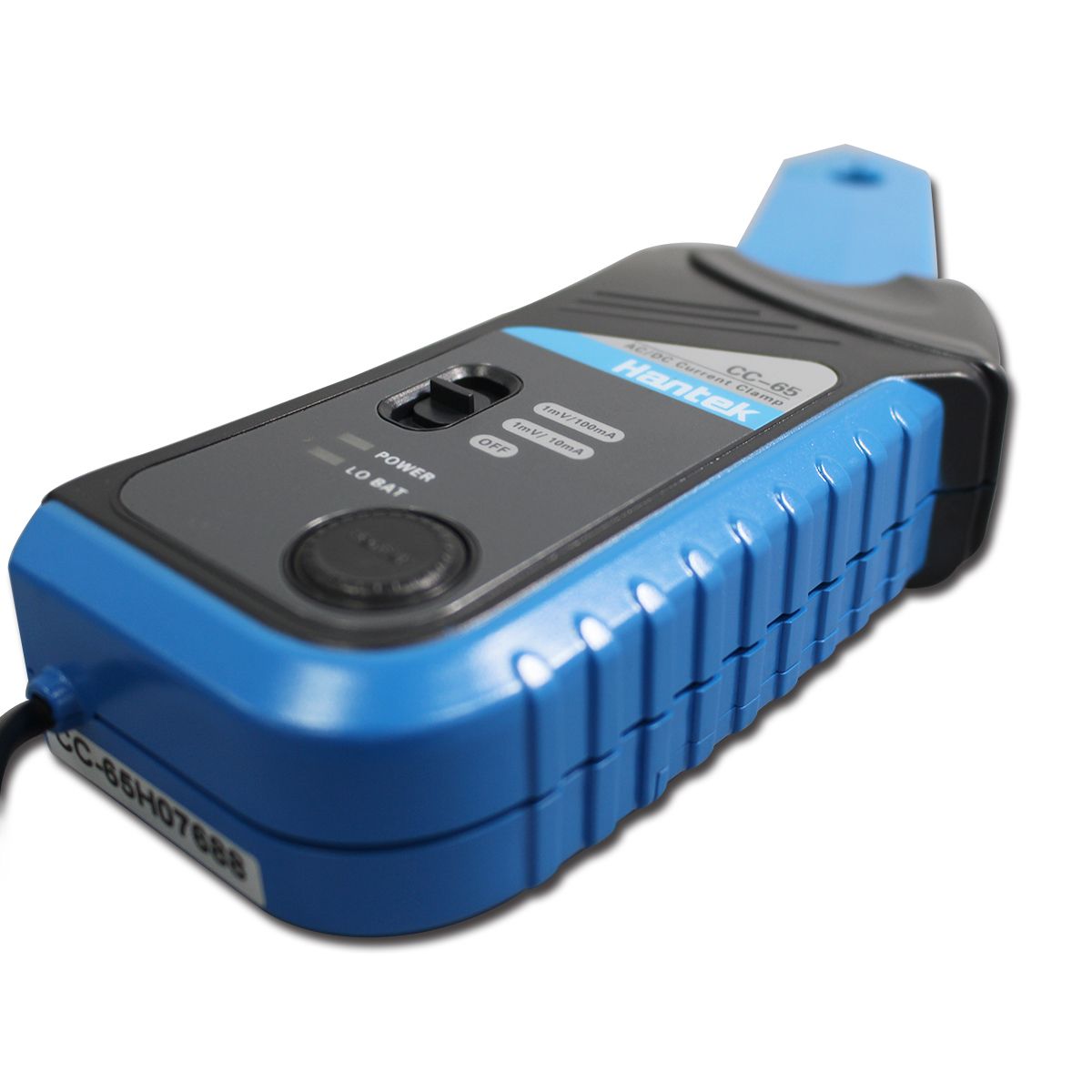

AC/DC Current Clamp CC-65 AC/DC Current Clamp, 20kHz , 1mV/10mA, 65A; It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms. Supplied with coil cable with straight banana plug or BNC plug.
AC/DC Current Clamp, 20kHz , 1mV/10mA, 65A
Feature AC/DC frequency range: Up to 20 kHz Effective Measurement Range: 20mA to 65A DC It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms. Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data.
Application
Power circuit measurement and malfunction analysis; Motor drive of frequency converter (or other electronics) measurement; Power electronics equipments measurement.
DCA Range
1 mV /10mA
(1.5%5mA) 10mA ~ 20A
1mV/100mA
(2%20mA) 100mA ~ 40A; (4%0.3A) 40A ~ 65A
ACA Range
1mV/10mA
(2%30mA) 100mA ~ 10A (40Hz ~ 2KHz); (4%30mA) 100mA ~ 10A (2KHz ~ 10KHz); (6%30mA) 100mA ~ 10A (10KHz ~ 20KHz); (8%30mA) 10A ~ 15A (40Hz ~ 20KHz)
1mV/100mA
(2%30mA) 200mA ~ 40A (40Hz ~ 1KHz); (4%30mA) 200mA ~ 40A (1KHz ~ 2KHz); (6%30mA) 200mA ~ 40A (3KHz ~ 5KHz); (8%0.3A) 40A ~ 65A (40Hz ~ 20KHz)
Captured Conductor Size
9mm maximum
Low Battery Indictor
red LED lighting
Operating Temperature
0to 5070% R.H.
Storage Temperature
-20 to +70, 80% R.H.
Battery Type
9V DC, NEDA 1604, 6F22,0006P
Battery Life
100 hours typical with alkne
Weight
250 gm typical
Dimensions
195mm(H) x 70mm(W) x 33mm(D)
Output

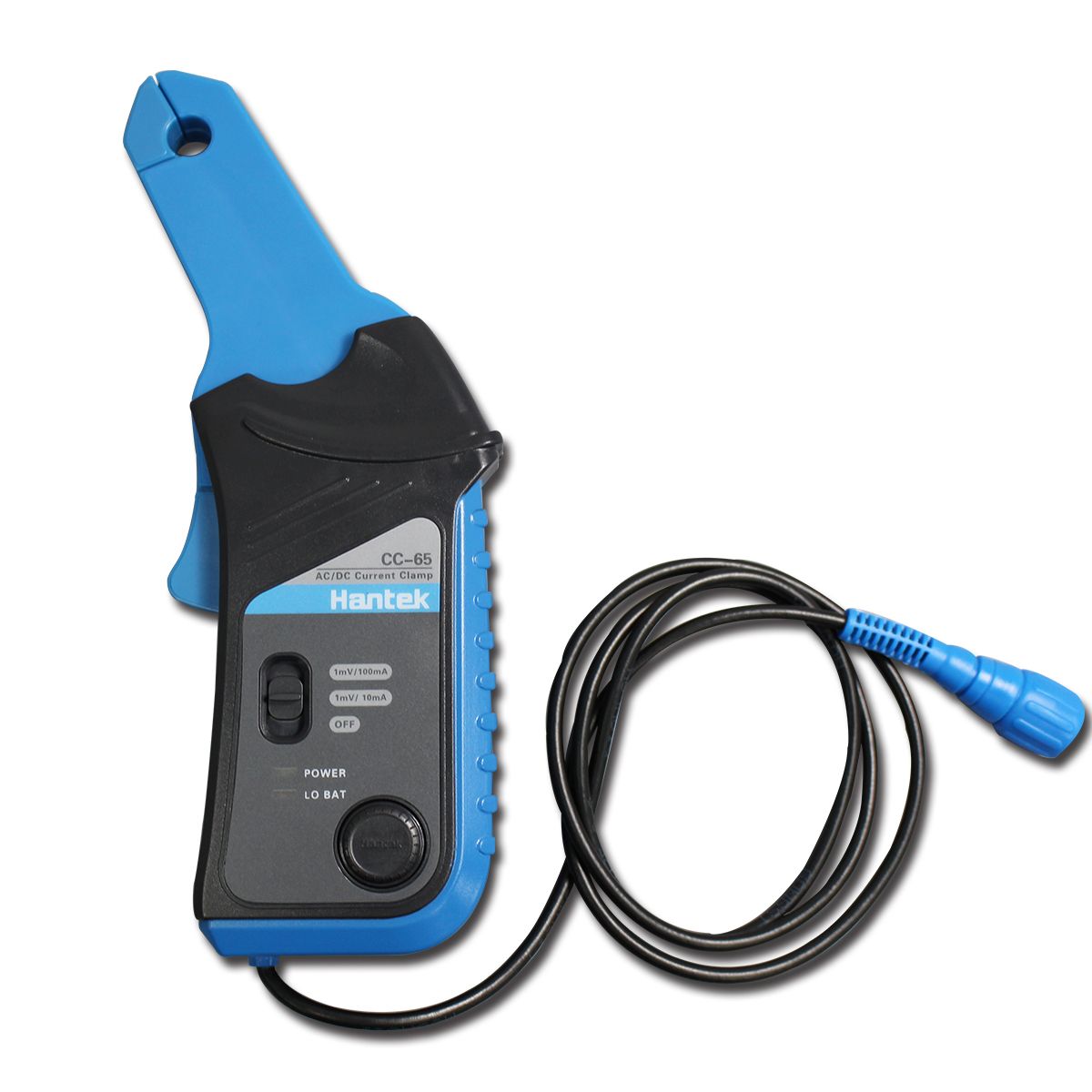

Supplied with coil cable with straight banana plug or BNC plug.
