Features:
A logic analyzer is an instrument that analyzes the logical relationship of a digital system. It can collect and store multi-channel digital signals and visually display the timing relationships of these signals on the screen.
It also has protocol analysis function, which can parse the logic signal of protocol physical layer into high-level protocol data and display it.
2.8 inch TFT LCD screen makes reading data faster and easier.
Small and portable, easy to use and carry.
Can be widely used in automotive electronics, communications, power, computers and other industries and fields.
Specifications:
Material: ABS
Color: black
Input:
Channels: 4
Max. sampling rate: 100MHz
Minimum capture pulse width: 10n
Input impedance: 1MΩ
Output:
Channels: 4
Mode: , I2C, PWM
3V output channel: 1
Storage: 8MB USB flash disk memory
Screen size: 2.8"
Screen resolution: 320*240
Battery: 1 * lithium battery, 500mAh (included)
Envment temperature: 10~50℃
Envment humidity: 10~90%RH
Item size: 100 * 56 * 8.6mm / 3.9 * 2.2 * 0.3in
Item weight: 83g / 2.9ounce
Package size: 150 * 105 * 40mm / 5.9 * 4.1 * 1.6in
Package weight: 175g / 6.2ounce

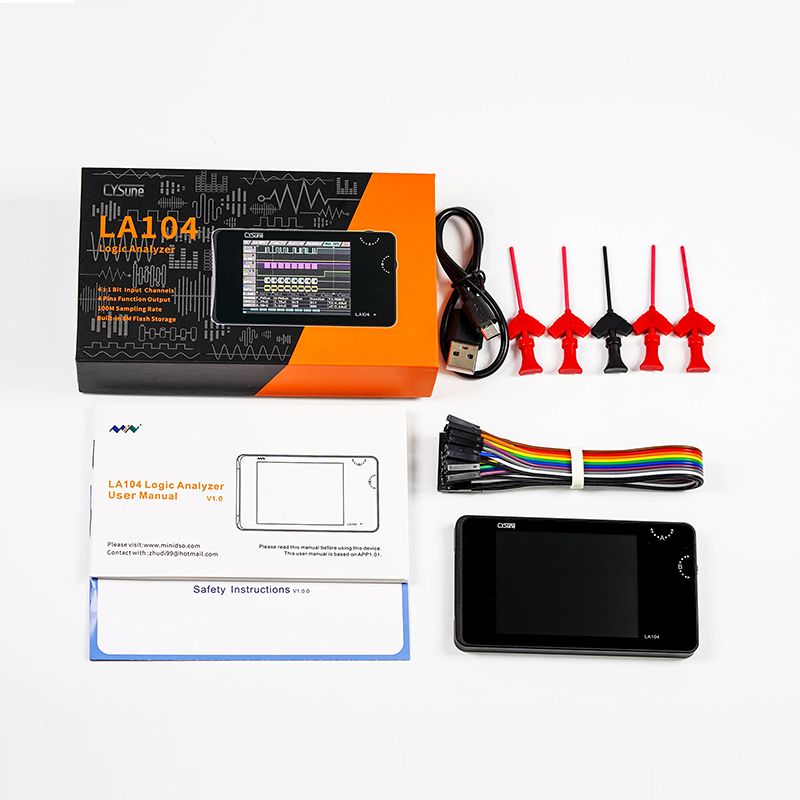

Package list:
1 * LA104 Logic Analyzer
About shippingShipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 2 business days ar buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).
Special Announcement:Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties ores. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .
Your 100% satisfaction is very ant to usIf the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Origin:Mainland China
DIY Supplies:ELECTRICAL
Display resolution:320*240 Pixels
Digital Channels:4
Model Number:LA104
IS Battery Demountable:Yes
Display Size:None
Certification:CE,FCC
Band Width:Less than 60MHz
What's In the Box
1X Digital Logic Analyzer LA104 USB Mini 4 Channels 100MHz Max Sampling Rate Built in 8MB Flash Storage 2.8 Inch Oscilloscope
