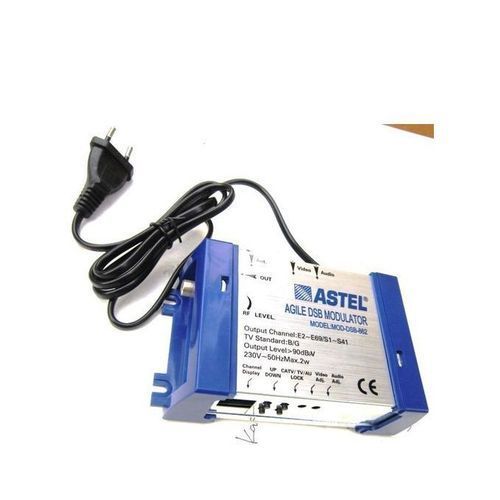

Astel Agile DSB Modulator MOD-DSB-862
DSB Agile TV Modulator
Model MOD-DSB-862
TV format B,G, D,K, M,N, H, I,
Video input Frequency Range 20 Hz-6 MHz
Level/ Impedance 1 V ±1 dB/ 75Ω
Audio input - Frequency Range 20 Hz-15 kHz
Level/ Impedance/ Deviation 775mVRMS/10kΩ/50kHz
RF output - Level/ Impedance/ 100dBuV/75Ω
Level Adjustment 0-15dB
Output Channels (programmable) E2-E4(B) 47-68 MHz
E5-S20(B) 174-300 MHz
1-3(0)48.5-84 MHz
6-SR18(D) 174-294 MHz
21-69 (G,H,I,K) 470-862 MHz
14-78 (M,N) 470-862 MHz
Frequency range and Insertion loss of RF combining circuit 47-862 MHz/2.0 dB max
Carriers accuracy ±20 kHz
Sound Sub carrier frequency 5.5, 6, 6.5 MHz
Amplitude Modulation Depth (typ) 75%
Video frequency response ±1 dB
Signal/noise ratio weighted >55dB
Audio frequency response pre correction 50 µs
Power consumption AC230V/50HZ/2VA
Operating temperature range 10 deg C ~+ 50 deg C
Dimensions, weight/unit 120(l)x128(w)x54(h)mm/0.5kg
