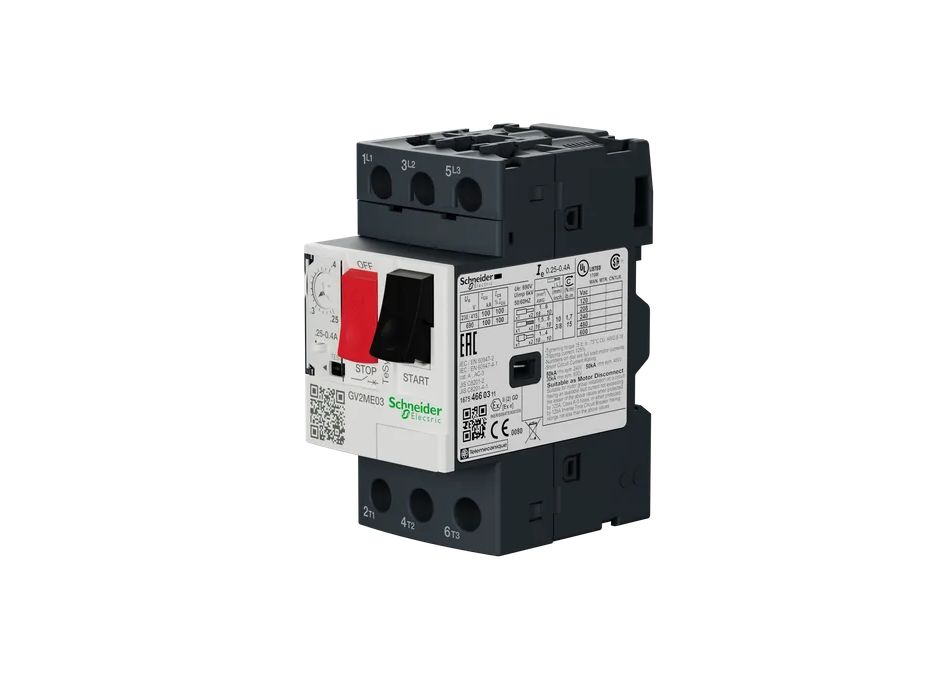

TeSys GV2 Motor protection circuit breaker
motor protection circuit breakers, coordinated with TeSys D contactors, to protect motors up to 32 A (15 kW / 400 V)
Part of TeSys
TeSys GV2 motor protection circuit breaker provides manual isolation, manual motor control and short circuit and thermal protection in 45 mm standard width.
Features
TeSys GV2 motor protection circuit breakers provide short circuit protection, overload protection, motor (ON/OFF) control. All functions can work for motors up to 15 KW (GV2RT up to 11 kW) in a 45 mm frame.GV2ME: Thermal-magnetic protection Operation with push button Standard breaking capacityGV2P: Thermal-magnetic protection Operation with rotary handle (extended rotary handle as an option) High breaking capacity Fault differentiation (short circuit or thermal trip)GV2L: Magnetic protection onlyOperation with rotary handle (extended rotary handle as an option) High breaking capacityGV2LE: Magnetic protection only Operation with toggle Standard breaking capacityGV2RT: Built with high magnetic tripping level, it is highly suitable for high inrush current motors or three phase transformers. Operation with toggleSpecifications: Maximum 15 current ratings to cover from 0.1 A to 32 A motor current with a IP20 level for finger safety. The electrical durability (AC-3/415 V) can reach 100,000 operations as a direct control switch Screw clamp for the connection, GV2 ME has two more choices: lug and spring terminals. Padlockable in all versions. DIN rail mounting or screw fixingMultiple choices for “add-on blocks” and accessories such as: contact blocks, electric trips blocks and limiter blocks.
Benefits
- Complete protection concentrated in a single product
- Compact (45 mm) and easy to integrate with other control devices
- Durability for the operation as a switch
- Easy to select for different ratings with limited references
Applications
TeSys GV2 can be used for all type of applications across industry, infrastructure and buildings. Compliant to Motor control and protection, in accordance with standards IEC 60947-2, IEC 60947-4-1 and UL 60947-4-1 (transition from UL 508).
GV2RT can be used to protect motors with high current peak on starting or transformer protection.
Key Features
Range - TeSys
Product name - TeSys GV2
Product or component type - Circuit breaker
Device short name - GV2ME
Device application - Motor
Trip unit technology - Thermal-magnetic
Poles description - 3P
Network type - AC
Utilisation category - AC-3 conforming to IEC 60947-4-1, Category A conforming to IEC 60947-2
Network frequency - 50/60 Hz conforming to IEC 60947-4-1

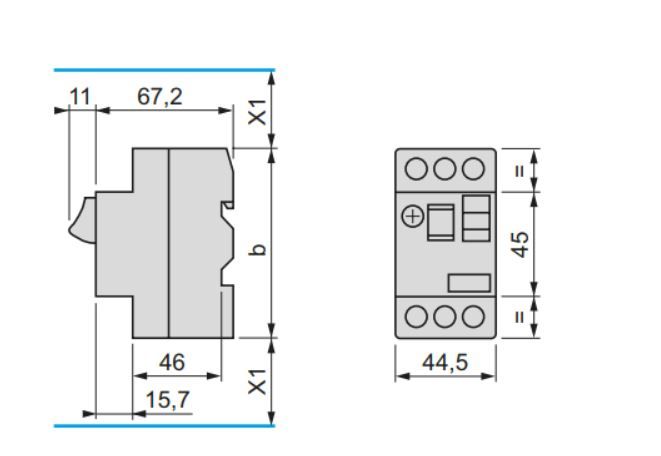

Fixing mode - 35 mm symmetrical DIN rail: clipped, Panel: screwed (with adaptor plate)
Operating position - Any position
Motor power Kw - 11 kW at 400/415 V AC 50/60 Hz, 15 kW at 500 V AC 50/60 Hz
Breaking capacity - 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity - 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
Control type - Push-button
[In] rated current - 25 A
Thermal protection adjustment range - 20…25 A
Magnetic tripping current - 327 A
[Ue] rated operational voltage - 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage - 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ith] conventional free air thermal current - 25 A conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage - 6 kV IEC 60947-2
Power dissipation per pole - 2.5 W
Mechanical durability - 100000 cycles
Electrical durability - 100000 cycles for AC-3 at 440 V
Maximum operating rate - 25 cyc/h
Rated duty - Continuous conforming to IEC 60947-4-1
Tightening torque - 1.7 N.m on screw clamp terminals
Suitability for isolation - Yes conforming to IEC 60947-1
Phase failure sensitivity Yes conforming to IEC 60947-4-1
What's In the Box
1 TeSys GV2, 3P, 20-25 A, thermal magnetic, screw clamp terminals Motor circuit breaker
