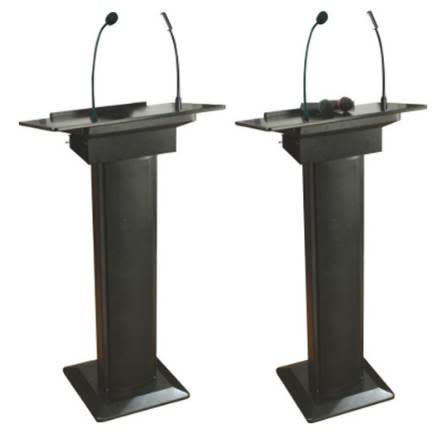

T-6236 Lectern T-6236B Lectern with Wireless VHF MIC
• Lectern is applied to lectures, teaching and conference, built-in 3 sub-woofer loudspeaker, one tweeter, with rated output power 60W, built-in microphone and a small desk lamp.
• One gooseneck Mic and one lamp.
• Built-in 60W amplifier.
• One line input, two microphone inputs, one line output, one record output.
• T-6236B With 2 VHF hand-held microphones capable of transmitting 100 meters. (T-6236B standard)
Specification
• Model T-6236 T-6236B
• Power supply ~110V-230V 50/60Hz
• Power consumption 100W
• Frequency response 100Hz~16KHz
• Output Power 60W
Input Sensitivity
• MIC1: -50dB ±2dB1.5/680Ω
• MIC2: -55dB ±2dB1.5/600Ω
• LINE: -20dB ±2dB1.5/50Ω
• Aux: 1.-20dB ±2dB1.5/10KΩ
2.-15dB ±2dB1.5/30KΩ
3.-10dB ±2dB1.5/50KΩ
4.-3dB ±2dB1.5/80KΩ
• Record Output 1V/0dB
• Quality control Bass:10dB/Treble:10dB
• Transmission distance 15~30M
• Dimensions (L x W x H) 580 x 420 x 1100 mm
• Weight 12.26Kg
