Description:

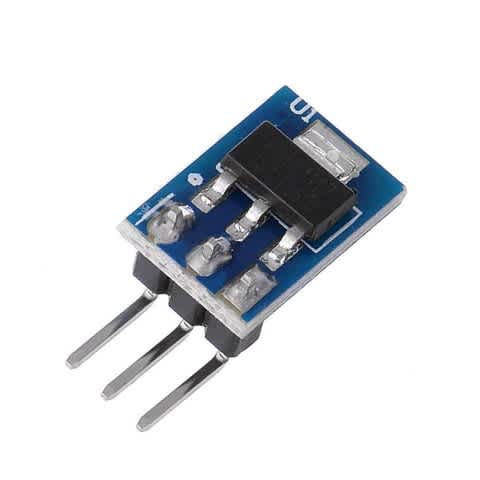

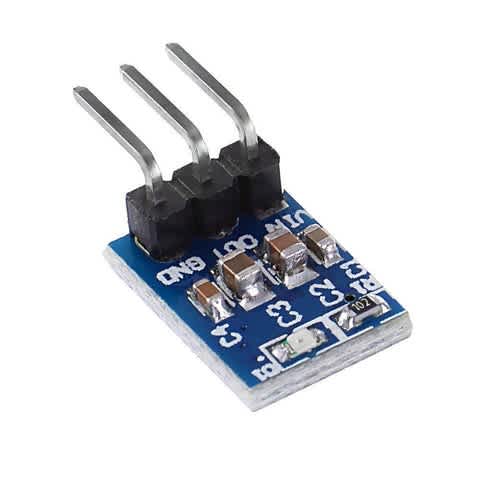

Positive power supply board. Its basically takes an input of 4.5-15V DC and outputs a constant voltage of 3.3V. It can supply a maximum of 0.8A of current at 3.3V.
The board comes with appropriate rectification, filtering circuit, a power indication LED. The module is very useful for the products which demand 3.3V at 800mA of current. It equips 3 pins where you can plug-in input and output, This offers ease of connection.
The Power Supply Mini Board is the ideal solutions, providing a positive supply at constant out for projects & systems etc.
Feature:
- Suitable for 4.5-15V AC/DC input with PCB Terminals
- Power LED for Outputs
- +3.3V Output Termination Points
- Suitable for use with most +3.3V Microcontrollers
- Dimensions: 13mm x 9 mm
Package Includes:
- 3.3V AMS1117 800ma power supply module
Note:
- Please do not work above the operating voltage, or it will be damaged easily.
- The input voltage must be 1.5V or 2V higher than the output voltage, otherwise, it can not output enough power.
- Please do not reverse polarity, or it will be damaged because of a short circuit.
Datasheet:
- //cdn.shopify.com/s/files/1/2822/2674/files/ds1117.pdf?3161997491528035188
