Buy ZEEWEII DSO154Pro 320*240 Resolution 2.4-inch TFT Color

ZEEWEII DSO154Pro 320*240 Resolution 2.4-inch TFT Color

₦ 166,488.80 ₦ 175,251.37 -5%

0 No Reviews

Product SKU: RENG217876

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	N/A
Size (L x W x H cm)	20.00×11.00×4.00
Weight (kg)	0.26
Color	Multicolor

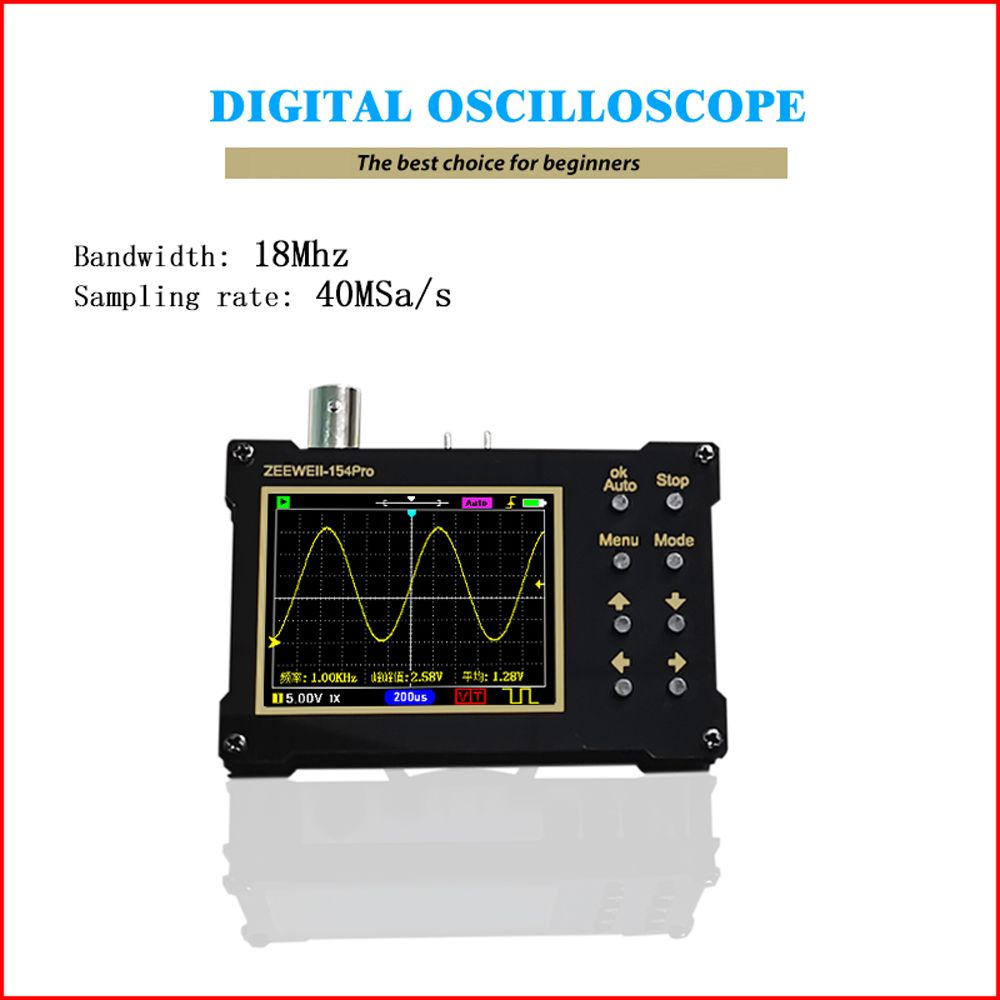

This quality oscilloscope has ARM+FPGA+ADC architecture, 40MSa/s sampling rate, more stable and with higher precisions. Widely application on mcu debugging, car repairing, home appliance repairing, DIY electronic competition, -supply debugging, inverter, etc. You can have a try.

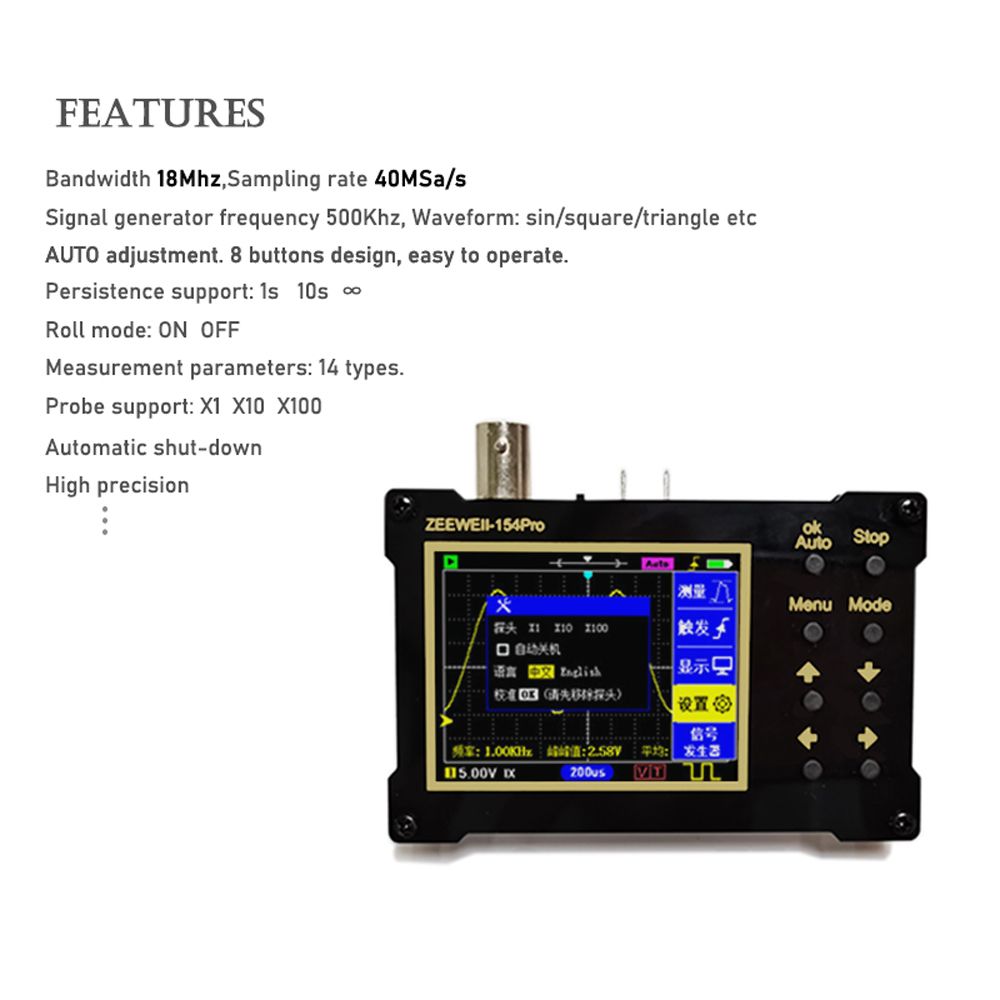

Features:

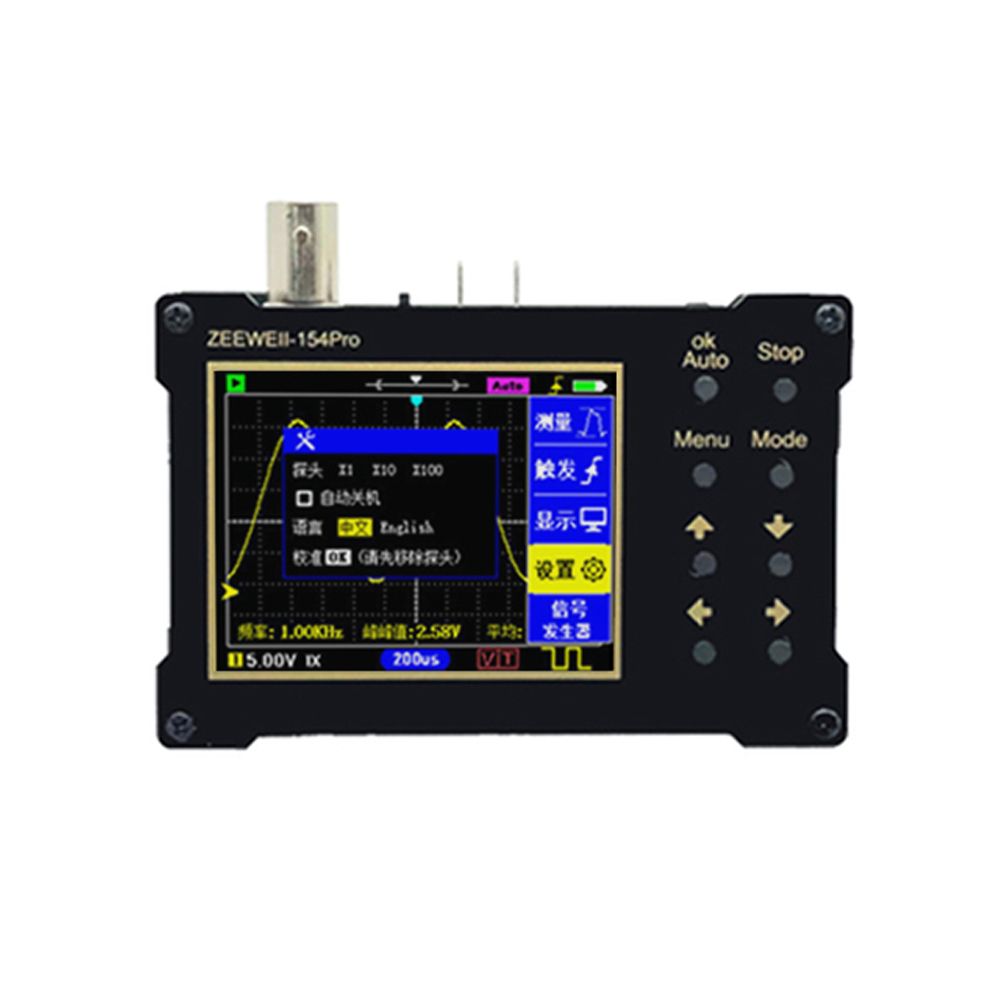

2.4 Inch TFT LCD Display: Equipped with 320*240 resolution color TFT LCD display, with bright colors and high contrast, you can see the data clearly.

High Practicality: ARM+FPGA+ADC architecture, with 40MSa/s sampling rate, more stable and with higher precisions.

Optional Bandwidth: There are two bandwidths for you to choose, you can choose 1M bandwith version or 18M bandwith version depending on you needs, which can easily cope with measurement tests in various fields.

Humanized Design: Compact appearance, with 8pcs buttons design, it can be used as a portable tool for on-site debugging.

Easy to Use: Auto adjust, stops, menu and single trigger can all be done with one click. The waveform scaling and movement can be done by simply pressing the Mode button to switch between the 4 directional buttons, which is very convenient.

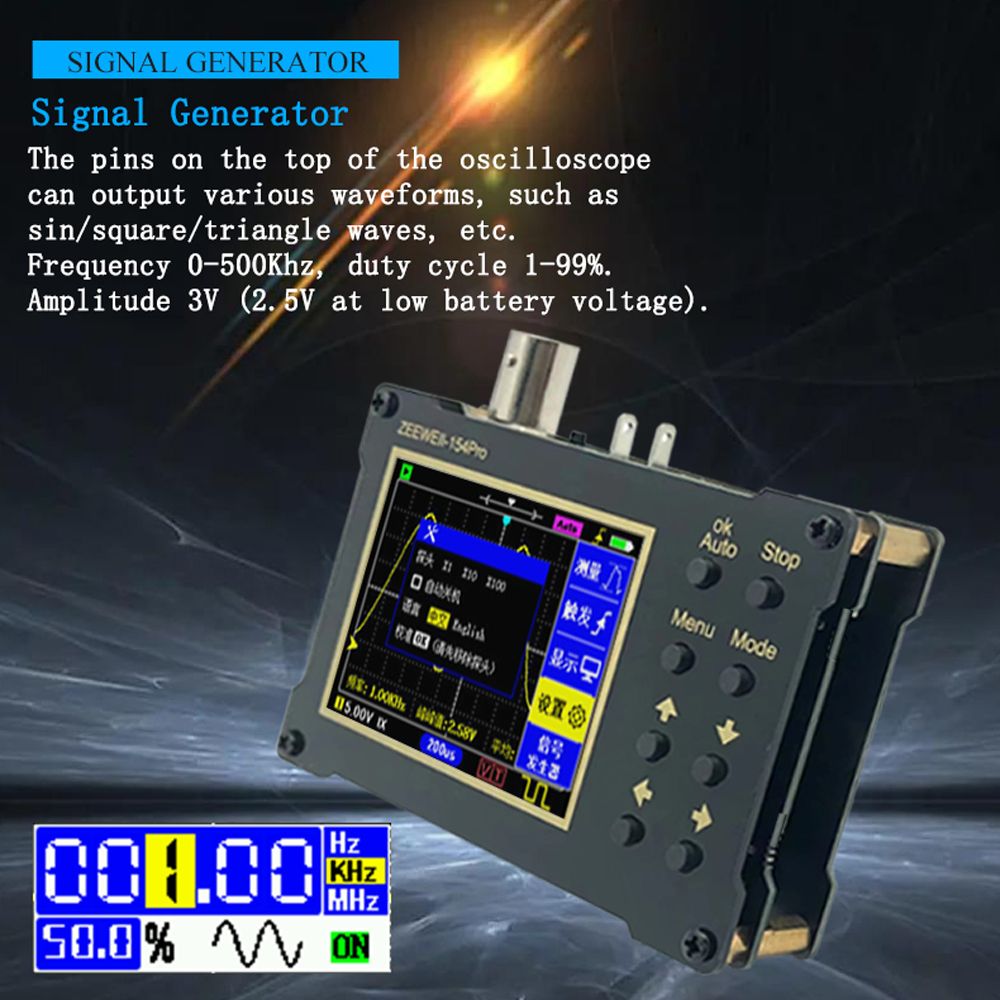

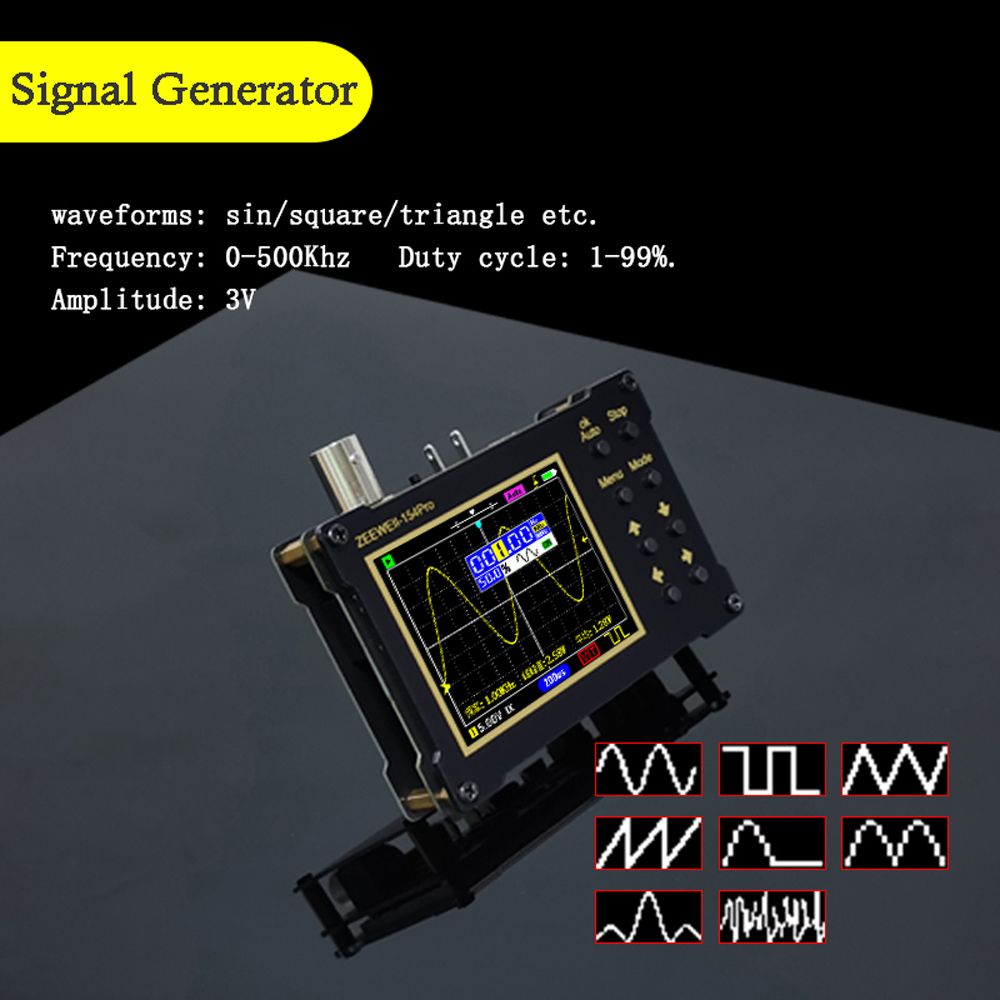

Squarewave Generator: Six waveforms including sinewaves, squarewaves and trianglewaves can be output. The upperside of the oscilloscope can output an adjustable waveform of 3V amplitude, the frequency-adjustment-range is 0-2MHz, the accuracy is up to 0.1Hz. The duty cycle-adjustment-range is 1%-99%. It can be used to calibrate new probes, drive mosFETs, replace crystals, etc.

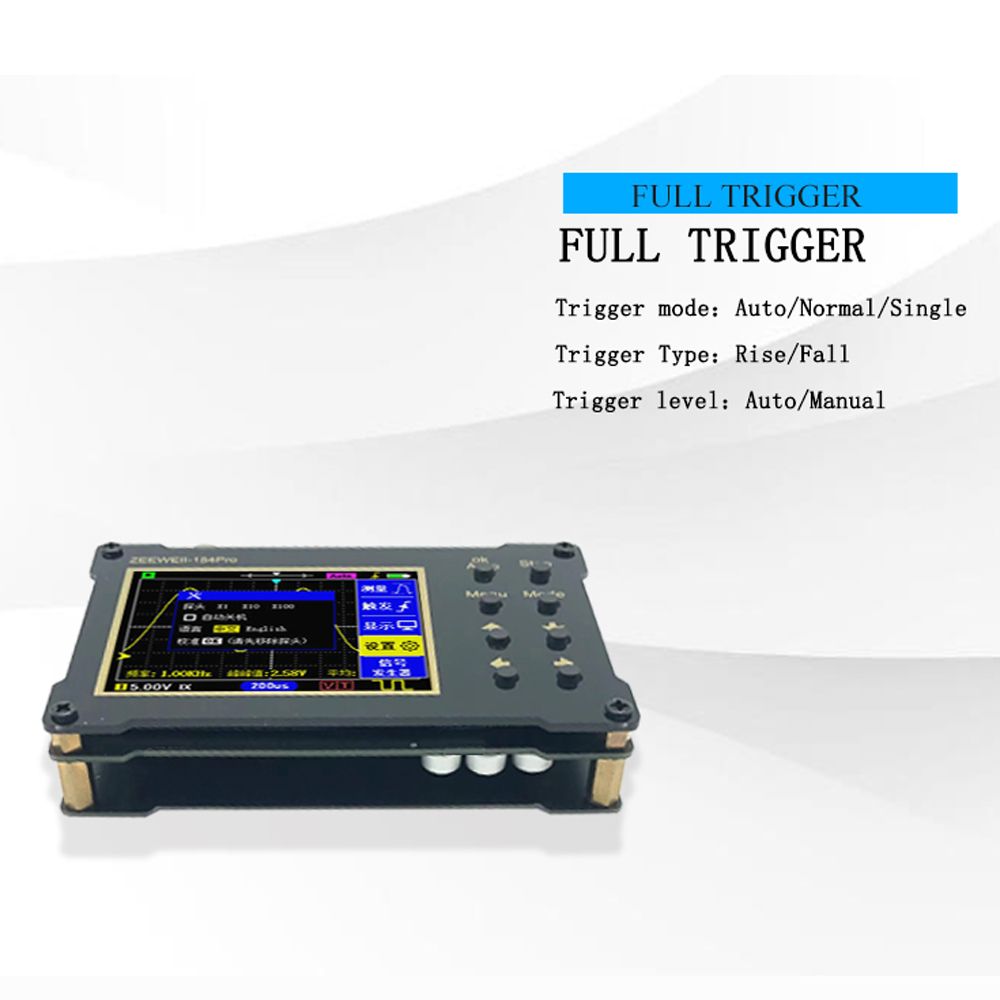

3 Trigger Modes Design: Threr are 3 trigger modes design, Auto trigger mode, Normal trigger mode, Single trigger mode.

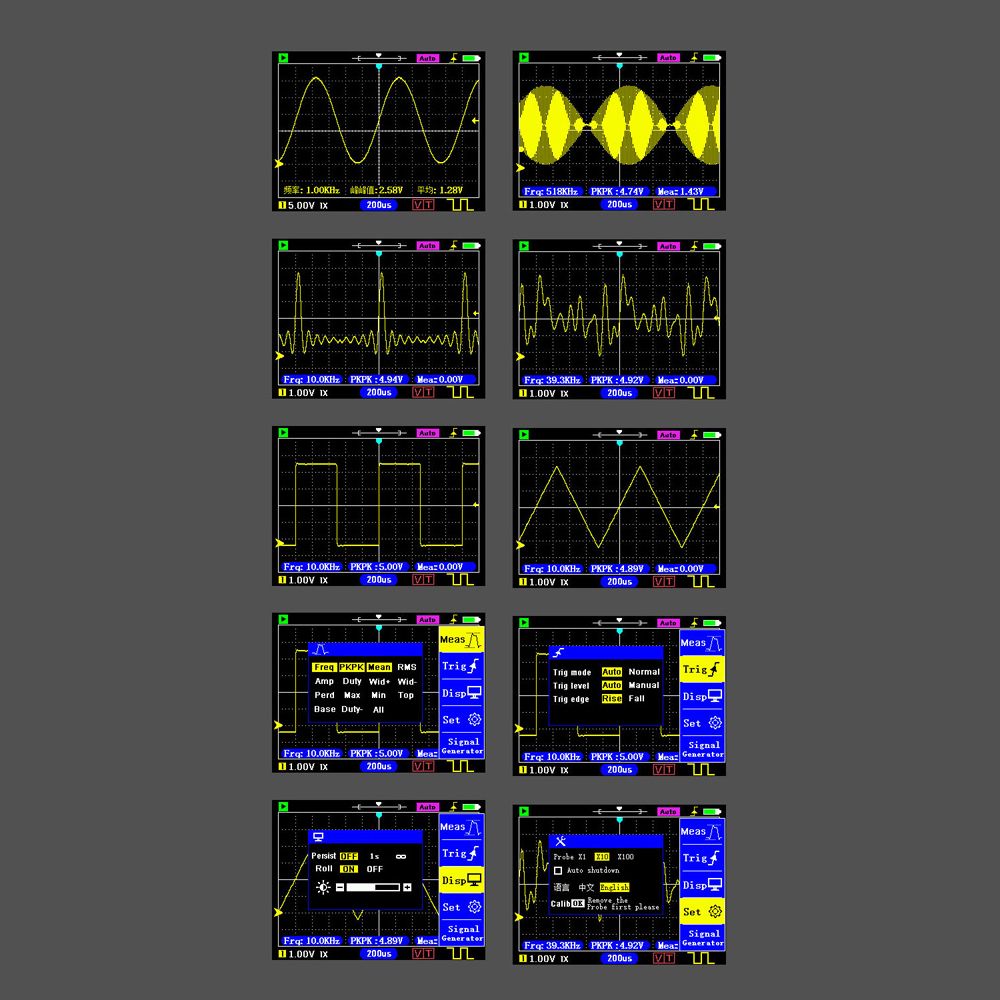

Rich and Powerful Features: One button for automatic adjustment, support for single trigger, support 14 measurement parameters, support for X100 high voltage probes.

Widely Applications: Suitable for mcu debugging, car repairing, home appliance repairing, DIY electronic competition, -supply debugging, inverter, etc.

Specicifations:

Name: Oscilloscope

Model: DS0154Pro

Material: ABS

Bandwidth: 1MHz/18MHz (Optional)

Battery: according to you selection

1M Bandwidth: no battery included

18M Bandwidth: 1 * built-in rechargeable lithium battery, 3.7V, 1000mAh (included)

Hardware solution: ARM+FPGA+ADC

Screen: 2.4 inch TFT LCD

Channel: 1

Resolution: 320*240

Sampling rate: 40MSa/s

Rise time:

Key Features

2.4 Inch TFT LCD Display: Equipped with 320x240 resolution color TFT LCD display, with bright colors and high contrast, you can see the data clearly.
High Practicality: ARM+FPGA+ADC architecture, with 40MSa/s sampling rate, more stable and with higher precisions.
2.4 Inch TFT LCD Display: Equipped with 320x240 resolution color TFT LCD display, with bright colors and high contrast, you can see the data clearly.
High Practicality: ARM+FPGA+ADC architecture, with 40MSa/s sampling rate, more stable and with higher precisions.
2.4 Inch TFT LCD Display: Equipped with 320x240 resolution color TFT LCD display, with bright colors and high contrast, you can see the data clearly.
High Practicality: ARM+FPGA+ADC architecture, with 40MSa/s sampling rate, more stable and with higher precisions.

What's In the Box

(1M Bandwidth Version):,1 x Oscilloscope,1 x Cable,1 x Bracket,1 x Guideline,
