TO1112C Rechargeable Portable Oscilloscope

₦ 1,631,558.35 ₦ 1,717,429.84 -5%

0 No Reviews

Product SKU: RENG405595

Brand: Hantek

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	N/A
Size (L x W x H cm)	31.50×23.50×10.50
Weight (kg)	1.90
Color	naturla

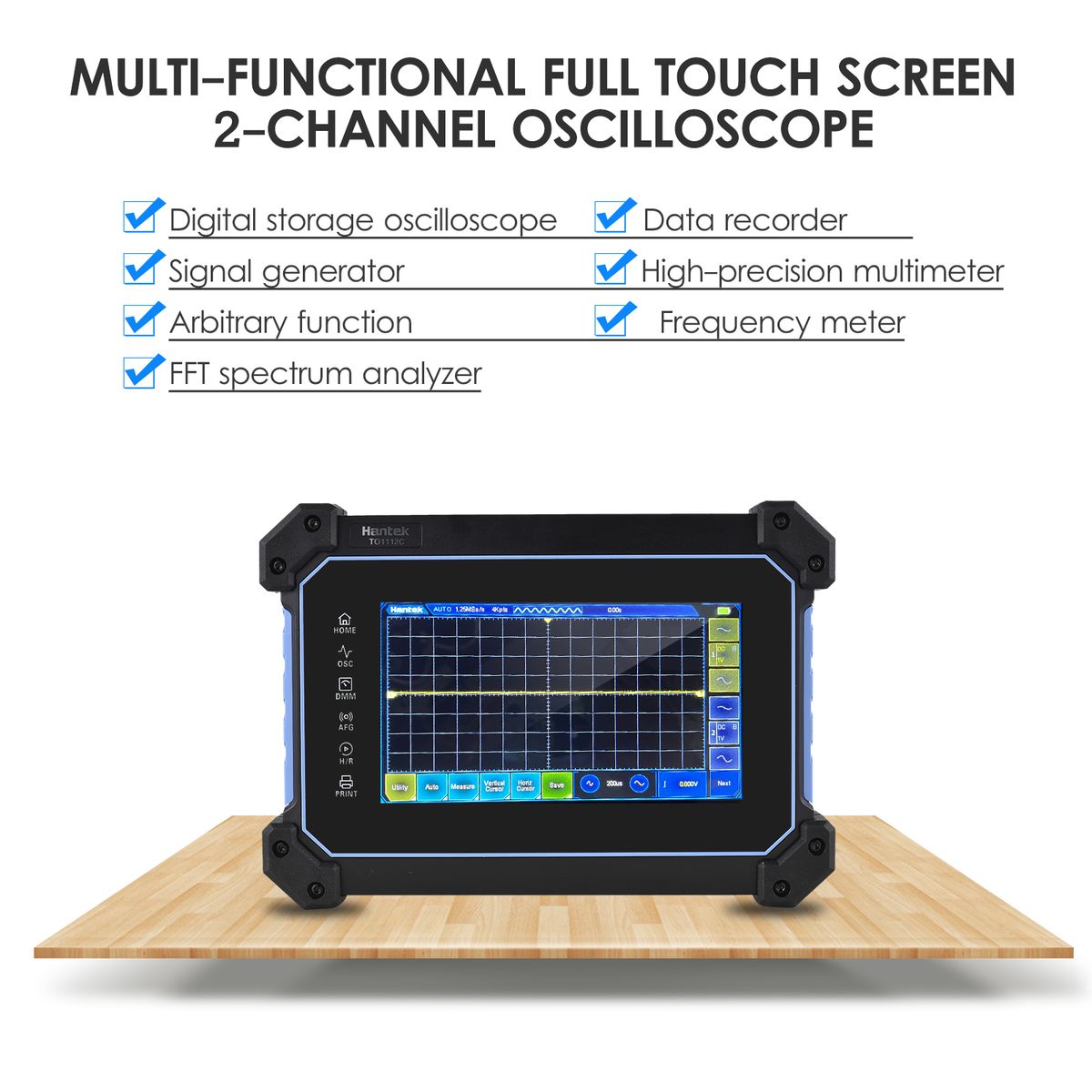

The multi-functional full touch screen oscilloscope has a thin body, light weight and is easy to carry. Unique hanging design, hands-free, anti falling and anti-seismic, sturdy and durable; It integrates oscilloscope, multimeter, signal generator and spectrum analyzer; Built in super large capacity battery, long endurance, support , and abundant .

Features:

Integrates Multiple Functions: digital storage oscilloscope, arbitrary function signal generator, high-precision multimeter, data recorder, frequency meter, FFT spectrum analyzer.

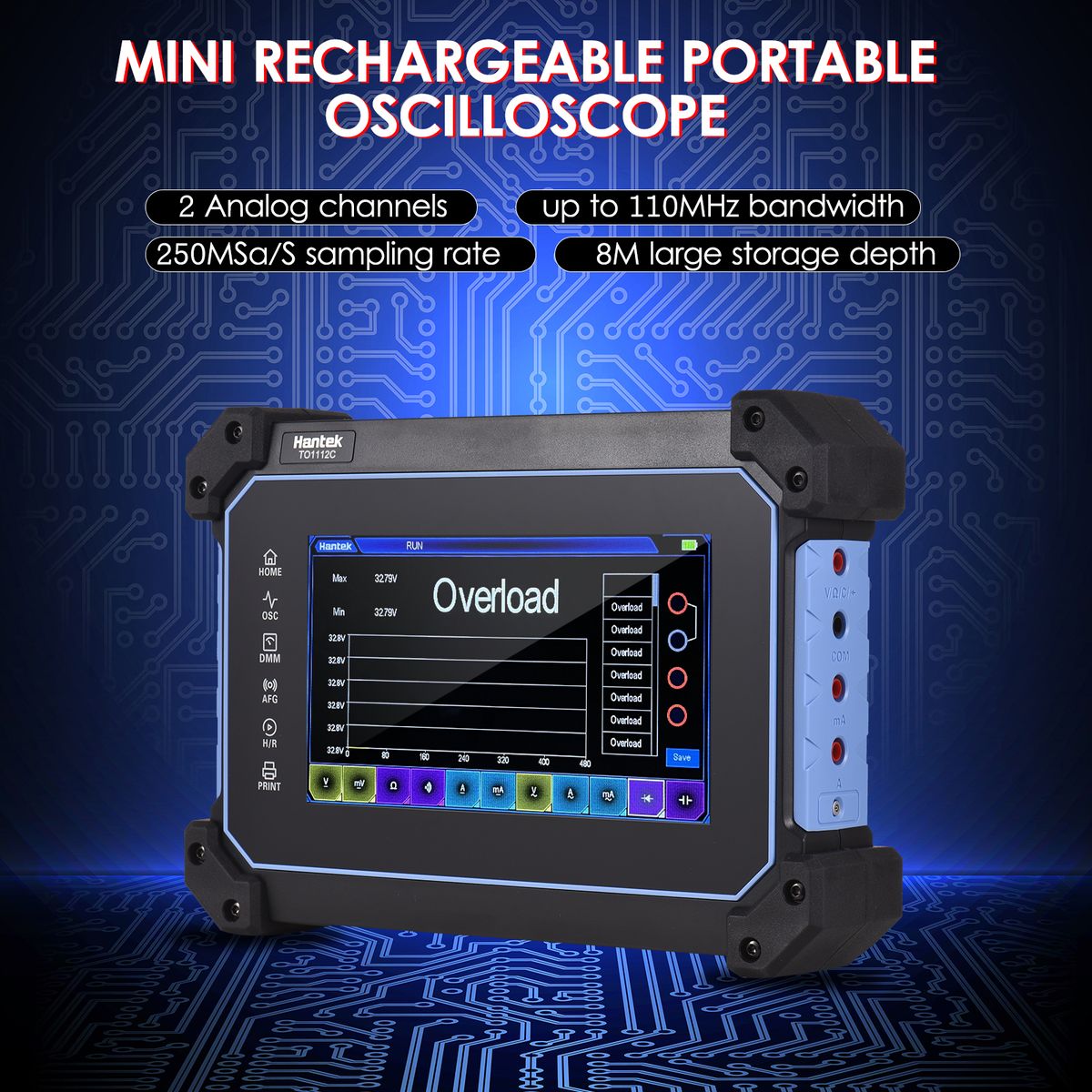

2-channel Digital Storage Oscilloscope: bandwidth up to 110MHz, 250MSa/s high sampling rate, 8M large storage depth; Edge, slope, pulse width, video, timeout and other triggers; Up to 42 measurement functions.

Function of Arbitrary Function Signal Generator: the highest output frequency reaches 25MHz, 12bit high resolution, 200Ms/s high sampling rate; Built in a variety of arbitrary waves, support AM/FM modulation, output high resistance and low resistance can be switched.

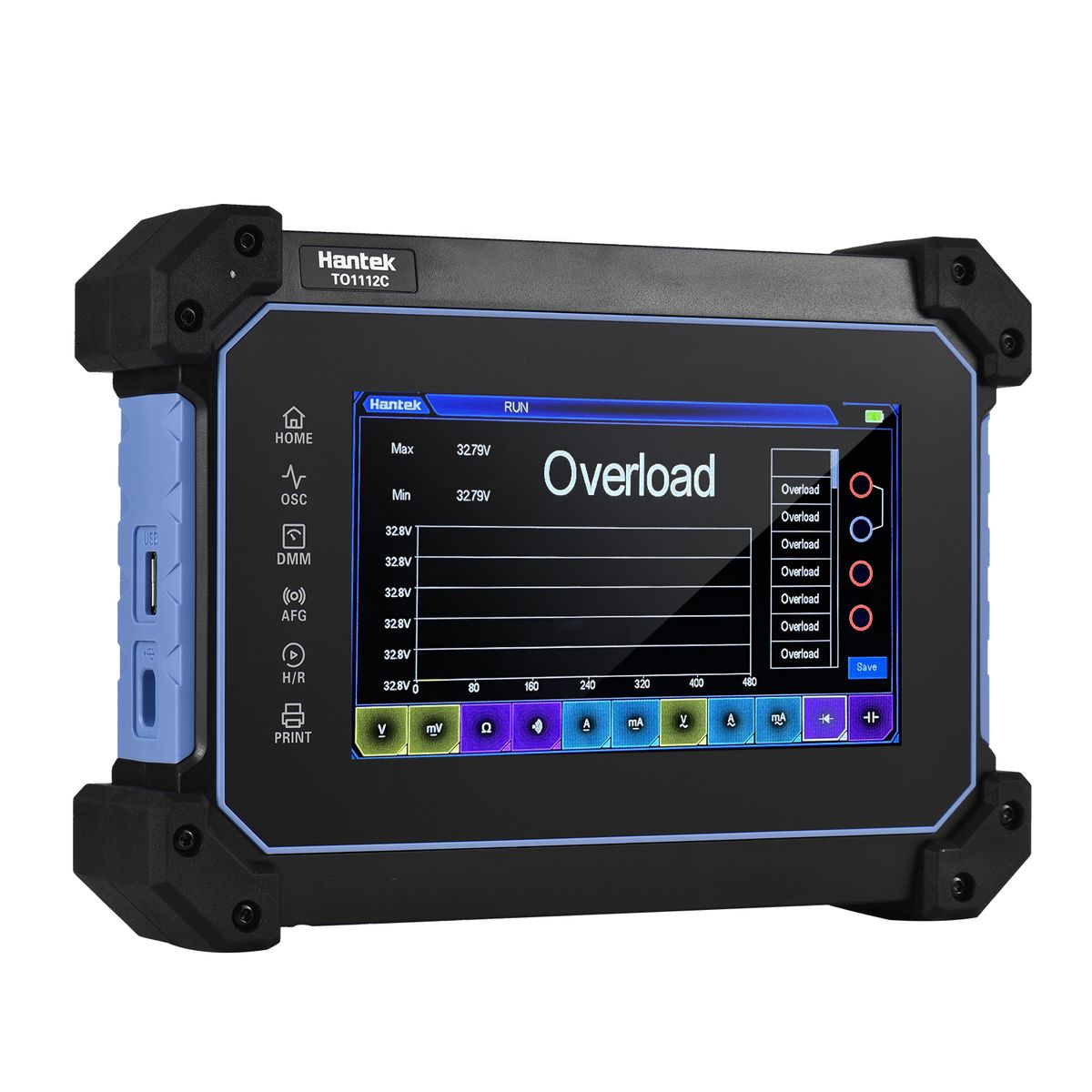

Digital Multimeter Function: AC and voltage, current, resistance, capacitance, diode, on-off measurement. The multimeter has its own data recording function, which can monitor and record the changes of voltage, current, resistance and other data for a long time and generate a trend chart.

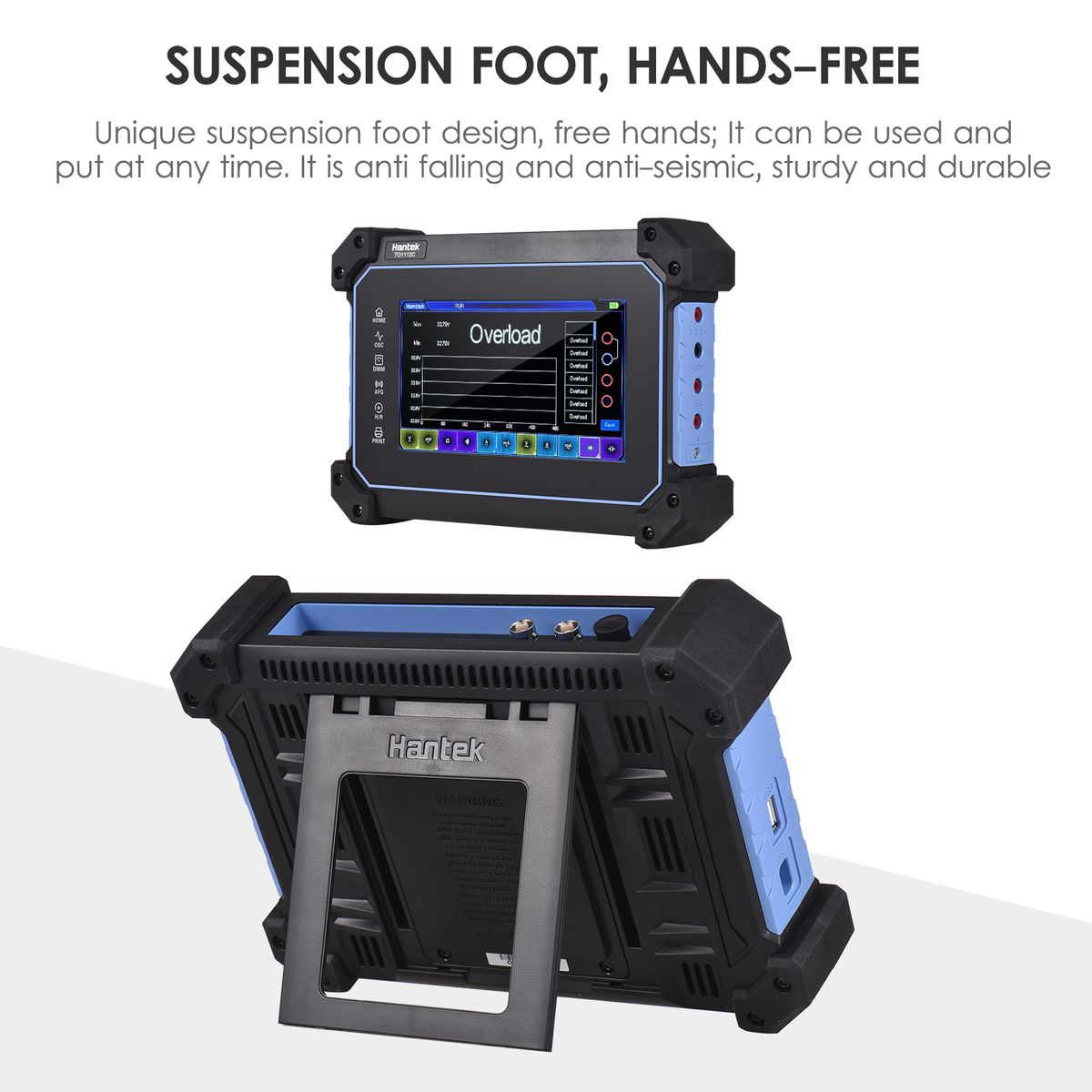

Suspension Foot, Hands-free: unique suspension foot design, free hands; It can be used and put at any time. It is anti falling and anti-seismic, sturdy and durable.

High and Long Endurance: built in high capacity detachable lithium battery, full , which has long endurance and standby time.

Support Multiple Protocols: standard 18W charger for ; The type-C interface is compatible with mobile phones and can share a set of equipment.

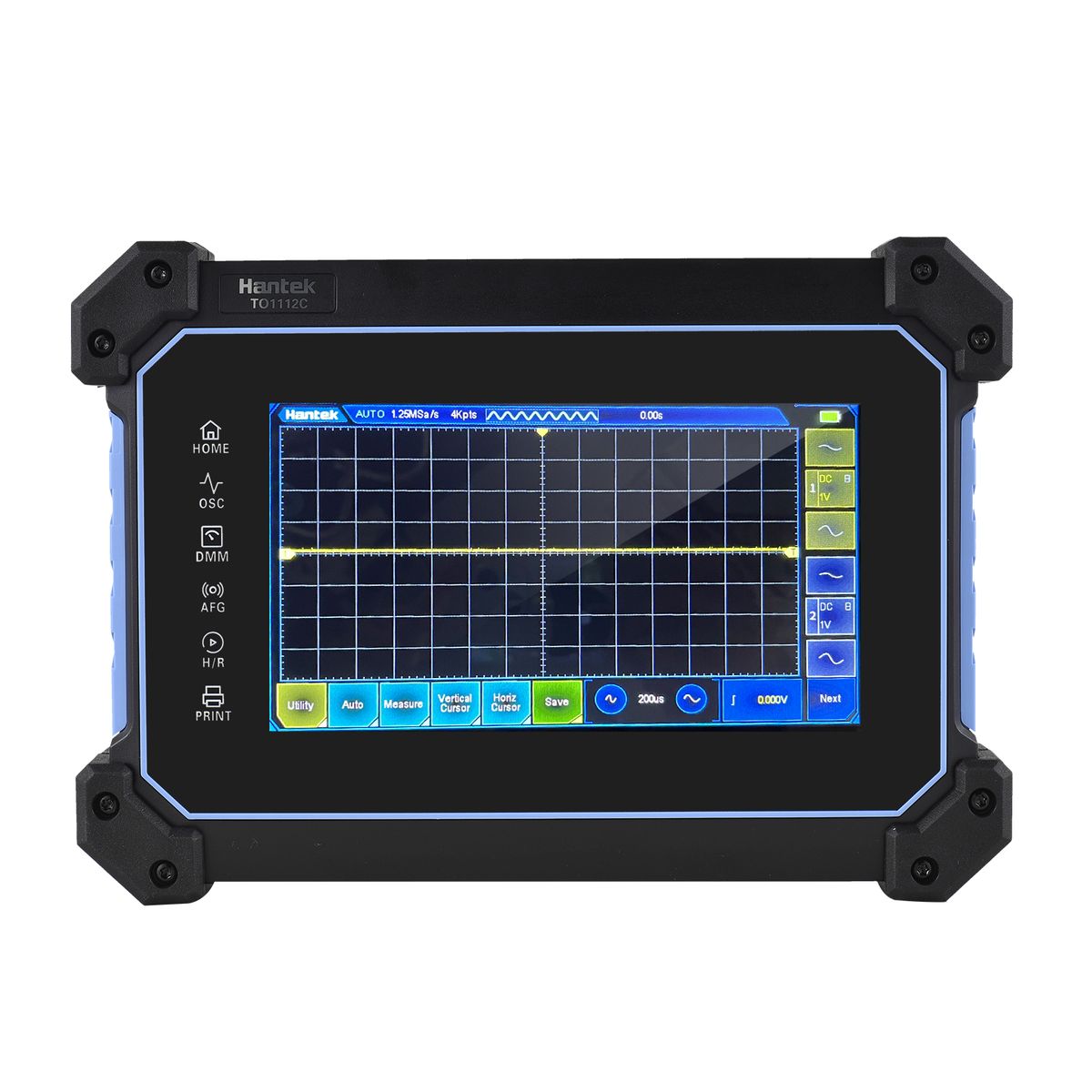

7 "TFT LCD Large Screen: super large touch screen, resolution up to 800*480, friendly and easy-to-use UI, good interaction experience.

Specifications:

Plug Type: EU / US (Optional)

Model: TO1112C / TO1112D (Optional)

TO1112C: None

TO1112D: 25MHz signal source

OSCILLOSCOPE:

Channel: 2 Analog channels

Bandwidth: 110MHz

Sampling Rate: 250MSa/S

Storage Depth: 8Mpts

Signal Source: 25MHz (TO1112D)

ARBITRARY WAVEFORM GENERATOR:

Channel Number: 1

Sampling Rate: 200MSa/s

Vertical Resolution: 12bit

The Highest Frequency: 25MHz

Standard Waveform: Sine wave, Square wave, Triangle wave, Noise,

Amplitude: 50Ω+2%

Wavelength: 4KSa

MULTIMETER:

Maximum Resolution: 4000 points

Measuring Method: Voltage, Current, resistance, capacitance, diode, on-off measurement

Maximum Input Voltage: AC: 600V; : 600V

Maximum Input Current: AC: 10A; : 10A

Input Impedance: 10MΩ

Voltage: 400mV/4V/40V/400V/600V

AC Voltage: 4V/40V/400V/600V

Current: 40mA/200mA/4A/10A

AC Current: 40mA/400mA/4A/10A

Resistance: 400Ω/4KΩ/60KΩ/400KΩ/4MΩ/40MΩ

Capacitance: 40nF/400nF/4μF/40μF/100μF

Diode: 0~1V

On off Measurement:

Key Features

Integrates Multiple Functions: digital storage oscilloscope, arbitrary function signal generator, high-precision multimeter, data recorder, frequency meter, FFT spectrum analyzer.
2-channel Digital Storage Oscilloscope: bandwidth up to 110MHz, 250MSa/s high sampling rate, 8M large storage depth; Edge, slope, pulse width, video, timeout and other triggers; Up to 42 measurement functions.
Function of Arbitrary Function Signal Generator: the highest output frequency reaches 25MHz, 12bit high resolution, 200Ms/s high sampling rate; Built in a variety of arbitrary waves, support AM/FM modulation, output high resistance and low resistance can be switched.
Digital Multimeter Function: AC and voltage, current, resistance, capacitance, diode, on-off measurement. The multimeter has its own data recording function, which can monitor and record the changes of voltage, current, resistance and other data for a long time and generate a trend chart.
Suspension Foot, Hands-free: unique suspension foot design, free hands; It can be used and put at any time. It is anti falling and anti-seismic, sturdy and durable.
High and Long Endurance: built in high capacity detachable lithium battery, full , which has long endurance and standby time.

What's In the Box

1 x Digital Oscilloscope,1 x 1X & 10X Oscilloscope Probe,1 x Alligator Clip Line,1 x Type-C Cable,1 x Plug,1 x Package of Accessory,2 x Multimeter Probe,1 x Zipper Case,
