200kHz Bandwidth Portable Handheld Oscilloscope Transistor

₦ 309,756.53 ₦ 326,059.50 -5%

0 No Reviews

Product SKU: RENG219793

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	Lepmerk
Production Country	China
Size (L x W x H cm)	14.00×12.50×5.50
Weight (kg)	0.35
Color	naturla
Main Material	Lepmerk

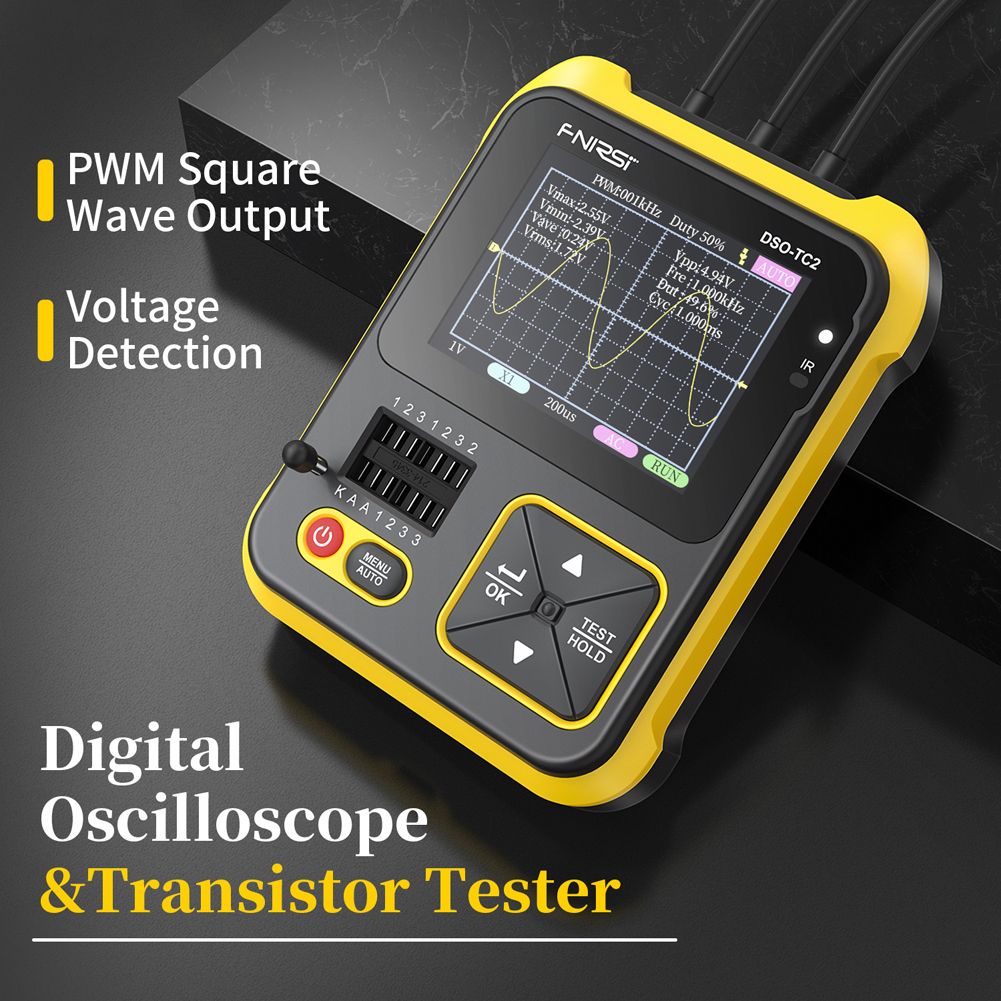

This product ingeniously integrates digital oscilloscope, electronic component tester, PWM signal generator and other functions into one. Equipped with large-size color dot matrix TFT display. Built-in rechargeable lithium battery. Bring more practical functions to users with a small size. If you are interested in this product, come and have a try, it will not let you down.

Features:

2 In 1 Function: This product ingeniously integrates digital oscilloscope, electronic component tester, PWM signal generator and other functions into one.

This product is especially suitable for pairing of transistors, identification of mixed surface mount and wordless components, and preliminary screening of small batch components.

The oscilloscope has a real-time sampling rate of 2.5MS/s and a 200kHz bandwidth.

With complete trigger function (Single, Normal, Automatic), it can be used freely for both periodic analogs signals and aperiodic digital signals.

Up to ±400V voltage signal can be measured, has a wide applications.

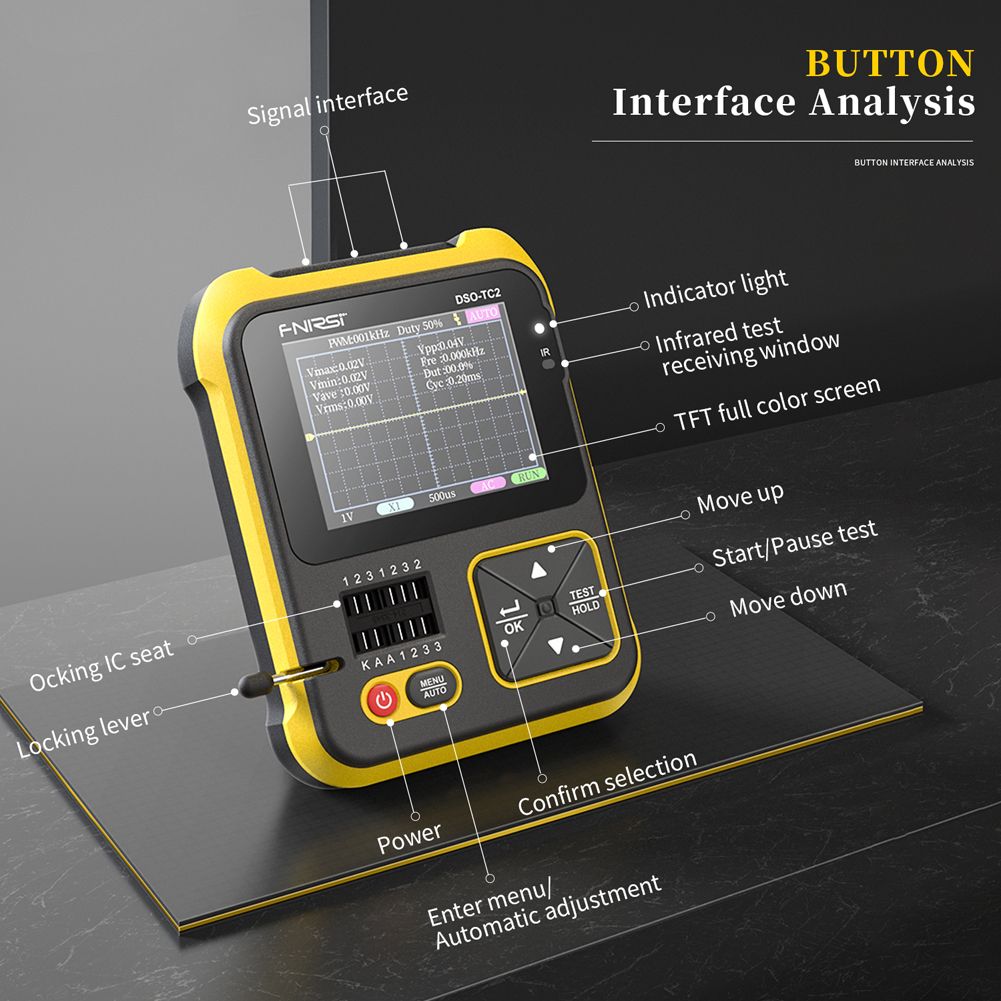

Equipped with efficient one-key AUTO, the measured waveform can be displayed without cumbersome adjustment.

Self-contained 80kHz /5.0V PWM waves test signal source with adjustable duty cycle.

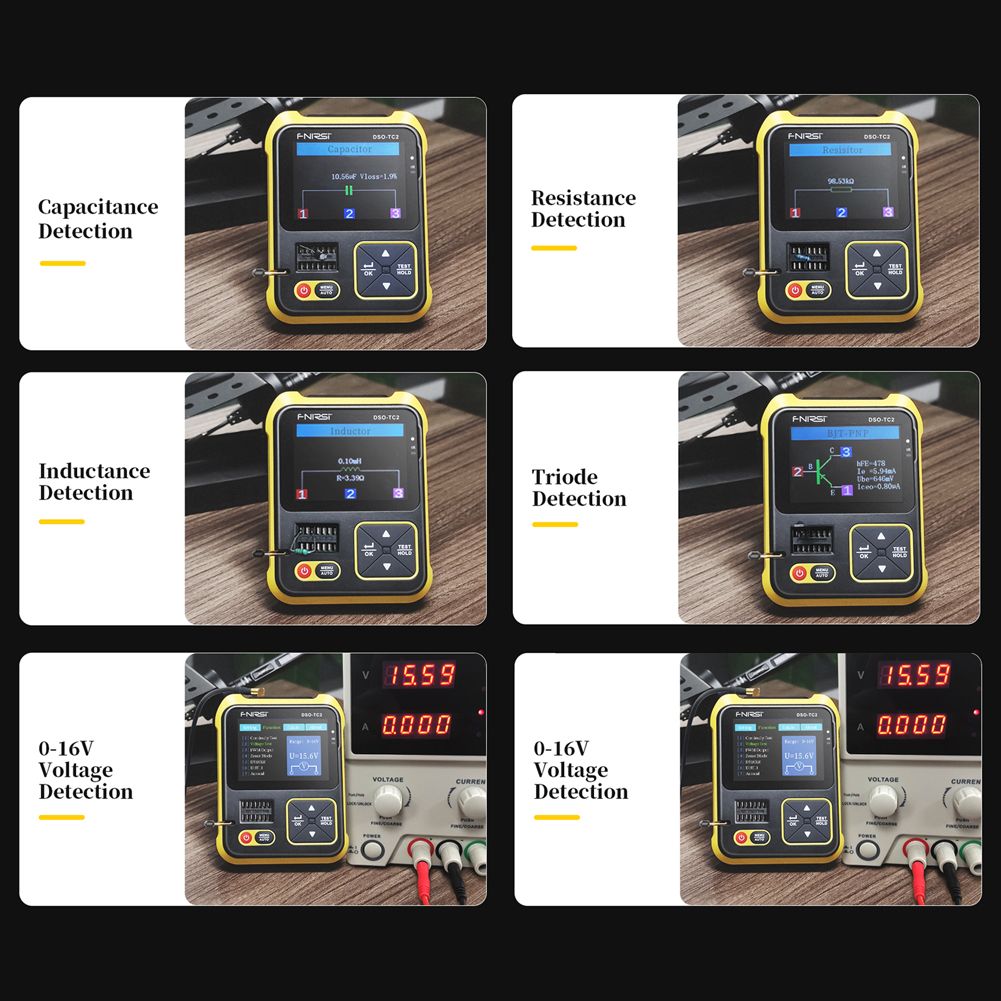

This instrument can automatically identify and measure various transistors. Including NPN transistors, N-channel and P-channel field effect transistors, junction field effect transistors, diodes, double diodes, thyristors, etc.,and passive component such as resistors, inductors, capacitors, etc

Automatic detection of pin definitions.

Specifications:

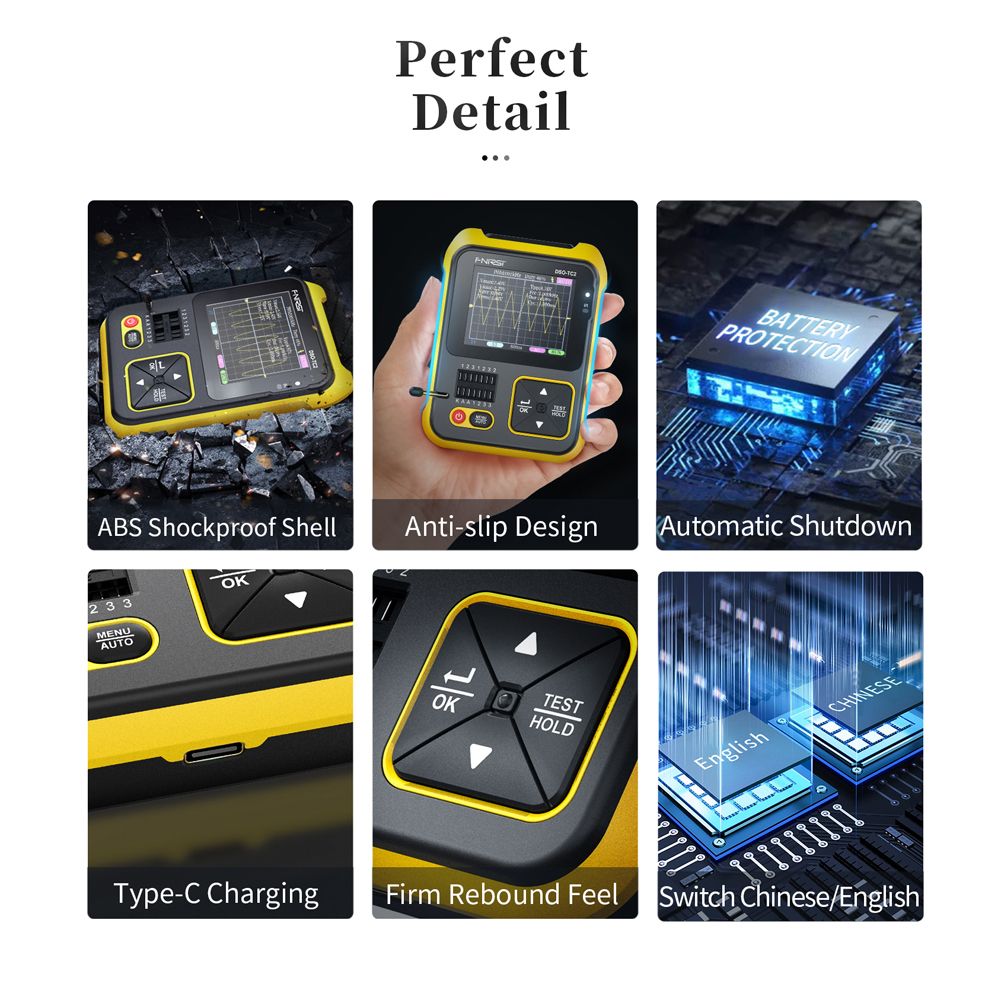

Material: ABS

Type: standard configuration, high configuration (optional)

Display: 2.4inch color screen with backlight

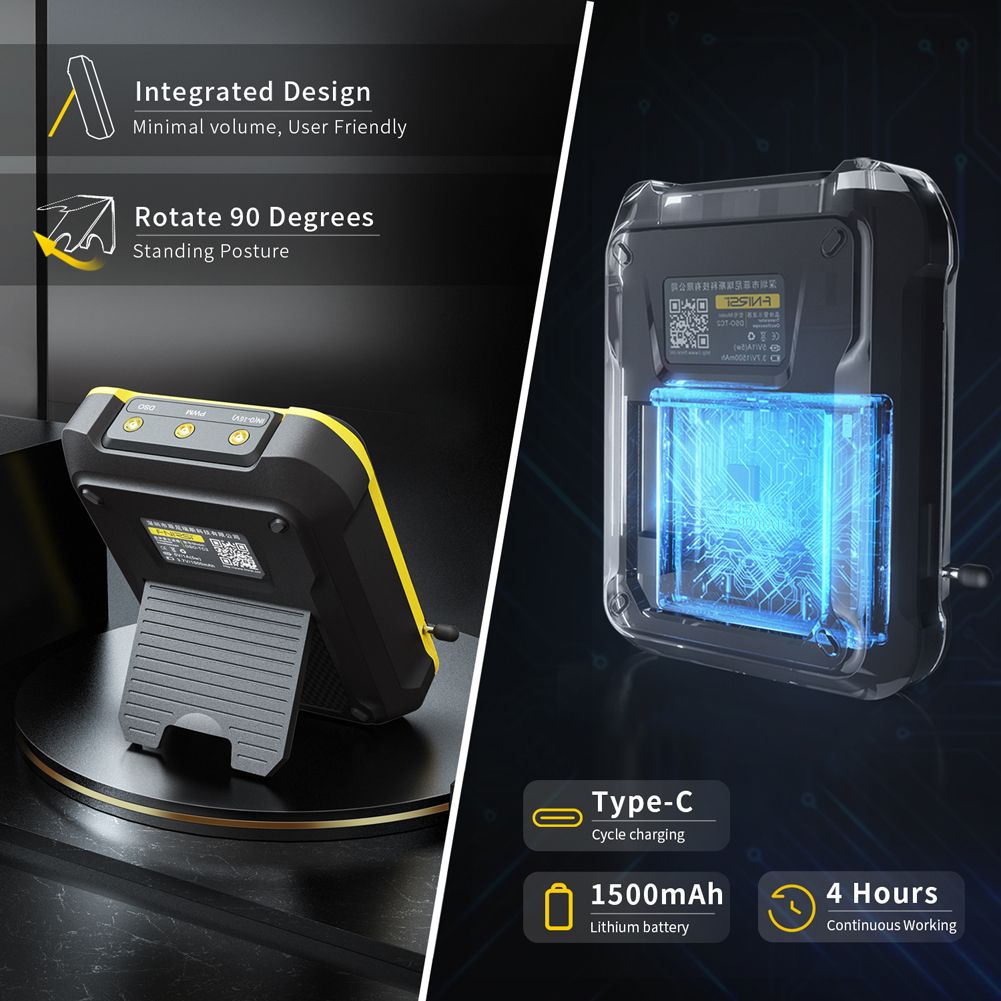

Battery: 1 * lithium battery, 1500mAh (included)

Recharging: USB Type-C, 5V

Package size: 140 * 125 * 55mm / 5.5 * 4.9 * 2.2in

Package weight:

Without adapter: 296.6g / 10.5ounce

With adapter: 345.6g / 12.2ounce

Oscilloscope Specifications:

Real-tim sample rate: 2.5MS/s

Anolog bandwidth: 0-200kHz

Input resistance: 1MΩ

Coupling: AC/Direct current

Test voltage ranges:

1:1 probe: 80Vpp (±40V)

10:1 probe: 800Vpp (±400V)

Vertical sensitivity: 10mV/Div~10V/Div(in 1-2-5 increments)

Vertical displacement: adjustable, with indication

Horizontal time base ranges: 10us/Div~500s/Div (in 1-2-5 increments)

Trigger mode: automatic, regular, single

Tigger type: rising edge. falling edge

Trigger level: adjustable, with indication

Waveform freeze: yes (HOLD function)

Automatic measurement: maximum, minimum, average, rms, peak-to-peak, frequency, period, duty cycle

PWM output: FRQ: 0~80KHz, duty cycle: 0~100%, amplitude: 5.0V

Electronic Component Tester Specifications:

Capacitance measuring ranges: 25pF~100mF(capacitance value, loss factor Vloss)

Resistance measuring ranges: 0.01Ω~50MΩ

Inductance measuring ranges: 10uH~1000uH

Battery measuring ranges: 0.1~4.5V

Input voltage: 0~16V

PWM output: 1.5KHz~9.99MHz

Packing list (standard configuration):

1 * Tester

1 * Type-C Cable

3 * Test Hook

1 * Probe

Packing list (high configuration):

1 * Tester

1 * P6100 High Voltage Probe

1 * Type-C Cable

3 * Test Hook

1 * Probe

Key Features
