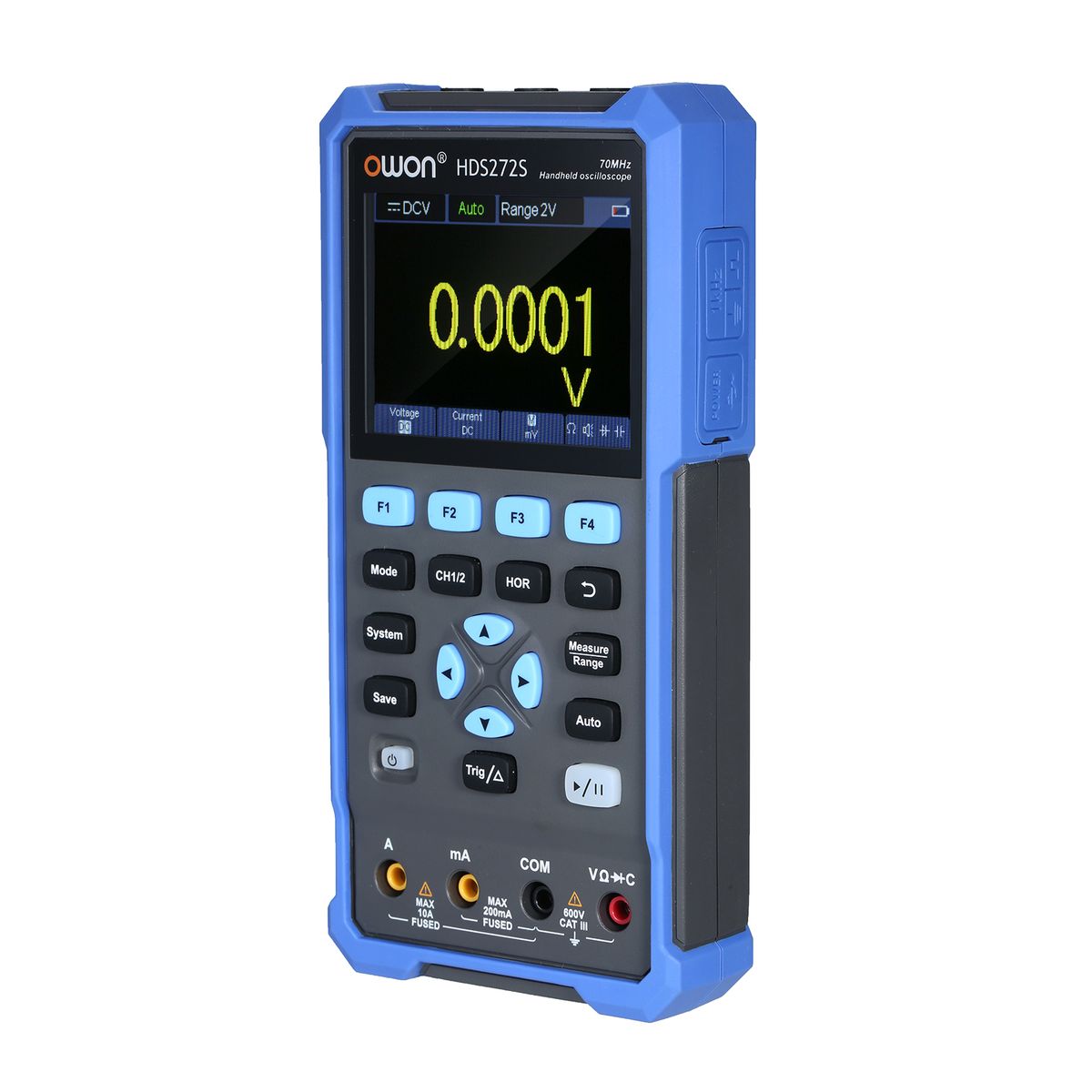

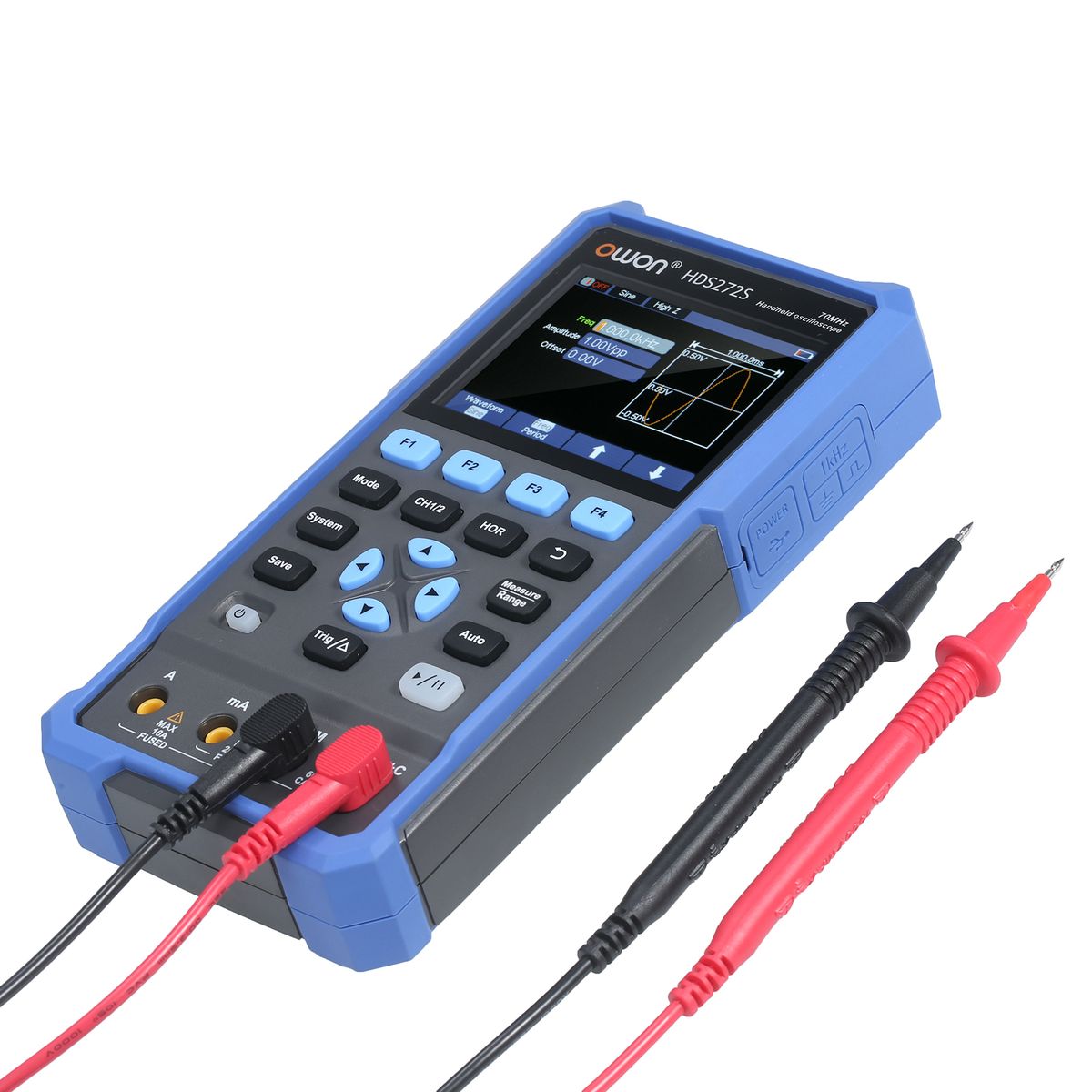

Oscilloscope Multimeter Waveform Generator HDS272S 2CH

₦ 810,501.17 ₦ 853,159.13 -5%

0 No Reviews

Product SKU: RENG375334

Brand: Owon

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	Owon
Size (L x W x H cm)	21.00×15.00×5.00
Weight (kg)	1.13
Color	Blue

Features:

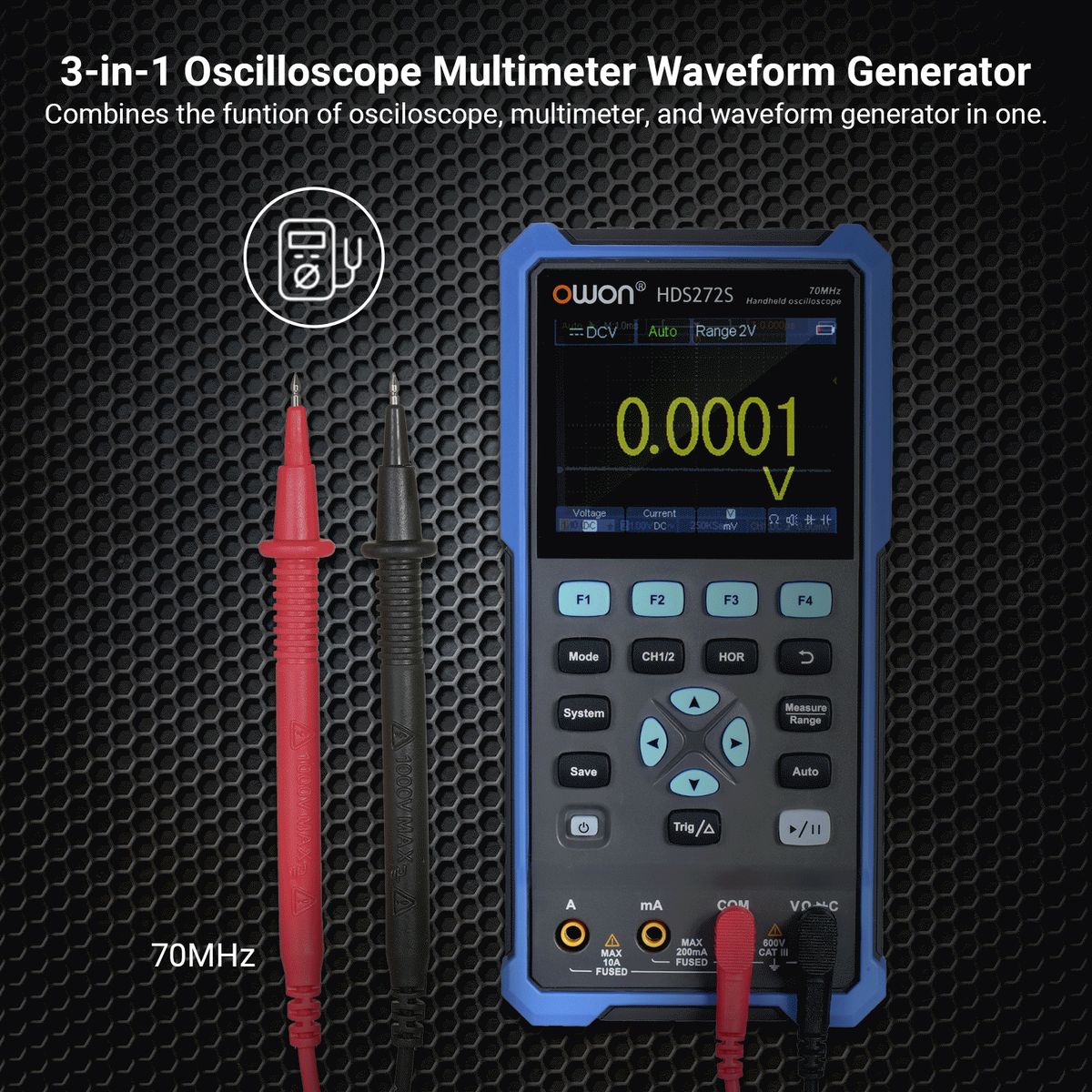

Versatile Handheld Test Instrument -- Handheld Oscilloscope Function + Digital Multimeter Function + Waveform Generator, 3-in-1 integrated multifunctional handheld test instrument. One key switch easy to operation, compact size with stand bracket suit for outdoor maintenance, rapod on-site measurement, automobile maintenance, detection, etc.

Ergonomic Design -- 3.5-inch high-resolution, high-contrast color LCD display; High reliability with self-calibration function; SCPI supported through USB Type-C interface you can analyze and print data from the oscilloscope. 2pcs 2200mAh 18650 lithium battery, less then 3W consumption can work continuously for about 6 hours; Included USB Type-C cable for convenient .

Digital Oscilloscope Main Function -- 2-channel input, 70MHz bandwidth, 250MSa/s real-time sampling rate, Max 8k record length. Cursor measurement function; Multiple auto measurement functions; XY function; One key auto set function, easy to detect and debug.

Digital Handheld Multimeter -- Auto ranging 20000 counts true RMS multimeter with hold function can be used to measure standard voltage, current, resistance, diode, capacitance and continuity test, easy to detect and debug. Max AC 750V, 1000V input voltage; Independent input of multimeter and oscilloscope support relative measurement function.

Waveform Generator -- Max 25MHz frequency output, 0.1Hz resolution; 14-bit vertical resolution, 125MSa/s high sampling rate; 8K waveform length, Max 5Vpp output amplitude. Output sine, square, ramp, pulse and built-in special waveforms.

Specification:

Brand: OWON

Model: HDS272S

Function: Oscilloscope + Multimeter + Waveform Generator

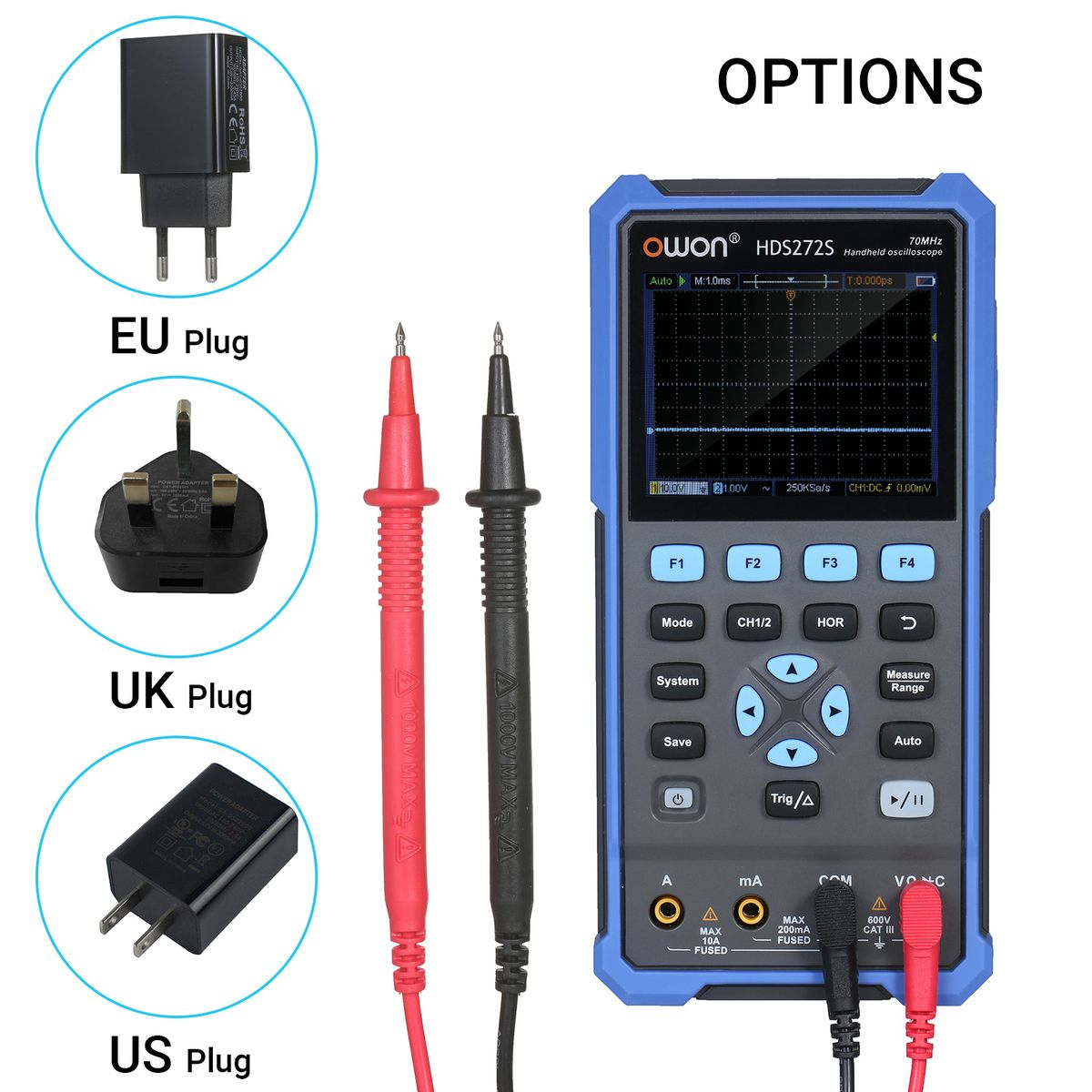

Plug: US/EU/UK (optional)

Battery: 2 * 2200mAh 18650 Lithium Battery

Method: USB Type-C

Product Size: 198*96*38mm

Product Weight: Approx. 0.6kg (main device, without battery)

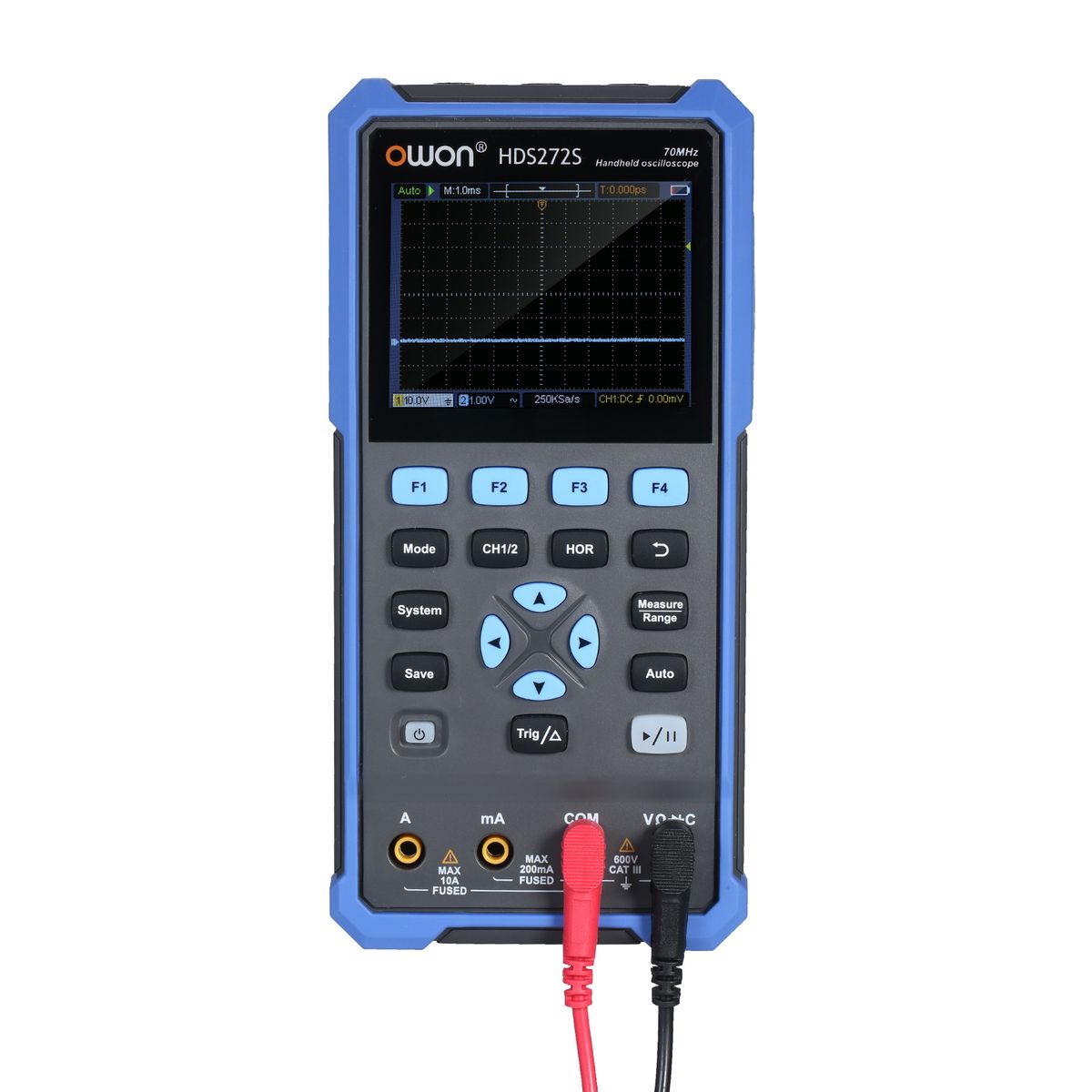

Oscilloscope Specifications:

Bandwidth: 70MHz

Bandwidth Limit (typical): 20MHz

Channels: 2-CH Oscilloscope + 1-CH Generator

Sample Rate: 250MSa/s

Record Length: 8K

Vertical Resolution: 8 bits

Acquisition Model: Normal, Peak detect

Display: 3.5-inch LCD

Waveform Refresh Rate: 10,000 wfrms/s

Input Coupling: , AC, and Ground

Input Impedance: 1 MΩ±2%, in parallel with 16pF±10pF

Probe Attenuation Factors: 1X,10X,100X,1000X

Max. input Voltage: 400V (+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation)

Horizontal Scale: 5ns/div - 500s/div, step by 1 - 2 - 5

Vertical Sensitivity: 10mV/div - 10V/div

Trigger Type: Edge

Trigger Modes: Auto, Normal, single

Automatic Measurement: Frequency, Period, Amplitude, Max, Min, Mean, PK-PK

Communication Interface: USB Type-C

Multimeter (Standard):

Max. Resolution: 20,000 counts

Testing Mode: Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test

Input Impedance: 10MΩ

Max Input Voltage: AC 750V, 1000V

Max Input Current: : 10A AC: 10A

Diode: 0 - 2V

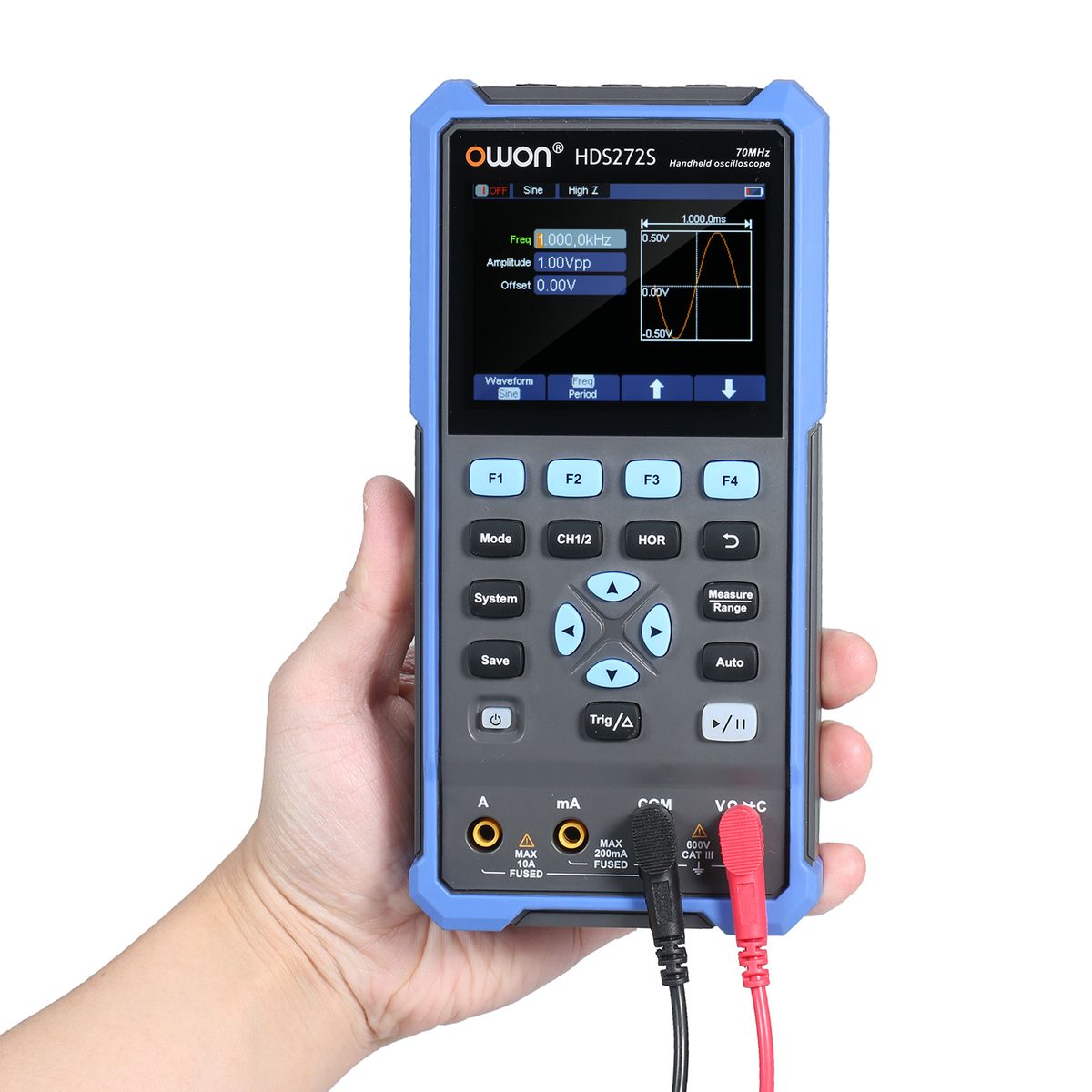

Waveform Generator:

Channel: 1-CH

Vertical Resolution: 14bits

Waveform Length: 8K

Sampling Rate: 125MSa/s

Frequency Output:

Sine: 0.1Hz - 25MHz

Square: 0.1Hz - 10MHz

Ramp: 0.1Hz - 1MHz

Pulse: 0.1Hz - 5MHz

Arbitrary: 0.1Hz - 5MHz

Amplitude Range: 20mVpp-5Vpp

Output Impedance: 50Ω

Packing List:

1 * Handheld Digital Oscilloscope Multimeter

1 * Quick Guide

1 * USB Cable

1 * Probe Adjust

1 * Multimeter Lead

1 * Soft Bag

1 * Bolt Driver

1 * Probe

1 * BNC to Alligator Clip

Key Features

Versatile Handheld Test Instrument -- Handheld Oscilloscope Function + Digital Multimeter Function + Waveform Generator, 3-in-1 integrated multifunctional handheld test instrument. One key switch easy to operation, compact size with stand bracket suit for outdoor maintenance, rapod on-site measurement, automobile maintenance, detection, etc.
Ergonomic Design -- 3.5-inch high-resolution, high-contrast color LCD display; High reliability with self-calibration function; SCPI supported through USB Type-C interface you can analyze and print data from the oscilloscope. 2pcs 2200mAh 18650 lithium battery, less then 3W consumption can work continuously for about 6 hours; Included USB Type-C cable for convenient .
Digital Oscilloscope Main Function -- 2-channel input, 70MHz bandwidth, 250MSa/s real-time sampling rate, Max 8k record length. Cursor measurement function; Multiple auto measurement functions; XY function; One key auto set function, easy to detect and debug.
Digital Handheld Multimeter -- Auto ranging 20000 counts true RMS multimeter with hold function can be used to measure standard voltage, current, resistance, diode, capacitance and continuity test, easy to detect and debug. Max AC 750V, 1000V input voltage; Independent input of multimeter and oscilloscope support relative measurement function.
Waveform Generator -- Max 25MHz frequency output, 0.1Hz resolution; 14-bit vertical resolution, 125MSa/s high sampling rate; 8K waveform length, Max 5Vpp output amplitude. Output sine, square, ramp, pulse and built-in special waveforms.
Versatile Handheld Test Instrument -- Handheld Oscilloscope Function + Digital Multimeter Function + Waveform Generator, 3-in-1 integrated multifunctional handheld test instrument. One key switch easy to operation, compact size with stand bracket suit for outdoor maintenance, rapod on-site measurement, automobile maintenance, detection, etc.

What's In the Box

1 x Handheld Digital Oscilloscope Multimeter,1 x Quick Guide,1 x USB Cable,1 x Probe Adjust,1 x Multimeter Lead,1 x Soft Bag,1 x Bolt Driver,1 x Probe,1 x BNC to Alligator Clip
