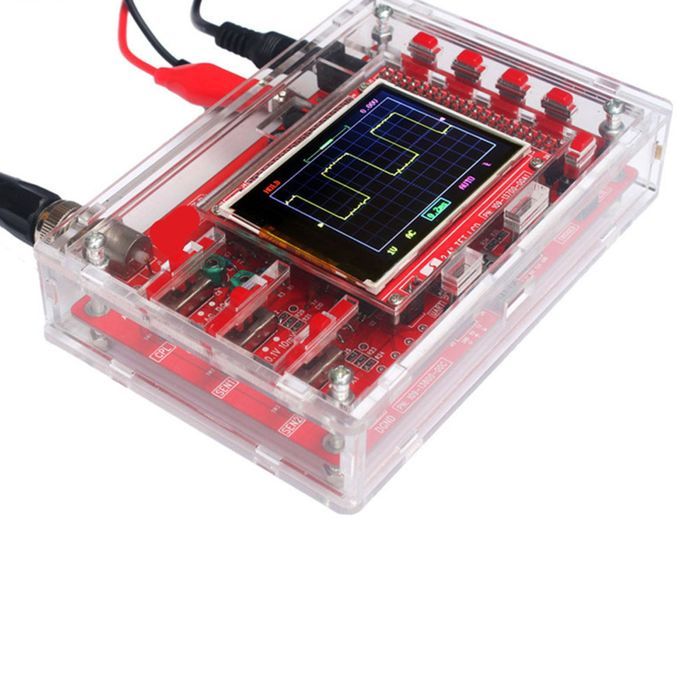

Digital Oscilloscope Acrylic Case SMD Soldered DIY Kit

₦ 140,800.03 ₦ 148,210.56 -5%

0 No Reviews

Product SKU: RENG233173

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	JAVANLINCJ437102
Production Country	China
Size (L x W x H cm)	27 x 22 x 5
Weight (kg)	0.6
Certifications	Organic
Color	multicolor
Main Material	1
From the Manufacturer	1
Care Label	1

Dear customers, welcome to my store. We are an online store where you can purchase all your electronics, home appliances, kiddies items, fashion items for men, women, and children; cool gadgets, groceries, automobile parts, and more on the go. Our store is a star store dedicated to creating high-quality and practical products, allowing you to enjoy a better lifestyle. Your support is our greatest driving force. All the goods in our store are sold at the lowest price, and the quality is guaranteed. If you need it, please rest assured to buy, we will provide you with a comfortable shopping experience every time. As well we are launching new products every day, please follow our store and pay more attention, you will get the information of our latest products as soon as possible. Clicking on the seller information to enter our store to buy what you needs, after placing an order, we will deliver the goods for you at the frist time. Thank you and have a nice day!

Description :

Digital DIY Oscilloscope Kit uses ARM Cortex - M3 processor ( STM32F103C8 ), 2 . 4 - inch color TFT display screen can be used as ARM test development board . Can freeze at any time waveform display ( HOLD function ). Comes 1Hz / 3 . 3V square wave test signal source .
Can be secondary development on the basis of this kit , for example , it can be changed to Millivoltmeter , data loggers . Adjustable vertical displacement , and with instructions .
With automatic , regular and one - shot modes , easy to capture the moment waveform . Available rising or falling edge . Observable
With waveform parameter digital display , including frequency , period , pulse width , duty ratio , MAX ./ MIN ./ AVG ./ Peak - Peak / virtual values . Waveform storage function : will not lose the waveform after power off .
Short - circuit and open - circuit detection : can help the user find out the error . TFT controller recognition function . The SMD has been soldered , more suitable for electronic beginner .

Specification :

Maximum Real - time Sampling Rate : 1Msps
Accuracy : 12Bit
Sampling Buffer Depth : 1024 bytes
Analog : 0 - 200KHz
Vertical Sensitivity : 10mV / Div - 5V / Div ( 1 - 2 - 5 progressive manner )
Input Impedance : 1M
Maximum Input Voltage : 50Vpp ( 1 : 1 probe ), 400Vpp ( 10 : 1 probe )
Coupling Modes : DC / AC / GND
The Horizontal Time Base Range : 10 μ s / Div - 50s / Div ( 1 - 2 - 5 progressive manner )
Supply Voltage : DC 9V

Size Chart :

Approx . 117x76mm / 4 . 6x2 . 99inch

Package Includes :

1 Piece DIY Cover
1 Piece DSO Oscilloscope Kit ( The DIY kit is soldered )
1 Piece Probe
3 Piece User Manual ( English )

Acrylic Oscilloscope Case;DIY Oscilloscope Kit Opening Source;Digital Oscilloscope Kit with DIY Parts Probe;Handheld Pocket Sized 13803K SMD Kits;Acrylic DIY Case Cover Shell Oscilloscope Accs;Handheld Pocket Electronic Learning Set

a a a a a

Key Features

Digital DIY Oscilloscope Kit uses ARM Cortex-M3 processor (STM32F103C8), 2.4-inch color display screen can be used as ARM test development board. Can freeze at any time waveform display (HOLD function).Comes 1Hz /3.3V square wave test signal source.
Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.Adjustable vertical displacement, and with instructions.
With automatic, regular and one-shot modes, easy to the moment waveform.Available rising or falling edge trigger.Observable
With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.Waveform storage function: will not lose the waveform after power off.
Short-circuit and open-circuit detection: can help the user find out the error. controller recognition function.The SMD has been soldered, more suitable for electronic beginner.
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale

What's In the Box

1 Piece DIY Cover1 Piece DSO Oscilloscope Kit(The DIY kit is soldered)1 Piece Probe3 Piece User Manual(English)
