Buy Compact Portable Digital Oscilloscope 50M Sampling Rate

Compact Portable Digital Oscilloscope 50M Sampling Rate 10M

₦ 125,017.51 ₦ 131,597.38 -5%

0 No Reviews

Product SKU: RENG184983

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Size (L x W x H cm)	23.00×16.00×5.00
Weight (kg)	0.36
Color	Multicolor

Dual channel oscilloscope with 50M sampling rate, 2MHz actual bandwidth, and 10MHz analog bandwidth. With complete trigger functions (single, normal, automatic), both periodic analog signals and non-periodic digital signals can be freely used. Waveform measurement display function, 3.2-inch LCD display, 320 * 240 resolution, three display modes design, you can easily adjust to dual-channel oscilloscope mode, XY model, and current waveform display. 6A current waveform measurement, 20K storage depth, support waveform compression expansion. With multiple expansion functions, and support firmware upgrades.

Features:

Dual channel oscilloscope with 50M sampling rate, 2MHz actual bandwidth, and 10MHz analog bandwidth.

With complete trigger functions (single, normal, automatic), both periodic analog signals and non-periodic digital signals can be freely used.

Wide measurement ranges design, supports measurement of voltage signals up to ±400V.

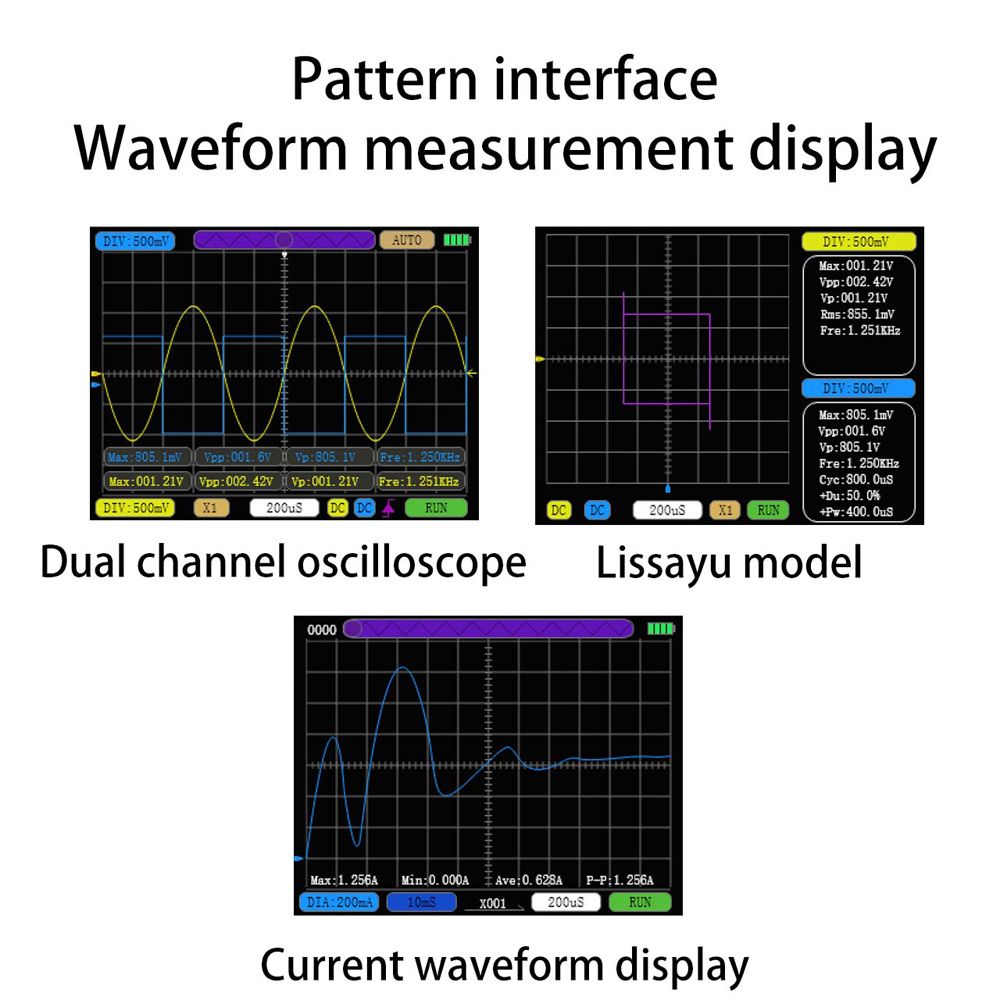

Waveform measurement display function, 3.2-inch LCD display, 320 * 240 resolution, three display modes design, you can easily adjust to dual-channel oscilloscope mode, XY model, and current waveform display.

Equipped with efficient one-button AUTO, without cumbersome adjustment to display the measured waveform.

6A current waveform measurement, 20K storage depth, support waveform compression expansion.

Current waveform stepless compression, the maximum compression times 165 times, can be compressed arbitrarily to display the current change curve.

Later expansion function, USB one-line connection, realize one machine multi-purpose.

Support firmware upgrade, in the oscilloscope machine built-in hardware allows the premise, you can put forward your needs, which can be unlimited upgrades.

Diversified use, the use of a wider ranges of areas, home appliance repairs, cellphone repairs, automotive repairs, electronic interest in DIY research and development, source repairs, and so on.

Specifications:

Name: Digital Oscilloscope

Material: plastics+metal

Type: host + USB cable + 2pcs Alligator cable, host + USB cable + Alligator cable + high voltage probe, host + USB cable + 2pcs high voltage probes (optional)

Battery: 1 * 2500mAh battery (included)

Sampling rate: 50M/Channels

Channels: 2

Analog bandwidth: 10MSa/S/Channels

Actual bandwidth: 2MSa/S/Channels

Measured voltage: X1/±40V, X10/±400V

Input impedance: 1ΜΩ

Storage depth: 20Kb

Parameter display: 12

Current ranges: 0-6A

Minimum precisions: 2mA

Sampling rate: 2.5KSa/S

Reveal: 3.2" LCD

Resolution: 320*240

voltage: 5V

Working hours: 4.5-6h

Upper computer: To be updated

Firmware upgrade: Support

Item size: 120 * 66 * 18.5mm / 4.72 * 2.60 * 0.73in

Package size: 230 * 160 * 50mm / 9.06 * 6.30 * 1.97in

Package weight:

Host + USB cable + 2pcs Alligator cable: 356.1g / 12.56ounce

Host + USB cable + Alligator cable + high voltage probe: 379.5g / 13.39ounce

Host + USB cable + 2pcs high voltage probes: 392.2g / 13.83ounce

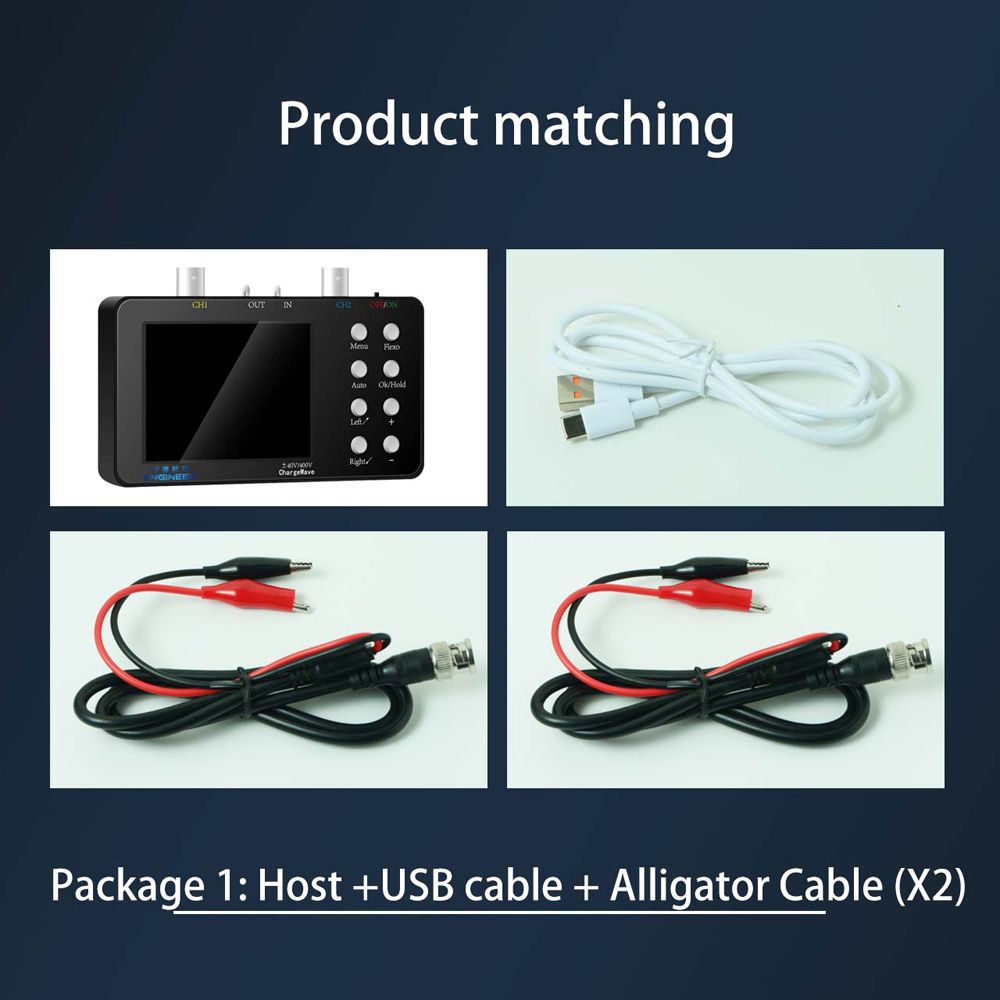

Packing List (Host + USB cable + 2pcs Alligator cable):

1 * Digital Oscilloscope

1 * USB Cable

2 * Alligator Cable

OR

Packing List (Host + USB cable + Alligator cable + high voltage probe):

1 * Digital Oscilloscope

1 * USB Cable

1 * Alligator Cable

1 * High Voltage Probe

OR

Packing List (Host + USB cable + 2pcs high voltage probes):

1 * Digital Oscilloscope

1 * USB Cable

2 * High Voltage Probe

Key Features

What's In the Box

(Host + USB cable + 2pcs Alligator cable):,1 x Digital Oscilloscope,1 x USB Cable,2 x Alligator Cable,
