Specifications:
The low noise amplifier module has a high gain and can provide very low noise over a wide frequency range.
The module enables communication effect between the receiver and the transmitter.
The amplifier works with a single + 5V power supply.
Good stability, large dynamic range and wide operating frequency range.
Suitable for fixed gain amplification of various RF signals.

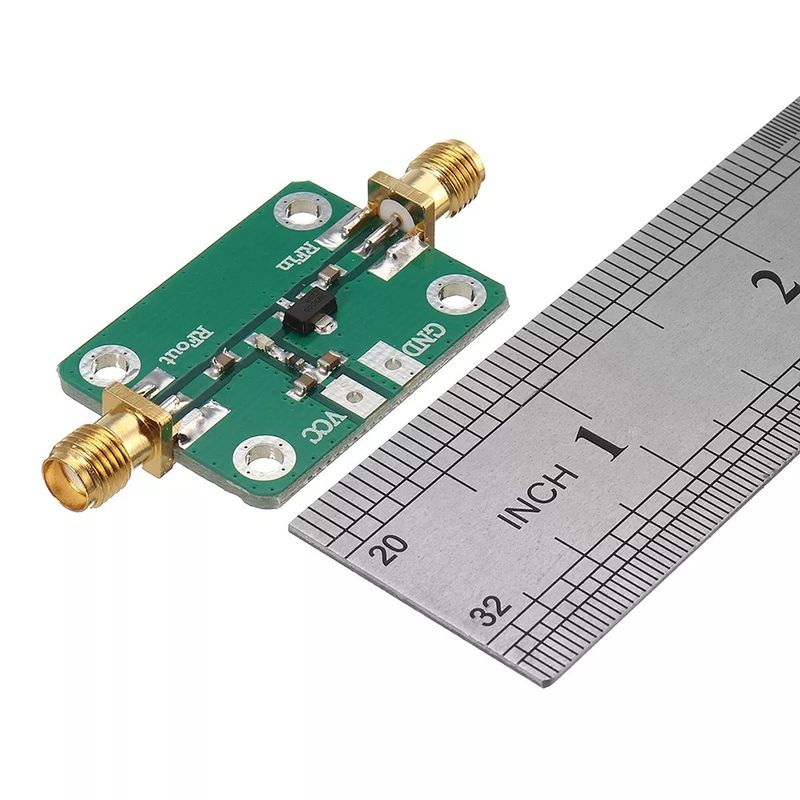

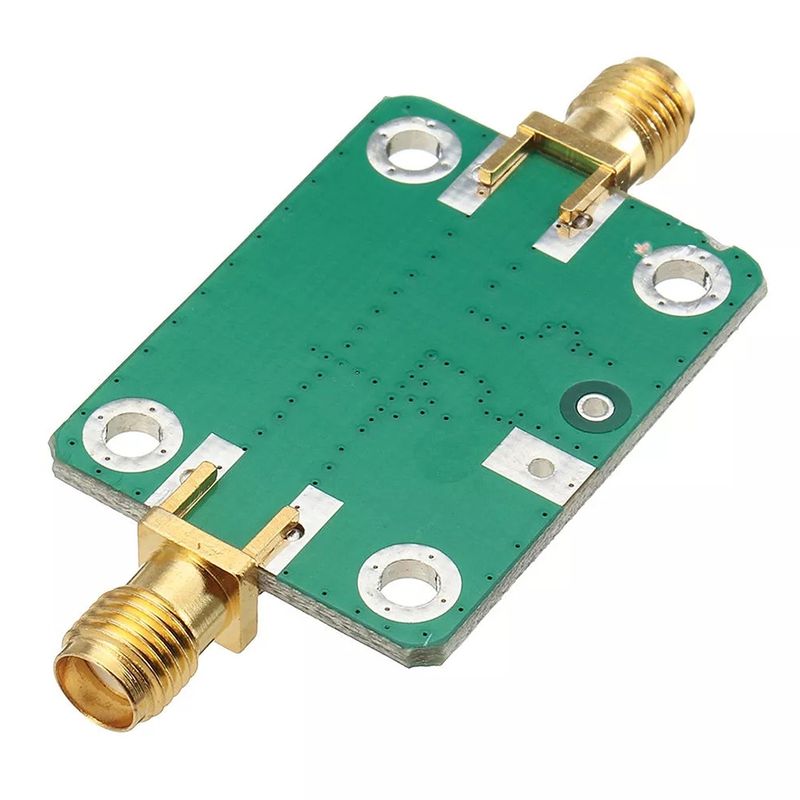

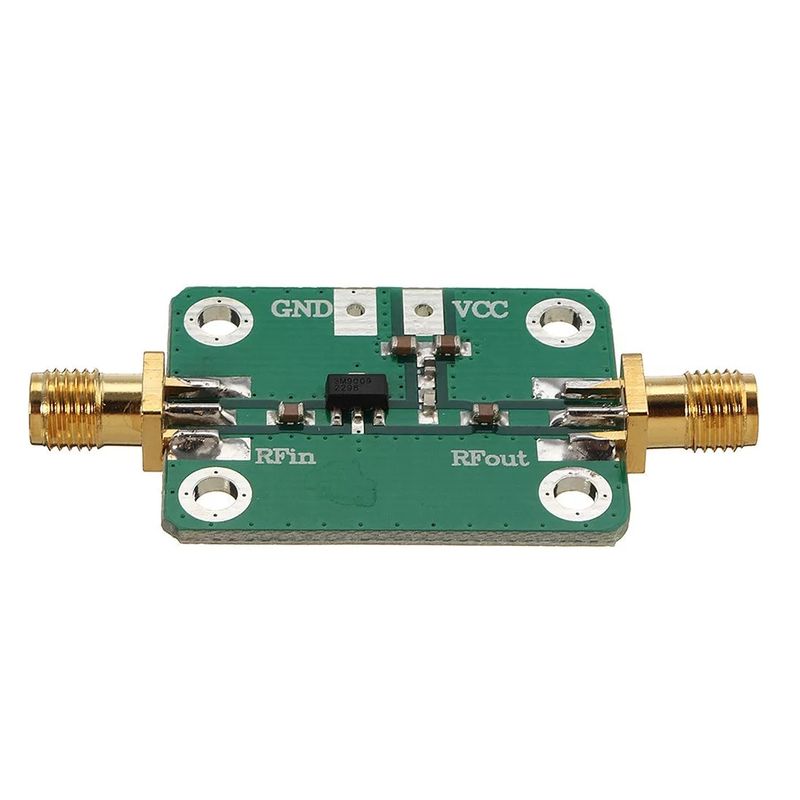

Item Name: TQP3M9009 LNA Amplifier
Material: FR-4 Board
Working Frequency: 50-4000MHz
Amplification Gain: 21.8dB (Typical)
Noise Figure: 1.3dB (Typical)
High Power: +22dBm (150mW) @1dB Compression Point
Working Current: 125mA (5V)
Power Supply Voltage: 5V DC
System Impedance: 50Ω
Features: Compact, Durable, Easy to Use
Length: 20mm/0.79", Width: 35mm/1.38" (Approx.)
Notes:
Due to the light and screen setting difference, the items color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
Package Includes:
1 x TQP3M9009 LNA AmplifierKey Features
The low noise amplifier module has a high gain and can provide very low noise over a wide frequency range.
The module enables communication effect between the receiver and the transmitter.
The amplifier works with a single + 5V power supply.
Good stability, large dynamic range and wide operating frequency range.
Suitable for fixed gain amplification of various RF signals.
What's In the Box
1 x TQP3M9009 LNA Amplifier
