Description:
The network testing board is hard and wear-resistant, which has long service time.
The network testing board features high accuracy, which can give you efficient measuring results.
Made of metal and plastic, the network testing board is reliable and durable to use.

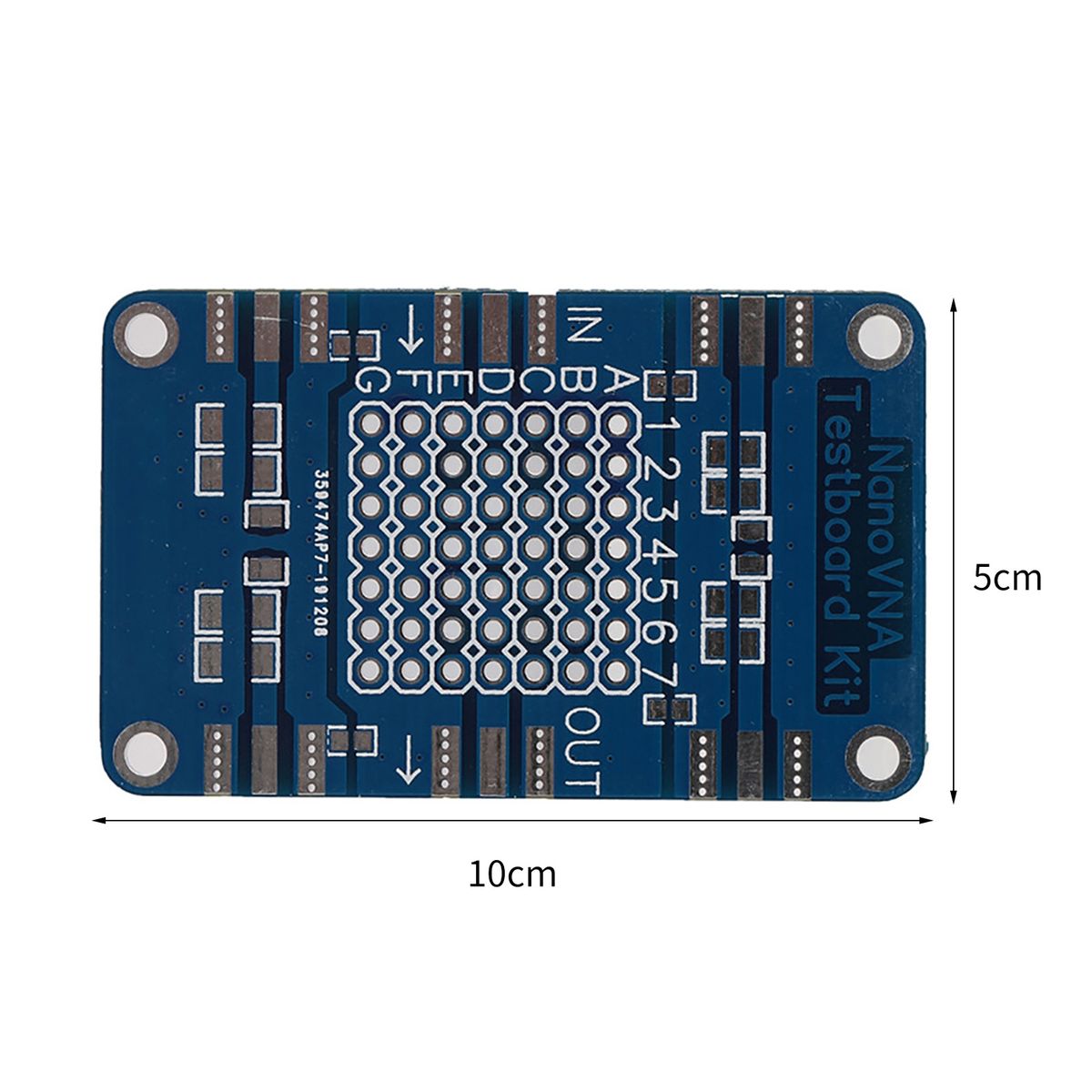

The length of the network testing board is 10cm, width is 5cm and thickness is 1cm.
The network testing board is suitable for being used in industry, research, manufacturing and so on.

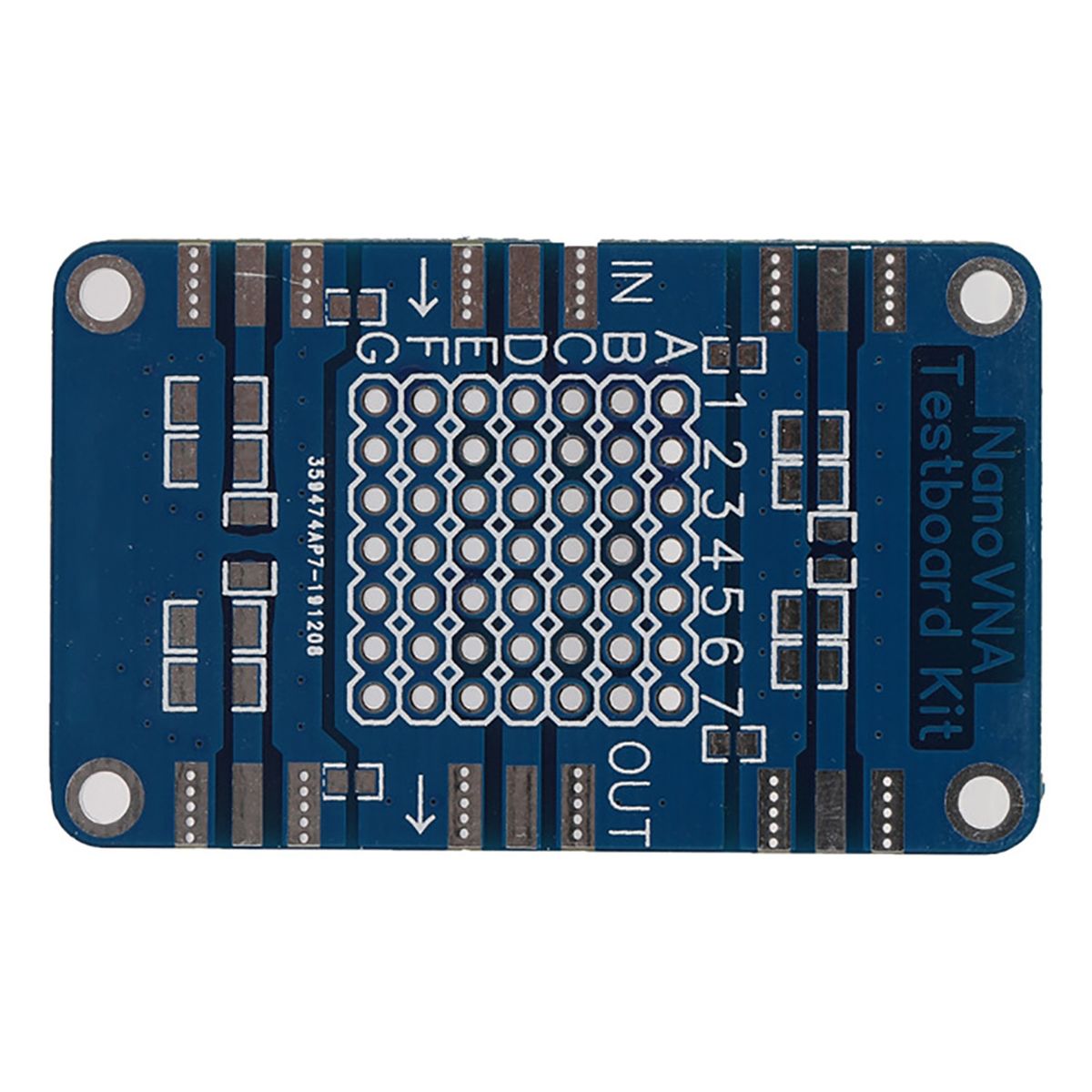

Item Name: Network Analyzer Board
Material: Plastic, Metal
Color: Blue
Features: Good Hardness, DIY, Efficient
Size Details:
10cm x 5cm x 1cm/3.94" x 1.97" x 0.39" (Approx.)
Notes:
Due to the light and the screen setting difference, the item's color may slightly differs from the pictures.
Please allow slight dimension difference due to the manual measurement.

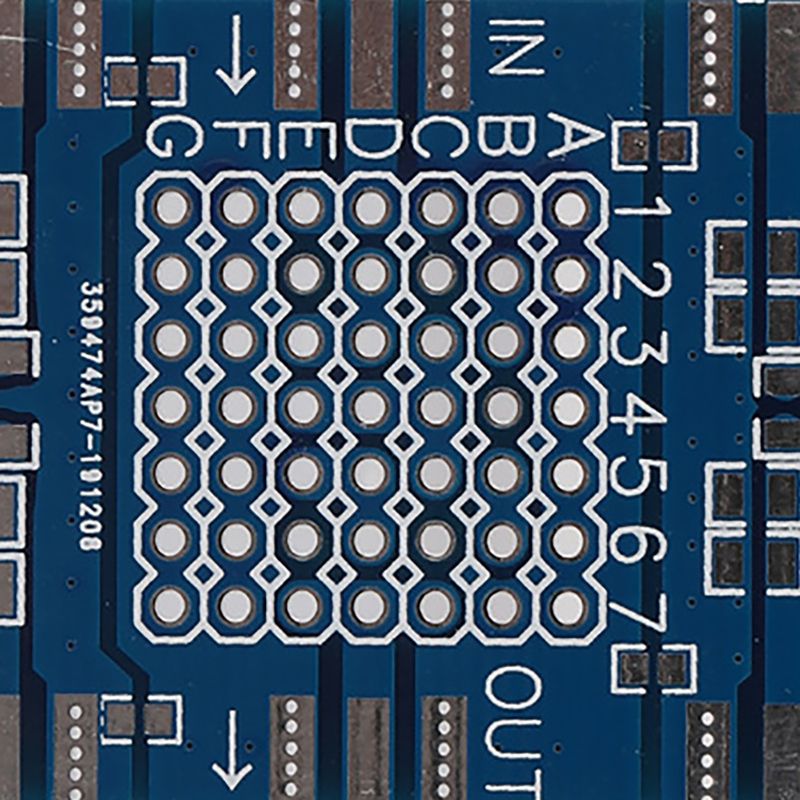

This product contains plug-in test circuits compatible with VNWA Testboard, and one set of 0805 and 1206 patch test circuits has been added. Various testing situations can not be fully considered. Some devices may need to be cut over to test. Please make sure that you have enough hands-on ability.
This product has not been soldered before shipment. Please prepare for your own soldering tools. Please build a test circuit according to your own test needs. Our shop is not responsible for circuit guidance.

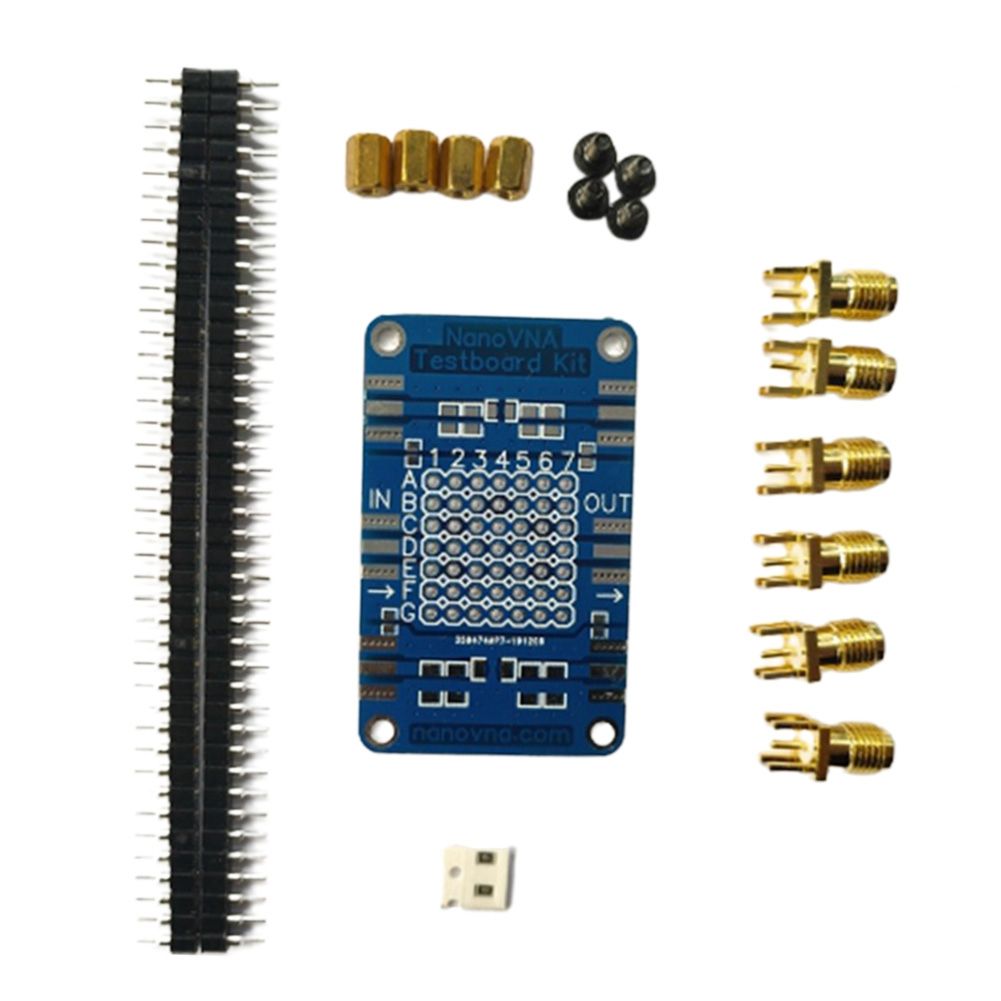

Package Includes:
1 x Network Analyzer Board
6 x SMA Female Heads
4 x 6mm Copper Studs
4 x M2.5 Screws
2 x 40 Pin Round Row Seats
2 x 0805 49R9 Calibration ResistancesKey Features
The network testing board is hard and wear-resistant, which has long service time.
The network testing board features high accuracy, which can give you efficient measuring results.
Made of metal and plastic, the network testing board is reliable and durable to use.
The length of the network testing board is 10cm, width is 5cm and thickness is 1cm.
The network testing board is suitable for being used in industry, research, manufacturing and so on.
What's In the Box
1 x Network Analyzer Board
6 x SMA Female Heads
4 x 6mm Copper Studs
4 x M2.5 Screws
2 x 40 Pin Round Row Seats
2 x 0805 49R9 Calibration Resistances
