Specifications:

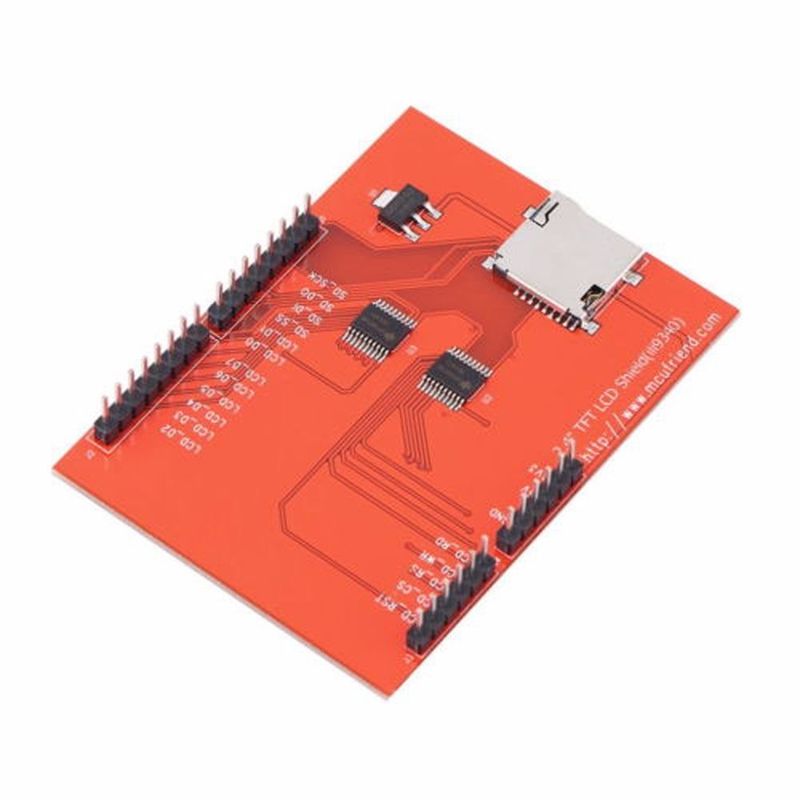

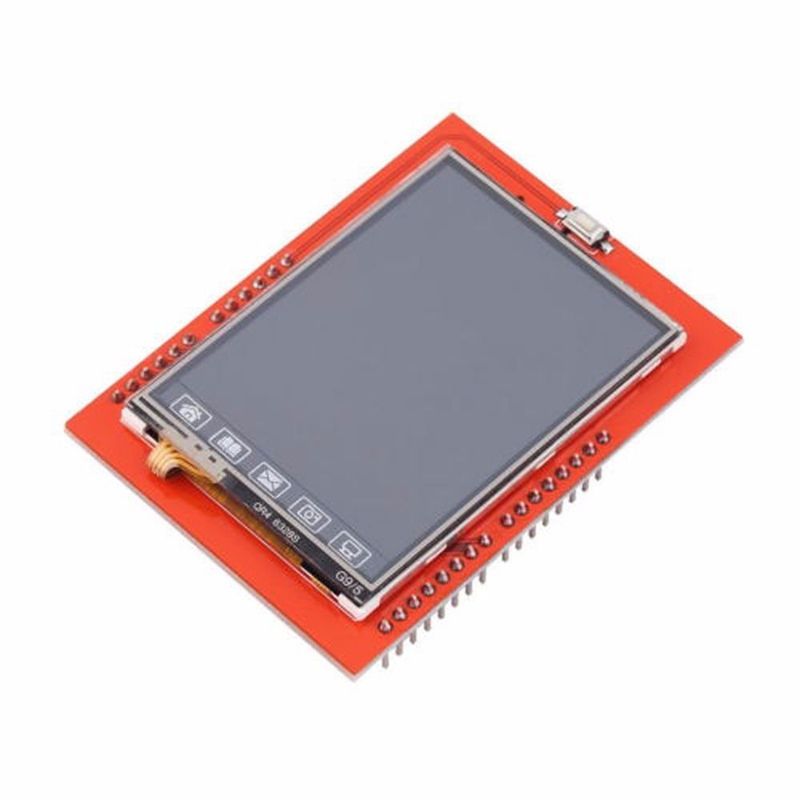

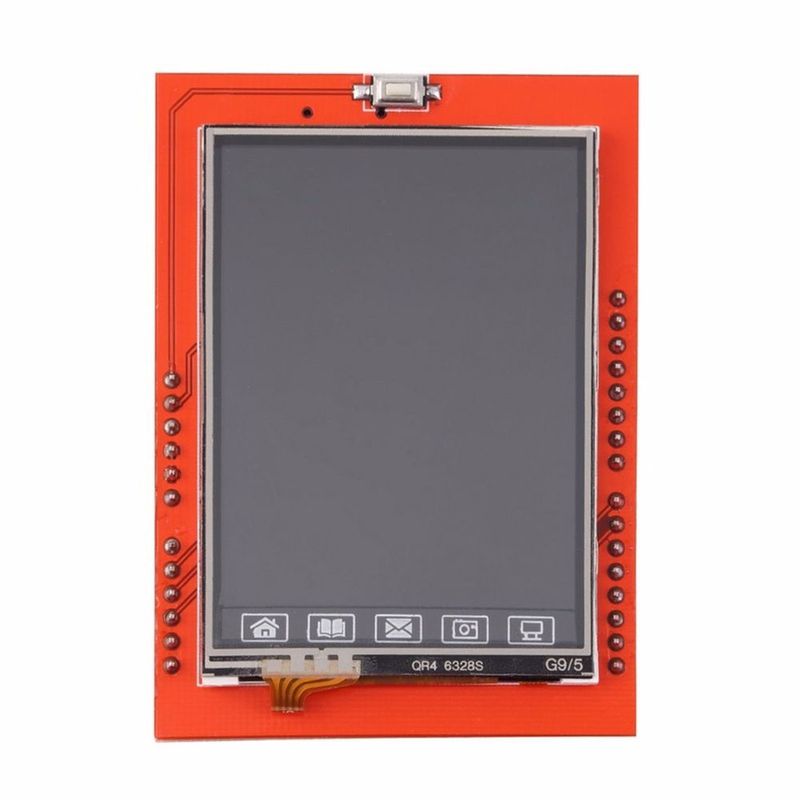

2.4" diagonal LCD TFT touch panel display.
Bright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight control.
Colorful, 18-bit 262,000 different shades.
4-wire resistive touchscreen.
8 bit digital interface, plus 4 control lines.
Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD.
5V compatible, use with 3.3V or 5V logic.
For Arduino UNO R3 MEGA2560.
Item Name: TFT Touch Panel
Quantity: 1 Pc
Size: 2.4" (Approx.)
Notes:
Due to the light and screen setting difference, the items color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
Package Includes:
1 x TFT Touch PanelKey Features
2.4"" diagonal LCD TFT touch panel display.
Bright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight control.
Colorful, 18-bit 262,000 different shades.
4-wire resistive touchscreen.
8 bit digital interface, plus 4 control lines.
Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD.
5V compatible, use with 3.3V or 5V logic.
For Arduino UNO R3 MEGA2560.
What's In the Box
1 x TFT Touch Panel
