Specifications:
This product is a BTL class-D audio amplifier designed for home audio systems and active speaker applications.
The maximum output per channel is 160W, BTL support mono max 220W.
It will produce high quality sound to fit the speaker.

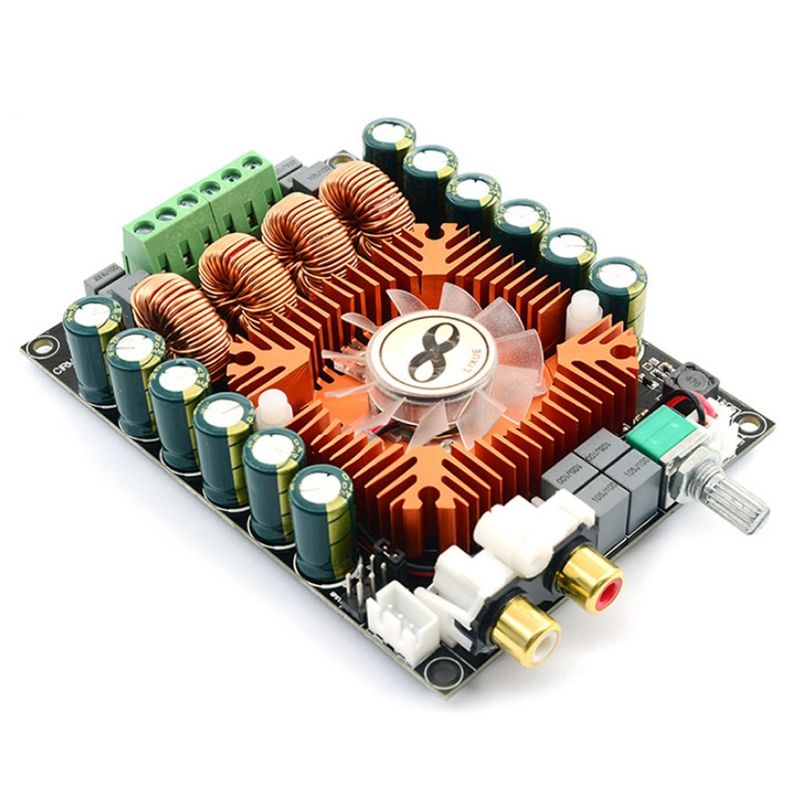

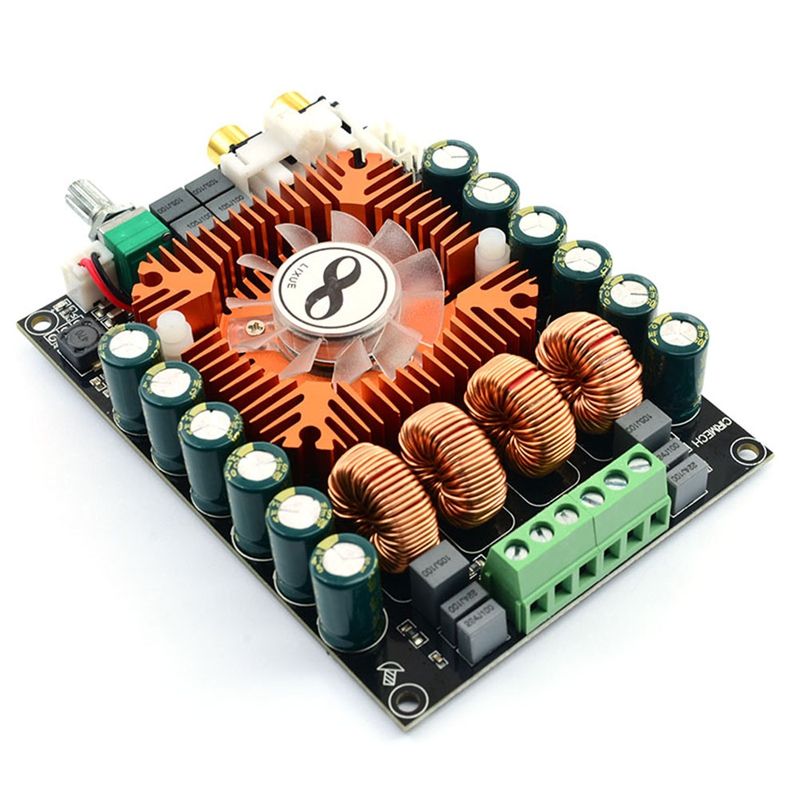

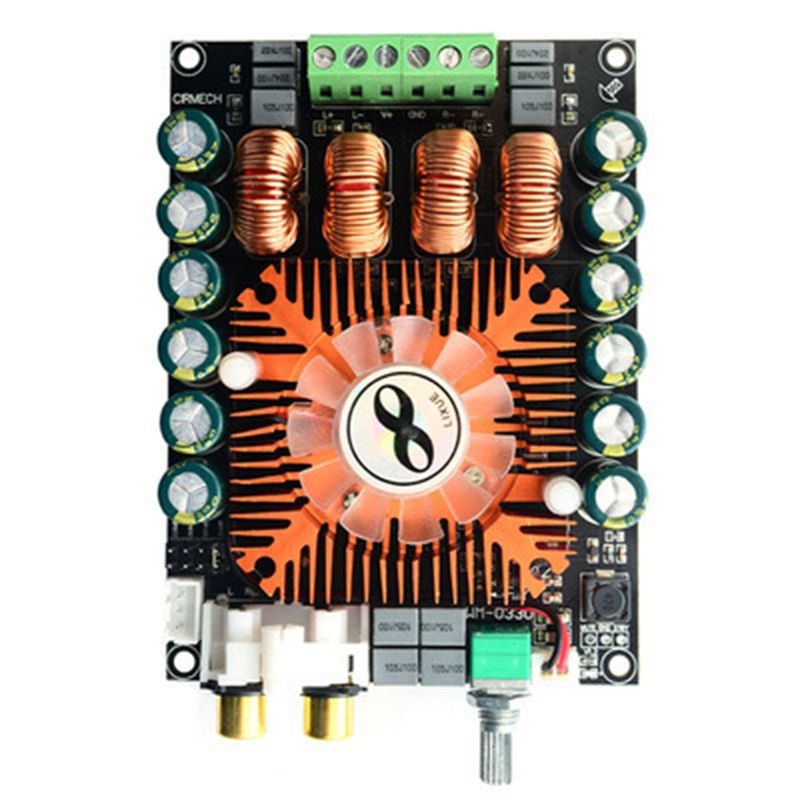

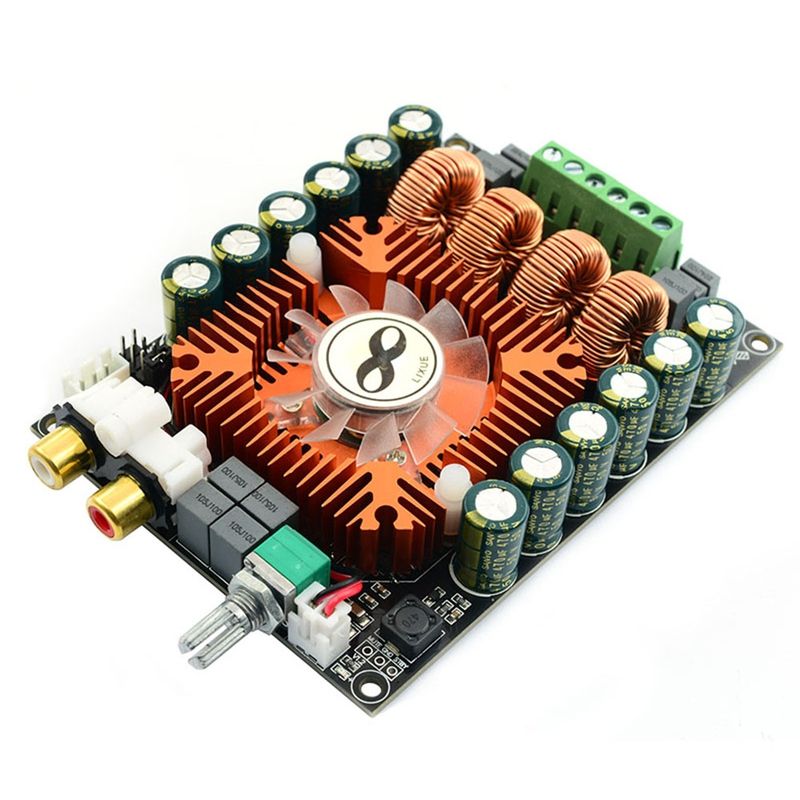

Item Name: Amplifier Board
Material: PC

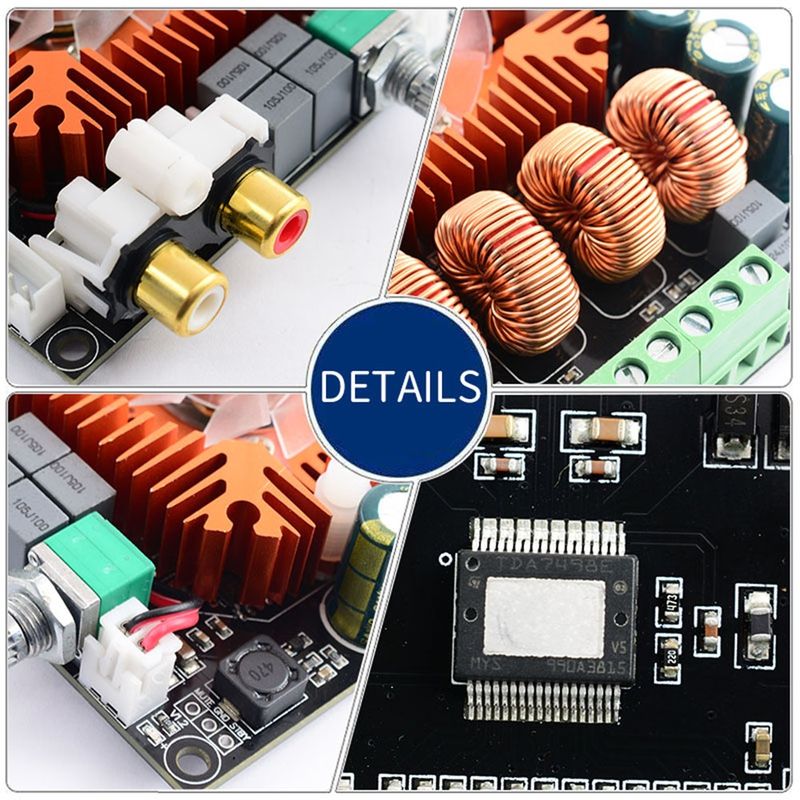

Chips: TDA7498E
Channels: 2.0
Supply Voltage: DC12-32V
Power Output: Max 160W*2

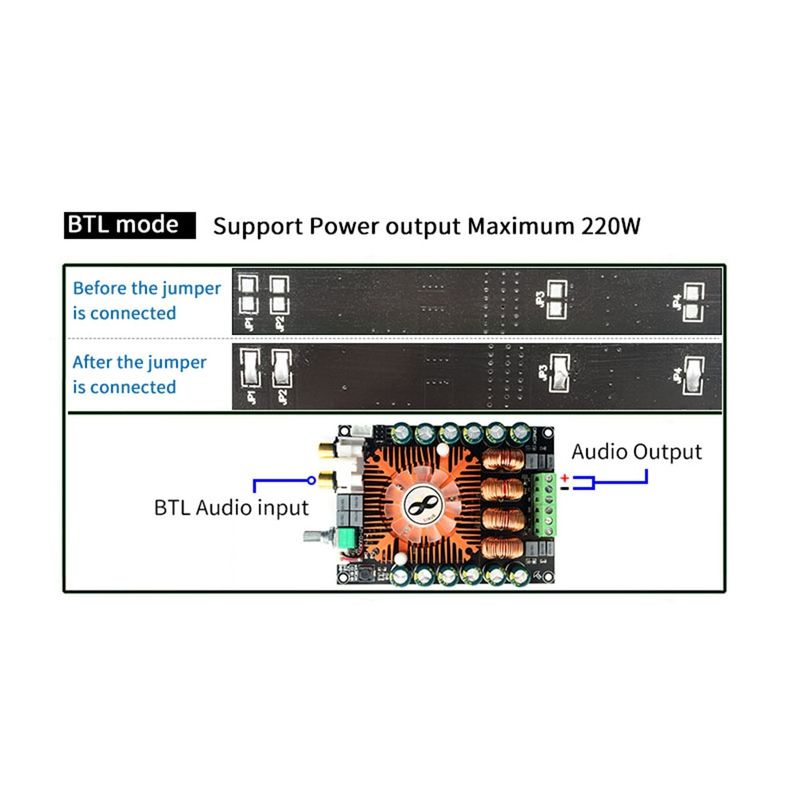

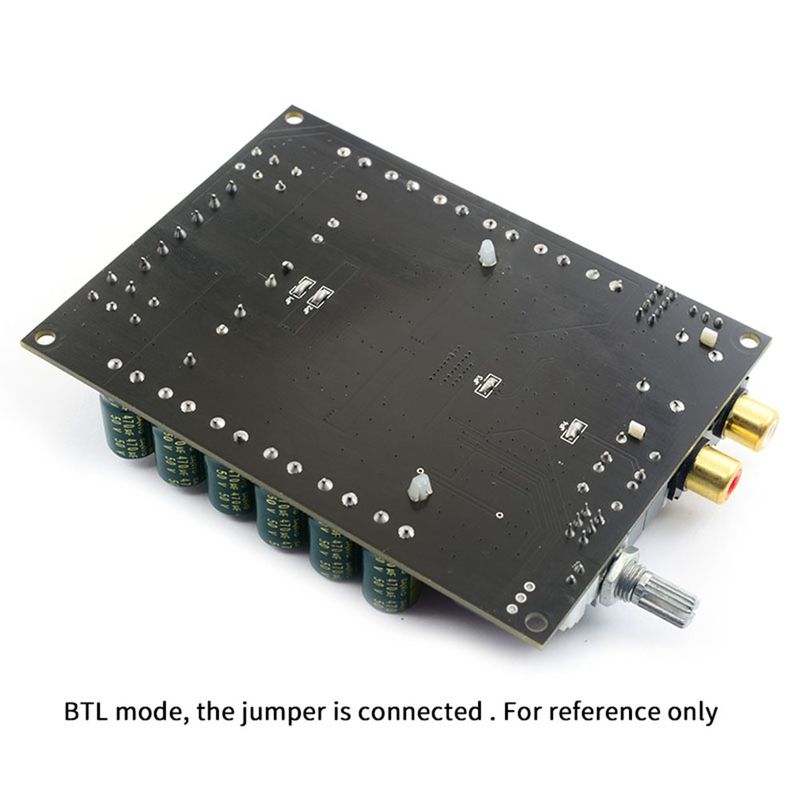

BTL Output: Mono Max 220W
Frequency: 20-20KHz
Impedance: 4-8 Ohm
Features: Gain and Mute, BTL, Thermal Overload Protection
Size: 120mm x 78mm x 21.6mm/4.72" x 3.07" x 0.85" (Approx.)
Notes:
The recommended voltage range is DC12-32V, please do not use 36V voltage, the chip will burn out.
Due to the light and screen setting difference, the items color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
Package Includes:
1 x Amplifier BoardKey Features
This product is a BTL class-D audio amplifier designed for home audio systems and active speaker applications.
The maximum output per channel is 160W, BTL support mono max 220W.
It will produce high quality sound to fit the speaker.
What's In the Box
1 x Amplifier Board
