Specifications:
This test board kit is used for NanoVNA or other vector network analyzer user-friendly measurement plug-ins and SMT devices.
The test board contains a plug-in test circuit suitable for VNWA Testboard, and a set of 0805 and 1206 patch test circuits are added.
This product is not soldered before delivery, please prepare your own welding tools and build a test circuit according to your test needs.
Item Name: Testboard Kit
Material: PC, Aluminum Alloy
Size: 14cm x 9cm x 3cm/5.51" x 3.54" x 1.18" (Approx.)
Notes:
Due to the light and screen setting difference, the items color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.

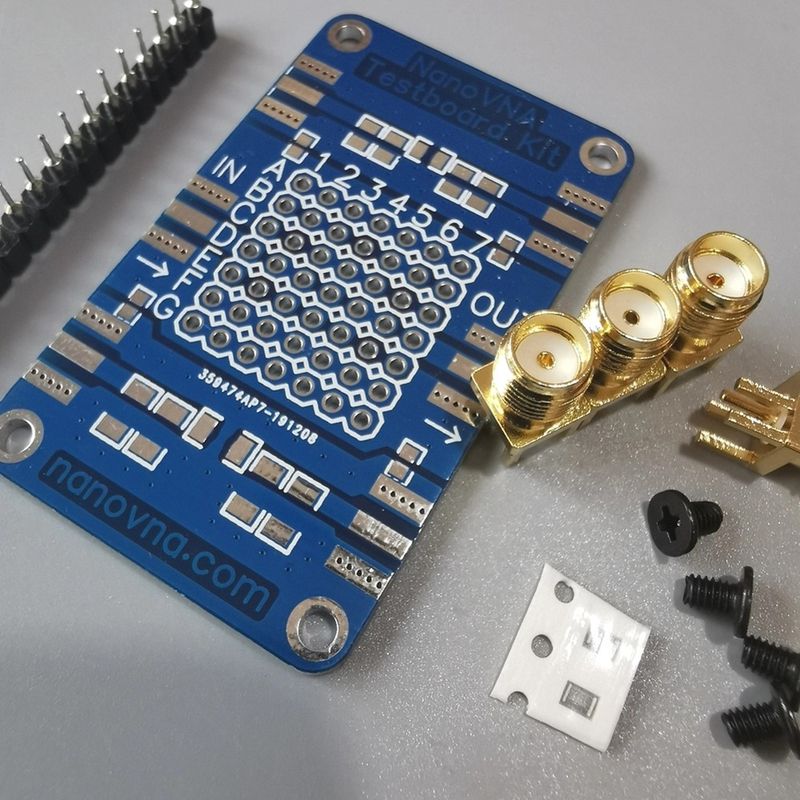

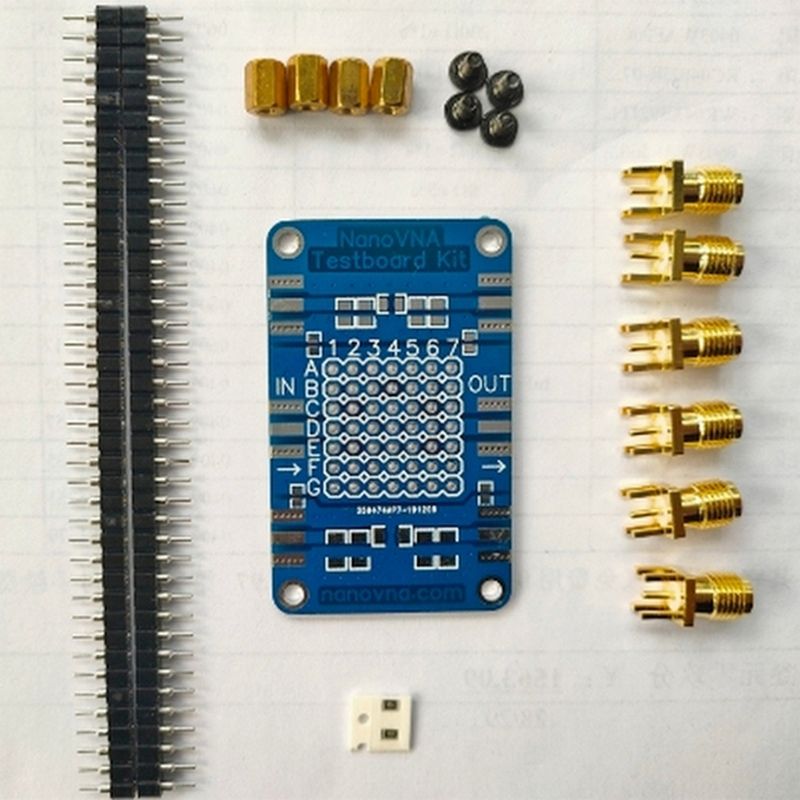

Package Includes:
1 x Testboard Main Board
6 x SMA Female Heads
4 x 6mm Copper Studs
4 x M2.5 Screws
2 x 40 Pin Round Row Seats
2 x 0805 49R9 Calibration ResistancesKey Features
This test board kit is used for NanoVNA or other vector network analyzer user-friendly measurement plug-ins and SMT devices.
The test board contains a plug-in test circuit suitable for VNWA Testboard, and a set of 0805 and 1206 patch test circuits are added.
This product is not soldered before delivery, please prepare your own welding tools and build a test circuit according to your test needs.

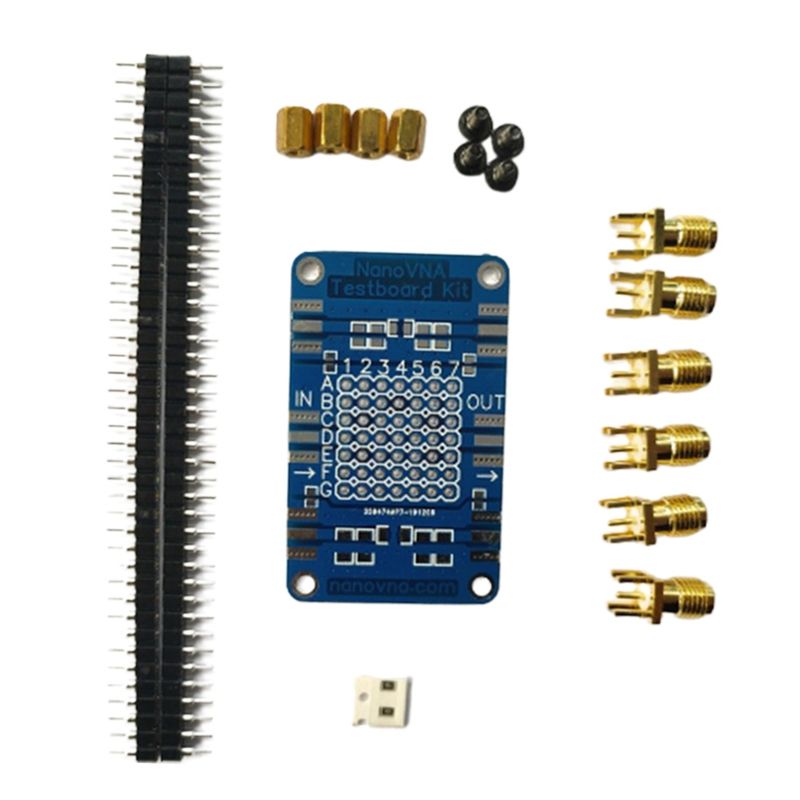

What's In the Box
1 x Testboard Main Board
6 x SMA Female Heads
4 x 6mm Copper Studs
4 x M2.5 Screws
2 x 40 Pin Round Row Seats
2 x 0805 49R9 Calibration Resistances
