Specifications:
128*64 LED display module for Arduino, supports many control chip.
Fully compatible with for Arduino, 51 series, MSP430 series, STM32/2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08w.
Super high brightness and contrast are adjustable.
With embedded driver/controller.
Item Name: LED Display Module for Arduino
Interface Type: IIC

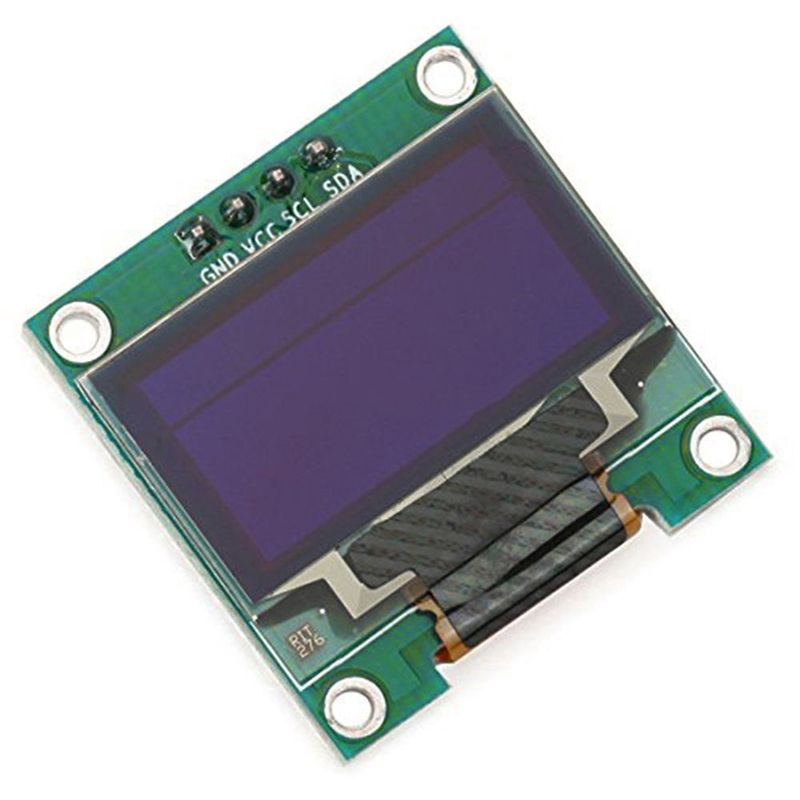

Pin Definition: GND, VCC, SCL, SDA
Pins: 4 Pins
Voltage: 3V ~ 5V DC
Working Temperature: -30℃ ~ 70℃
Character Colors: Blue(As Pictures Shows)
Drive Duty: 1/64 Duty
High Resolution: 128*64
Driver IC: SSD1306
Panel Dimensions: 26.70mm x 19.26mm x 1.85mm/1.05" x 0.76" x 0.07" (Approx.)
Active Area: 21.74mm x 11.2mm/0.86" x 0.44" (Approx.)
Notes:
Due to the light and screen setting difference, the items color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
Package Included:
1 x LED Display Module for Arduino
Key Features
128*64 LED display module for Arduino, supports many control chip.
Fully compatible with for Arduino, 51 series, MSP430 series, STM32/2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08w.
Super high brightness and contrast are adjustable.
With embedded driver/controller.
What's In the Box
1 x LED Display Module for Arduino
