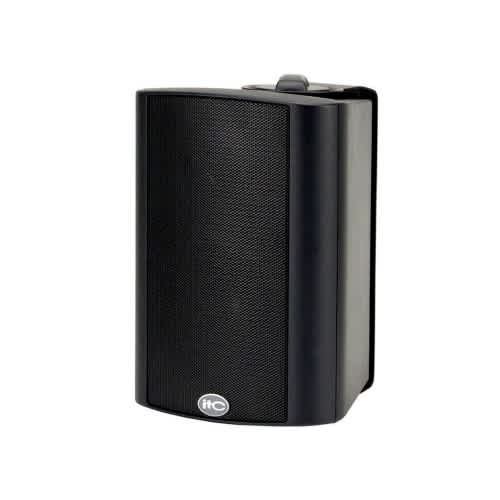

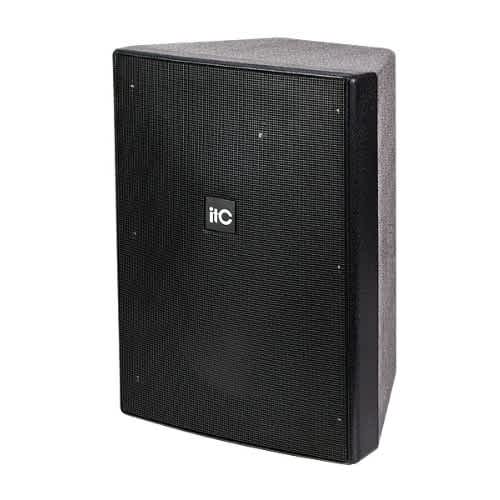

The T-776 is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 6”+1.5” two ways speaker driver is designed of wide frequency response 110-15kHz, the RMS 45 watts power outputs are suitable for most of the applications.
The metal grille, ABS enclosure and stainless mounting bracket are of black color. Easy and secure wall mount installation through the supplied mounting bracket.
Model T-776P 5W,
Power Taps @100V 10W, 20W, 40W
Power Taps @70V 2.5W, 5W, 10W, 20W, 40W
Transformer Impedance Input 2KΩ/1KΩ/500Ω/250Ω/122Ω 70V/100V/8Ω
SPL (Rated W/1M) 94dB
Max. SPL (Rated W/1M) 110dB
Frequency Response 120-18KHz
Dimension 298 x 215 x 225mm
Weight 4.1kg
Mounting With mounting bracket fixed by screw
