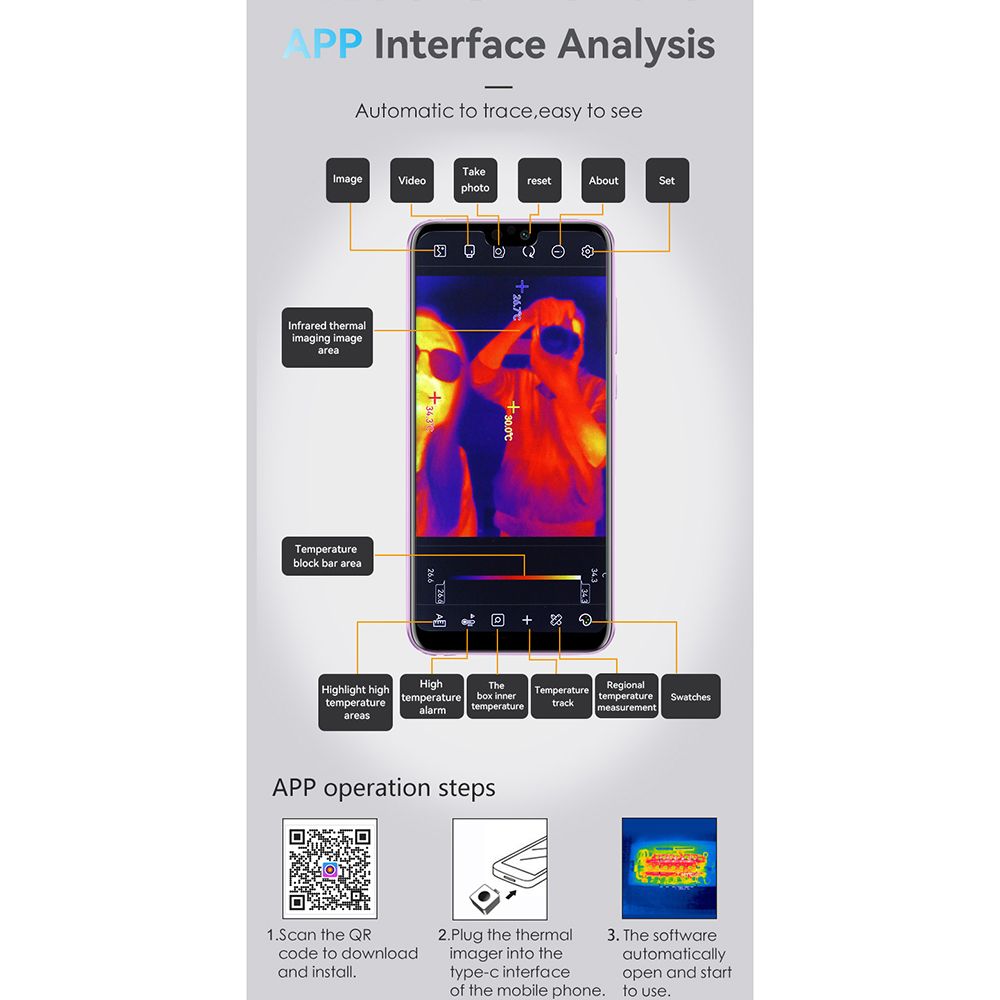

Features:* Adopting an industrial-grade infrared detector, the product is a portable thermal imager with high precision and quick response. With APP, it can carry out IR imaging of the target object and perform multi-mode professional thermal image analysis anytime and anywhere.
* 160*120 pixels resolution brings clear image quality with rich details. －15℃~600℃ wide measurement range easily copes with different targets.
* 35° field of view for wide field observation, can quickly detect the target and locate the heat source, effectively improving working efficiency.
* 25Hz high frame frequency, accurately captures beautiful moments and records the data of every frame with coherent and smooth pictures.

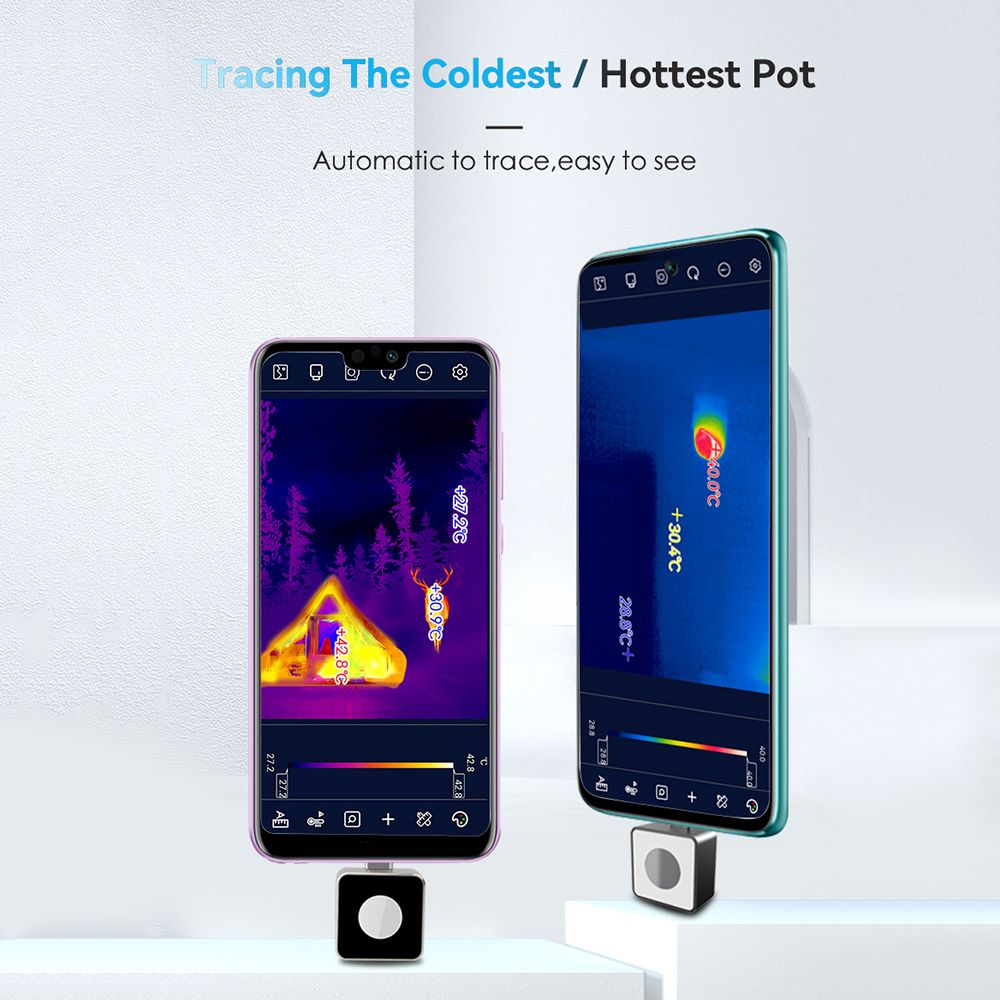

* Automatically track the highest and lowest temperature, and support central point and area temperature measurement as well as high temperature alarm.
* Six color palette modes optional: iron red, white hot, black hot, , red hot and cold blue, freely switch according to different scenarios.
* Support taking picture and video, more advanced and convenient, farewell to traditional single temperature measurement mode.
* Plug and play, no need to charge. Mini and lightweight body, easy to carry and store.
* Can be widely used in circuit maintenance, pipeline detection, automobile troubleshooting, anti-peeping, night vision, animal searching, etc.
Note:* Please read the user manual carefully before use.
* There may be 1-3mm errors due to manual measurement.

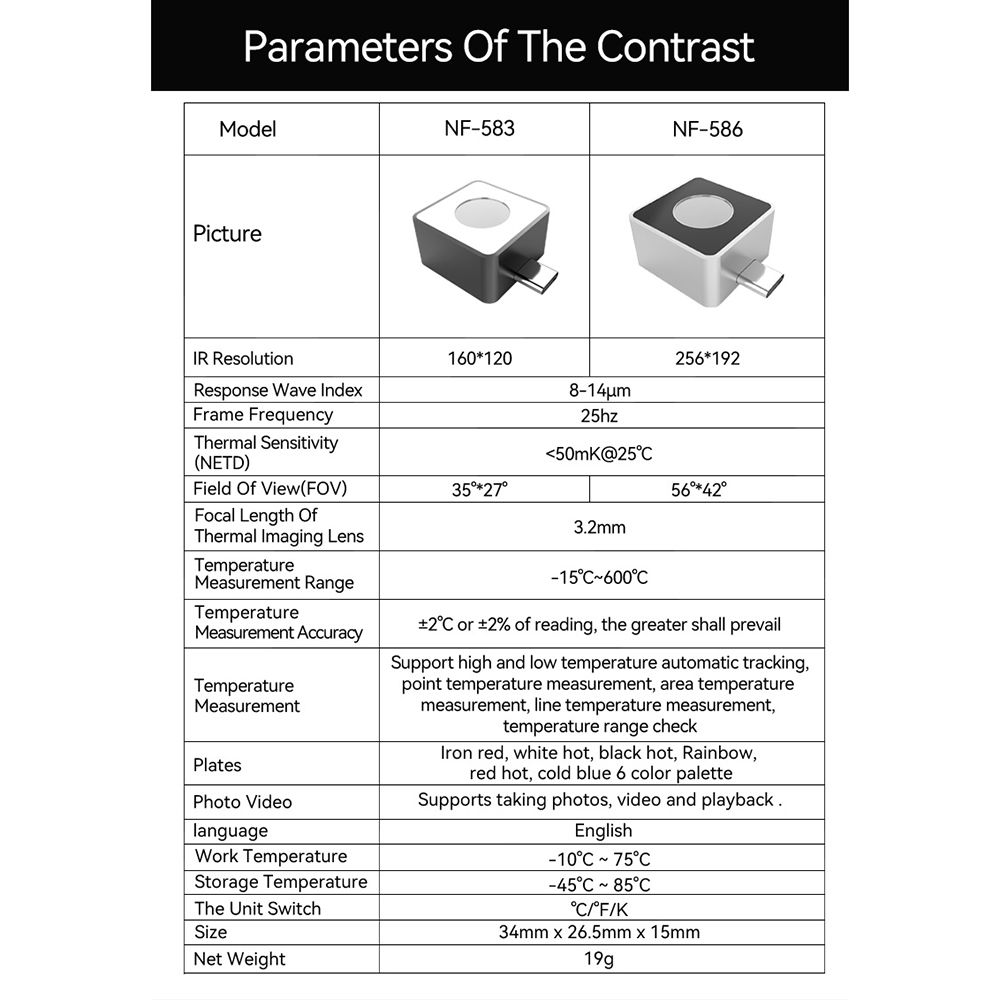

Specifications:Brand: NOYAFA
Model:
NF-583 / NF-586 (Optional)
Material: Aluminum Alloy
Color: Silver & Black
Item Size: 34 * 26.5 * 15mm / 1.34 * 1.04 * 0.59in
Item Weight: 19g / 0.67oz
Package Size: 9.3 * 9.3 * 5.2cm / 3.66 * 3.66 * 2.05in
Package Weight: 123g / 4.34oz
IR Resolution: 160 * 120
Spectral Range: 8-14um
Frame Rate: 25Hz
Thermal Sensitivity (NETD): ＜50mK@25℃
Field of View (FOV): 35° * 27°
Lens: 3.2mm
Temperature Measurement Range: －15℃~600℃
Temperature Measurement Accuracy: ±2℃ or 2% of reading
Color Palette: 6
Language: English
Working Temperature: －10℃~75℃
Storage Temperature: －45℃~85℃
IP Rating: IP54
Unit Switch: ℃ / ℉ / K
Package List:1 * Thermal Imager
1 * User Manual
1 * Storage Bag
1 * Lens Cleaner
Key Features
x Adopting an industrial-grade infrared detector, the product is a portable thermal imager with high precision and quick response. With APP, it can carry out IR imaging of the target object and perform multi-mode professional thermal image analysis anytime and anywhere.
x 160x120 pixels resolution brings clear image quality with rich details. －15℃~600℃ wide measurement range easily copes with different targets.
x 35° field of view for wide field observation, can quickly detect the target and locate the heat source, effectively improving working efficiency.
x 25Hz high frame frequency, accurately captures beautiful moments and records the data of every frame with coherent and smooth pictures.
x Automatically track the highest and lowest temperature, and support central point and area temperature measurement as well as high temperature alarm.
x Six color palette modes optional: iron red, white hot, black hot, , red hot and cold blue, freely switch according to different scenarios.
What's In the Box
1 x Thermal Imager,1 x User Manual,1 x Storage Bag,1 x Lens Cleaner,
