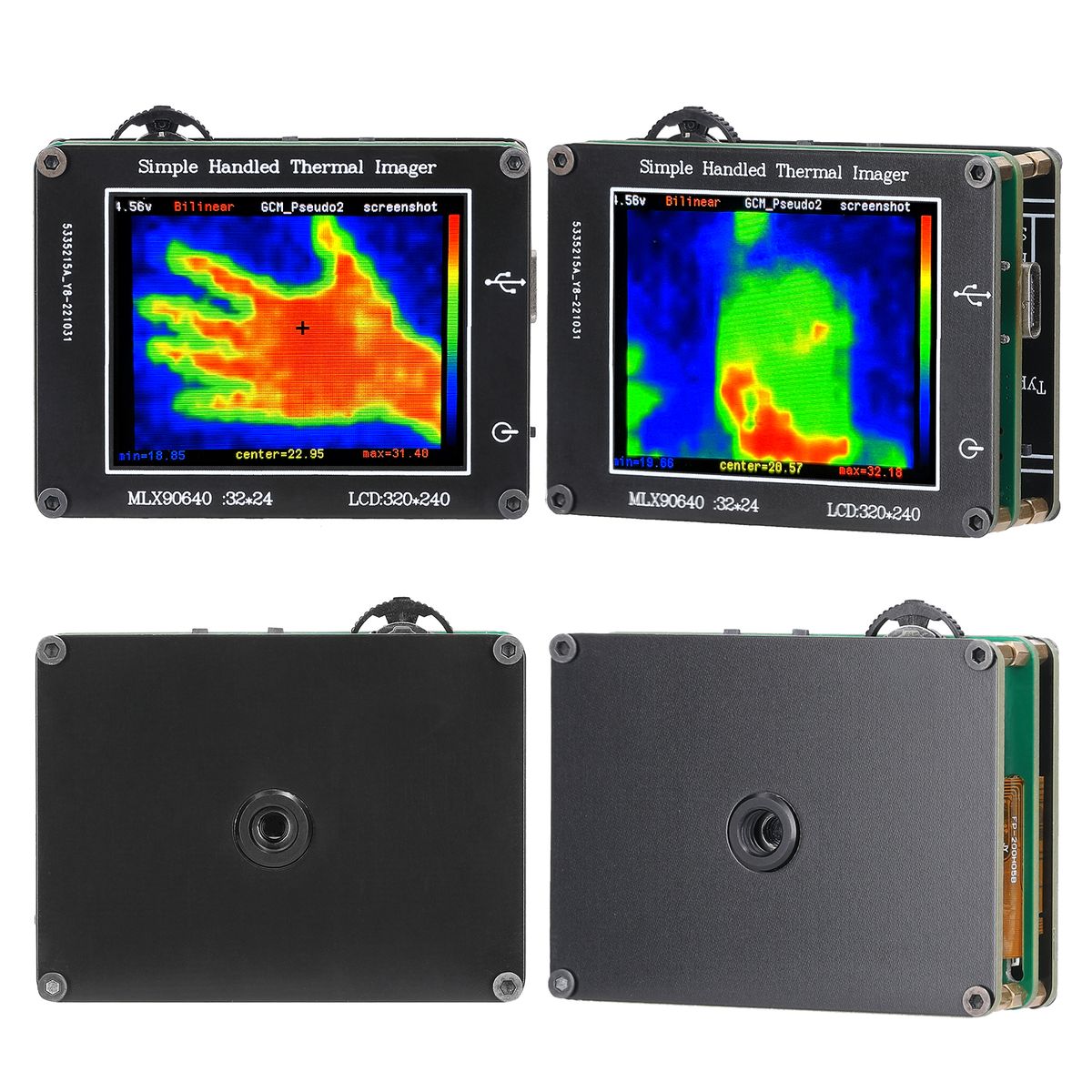

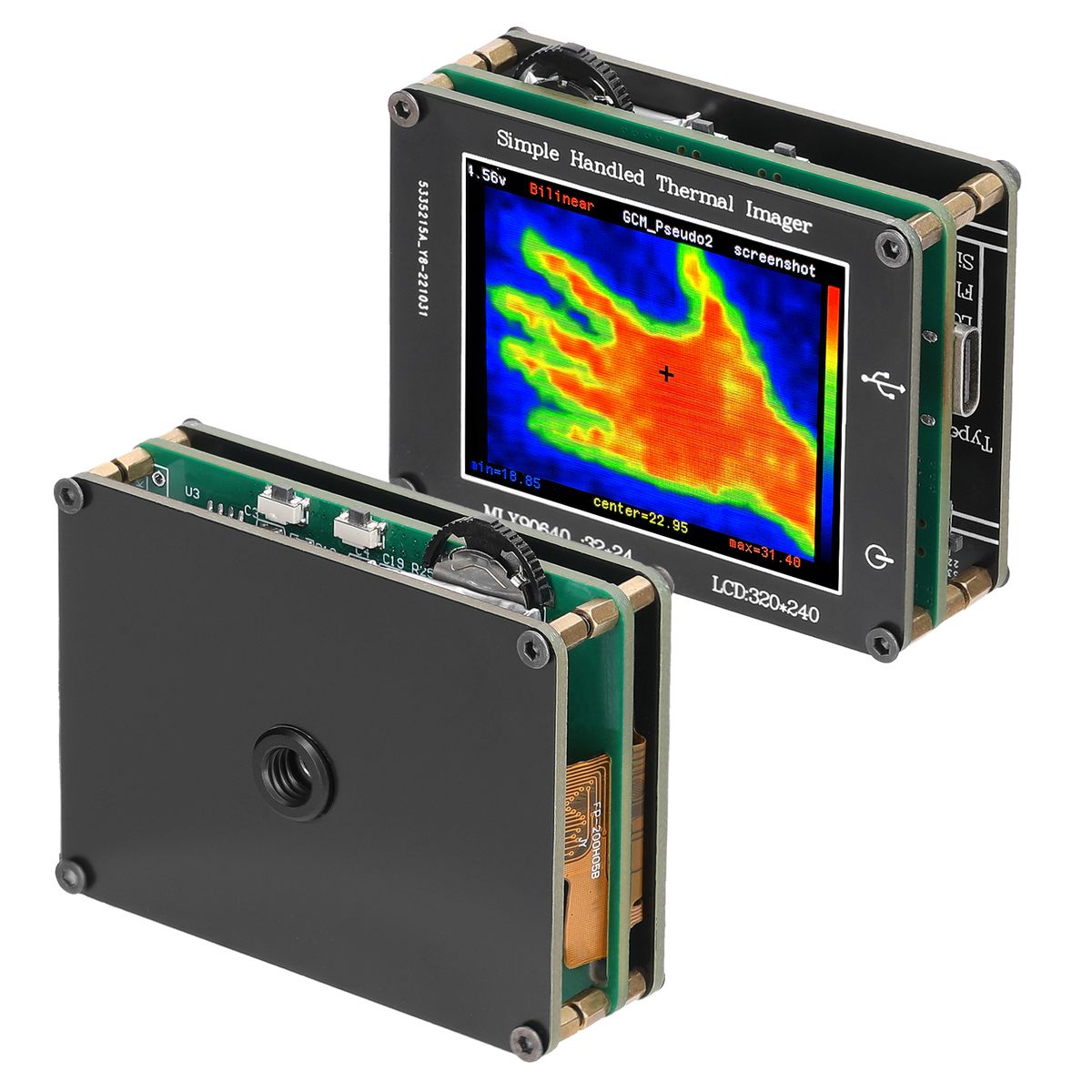

This handheld and multifunctional thermal imager features a compact size and is lightweight. Adopt infrared sensor, 32*24 pixel far infrared array, clearly imaging. 2.0 inch large LCD color screen, with 240*320 resolution, clearly displays and tracks the maximum temperature, the minimum temperature, and the center point temperature. It can be used in various situations and is an indispensable tool for household and industrial use.
Features:This product combines the functions of surface temperature measurement and real-time thermal imaging, suitable for contactless temperature measurement, human temperature detection function, ambient temperature detection, industry parts temperature detection function.
With integrated design, compact, lightweight, and portable, it is easy to carry and does not take up too much space, it can operate smoothly without external devices.
Its uses FR4 epoxy outershell material for better protecting internal component and has a long service lifespan.
Adopts a high sensitive infrared sensor, 32*24 pixel far infrared array, clearly imaging.

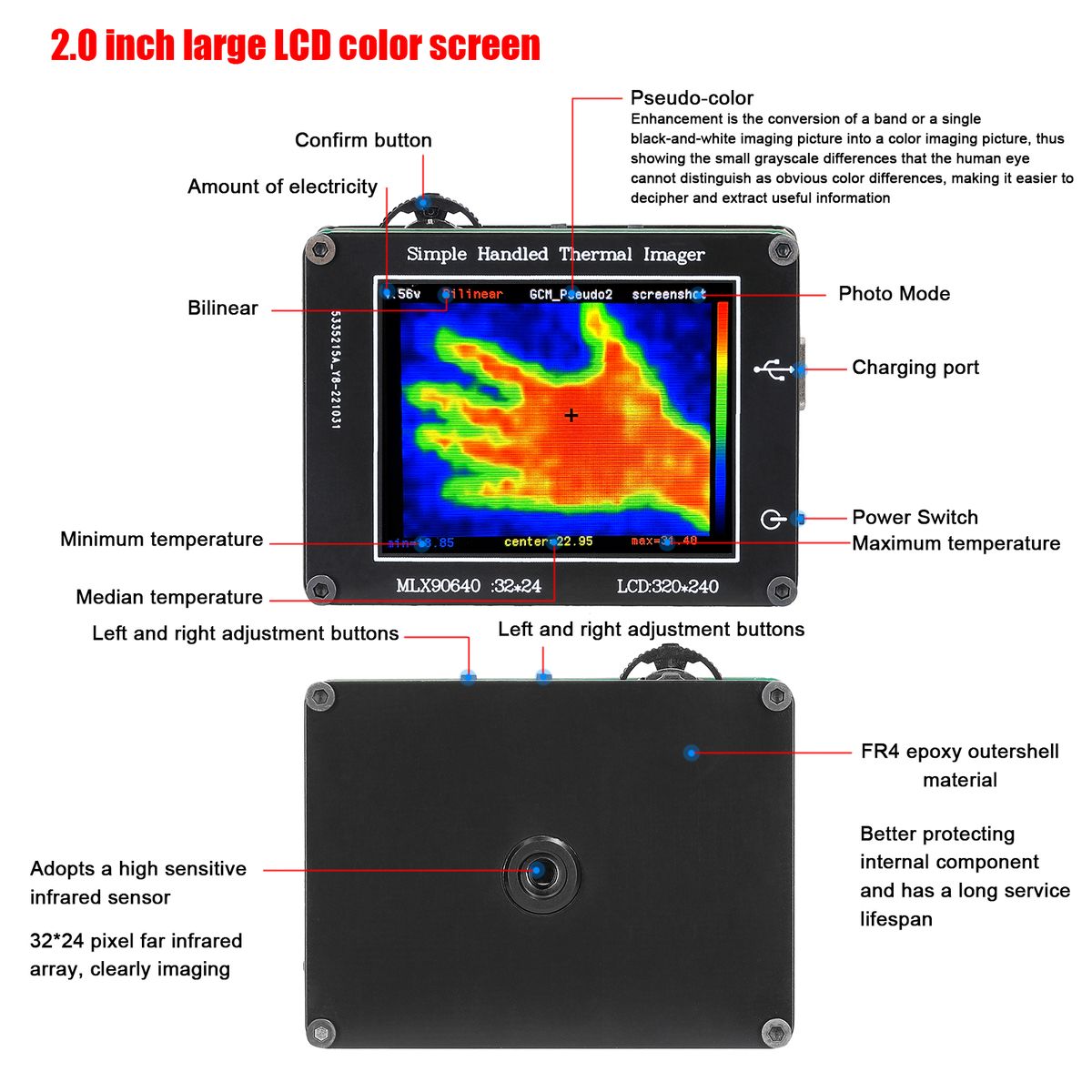

2.0 inch large LCD color screen, with 240*320 resolution, clearly displays and tracks the maximum temperature, the minimum temperature, and the center point temperature.
Real-time measurement, with -40℃ to +300℃ measurement ranges, and an 8Hz dynamic refresh rate.

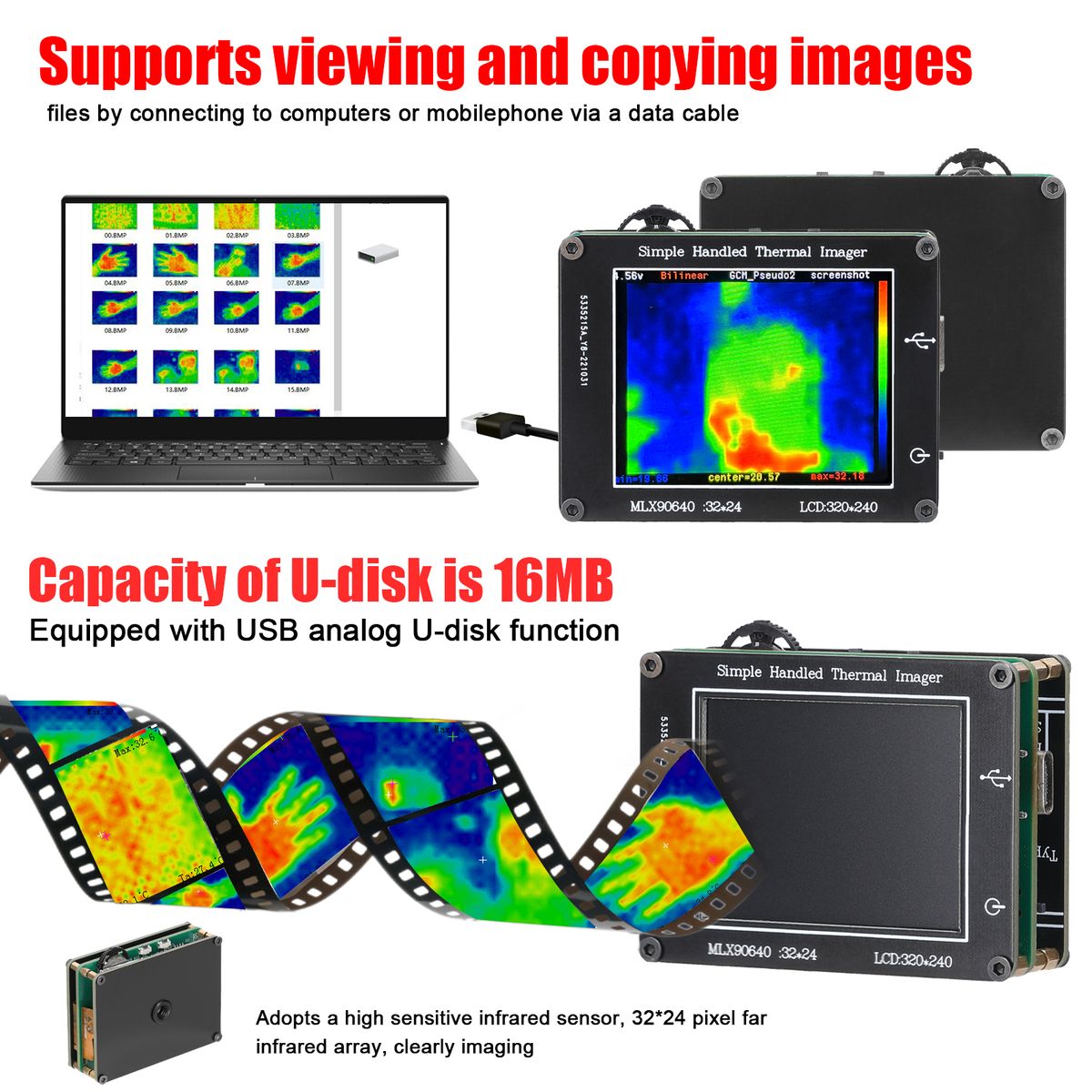

Equipped with USB analog U-disk function, and the capacity of U-disk is 16MB.
This thermal imager has a photo-taking function, for which need to maintain at least 15S time.
Built-in a lithium-ion battery, USB Type-C cable design, with long battery lifespan.

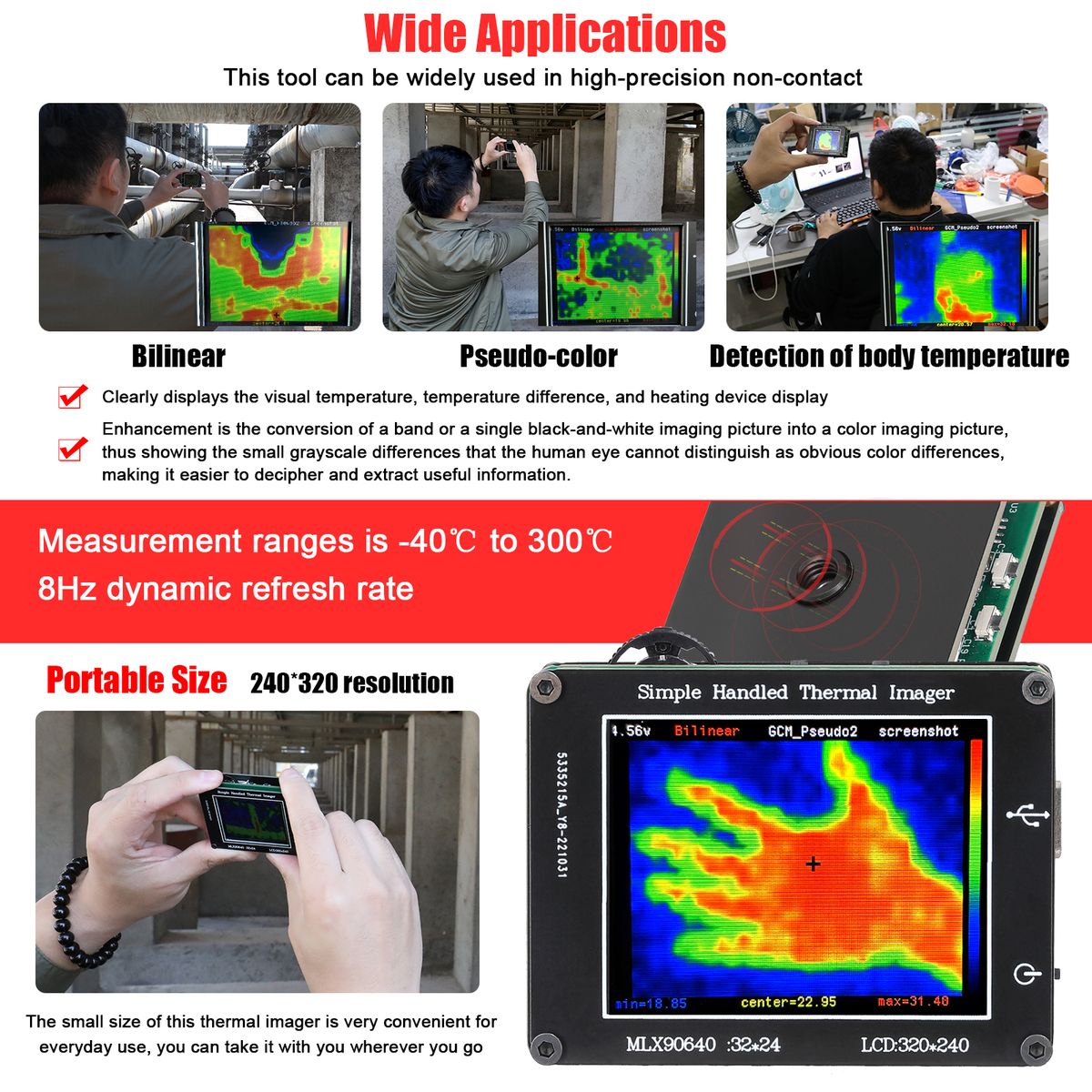

Wide Applications:High-precise contactless temperature measurement and body temperature detection.
Intelligent ambient temperature measurement and control of buildings.
Car repairs and maintenance inspection, automotive parts temperature detection.
Microwave oven and oven temperature detection and control.
Temperature monitoring of industrial parts.
Visual temperature sensors.
Floor heating equipment side leakage and maintenance.
Thermal inspection of circuit board and component.

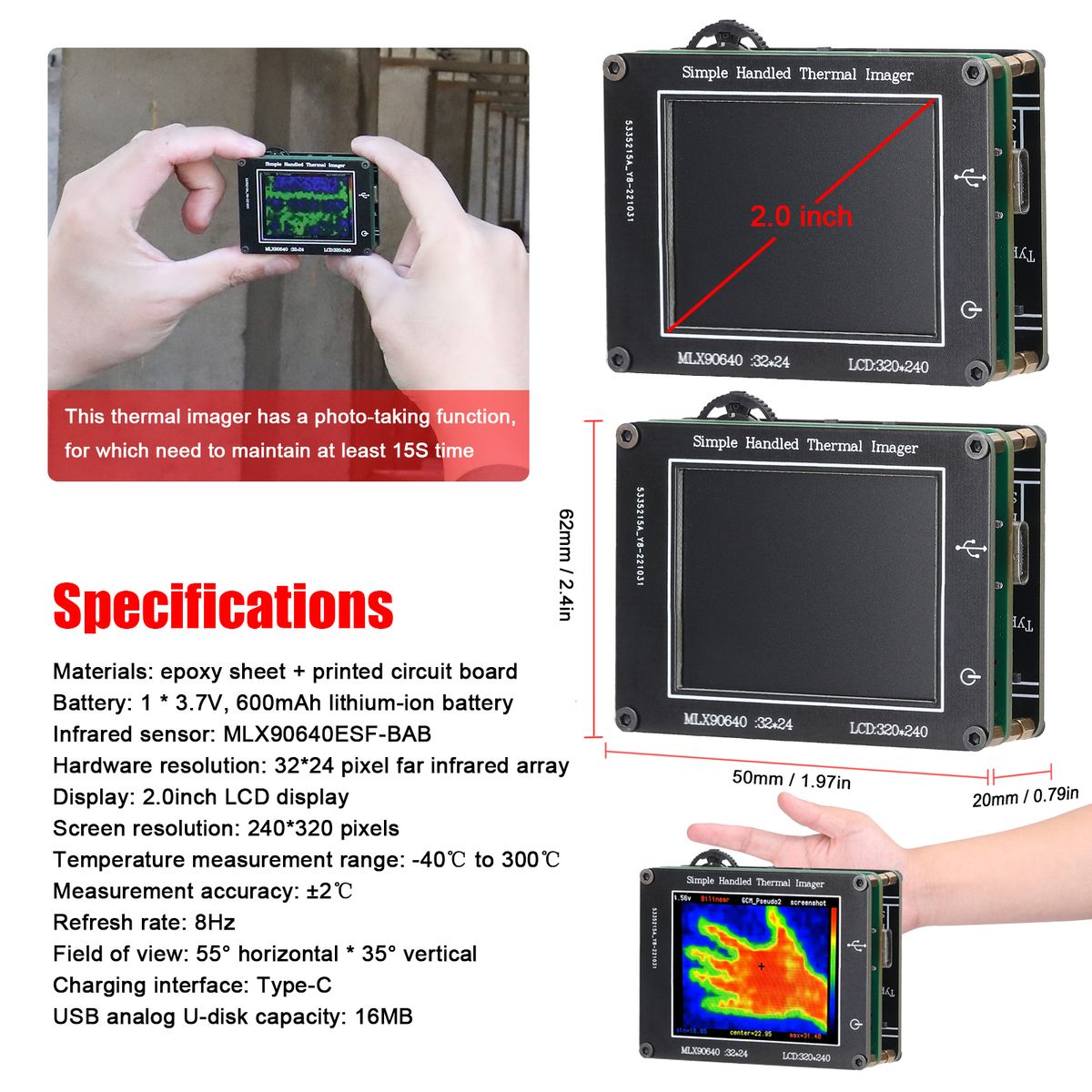

Specifications:Name: Thermal Imager
Materials: epoxy sheet + printed circuit board
Battery: 1 * 3.7V, 600mAh lithium-ion battery
(included)Infrared sensor: MLX90640ESF-BAB
Hardware resolution: 32*24 pixel far infrared array
Display: 2.0inch LCD display
Screen resolution: 240*320 pixels
Temperature measurement range: -40℃ to 300℃
Measurement accuracy: ±2℃
Refresh rate: 8Hz
Field of view: 55° horizontal * 35° vertical
interface: Type-C
USB analog U-disk capacity: 16MB
Item size: 62 * 50 * 20mm / 2.44 * 1.97 * 0.79in
Item weight: 70g / 2.47ounce
Package size: 110 * 80 * 50mm / 4.33 * 3.151 * 1.97in
Package weight: 80g / 2.82ounce
Packing List:1 * Thermal Imager
1 * Cable
Key Features
a compact size and is lightweight. Adopt infrared sensor, 32x24 pixel far infrared array, clearly imaging. 2.0 inch large LCD color screen, with 240x320 resolution, clearly displays and tracks the maximum temperature, the minimum temperature, and the center point temperature. It can be used in various situations and is an indispensable tool for household and industrial use.
a compact size and is lightweight. Adopt infrared sensor, 32x24 pixel far infrared array, clearly imaging. 2.0 inch large LCD color screen, with 240x320 resolution, clearly displays and tracks the maximum temperature, the minimum temperature, and the center point temperature. It can be used in various situations and is an indispensable tool for household and industrial use.
a compact size and is lightweight. Adopt infrared sensor, 32x24 pixel far infrared array, clearly imaging. 2.0 inch large LCD color screen, with 240x320 resolution, clearly displays and tracks the maximum temperature, the minimum temperature, and the center point temperature. It can be used in various situations and is an indispensable tool for household and industrial use.
a compact size and is lightweight. Adopt infrared sensor, 32x24 pixel far infrared array, clearly imaging. 2.0 inch large LCD color screen, with 240x320 resolution, clearly displays and tracks the maximum temperature, the minimum temperature, and the center point temperature. It can be used in various situations and is an indispensable tool for household and industrial use.
a compact size and is lightweight. Adopt infrared sensor, 32x24 pixel far infrared array, clearly imaging. 2.0 inch large LCD color screen, with 240x320 resolution, clearly displays and tracks the maximum temperature, the minimum temperature, and the center point temperature. It can be used in various situations and is an indispensable tool for household and industrial use.
a compact size and is lightweight. Adopt infrared sensor, 32x24 pixel far infrared array, clearly imaging. 2.0 inch large LCD color screen, with 240x320 resolution, clearly displays and tracks the maximum temperature, the minimum temperature, and the center point temperature. It can be used in various situations and is an indispensable tool for household and industrial use.
What's In the Box
1 x Thermal Imager,1 x Cable
